Frigidaire FGFB74BJBA Manual de usuario

FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGFB74BJBA FGFB74BJ BLACK USA

FGFB74BJBB FGFB74BJ BLACK USA

Publication No.

5995343950

000925

-EN/SERVICE /CML

369

WIRING DIAGRAM # - 316002168

OWNER’S GUIDE # - 316135902

INSTALLATION GUIDE # - 316105822 GAS - RANGE

FGFB74BJBA

FGFB74BJBB

09/00 2

Publication number

5995343950 FGFB74BJBA,FGFB74BJBB

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGFB74BJBA,FGFB74BJBB 5995343950

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGFB74BJ (FGFB74BJBA)

B = FGFB74BJ (FGFB74BJBB)

POS. NO PART NO DESCRIPTION

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316021110 A B Screw,semi gimlet ,8-18 x 0.500 ,black

* 316105822 A B Instructions,installation

1 316028700 A B Shield-backguard,galv ,rear wall

2 316051600 A B Shield-backguard,inner

2A 316053802 A B Shield-backguard,inner/top

11 316083718 A B Trim-wrapper,black ,textured,w/hole

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

20 316131600 A B Clock/Timer,electronic

20* 316101503 A B Overlay-clock,black

23 316100301 A B Bracket-timer

24 # 316118100 A B Switch-oven light,rocker ,black

36 316109512 A B Knob-top valve,black

40 316009268 A B Panel-manifold,black

42 316055200 A B Trim-vent,black

56 316074907 A B Deflector-flue, black

09/00 4

Publication number

5995343950 FGFB74BJBA,FGFB74BJBB

CAUTION: Use the part number on all orders, not the position number.

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 09/00

Publication number

FGFB74BJBA,FGFB74BJBB 5995343950

CAUTION: Use the part number on all orders, not the position number.

BURNER

A = FGFB74BJ (FGFB74BJBA)

B = FGFB74BJ (FGFB74BJBB)

POS. NO PART NO DESCRIPTION

* 316048200 A B Screw-,hex washer head ,1/4-20 x 0.31 ,w/gasket

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 1/2 ,burner box

1 316113801 A B Manifold-pipe

2 # 316127500 A B Valve-top burner,small

2A # 316127502 A B Valve-top burner,large ,(2)

3 316001824 A B Harness-ignitor assy

4 # 316059612 A B Tube-burner,red ,RF

5 # 316059613 A B Tube-burner,green ,LF

6 # 316059614 A B Tube-burner,nat. ,RR

7 # 316059615 A B Tube-burner,black ,LR

8 # 316135701 A B Spark Module

10 # 5303935025 A B Burner Assy-top,sealed ,small ,9000 BTU

10A 5303935075 A B Burner Assy-top,sealed ,large ,

11,100 BTU,(2), includes ,11,37,44,45

11 316011200 A B Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B Tube,aluminum ,rgltr to manf ,with fittings

14 # 316091706 A B Regulator-pressure

14* 316021104 A B Screw-regulator/brkt, hex , 8-18 x 3/8 ,nick, 3

15 316091600 A B Bracket-regulator

16 # 316065003 A B Tube-valve to regulator,3/8

17 # 5303208499 A B Valve-safety,dual

18 # 3131290 A B Burner-oven

19 316119301 A B Ignitor-oven

20 3131284 A B Baffle-oven burner

21 5303013272 A B Nut, hex head sems

22 # 316065002 A B Tube-valve to mixer

23 # 08067935 A B Burner-broiler

24 # 316070400 A B Mixer Elbow

25 5303210379 A B Baffle-broiler

26 316119302 A B Ignitor-broil

37 316069301 A B Screw-burner mtg

44 5303210090 A B Orifice-top burner,small

45 316011100 A B Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B Plate-burner tube

47 # 5303286386 A B LP Conversion Kit

09/00 6

Publication number

5995343950 FGFB74BJBA,FGFB74BJBB

CAUTION: Use the part number on all orders, not the position number.

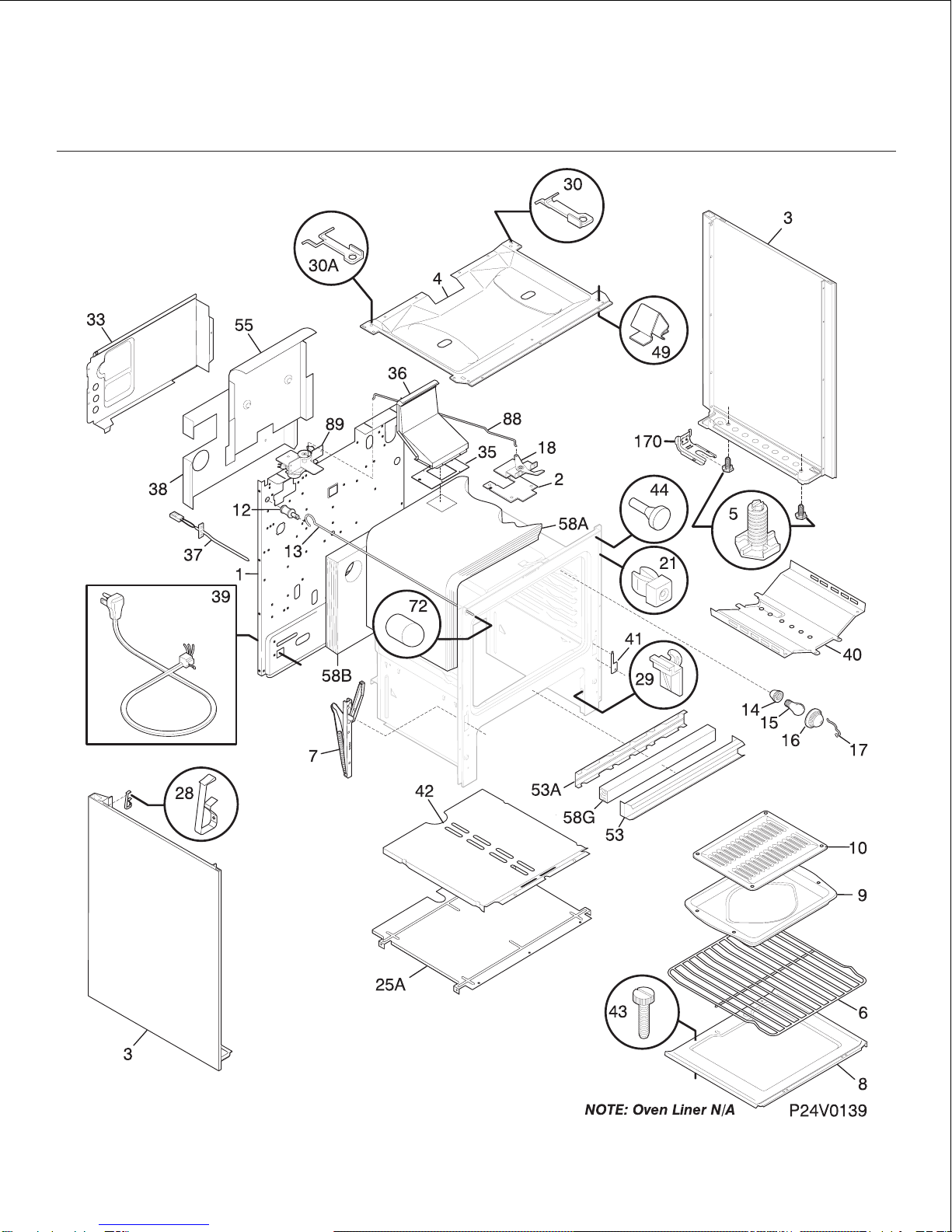

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 09/00

Publication number

FGFB74BJBA,FGFB74BJBB 5995343950

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGFB74BJ (FGFB74BJBA)

B = FGFB74BJ (FGFB74BJBB)

POS. NO PART NO DESCRIPTION

* 08067992 A B Shield-insulation

* 316001632 A B Wiring Harness,chassis

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

1 316029416 A B Back-main,1

2 3131314 A B Shield-oven top

3 316081038 A B Penel-bodyside, black, RH, textured

3 316081039 A B Panel-bodyside, black, LH, textured

4 316011917 A B Burner Box,with hole

5 316129200 A B Screw-leveling,plastic ,with stop

6 316067902 A B Rack-oven

7 316007005 A B Hinge-oven door, (2)

8 5303212540 A B Panel-oven bottom

8* 316064600 A B Support-oven bottom

9 316081900 A B Pan-broiler

10 316082000 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 316116400 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp, glass , oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside, (8)

25 5303288580 A B Shield-bake lower,lower

26 08067757 A B Cover Plate

28 3011813 A B Clip-wire, bodyside

29 3051162 A B Glide-drawer,front

30 316059200 A B Bracket-main top,RH

30A 316059201 A B Bracket-main top,LH

33 5303288495 A B Shield-rear wall

35 316116600 A B Gasket-flue

36 316133002 A B Flue

37 # 316111202 A B Probe-oven temp

38 316051700 A B Shield-heat

39 3202006 A B Cord-electric power

40 3200836 A B Shield-heat baffle

40* 5303288570 A B Screw-heat shield, hd shldr sqdr ,8-18 X 1/2

41 3131570 A B Cover-hinge cutout

42 5303288578 A B Shield-bake burner

43 3131732 A B Screw-oven bottom, 8-18 x 1.438

44 3131903 A B Bumper-door/drawer, rubber

49 3051124 A B Clip-spring mtg

55 316107800 A B Shield-flue

58A 316047708 A B Insulation, 2" ,oven wrapper

58B 316054200 A B Insulation, 2" ,oven back

58G 08067973 A B Insulation,main front

*069 5303288579 A B Shield,main front

72 5303285692 A B Cover-light/switch rod

88 316026400 A B Rod-latch,auto

89 # 316028101 A B Motor-latch/lock

BODY

09/00 8

Publication number

5995343950 FGFB74BJBA,FGFB74BJBB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 9 09/00

Publication number

FGFB74BJBA,FGFB74BJBB 5995343950

CAUTION: Use the part number on all orders, not the position number.

170 5303935180 A B Anti-tip Kit,w/bracket,screw

170* 316107200 A B Bracket,anti-tip

170* 316112500 A B Template, Anti-tip bracket

170* 316116000 A B Screw,concrete tpg ,1.75 inch ,

anti-tip brkt

09/00 10

Publication number

5995343950 FGFB74BJBA,FGFB74BJBB

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER
