Frigidaire PLCS389D Manual de usuario

PRODUCT NO. BASE MODEL NO. FACTORY NO. SERIES COLOR

PLCS389DCA PLCS389D 37957393H43S1 30" slide-in stainless

MARKET

North America

Publication No.

5995395497

030910

-EN/SERVICE /ECL

377

DUAL FUEL

RANGE

Model No.

PLCS389D

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318045091

OWNER’S GUIDE - # 318200873

TIMER INSTRUCTION SHEET - # 318200195

INSTALLATION INSTRUCTIONS - # 318201661

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

09/03 2

Publication No. PLCS389DCA

5995395497

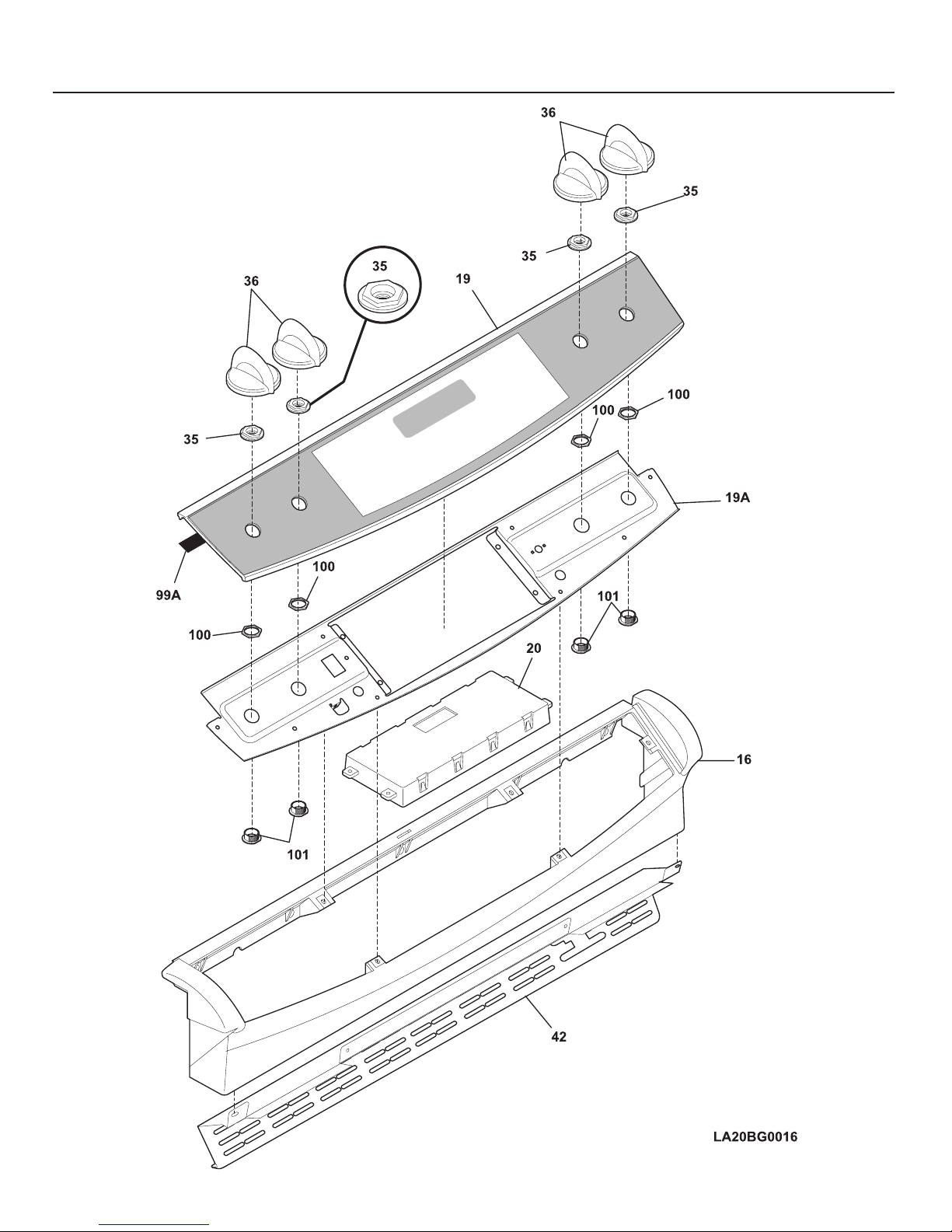

BACKGUARD

# = Functional Parts 3 09/03

* = Non-Illustrated Parts

PLCS389DCA Publication No.

5995395497

BACKGUARD

POS. NO PART NO DESCRIPTION

16 318235001 Console,assy. ,black ,w/ end caps

19 318239701 Panel,control assy. ,black/stainless ,w/ membrane

19A 318224404 Panel,control mtg.

20 # 316272206 Clock/Timer,electronic ,ES500/ES550

35 318233710 Retainer,control panel ,black

36 318229311 Knob,control ,black

42 318224301 Trim,vent ,black ,bottom

99A 318223900 Gasket,dark grey

100 318233800 Nut,hex

101 318233400 Bushing,retainer

* 218490900 Cleaner,stainless steel

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

09/03 4

Publication No. PLCS389DCA

5995395497

BURNER

# = Functional Parts 5 09/03

* = Non-Illustrated Parts

PLCS389DCA Publication No.

5995395497

BURNER

POS. NO PART NO DESCRIPTION

1 # 318226100 Pipe,manifold

2 # 318233920 Valve,top burner ,11000 btu

2A # 318233930 Valve,top burner ,14000 BTU

2B # 318233900 Valve,top burner ,5000 BTU

2C # 318233910 Valve,top burner ,9500 BTU

3 # 318232600 Wiring Harness,w/igntr switch

8 # 316135701 Module,spark

10 # 316212300 Burner,sealed ,11K

10A# 316223400 Burner,sealed ,14K

10B# 316206400 Burner,sealed ,5K

10C# 316212400 Burner,sealed ,9.5K

11 # 318221310 Ignitor/orifice assy.,top burner ,LH rear,11K ,w/holder-tube

11A# 318221314 Ignitor/orifice assy.,top burner ,RH front,14K ,w/holder-tube

11B# 318221312 Ignitor/orifice assy.,top burner ,RH rear,5K ,w/holder-tube

11C# 318221311 Ignitor/orifice assy.,top burner ,LH front,9.5K ,w/holder-tube

13 # 318233500 Tube,rgltr to manf ,w/ fittings

14 # 318122700 Regulator,pressure

15 318122901 Bracket,regulator

37 316240600 Screw,assy mtg ,ignitor/orifice

44 316237901 Orifice,top burner ,11K

44A 316237900 Orifice,top burner ,14K

44B 316237903 Orifice,top burner ,5K

44C 316237902 Orifice,top burner ,9.5K

72 316215600 Screw,valve mtg. ,1/4 - 20

77 318192600 Bracket,burner mtg

* 318186901 LP Conversion Kit

* 5303211311 Screw,8 x 0.500

09/03 6

Publication No. PLCS389DCA

5995395497

BODY

# = Functional Parts 7 09/03

* = Non-Illustrated Parts

PLCS389DCA Publication No.

5995395497

BODY

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

1A 318225100 Panel,main back ,upper

2A 318227600 Shield,oven top

3 318225200 Panel,bodyside ,upper RH

3A 318225201 Panel,bodyside ,upper LH

3B 318160010 Panel,body side ,lower RH

3C 318160011 Panel,body side ,lower LH

5 318175503 Screw,leveling

6 318025304 Rack,oven

6A 318219500 Rack,broiler pan

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 # 318089914 Switch,light

14 318224000 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

25 318179108 Shield,heat ,lower

37 # 316217002 Probe,oven temp

41 5303310526 Cover,hinge cutout

54 318222400 Housing,oven light

56 318225902 Trim,oven ,black

58A 318133783 Insulation,oven wrapper

58B 318133785 Insulation,oven back

59 318072534 Tube,vent ,oven

62 5303935061 Terminal Block Kit

63 316208500 Plate,grounding strap

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 318194400 Shield,insulation

76 318225302 Front,oven

80 5303320846 Plate,oven mtg

81 318192400 Spring,oven

83 318089616 Liner,oven complete

86 5303310524 Receptacle,hinge

86* 318246500 Deflector,RH

86* 318246600 Deflector,LH

87 318111803 Plate,mounting

88 318118904 Rod,latch

89 # 318095937 Motor,latch assy ,w/brkt & switch

89* 318120711 Switch

102 5303311142 Support,oven front

107 318219401 Cover,fan

108# 318073016 Motor,blower

109 316136400 Blade,fan

111 316136600 Nut,fan retainer

125# 316136300 Motor,fan

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

134 5303310515 Panel,wiring cover ,rear

141# 318005201 Switch,thermal cutout

141B 318003607 Thermostat,safety

142 318123901 Deflector

161# 318050710 Element,convection ,2500 W

170 5304405244 Anti-tip & accessories

191 5303304030 Bracket,angle ,corner

219# 318112701 Relay

263 316136500 Washer,fan motor

273 5303311207 Tube,protector

284 318226600 Box,vent tube

285 318236200 Shield,hidden wires

* 5304400795 Bushing,snap-in ,nylon

* 318226300 Clip,wiring

* 318235300 Connector assy.,w/3 lugs ,& instructions

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

09/03 8

Publication No. PLCS389DCA

5995395497

TOP/DRAWER

# = Functional Parts 9 09/03

* = Non-Illustrated Parts

PLCS389DCA Publication No.

5995395497

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 318142500 Drawer,warmer

1A 318143335 Deflector,warmer drawer ,RH

1B 318143334 Deflector,warmer drawer ,LH

1C 318143203 Deflector,warmer drawer ,rear

2 318108025 Liner,drawer

4 318107903 Panel,drawer ,stainless

6 318229900 Cover,wiring

13 316105602 Glide,warmer ,inner RH

13A 316105601 Glide,warmer ,inner LH

16 318223700 Main Top,assy. ,glass ,black

20 # 318231400 Grate,black ,(2)

20A 318231500 Grate,black ,center

22 316242800 Cap,11K burner ,black

22A 316219800 Cap,14K burner ,black

22B 316206500 Cap,5K burner ,black

22C 316242900 Cap,9.5K burner ,black

31 316242001 Seal,11K burner

31A 316242000 Seal,14K burner

31B 316242003 Seal,5K burner

31C 316242002 Seal,9.5K burner

39 318219800 Handle,door/drawer ,stainless

46 318225401 Box,burner

60 5303311174 Screw,10-24 x 3/8

72 318113403 Bracket,slide ,(2)

80 318054310 Gasket,warmer drawer

81 # 318112400 Element,warmer drawer

84 # 318005103 Thermostat,safety

85 316093600 Rack,warmer drawer

86 316095800 Clip,hold down ,warmer element

87 318121503 Base,warmer

95 318143702 Cover,wire

124 316105500 Glide,warmer drawer ,outer/RH & LH ,(2)

125 3201909 Washer

153 316241701 Skirt,11K burner ,black

153A 316264901 Skirt,14K burner ,black

153B 316241901 Skirt,5K burner ,black

153C 316241801 Skirt,9.5K burner ,black

165 318227500 Plate,mounting

193 5303325173 Cap,plug

* 218490900 Cleaner,stainless steel

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303300265 Screw,8-18 x 0.500 ,chrome

09/03 10

Publication No. PLCS389DCA

5995395497

DOOR
