Frigidaire FGF328F Manual de usuario

FGF328F.eps T24G0024.eps T24B0014.eps T24V0048.eps L24T0011.eps T24D0025.eps

316255201D.eps 316255201S.eps

Product No. FGF328FSA

Series 30" f/s gas

Color white

Market North America

Wiring Diagram 316255201

Owner's Guide 316257511

Installation Instructions 316259336

Service Data Sheet 316218502

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995462271

06/02/27

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGF328F

Publication No: 5995462271 FGF328FSA

02/06 2

BACKGUARD

FGF328FSA Publication No: 5995462271

# Functional Parts 3 02/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

15 316411403 Support, backguard, white, RH

15A 316411402 Support, backguard, white, LH

19 316445219 Panel, backguard, white

20 # 316222802 Clock/Timer, electronic, ES100

20A 316220700 Overlay, clock, white

23 316441600 Bracket-clock mtg, black

24 # 316448701 Switch, rocker, white, oven light

36 316220000 Knob, top valve, white, (4)

40 316204989 Panel, manifold, white

42 316270601 Trim, extrusion, grey

56 316230701 Shield, backguard, inner

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995462271 FGF328FSA

02/06 4

BURNER

FGF328FSA Publication No: 5995462271

# Functional Parts 5 02/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316446800 Manifold Pipe

2 # 5303935232 Valve, 9.5k/12k burner, w/mtg screw

2C # 5303935234 Valve, 9.5K burner, w/mtg screw

* 316215600 Screw, valve mtg., 1/4 - 20

3 # 316219004 Wiring Harness, w/igntr switch

8 # 316135701 Module, spark

10 # 316212300 Burner, sealed, 12K

10C# 316212400 Burner, sealed, 9.5K

11 # 316237801 Ignitor/orifice assy., top burner, front, 12K, w/holder, tube

11B# 316237701 Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube

11C# 316237800 Ignitor/orifice assy., top burner, front, 9.5K, w/holder, tube

13 316447100 Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 Bracket, regulator

16 316065006 Tube, valve to regul, 3/8

17 # 3203459 Valve, safety

18 # 316114300 Burner, oven

19 # 5303935066 Ignitor, oven kit, w/nut & instr

19*# 316119301 Ignitor-oven

20 3203265 Baffle, oven burner

21 5303013272 Nut, hex head sems

37 316240600 Screw, assy mtg, ignitor/orifice

44 316237901 Orifice, top burner, 12K

44C 316237902 Orifice, top burner, 9.5K

47 GRLP2 LP Conversion Kit, w/instructions

47* 316248105 Instructions, LP kit

48 3018603 Bracket, support, oven burner

49 3131438 Bracket, safety valve

* # 316253700 Wiring Harness, ignitor module

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995462271 FGF328FSA

02/06 6

BODY

FGF328FSA Publication No: 5995462271

# Functional Parts 7 02/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316029415 Panel, main back

3 316400116 Panel, bodyside, white, RH

3 316400117 Panel, bodyside, white, LH

4 316447000 Bracket, chassis support, rear

4A 316446900 Bracket, chassis, front, (2)

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316067902 Rack, oven

7 316216502 Hinge, oven door, RH

7A 316216503 Hinge, oven door, LH

8 5303300701 Panel, oven bottom

8* 316064600 Support, oven bottom

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

30 316217700 Bracket, hinge, RH, main top

30A 316217701 Bracket, hinge, LH, main top

33 316055600 Shield, spark module, galv steel

34 3018607 Plate, cover

35 316116600 Gasket, flue

36 316208902 Flue, black

37 # 316233900 Probe, oven temp

39 3202006 Cord, electric power

41 316233400 Cover, hinge cutout, RH

41A 316233500 Cover, hinge cutout, LH

43 3131732 Screw, 8-18 x 1.438, oven bottom

49 316234200 Clip, maintop mtg, (2)

54 5303271606 Housing, oven light

55 5303289358 Shield, flue

58A 3017142 Insulation, oven wrapper

58B 316054202 Insulation, 1", oven back

73 316109902 Base, low broil

93 316110000 Shield, ignitor, metal

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* # 316253308 Harness, main

* 316435800 Plate, weight, (3)

* 5303321319 Paint, touch-up, white

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995462271 FGF328FSA

02/06 8

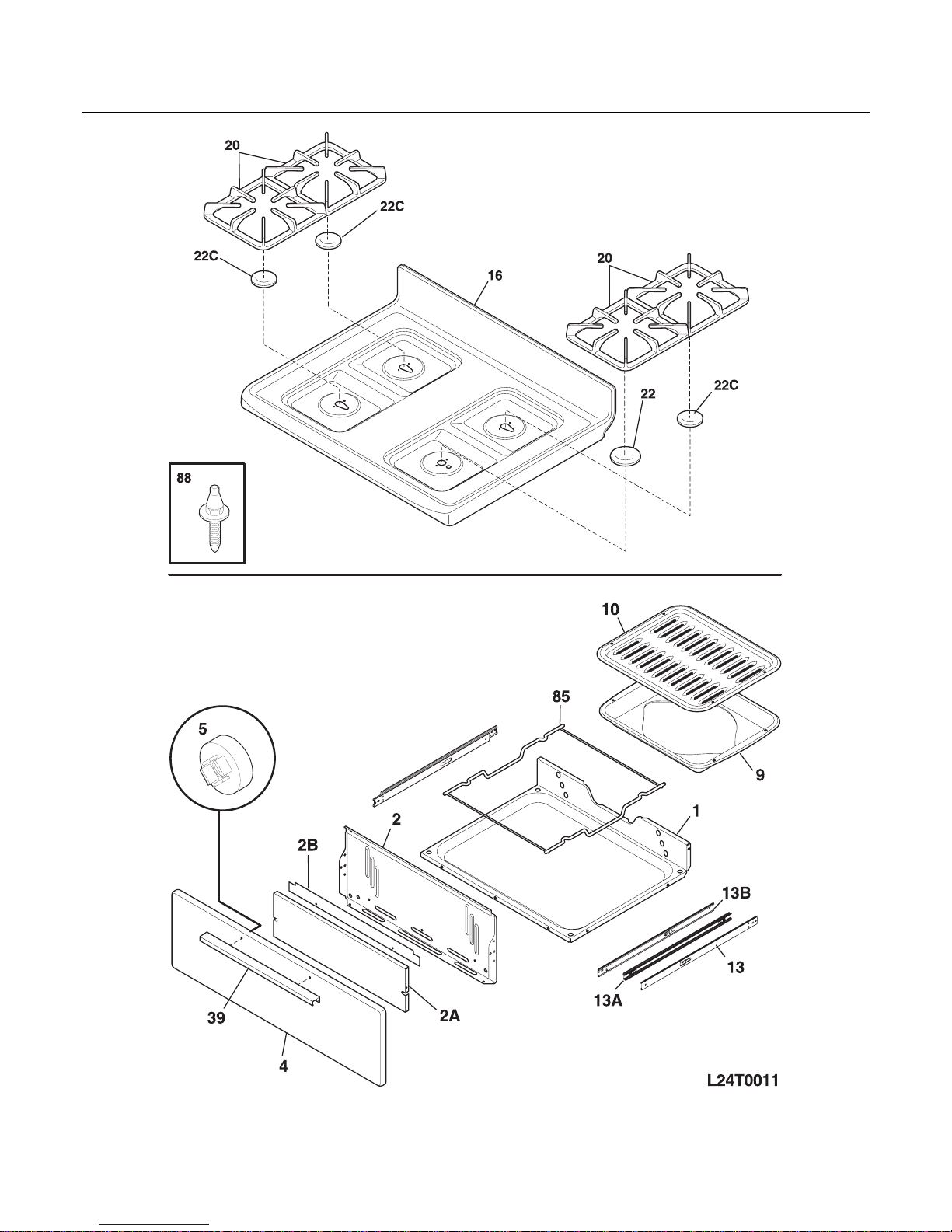

TOP/DRAWER

FGF328FSA Publication No: 5995462271

# Functional Parts 9 02/06

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316110201 Carriage, low broil

2 316236401 Liner, low broil

2A 316110800 Shield, broiler

2B 316237600 Shield, low broil, top

4 316231211 Panel, drawer, white

5 316129100 Fastener, push-in nut, nylon, spacer

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

13 316111502 Glide, low broil, chassis

13A 316111600 Glide, low broil, inner

13B 316111501 Glide, low broil, outer

16 316202332 Main Top, white

20 316213800 Grate, black

22 316213600 Cap, 12K burner, black

22C 316213500 Cap, 9.5K burner, black

39 316019511 Handle, drawer, white

85 316115600 Rack, low broil

88 316099500 Pin, guide, (2)

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021120 Screw, shoulder head, 8-18 x 5/8, (2), square drive

Publication No: 5995462271 FGF328FSA

02/06 10

DOOR
