Frigidaire FEF402B Manual de usuario

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FEF402BWA FEF402B 38154515C2011 white North America

Publication No.

5995371852

020510

-EN/SERVICE /ECL

377

ELECTRIC

RANGE

Model No.

FEF402B

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318045317

OWNER’S GUIDE - # 318200706

TIMER INSTRUCTION SHEET - # 318200140

INSTALLATION INSTRUCTIONS - # 318200870

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

05/02 2

Publication No. FEF402BWA

5995371852

BACKGUARD

# = Functional Parts 3 05/02

* = Non-Illustrated Parts

FEF402BWA Publication No.

5995371852

BACKGUARD

POS. NO PART NO DESCRIPTION

1 318086900 Shield,backguard

14 5303323991 Lamp,indicator

15 318161900 Bracket,end cap ,RH

15A 318161901 Bracket,end cap ,LH

18 318190602 End Cap,white ,RH

18A 318190603 End Cap,white ,LH

19 318194100 Panel,control ,white

20 # 318185300 Clock/Timer,EOC ,white

23 318015044 Bracket,clock/timer mtg

24 # 316005607 Switch,rocker ,white

36 318196633 Knob,control ,white

46 5308006417 Lens,indicator lamp ,red ,(2)

54 # 318220006 Switch,surface unit ,small

54A# 318220007 Switch,surface unit ,large

69 5303323134 Screw,switch mtg. ,8-32 x 0.188

99 5303304544 Spacer,end cap mtg.

* 318082978 Wiring Harness

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

05/02 4

Publication No. FEF402BWA

5995371852

BODY

# = Functional Parts 5 05/02

* = Non-Illustrated Parts

FEF402BWA Publication No.

5995371852

BODY

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

3 5308012527 Panel,bodyside ,white ,RH

3A 318066003 Panel-bodyside,white ,LH

4 318073705 Burner Box

5 318175503 Screw,leveling

6 318025303 Rack,oven

6A 08011960 Rack-oven, small

8 5303326189 Panel-oven bottom

8A 318179107 Panel,heat shield ,sm oven bottom

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 318089910 Switch,oven light ,door frame

14 # 5308011085 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

29 318161600 Guide,oven drawer ,nylon ,front

30 318023917 Bracket,main top

37 # 318198500 Probe,oven temp

41 5303310526 Cover,hinge cutout

45 318057401 Panel,wiring shield

54 5303310514 Housing,oven light

57 318055701 Panel,small oven back

58A 318133700 Insulation,oven wrapper

58B 318133747 Insulation,oven back

59 318072527 Tube,vent ,oven

62 # 5303310518 Terminal Block

62* 5303323144 Nut,10-32

63 5303310517 Plate,ground strap

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

74 318147420 Bumper,base

76 318056004 Frame,oven ,front

77 318018000 Rail,drawer glide ,RH

77A 318018001 Rail,drawer glide ,LH

80 5303324473 Bracket,oven mounting

81 318192400 Spring,oven

83 318089613 Liner,oven

84 5303326184 Gusset,RH rear

84A 5303326185 Gusset,LH rear

84B 318055901 Gusset,rear

86 5303310524 Receptacle,hinge

87 318111800 Plate,cord set mtg

102 318111901 Channel,oven support ,black

127 5303310542 Adapter,vent tube ,with converter

134 5303310515 Panel,wiring cover ,rear

135 318072401 Partition-center

136 5301315199 Glide-storage rack

137 318090300 Latch,door

170 5304405241 Anti-tip bracket

191 5303304030 Bracket,angle ,corner

217 318112102 Plate,warning

260 318055500 Bracket,gusset support

262 08011954 Channel,oven support ,front

* 5303051099 Nut,hex ,10-32

* 5305151612 Nut,10-24

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

05/02 6

Publication No. FEF402BWA

5995371852

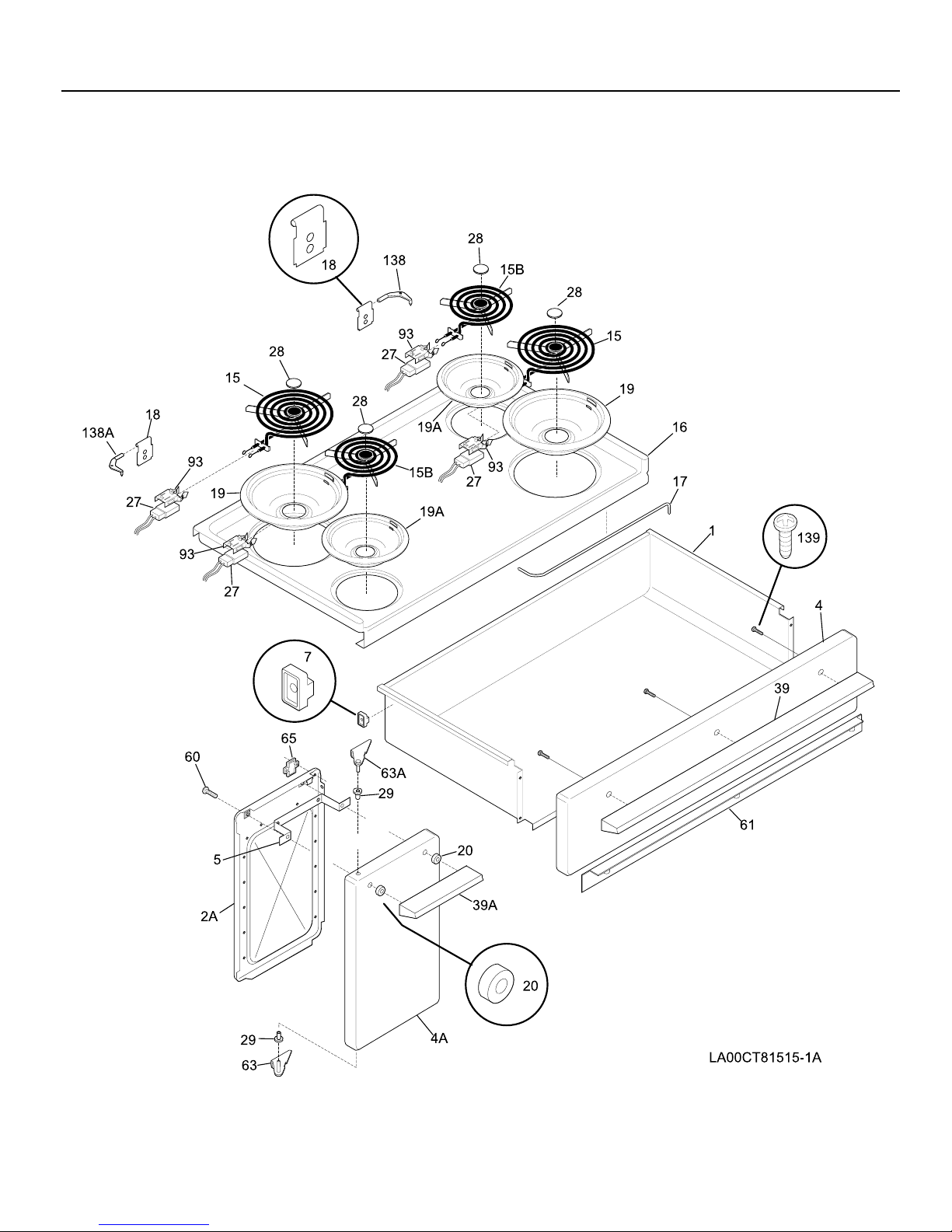

TOP/DRAWER/SMALL DOOR

# = Functional Parts 7 05/02

* = Non-Illustrated Parts

FEF402BWA Publication No.

5995371852

TOP/DRAWER/SMALL DOOR

POS. NO PART NO DESCRIPTION

1 3202108 Drawer,utility

2A 318048213 Liner,inner door ,small oven

4 08011980 Panel,drawer ,white ,front

4A 318009308 Panel-oven door,white ,small

5 318014500 Spacer,door handle

7 5303326236 Guide,drawer

15 # 5303309001 Element,surface ,large/8 inch ,2600 W ,240 V

15B# 5303309000 Element,surface ,small/6 inch ,1500 W

16 08011961 Panel,main top ,white

17 3051554 Rod,support ,main top panel

18 318186400 Retainer,hinge pin

19 # 318067056 Pan,surface element ,large ,chrome

19A# 318067046 Pan,surface element ,small ,chrome

20 5303310504 Spacer,handle ,oven door ,(2)

27 # 5303323704 Terminal Block,surface element

28 5303309002 Medallion,surface element ,center trim

29 318141800 Spacer,hinge pin ,upper/lower

39 318185901 Handle,drawer ,black

39A 318185903 Handle,small oven door ,black

60 5303323139 Screw,10-24 x 0.906

61 318107700 Toeplate

63 318024508 Hinge,door ,lwr small oven ,lower

63A 318024509 Hinge,door ,upr small oven

65 318090220 Strike,door

93 318122500 Support,terminal block ,(4)

138 5301315631 Pin,hinge ,RS cooktop

138A 3051658 Pin,hinge ,LS cooktop

139 5303311135 Screw-handle,8-32 x 3/4 ,(2)

* 318086002 Washer,flat ,steel

* 3051070 Screw,hex washer head ,10-24 x 0.438 ,special

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 5303211311 Screw,8 x 0.500

* 5303317975 Screw,10 x 1/2

05/02 8

Publication No. FEF402BWA

5995371852

OVEN DOOR

# = Functional Parts 9 05/02

* = Non-Illustrated Parts

FEF402BWA Publication No.

5995371852

OVEN DOOR

POS. NO PART NO DESCRIPTION

5 5303310508 Glass,oven door ,tinted ,inner

9 318048708 Liner,oven door

10 5303307980 Screw,8-32 x 0.437

12 318053301 Seal,oven door

13 318009101 Panel-oven door

15 318024010 Bracket,oven glass mtg ,RS

15A 318024011 Bracket,oven glass mtg ,LS

16 318041620 Glass,oven door ,heat barrier

18 318053203 Gasket,door glass seal ,outer

20 5303310504 Spacer,handle ,oven door ,(2)

22 5303310511 Bar,glass retainer

23 5303325091 Hinge,oven door

39 318185902 Handle,oven door ,black

54 5303317975 Screw,10 x 1/2

55 318122300 Bracket,glass support

* 318086002 Washer,flat ,steel

* 5303211311 Screw,8 x 0.500

05/02 10

Publication No. FEF402BWA

5995371852

WIRING DIAGRAM
