Frigidaire GLGFM96FP Manual de usuario

GLGFM96FP.eps T24G0028.eps T24B0017.eps T24V0066.eps T24T0051.eps

T24D0036.eps 316255208d.eps 316255208s.eps

Product No. GLGFM96FPBA GLGFM96FPWA

Series 30" f/s gas 30" f/s gas

Color black white

Market North America North America

Owner's Guide 316417113 316417113

Installation Instructions 316461800 316461800

Service Data Sheet 316441707 316441707

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995464699

06/04/06

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

GLGFM96FP

Publication No: 5995464699 GLGFM96FP

04/06 2

BACKGUARD

GLGFM96FP Publication No: 5995464699

# Functional Parts 3 04/06

* Non-Illustrated Parts

BACKGUARD

Model Index: AGLGFM96FP (GLGFM96FPWA)

BGLGFM96FP (GLGFM96FPBA)

POS. NO PART NO. DESCRIPTION

1 316416100 A B Shield, backguard, rear wall

2 316051600 A B Shield, backguard, inner

2A 316235100 A B Shield, top, inner

13 316414405 A B Control, bake, mini oven

14A 316022500 A B Light/Lamp, indicator, 125 V

15 316411403 A - Support, backguard, white, RH

15 316411405 - B Support, backguard, black, RH

15A 316411402 A - Support, backguard, white, LH

15A 316411404 - B Support, backguard, black, LH

19 316436219 A - Panel, control, white

19 316436220 - B Panel, control, black

20 # 316418706 A B Clock/Timer, electronic, ES510

20A 316419701 A - Overlay, clock, white, w/mini oven, ES510

20A 316419700 - B Overlay, clock, black, w/mini oven, ES510

31 316223017 A - Knob, control, white

31 316223019 - B Knob, control, black

36 316220000 A - Knob, top valve, white, (4)

36 316220002 - B Knob, top valve, black, 4

40 316447322 A - Panel, manifold, white

40 316447320 - B Panel, manifold, black

42 316416201 A - Trim, extrusion, gray

42 316416200 - B Trim, extrusion, black

46 316040201 A B Lens, indicator light, red

55 316247700 A B Nut, hex control mtg

55A 316247800 A B Washer, lock, control mtg

56 316230701 A B Shield, backguard, inner

* 316416921 A B Harness, mini oven cntl

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 A B Screw, 8-18 x 0.5, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

Publication No: 5995464699 GLGFM96FP

04/06 4

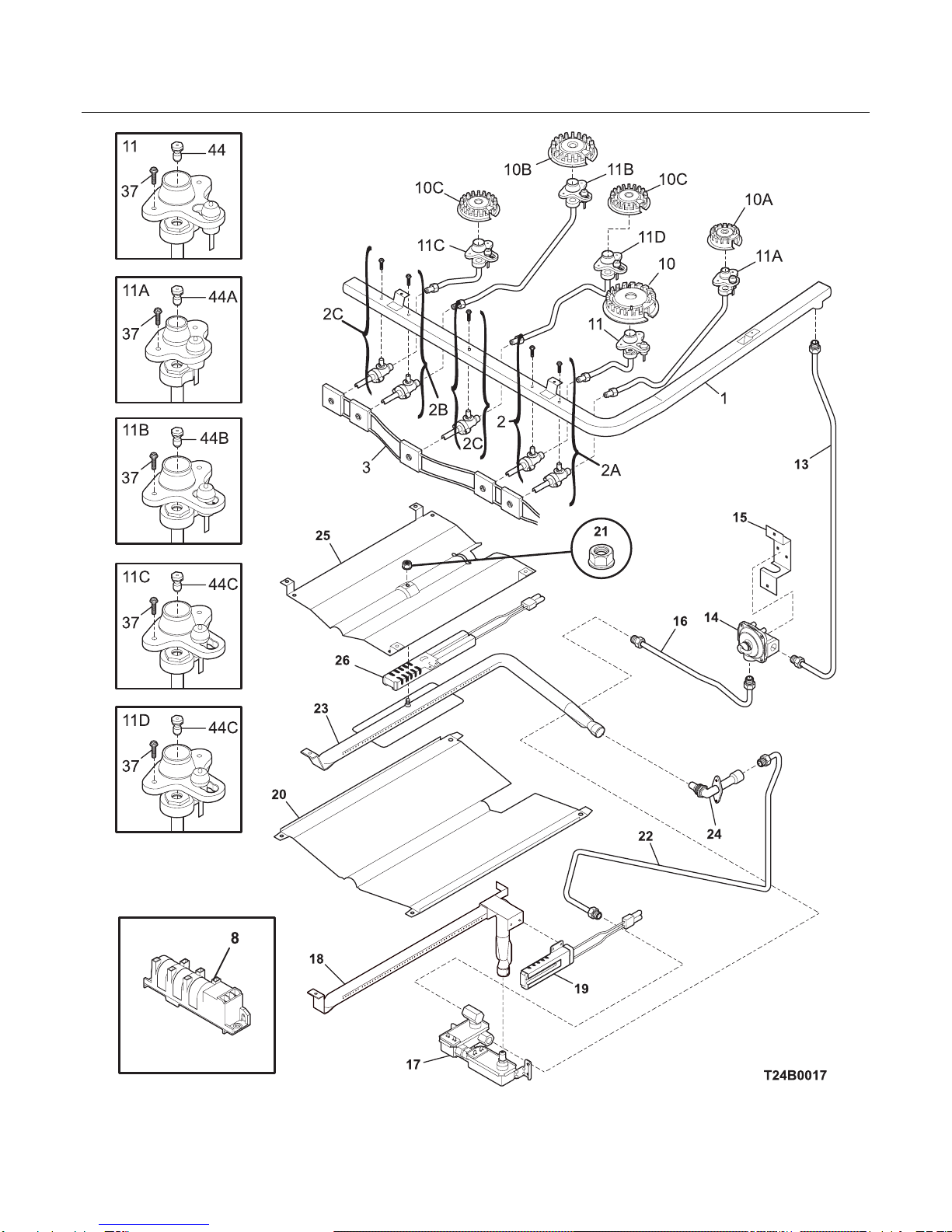

BURNER

GLGFM96FP Publication No: 5995464699

# Functional Parts 5 04/06

* Non-Illustrated Parts

BURNER

Model Index: AGLGFM96FP (GLGFM96FPWA)

BGLGFM96FP (GLGFM96FPBA)

POS. NO PART NO. DESCRIPTION

1 # 316219501 A B Pipe, manifold

2 # 5303935233 A B Valve, 17K burner, w/mtg screw

2A # 5303935235 A B Valve, 5K burner, w/mtg screw

2B # 5303935232 A B Valve, 9.5k/12k burner, w/mtg screw

2C # 5303935234 A B Valve, 9.5K burner, w/mtg screw

* 316215600 A B Screw, valve mtg., 1/4 - 20

3 # 316219006 A B Wiring Harness, w/igntr switch

8 318079001 A B Module, spark

10 # 316223300 A B Burner, sealed, 17K

10A# 316206400 A B Burner, sealed, 5K

10B# 316212300 A B Burner, sealed, 12K

10C# 316212400 A B Burner, sealed, 9.5K

11 # 316430500 A B Ignitor/orifice assy., top burner, right front, 16K, w/holder, tube

11A# 316430800 A B Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube

11B# 316430401 A B Ignitor/orifice assy., top burner, left rear, 12K, w/holder, tube

11C# 316237800 A B Ignitor/orifice assy., top burner, front

11D# 316430700 A B Ignitor/orifice assy., top burner, center, 9.5K, w/holder, tube

13 # 316405300 A B Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 A B Regulator, pressure

14* 316021104 A B Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 A B Bracket, regulator

16 # 316405500 A B Tube, valve to regul., 3/8

17 # 316404901 A B Valve, safety

18 # 316404400 A B Burner, oven

19 # 316428501 A B Ignitor, oven burner

20 316401401 A B Baffle, oven burner

21 5303013272 A B Nut, hex head sems

22 # 316405401 A B Tube, valve to mixer

23 # 316404300 A B Burner, broiler

24 # 316409700 A B Elbow, mixer

25 316401301 A B Baffle, broil burner

26 # 316428601 A B Ignitor, burner

26* 316401500 A B Cover, broil Ignitor

37 316240600 A B Screw, assy mtg, ignitor/orifice

44 316237912 A B Orifice, top burner, 16K

44A 316237903 A B Orifice, top burner, 5K

44B 316237901 A B Orifice, top burner, 12K

44C 316237902 A B Orifice, top burner, 9.5K

* # 316253702 A B Wiring Harness, ignitor module

* # 316064103 A B Wire, ground assembly

* 316001003 A B Screw, ground wire

* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995464699 GLGFM96FP

04/06 6

BODY

GLGFM96FP Publication No: 5995464699

# Functional Parts 7 04/06

* Non-Illustrated Parts

BODY

Model Index: AGLGFM96FP (GLGFM96FPWA)

BGLGFM96FP (GLGFM96FPBA)

POS. NO PART NO. DESCRIPTION

1 316401602 A B Back, main

2 316402201 A B Shield, oven top

2* 316437100 A B Brace, oven top

3 316400116 A - Panel, bodyside, white, RH

3 316400117 A - Panel, bodyside, white, LH

3 316400118 - B Panel, bodyside, black, RH

3 316400119 - B Panel, bodyside, black, LH

4 316201403 A B Burner Box

5 316272900 A B Screw, leveling, plastic, rear, (2)

5A 316407201 A B Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404501 A B Rack, oven

6A 318219500 A B Rack, broiler pan

8 316400603 A B Panel, oven bottom

9 316081900 A B Pan, broiler

10 316082000 A B Insert, broiler pan

12 316445500 A B Switch, oven light, door frame

14 316116400 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 316087500 A B Retainer, lens

18 # 316405800 A B Latch Assembly, oven door

21 316408000 A B Clip, bodyside

30 316217700 A B Bracket, hinge, RH, main top

30A 316217701 A B Bracket, hinge, LH, main top

33 316402500 A B Shield, rear wall

35 316116600 A B Gasket, flue

36 316208901 A B Flue

37 # 316217001 A B Probe, oven temp

39 # 3131425 A B Cord, electric power

42 316400703 A B Shield, wool, lower

43 3131732 A B Screw, 8-18 x 1.438, oven bottom

44 316246501 A B Spacer, oven door

49 316234200 A B Clip, maintop mtg, (2)

54 316404200 A B Shield, heat

55 316404800 A B Shield, flue

57 316451100 A B Cover, access, w/ holes

57A 316451101 A B Cover, access, w/o holes

58A 316403700 A B Insulation, oven wrapper

58B 316403600 A B Insulation, oven back

58G 08067973 A B Insulation, main front

77 316451200 A B Plate, mounting, safety valve

82 316400801 A B Shield, bake burner

82* 316432800 A B Clip, wire

86 316441300 A B Receptacle, hinge

86* 316418901 A B Screw, trilobe, 10-32 x 5/16"

87 316451000 A B Bracket, harness, mini oven

88 316232700 A B Rod, auto latch

89 # 316415400 A B Motor, latch/lock

90 316401100 A B Shield, main front

Publication No: 5995464699 GLGFM96FP

04/06 8

BODY

GLGFM96FP Publication No: 5995464699

# Functional Parts 9 04/06

* Non-Illustrated Parts

BODY

Model Index: AGLGFM96FP (GLGFM96FPWA)

BGLGFM96FP (GLGFM96FPBA)

POS. NO PART NO. DESCRIPTION

91 316401000 A B Shield, front, burner

106 316404100 A B Bracket, motor mtg.

107 316026701 A B Cover, fan

108# 316415700 A B Motor, convection

109 316136400 A B Blade, fan

110 316136500 A B Washer, flat

111 316136600 A B Nut, fan retainer

151 316404600 A B Shield, bodyside

161# 316211604 A B Element, convection fan, 200 W

164 316450301 A B Trim, front, mini oven

170 5303935180 A B Anti-tip Kit, w/bracket, screw

170* 316107200 A B Bracket, anti-tip

170* 316112500 A B Template, anti-tip

170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt

264 316404700 A B Bracket, air dam

* # 316416628 A B Harness, wiring, main

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

* 316021132 A B Screw, 8-18 X 11/16, black

* 316089500 A B Screw, 10-16 x .486

* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995464699 GLGFM96FP

04/06 10

TOP/DRAWER
