Frigidaire PLCS388E Manual de usuario

PLCS388EC.eps LA20BG0051.eps LA20BR0018.eps BPLES389ECB.eps

LA20CT0059.eps DPLES389ECB.eps 318271904.eps

Product No. PLCS388ECA

37957361J63S1

Series 30" slide-in

Color stainless

Market North America

Wiring Diagram 318271904

Owner's Guide 318203862

Installation Instructions 318201671

Service Data Sheet 318127021

Timer Guide 318204100

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995468054

06/06/13

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN GAS

RANGE

Model No.

PLCS388E

Publication No: 5995468054 PLCS388ECA

06/06 2

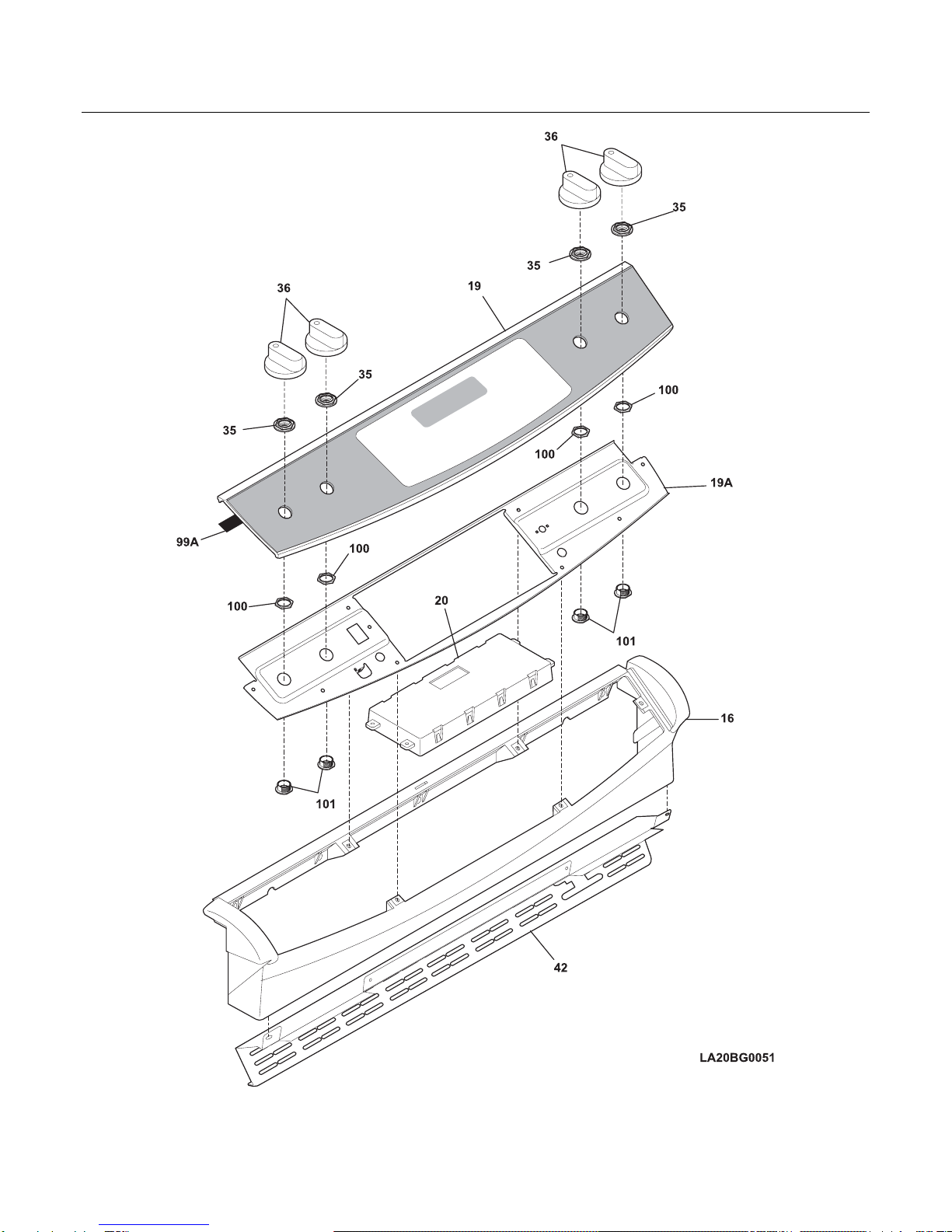

BACKGUARD

PLCS388ECA Publication No: 5995468054

# Functional Parts 3 06/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

16 318299102 Console, assy., black

19 318312242 Control Panel Assembly, w/membrane, stainless

19A 318224404 Panel, control mtg.

20 # 316418731 Clock/Timer, electronic, ES510

20* 5304453707 Screw, control mtg.

35 318233720 Retainer, control panel, black

36 318319302 Knob, control, black, (4)

42 318298001 Trim, vent, black, upper

99A 318223900 Gasket, dark grey

100 318233800 Nut, hex

101 318233400 Bushing, retainer

* # 318224813 Harness, wiring, timer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303311333 Screw, 8-32 x 3/8

Publication No: 5995468054 PLCS388ECA

06/06 4

BURNER

PLCS388ECA Publication No: 5995468054

# Functional Parts 5 06/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 318305600 Manifold, right side

1A 318305601 Manifold, left side

1B 318305410 Tube, manifold, 3/8, interconnect

2 # 318233930 Valve, top burner, 14000 BTU

2A # 318233940 Valve, top burner, 17000 BTU

2B # 318233900 Valve, top burner, 5000 BTU

2C # 318233910 Valve, top burner, 9500 BTU

3 # 318232600 Wiring Harness, w/igntr switch

10 # 316223400 Burner, sealed, 14K

10A# 316223300 Burner, sealed, 17K

10B# 316206400 Burner, sealed, 5K

10C# 316212400 Burner, sealed, 9.5K

11 318306106 Ignitor Assembly, 14K, left rear, w/tube & holder

11A 318306107 Ignitor Assembly, 16K, right front, w/tube & holder

11B 318306108 Ignitor Assembly, 5K, right rear, w/tube & holder

11C 318306104 Ignitor Assembly, 9.5K, left front, w/tube & holder

12 318369900 Bracket, support, (2)

13 318305110 Tube, regulator, to manifold

14 # 318122700 Regulator, pressure

14* 5303311306 Screw, 8-18 x 0.375, (3)

16 318590002 Panel, regulator mtg.

37 5303307980 Screw, 8-32 x 0.437, (4)

44 316237900 Orifice, top burner, 14K

44A 316237912 Orifice, top burner, 16K

44B 316237903 Orifice, top burner, 5K

44C 316237902 Orifice, top burner, 9.5K

72 316215600 Screw, valve mtg., 1/4 - 20

77 318192606 Bracket, burner mtg, (4)

300 318322300 Bracket, inlet, long, door

301 318322301 Bracket, inlet, short, block

* 318186909 LP Conversion Kit

* 318199725 Wiring Harness, ignitor

* 08011955 Screw, 10-24 x 0.375, square drive

* 5303211311 Screw, 8 x 0.500

Publication No: 5995468054 PLCS388ECA

06/06 6

BODY

PLCS388ECA Publication No: 5995468054

# Functional Parts 7 06/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259204 Back, main

1A 318225110 Panel, main back, upper

2 318258902 Shield, insulation, upper

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

5 318175503 Screw, leveling

6 318345208 Rack, oven

6A 318219500 Rack, broiler pan

8 318262001 Cover, element

8A 318318600 Bracket, element, hidden bake

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 5303935061 Terminal Block Kit

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

63 318264200 Plate, grounding strap

66 # 318255600 Element, broil, 2750W

67 318254901 Element, bake, 3400W, 8 pass

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258708 Shield, insulation, lower

83 318261400 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260609 Bracket, cable mtg.

87A 318111804 Plate, cord set mtg

89 # 318261209 Motor, latch assy

90 318296904 Panel, filler, black, RH

90A 318296905 Panel, filler, black, LH

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 318249401 Tube, protector

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

Publication No: 5995468054 PLCS388ECA

06/06 8

BODY

PLCS388ECA Publication No: 5995468054

# Functional Parts 9 06/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

112# 318112703 Relay

119# 318005202 Switch, thermal cutout

125# 316415800 Motor, fan

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

161# 318255503 Element, convection, 350 W

163 318014110 Spacer, (6)

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

170 318335500 Anti-tip & accessories

185 318165800 Spacer

200 318298201 Frame, drawer, black, front

201 318298210 Frame, drawer

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety, 1.375" mtg, 105/120

263 316136500 Washer, flat

* # 318224936 Harness, wiring, main

* 318235300 Connector assy., w/3 lugs, & instructions

* 3051050 Screw, shoulder

* 3201861 Screw, 6 x 0.375, (4)

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303307980 Screw, 8-32 x 0.437, (4)

* 5303323129 Screw, 8 X 0.750

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995468054 PLCS388ECA

06/06 10

TOP
