Frigidaire FEF369CGSC Manual de usuario

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF369CGSC FEF369CG WHITE/WHITE USA

FEF369CGSD FEF369CG WHITE/WHITE USA

FEF369CGTC FEF369CG ALMOND/ALMOND USA

FEF369CGTD FEF369CG ALMOND/ALMOND USA

Publication No.

5995344149

001002

-EN/SERVICE /CML

369

WIRING DIAGRAM # - 316002691

OWNER’S GUIDE # - 316135911

INSTALLATION GUIDE # -316003025 ELECTRIC - RANGE

FEF369CGSC

FEF369CGSD

FEF369CGTC

FEF369CGTD

10/00 2

Publication number

5995344149 FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD 5995344149

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF369CG (FEF369CGSC)

B = FEF369CG (FEF369CGSD)

C = FEF369CG (FEF369CGTC)

D = FEF369CG (FEF369CGTD)

POS. NO PART NO DESCRIPTION

* 316021105 A B C D Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B C D Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316021110 A B C D Screw,semi gimlet ,8-18 x 0.500 ,black

* 5303292005 A B C D Screw,8-32 x 5/32 ,switch/handle

1 316081600 A B C D Shield-backguard,galv steel ,rear wall

2 316015905 A B C D Shield-backguard,inner

11 316083720 - - C D Trim-wrapper,almond

11 316083721 A B - - Trim-wrapper,white

13A 316095500 A B C D Switch-warmer, infinite , drawer/zone

14 316022503 A B C D Light/Lamp, indicator , surface ,250 V

14A 316022500 A B C D Light/Lamp, warmer, indicator , drawer/zone, 125 V

15 316023108 A B C D Support-backguard,RH

15A 316023109 A B C D Support-backguard,LH

19 316100541 A B - - Panel-Bkgd, white

19 316100542 - - C D Panel-Bkgd, almond

20 316101008 A - C - Clock-control

20 316131602 - B - D Clock-control

20* 316101502 A B - - Overlay-clock,white

20* 316101504 - - C D Overlay-clock,almond

23 316100301 A B C D Bracket-control

24 # 316118101 A B - - Switch-oven light,rocker ,white

24 # 316118102 - - C D Switch-oven light,rocker ,almond

24B# 316086901 A B - - Switch-rocker,dual element ,white

24B# 316086902 - - C D Switch-rocker,dual element ,almond

24C# 316114000 A B - - Switch-Speed Bake,white

24C# 316114001 - - C D Switch-Speed Bake, almond

31A 316095601 A B - - Knob-warmer,white

31A 316095602 - - C D Knob-warmer,almond

36 316025106 A B - - Knob-control,infinite sw ,white

36 316025107 - - C D Knob-control,infinite sw ,almond ,(4)

40 316025808 A B - - Panel-manifold,white

40 316025809 - - C D Panel-manifold,almond

46 316040201 A B C D Lens-light/lamp,indicator ,red

54 # 316021500 A B C D Switch,infinite , 6" element

54A# 316021501 A B C D Switch,infinite , 8" element

54B# 316049800 A B C D Switch, infinite , dual element

69 5303292005 A B C D Screw,8-32 x 5/32 ,switch/handle

96 316113700 A - C - Relay

10/00 4

Publication number

5995344149 FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 10/00

Publication number

FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD 5995344149

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF369CG (FEF369CGSC)

B = FEF369CG (FEF369CGSD)

C = FEF369CG (FEF369CGTC)

D = FEF369CG (FEF369CGTD)

POS. NO PART NO DESCRIPTION

* 3203550 A B C D Plug-button,oven bottom

* 316021105 A B C D Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B C D Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316001571 A B C D Harness-main

* 316045000 A B C D Clip-wiring harness,retainer ,green , main top

* 5303051099 A B C D Nut,hex ,#10-32

* 5303308427 A B C D Nut,hex ,10-32

* 5308014215 A B C D Screw,6-20 x 0.312

1 316080803 A B C D Panel-main back,galv steel ,short

3 316081034 A B - - Panel-bodyside,white ,RH

3 316081035 A B - - Panel-bodyside,white ,LH

3 316081036 - - C D Panel-bodyside,almond ,RH

3 316081037 - - C D Panel-bodyside,almond ,LH

5 316129200 A B C D Screw-leveling,plastic ,with stop

6 316067902 A B C D Rack-oven

7 316007002 A B C D Hinge-oven door,(2)

8 3203540 A B C D Panel-oven bottom

9 316081900 A B C D Pan-broiler

10 316082000 A B C D Insert-broiler pan

12 # 316027701 A B C D Switch-oven light

13 316026800 A B C D Rod-light switch /door

14 316116400 A B C D Socket-light/lamp,oven

15 5303013071 A B C D Light Bulb/Lamp

16 08011086 A B C D Lens-light/lamp, glass , oven

17 316087500 A B C D Retainer-lens

18 # 316036300 A B C D Latch-door

21 3014099 A B C D Spacer-bodyside, (8)

25 3200848 A B C D Shield-heat,lower

29 3051162 A B C D Glide-drawer,front

37 # 316111202 A B C D Probe-oven temp

41 3131570 A B C D Cover-hinge cutout

44 3131903 A B C D Bumper-door/drawer, rubber

45 316066100 A B C D Shield-wire,s/t vent

57 316081100 A B C D Cover-access

58 3200847 A B C D Insulation,oven bottom

58A 316047708 A B C D Insulation, 2" ,oven wrapper

58B 316054201 A B C D Insulation,oven back

59 316073602 A B C D Tube-oven vent

59A 316023600 A B C D Tube-oven vent,upper

59B 316040100 A B C D Bracket-mounting,vent tube

62 # 5303935061 A B C D Terminal Block Kit

62* 316085600 A B C D Insulator

63 5301145190 A B C D Plate-ground strap

66 # 5303051140 A B C D Element-broil,2950 W

67 # 316075103 A B C D Element-bake

68 316075300 A B C D Support-element, broil

71 316015804 A B C D Shield-rear wall,galv steel

72 5303285692 A B C D Cover-light/switch rod

10/00 6

Publication number

5995344149 FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 10/00

Publication number

FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD 5995344149

CAUTION: Use the part number on all orders, not the position number.

BODY

82 5303289913 A B C D Shield-insulation

87 316081200 A B C D Bracket-cable mtg

88 316026400 A B C D Rod-latch,auto

89 # 316028101 - B - D Motor-latch/lock

89 # 316028107 A - C - Motor-latch/lock

106 316026600 A B C D Bracket-motor mtg

107 316026701 A B C D Cover-fan

108* 316021111 A B C D Screw,8-18 x 1.500

108# 316090500 A B C D Motor-fan

109 316090600 A B C D Fan Blade

110 316090700 A B C D Washer,fan motor

111 316090800 A B C D Nut-fan retainer

112 316082700 A B C D Relay,oven door lock

170 5303935180 A B C D Anti-tip Kit,w/bracket,screw

170* 316107200 A B C D Bracket,anti-tip

170* 316112500 A B C D Template, Anti-tip bracket

170* 316116000 A B C D Screw,concrete tpg ,1.75 inch ,anti-tip brkt

10/00 8

Publication number

5995344149 FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD

CAUTION: Use the part number on all orders, not the position number.

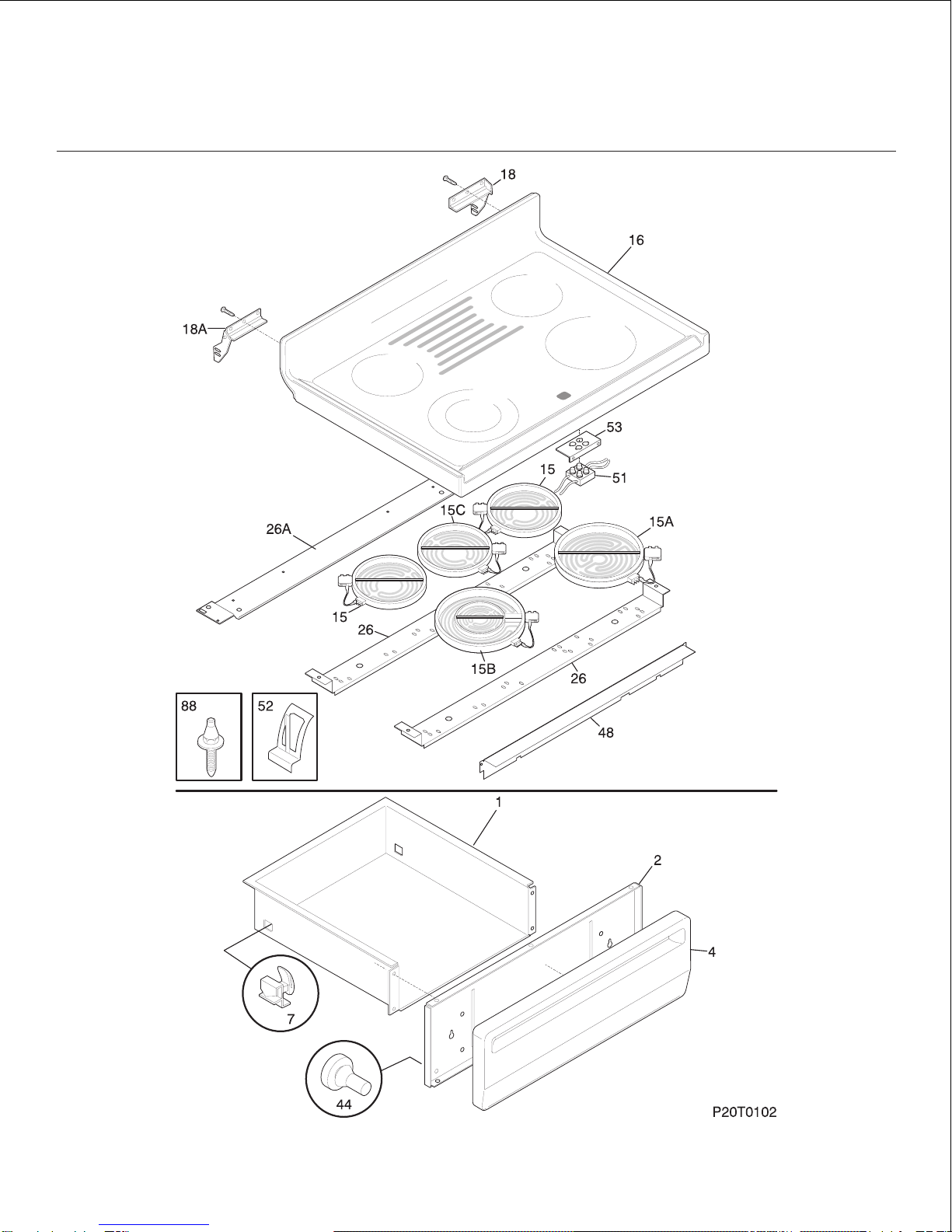

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 10/00

Publication number

FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD 5995344149

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF369CG (FEF369CGSC)

B = FEF369CG (FEF369CGSD)

C = FEF369CG (FEF369CGTC)

D = FEF369CG (FEF369CGTD)

POS. NO PART NO DESCRIPTION

* 316021105 A B C D Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B C D Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316021110 A B C D Screw,semi gimlet ,8-18 x 0.500 ,black

* 316021112 A B - - Screw-8-18x1/2 Tr Sqd White

* 316021113 - - C D Screw-8-18x1/2 Tr Sqd Almond

* 316045000 A B C D Clip-wiring harness,retainer ,green ,main top

* 316089600 A B C D Spacer-drawer,(2)

* 316112101 A B C D Cleaner-cooktop

* 5303280311 A B C D Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

* 5308014215 A B C D Screw,6-20 x 0.312

1 316011501 A B C D Drawer-utility

2 5303288582 A B C D Shield-drawer,galv steel ,front panel

4 316084405 A B - - Panel-drawer front,white

4 316084406 - - C D Panel-drawer front,almond

7 3051163 A B C D Glide-drawer,rear

15 # 316010206 A B C D Element-surface,radiant , large/8 inch ,2100 W

15A# 316010205 A B C D Element-surface,radiant , small/6 inch ,1200 W

15B# 316049705 A B C D Element-dual (2100w/1000w) 9",15

15C# 316098201 A B C D Element-warmer,100 W ,120 V

16 316098139 A B - - Maintop- glass ,white

16 316098140 - - C D Maintop- glass ,almond

18 5303273062 A B C D Hinge-main top,RH

18A 5303273063 A B C D Hinge-main top,LH

26 316099100 A B C D Channel-support,element ,galv steel ,(2)

26A 316099200 A B C D Bracket-support,chassis ,galv steel

44 3131903 A B C D Bumper-door/drawer, rubber

48 316100200 A B C D Shield-wire,main top

51 # 316001759 A B C D Wiring Harness,surface element

52 316099400 A B C D Clip-spring, element mtg,(8)

53 316099300 A B C D Bracket-indicator light,hot surface ,4 hole

88 316099500 A B C D Pin-guide, (2)

10/00 10

Publication number

5995344149 FEF369CGSC, FEF369CGSD,FEF369CGTC,FEF369CGTD

CAUTION: Use the part number on all orders, not the position number.

DOOR
