Frigidaire FGF355F Manual de usuario

FGF355D.eps L24G0007.eps T24B0001.eps T24V0025.eps T24T0001.eps T24D0018.eps

316417800d.eps 316417800s.eps

Product No. FGF355FSB FGF355FWB

Series 30" f/s gas 30" f/s gas

Color white black/white

Market North America North America

Wiring Diagram 316417800 316417800

Owner's Guide 316417104 316417104

Installation Instructions 316259336 316259336

Service Data Sheet 316417605 316417605

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995462040

06/02/24

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGF355F

Publication No: 5995462040 FGF355F

02/06 2

BACKGUARD

FGF355F Publication No: 5995462040

# Functional Parts 3 02/06

* Non-Illustrated Parts

BACKGUARD

Model Index: AFGF355F (FGF355FSB)

BFGF355F (FGF355FWB)

POS. NO PART NO. DESCRIPTION

1 316416100 A B Shield, backguard, rear wall

2 316051600 A B Shield, backguard, inner

2A 316235100 A B Shield, top, inner

15 316411403 A - Support, backguard, white, RH

15 316411405 - B Support, backguard, black, RH

15A 316411402 A - Support, backguard, white, LH

15A 316411404 - B Support, backguard, black, LH

19 316445222 A - Panel-backguard, white

19 316445221 - B Panel-backguard, black

20 # 316418205 A B Clock/Timer, electronic, ES200

20A 316419101 A - Overlay, clock, white, ES200

20A 316419100 - B Overlay, clock, black, ES200

23 316441600 A B Bracket-clock mtg, black

24 # 316448701 A - Switch, rocker, white, oven light

24 # 316448700 - B Switch, rocker, black, oven light

36 316220000 A - Knob, top valve, white, (4)

36 316220002 - B Knob, top valve, black, 4

40 316204987 A - Panel, manifold, white

40 316204988 - B Panel, manifold, black

42 316416201 A - Trim, extrusion, gray

42 316416200 - B Trim, extrusion, black

56 316230701 A B Shield, backguard, inner

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 A B Screw, 8-18 x 0.5, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

Publication No: 5995462040 FGF355F

02/06 4

BURNER

FGF355F Publication No: 5995462040

# Functional Parts 5 02/06

* Non-Illustrated Parts

BURNER

Model Index: AFGF355F (FGF355FSB)

BFGF355F (FGF355FWB)

POS. NO PART NO. DESCRIPTION

1 # 316219500 A B Pipe, manifold

2C # 5303935234 A B Valve, 9.5K burner, w/mtg screw

3 # 316219004 A B Wiring Harness, w/igntr switch

8 # 316135701 A B Module, spark

10C# 316212400 A B Burner, sealed, 9.5K

11 # 316237701 A B Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube

11C# 316237800 A B Ignitor/orifice assy., top burner, front

13 # 316405300 A B Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 A B Regulator, pressure

14* 316021104 A B Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 A B Bracket, regulator

16 # 316405500 A B Tube, valve to regul., 3/8

17 # 316404901 A B Valve, safety

17* 08068018 A B Shield, wire, safety valve

18 # 316404400 A B Burner, oven

19 # 316428501 A B Ignitor, oven burner

20 316401401 A B Baffle, oven burner

21 5303013272 A B Nut, hex head sems

22 # 316405401 A B Tube, valve to mixer

23 # 316404300 A B Burner, broiler

24 # 316409700 A B Elbow, mixer

25 316401301 A B Baffle, broil burner

26 # 316428601 A B Ignitor, burner

26* 316401500 A B Cover, broil Ignitor

37 316240600 A B Screw, assy mtg, ignitor/orifice

44C 316237902 A B Orifice, top burner, 9.5K

47 GRLP2 A B LP Conversion Kit, w/instructions

47* 316248105 A B Instructions, LP kit

* # 316253700 A B Wiring Harness, ignitor module

* 316001003 A B Screw, ground wire

* 316215600 A B Screw, valve mtg., 1/4 - 20

* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995462040 FGF355F

02/06 6

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

58G

170

T24V0025

151

30A

FGF355F Publication No: 5995462040

# Functional Parts 7 02/06

* Non-Illustrated Parts

BODY

Model Index: AFGF355F (FGF355FSB)

BFGF355F (FGF355FWB)

POS. NO PART NO. DESCRIPTION

1 316401600 A B Back, main

2 316402201 A B Shield, oven top

2* 316437100 A B Brace, oven top

3 316400116 A B Panel, bodyside, white, RH

3 316400117 A B Panel, bodyside, white, LH

4 316201403 A B Burner Box

5 316272900 A B Screw, leveling, plastic, rear, (2)

5A 316407201 A B Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B Rack, oven

8 316400603 A B Panel, oven bottom

12 316445501 A B Switch, oven light, door frame

14 316116400 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 316087500 A B Retainer, lens

18 # 316405800 A B Latch Assembly, oven door

21 316408000 A B Clip, bodyside

25 316406200 A B Shield, heat, lower

29 316407301 A B Glide, drawer, front

30 316217700 A B Bracket, hinge, RH, main top

30A 316217701 A B Bracket, hinge, LH, main top

33 316405900 A B Shield, rear wall

35 316116600 A B Gasket, flue

36 316208901 A B Flue

37 # 316217001 A B Probe, oven temp

39 3202006 A B Cord, electric power

42 316400703 A B Shield, wool, lower

43 3131732 A B Screw, 8-18 x 1.438, oven bottom

44 316246501 A B Spacer, oven door

49 316234200 A B Clip, maintop mtg, (2)

54 316404200 A B Shield, heat

55 316404800 A B Shield, flue

58A 316403700 A B Insulation, oven wrapper

58B 316403600 A B Insulation, oven back

58G 08067973 A B Insulation, main front

82 316400801 A B Shield, bake burner

82* 316432800 A B Clip, wire

86 316441300 A B Receptacle, hinge

86* 316418901 A B Screw, trilobe, 10-32 x 5/16"

87 316401200 A B Bracket, harness

88 316232700 A B Rod, auto latch

89 # 316415400 A B Motor, latch/lock

90 316401100 A B Shield, main front

91 316401000 A B Shield, front, burner

151 316404600 A B Shield, bodyside

170 5303935180 A B Anti-tip Kit, w/bracket, screw

170* 316107200 A B Bracket, anti-tip

170* 316112500 A B Template, anti-tip

170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt

Publication No: 5995462040 FGF355F

02/06 8

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

58G

170

T24V0025

151

30A

FGF355F Publication No: 5995462040

# Functional Parts 9 02/06

* Non-Illustrated Parts

BODY

Model Index: AFGF355F (FGF355FSB)

BFGF355F (FGF355FWB)

POS. NO PART NO. DESCRIPTION

* 5303321319 A B Paint, touch-up, white

* 5303305345 - B Paint, touch-up, black

* 316416600 A B Harness, wiring, main

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

* 316089500 A B Screw, 10-16 x .486

* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995462040 FGF355F

02/06 10

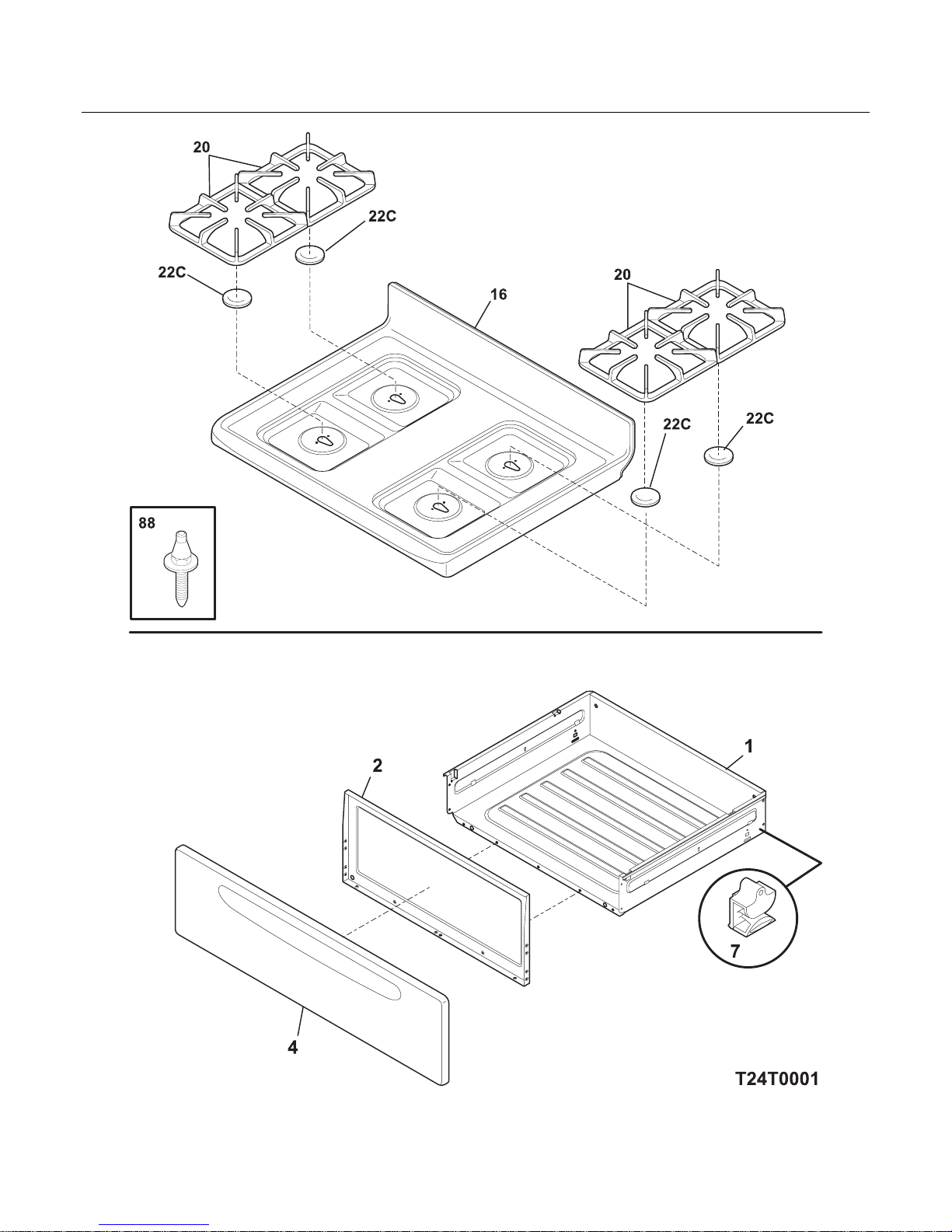

TOP/DRAWER
