FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF367CGSB FEF367CG WHITE/WHITE USA

FEF367CGTB FEF367CG ALMOND/ALMOND USA

Publication No.

5995344818

001013

-EN/SERVICE /CML

369

WIRING DIAGRAM # - 316002695

OWNER’S GUIDE # - 316135911

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF367CGSB

FEF367CGTB

10/00 2

Publication number

5995344818 FEF367CGSB, FEF367CGTB

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 10/00

Publication number

FEF367CGSB, FEF367CGTB 5995344818

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF367CG (FEF367CGSB)

B = FEF367CG (FEF367CGTB)

POS. NO PART NO DESCRIPTION

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316021110 A B Screw,semi gimlet ,8-18 x 0.500 ,black

* 316085600 A B Insulator

1 316081600 A B Shield-backguard,galv steel ,rear wall

2 316015905 A B Shield-backguard,inner

11 316083720 - B Trim-wrapper,textured,almond

11 316083721 A - Trim-wrapper,textured ,white

14 316022503 A B Light/Lamp, indicator , surface ,250 V

14A 316022500 A B Light/Lamp, warmer, indicator , drawer/zone, 125 V

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100539 A - Panel-control,white

19 316100540 - B Panel-control,almond

20 316101008 A B Clock-timer

20A 316101502 A - Overlay-clock,white

20A 316101504 - B Overlay-clock,almond

23 316100301 A B Bracket-timer

24 # 316118101 A - Switch-oven light,rocker ,white

24 # 316118102 - B Switch-oven light,rocker ,almond

24C# 316114000 A - Switch-Speed Bake,white

24C# 316114001 - B Switch-Speed Bake, almond

36 316025106 A - Knob-control,infinite sw ,white

36 316025107 - B Knob-control,infinite sw ,almond

40 316025808 A - Panel-manifold,white

40 316025809 - B Panel-manifold,almond

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch,infinite , 6" element

54A# 316021501 A B Switch,infinite , 8" element

69 5303292005 A B Screw,8-32 x 5/32 ,switch/handle

96* 316113700 A B Relay

10/00 4

Publication number

5995344818 FEF367CGSB, FEF367CGTB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 10/00

Publication number

FEF367CGSB, FEF367CGTB 5995344818

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF367CG (FEF367CGSB)

B = FEF367CG (FEF367CGTB)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button,oven bottom

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316045000 A B Clip-wiring harness,retainer ,green ,main top

* 316101600 A B Insulator-vent,smoothtop

* 5303051099 A B Nut,hex ,#10-32

* 5303308427 A B Nut,hex ,10-32

* 5308014215 A B Screw,6-20 x 0.312

1 316080803 A B Panel-main back,galv steel ,short

3 316081034 A - Panel-bodyside,white ,RH

3 316081035 A - Panel-bodyside,white ,LH

3 316081036 - B Panel-bodyside,almond ,RH

3 316081037 - B Panel-bodyside,almond ,LH

5 316129200 A B Screw-leveling,plastic ,with stop

6 316067902 A B Rack-oven

7 316007002 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316081900 A B Pan-broiler

10 316082000 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 316116400 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp, glass , oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside, (8)

25 3200848 A B Shield-heat,lower

29 3051162 A B Glide-drawer,front

37 # 316111202 A B Probe-oven temp

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer, rubber

45 316066100 A B Shield-wire,s/t vent

57 316081100 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047708 A B Insulation, 2" ,oven wrapper

58B 316054201 A B Insulation,oven back

59 316073602 A B Tube-oven vent

59A 316023600 A B Tube-oven vent,upper

59B 316040100 A B Bracket-mounting,vent tube

62 # 5303935061 A B Terminal Block Kit

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil,2950 W

67 # 316075103 A B Element-bake

68 316075300 A B Support-element, broil

71 316015804 A B Shield-rear wall,galv steel

72 5303285692 A B Cover-light/switch rod

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

88 316026400 A B Rod-latch,auto

10/00 6

Publication number

5995344818 FEF367CGSB, FEF367CGTB

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 10/00

Publication number

FEF367CGSB, FEF367CGTB 5995344818

CAUTION: Use the part number on all orders, not the position number.

BODY

89 # 316028107 A B Motor-latch/lock

106 316026600 A B Bracket-motor mtg

107 316026701 A B Cover-fan

108* 316021111 A B Screw,8-18 x 1.500

108# 316090500 A B Motor-fan

109 316090600 A B Fan Blade

110 316090700 A B Washer,fan motor

111 316090800 A B Nut-fan retainer

112 316082700 A B Relay,oven door lock

170 5303935180 A B Anti-tip Kit,w/bracket,screw

170* 316107200 A B Bracket,anti-tip

170* 316112500 A B Template, Anti-tip bracket

170* 316116000 A B Screw,concrete tpg ,1.75 inch ,

anti-tip brkt

10/00 8

Publication number

5995344818 FEF367CGSB, FEF367CGTB

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 10/00

Publication number

FEF367CGSB, FEF367CGTB 5995344818

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF367CG (FEF367CGSB)

B = FEF367CG (FEF367CGTB)

POS. NO PART NO DESCRIPTION

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,

black,back/bodyside

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome ,

hinge,ind light,manifold panel

* 316021110 A B Screw,semi gimlet ,8-18 x 0.500 ,black

* 316021112 A - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B Screw-8-18x1/2 Tr Sqd Almond

* 316045000 A B Clip-wiring harness,retainer ,green ,main top

* 316089600 A B Spacer-drawer,(2)

* 316112101 A B Cleaner-cooktop

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 A B Screw,6-20 x 0.312

1 316011501 A B Drawer-utility

2 5303288582 A B Shield-drawer,galv steel ,front panel

4 316084405 A - Panel-drawer front,white

4 316084406 - B Panel-drawer front,almond

7 3051163 A B Glide-drawer,rear

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

15 # 316010206 A B Element-surface,radiant , large/8 inch ,2100 W

15A# 316010205 A B Element-surface,radiant , small/6 inch ,1200 W

16 316098104 - B Main top,smooth top ,almond

16 316098105 A - Main top, smoothtop, white

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099100 A B Channel-support,element ,galv steel ,(2)

26A 316099200 A B Bracket-support,chassis ,galv steel

44 3131903 A B Bumper-door/drawer, rubber

48 316100200 A B Shield-wire,main top

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,4 hole

88 316099500 A B Pin-guide, (2)

10/00 10

Publication number

5995344818 FEF367CGSB, FEF367CGTB

CAUTION: Use the part number on all orders, not the position number.

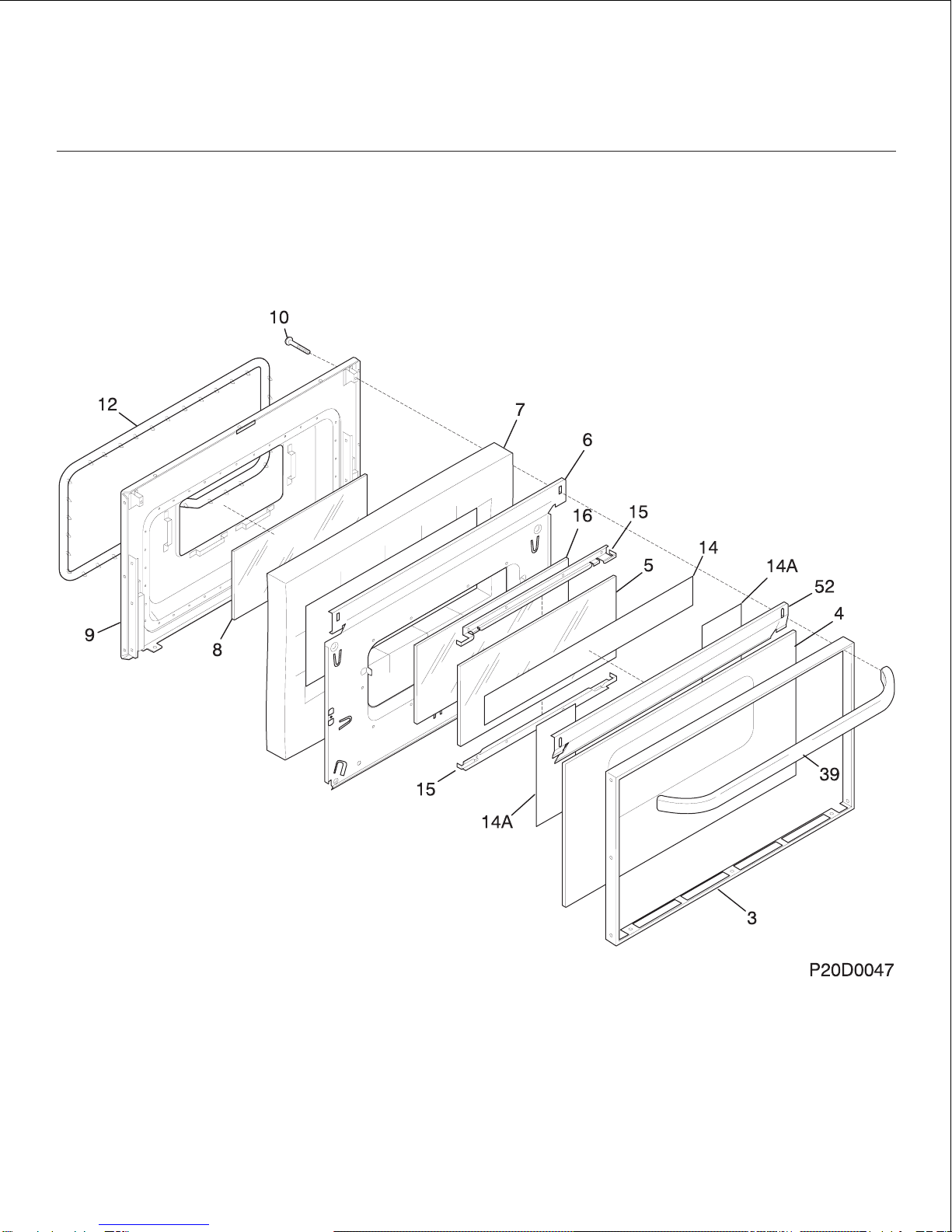

DOOR
