Frigidaire FEF367CGSA Manual de usuario

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF367CGSA FEF367CG WHITE/WHITE USA

FEF367CGTA FEF367CG ALMOND/ALMOND USA

Publication No.

5995315396

980731

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002668

OWNER’S GUIDE # - 316000278

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF367CGSA

FEF367CGTA

01/98 2

Publication number

5995315396 FEF367CGSA, FEF367CGTA

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF367CGSA, FEF367CGTA 5995315396

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF367CG (FEF367CGSA)

B = FEF367CG (FEF367CGTA)

POS. NO PART NO DESCRIPTION

* 316000278 A B Owner’s Manual

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316071902 A B Gasket-edge

* 316085600 A B Insulator-shield thermostt

* 316112500 A B Template, Anti-tip bracket

1 316081601 A B Shield-backguard,rear wall

2 316015905 A B Shield-backguard,inner

11 316083721 A - Trim-wrapper,, textured , white

11 316083720 - B Trim-wrapper ele w/hole,almond

14 316022504 A B Light-indicator

14A 316022500 A B Light/Lamp, indicator , WARMER ZONE ,

125 V

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100539 A - Panel-control,white

19 316100540 - B Panel-control,almond

20 # 316101004 A B Clock/Timer

20* 316101502 A - Overlay-clock

20* 316101504 - B Overlay-clock

23 316100300 A B Bracket-clock mtg

24 # 316005607 A - Switch-rocker,oven light ,white

24 # 316005608 - B Switch-rocker,oven light ,almond

24C# 316114000 A - Switch-Speed Bake,white

24C# 316114001 - B Switch-Speed Bake, almond

36 316025106 A - Knob-control,infinite sw ,white

36 316025107 - B Knob-control,infinite sw ,almond ,(4)

40 316025808 A - Panel-manifold,white

40 316025809 - B Panel-manifold,almond

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-infinite, 6" element

54A# 316021501 A B Switch-infinite, 8" element

60 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

69 5303292005 A B Screw-switch mtg,8-32 x 5/32

77A 316114100 A B Spacer

80 # 318111400 A B Relay

96 316113700 A B Relay

01/98 4

Publication number

5995315396 FEF367CGSA, FEF367CGTA

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 01/98

Publication number

FEF367CGSA, FEF367CGTA 5995315396

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF367CG (FEF367CGSA)

B = FEF367CG (FEF367CGTA)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 316101600 A B Shield-vent,smoothtop

* 5303051099 A B Nut,hex ,#10-32

1 316080804 A B Back-main, short,dipped ,black

3 316081034 A - Panel-bodyside,white ,RH

3 316081035 A - Panel-bodyside,white ,LH

3 316081036 - B Panel-bodyside,almond ,RH

3 316081037 - B Panel-bodyside,almond ,LH

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007002 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 316116400 A B Socket-light

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp,glass ,oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside,(8)

25 3200848 A B Shield-heat,lower

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

37 # 316111200 A B Probe-oven temp

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer,rubber

45 316066100 A B Shield-wire, s/t vent

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation,oven wrapper

58A 316047708 A B Insulation,oven wrapper

58B 316054201 A B Insulation,oven back

58B 316054202 A B Insulation,oven back

59 316073602 A B Tube-oven vent

59A 316023601 A B Tube-oven vent,upper

59B 316040100 A B Bracket-mounting,vent tube

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

71 316015805 A B Shield-rear wall

72 5303285692 A B Cover-light/switch rod

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

88 316026400 A B Rod-latch,auto

01/98 6

Publication number

5995315396 FEF367CGSA, FEF367CGTA

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 01/98

Publication number

FEF367CGSA, FEF367CGTA 5995315396

CAUTION: Use the part number on all orders, not the position number.

BODY

89 # 316028103 A B Motor-latch/lock

106 316026600 A B Bracket-motor mtg

107 316026701 A B Cover-fan

108* 316021111 A B Screw,8-18 x 1.500

108# 316090500 A B Motor-fan

109 316090600 A B Fan Blade

110 316090700 A B Washer,fan motor

111 316090800 A B Nut-fan retainer

112 316082700 A B Relay,oven door lock

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

01/98 8

Publication number

5995315396 FEF367CGSA, FEF367CGTA

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 01/98

Publication number

FEF367CGSA, FEF367CGTA 5995315396

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF367CG (FEF367CGSA)

B = FEF367CG (FEF367CGTA)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A B Screw-8-18x1/2 Tr Sqd White

* 316021113 - B Screw-8-18x1/2 Tr Sqd Almond

* 316045000 A B Clip-wire,harness ,main top

* 316089600 A B Spacer-drawer,(2)

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5309951550 A B Cleaner-cooktop

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer,almond

4* 08067785 - B Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B Glide-drawer,rear

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

15 316010204 A B Element-surface,radiant ,

large/8 inch/RF,2100W ,(2) ,

limit sw incl

15A# 316010203 A B Element-surface,radiant ,small/6 inch ,

1200W,(2) ,limit sw incl

16 316098105 A - Main Top,white

16 316098104 - B Main Top,smooth top ,almond

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099101 A B Channel-support,element ,(2)

26A 316099201 A B Bracket-support, chassis

44 3131903 A B Bumper-door/drawer,rubber

48 316100200 A B Shield-wire,main top

51 80142193 A B Indicator light

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,

4 hole

88 316099500 A B Pin-guide,(2)

01/98 10

Publication number

5995315396 FEF367CGSA, FEF367CGTA

CAUTION: Use the part number on all orders, not the position number.

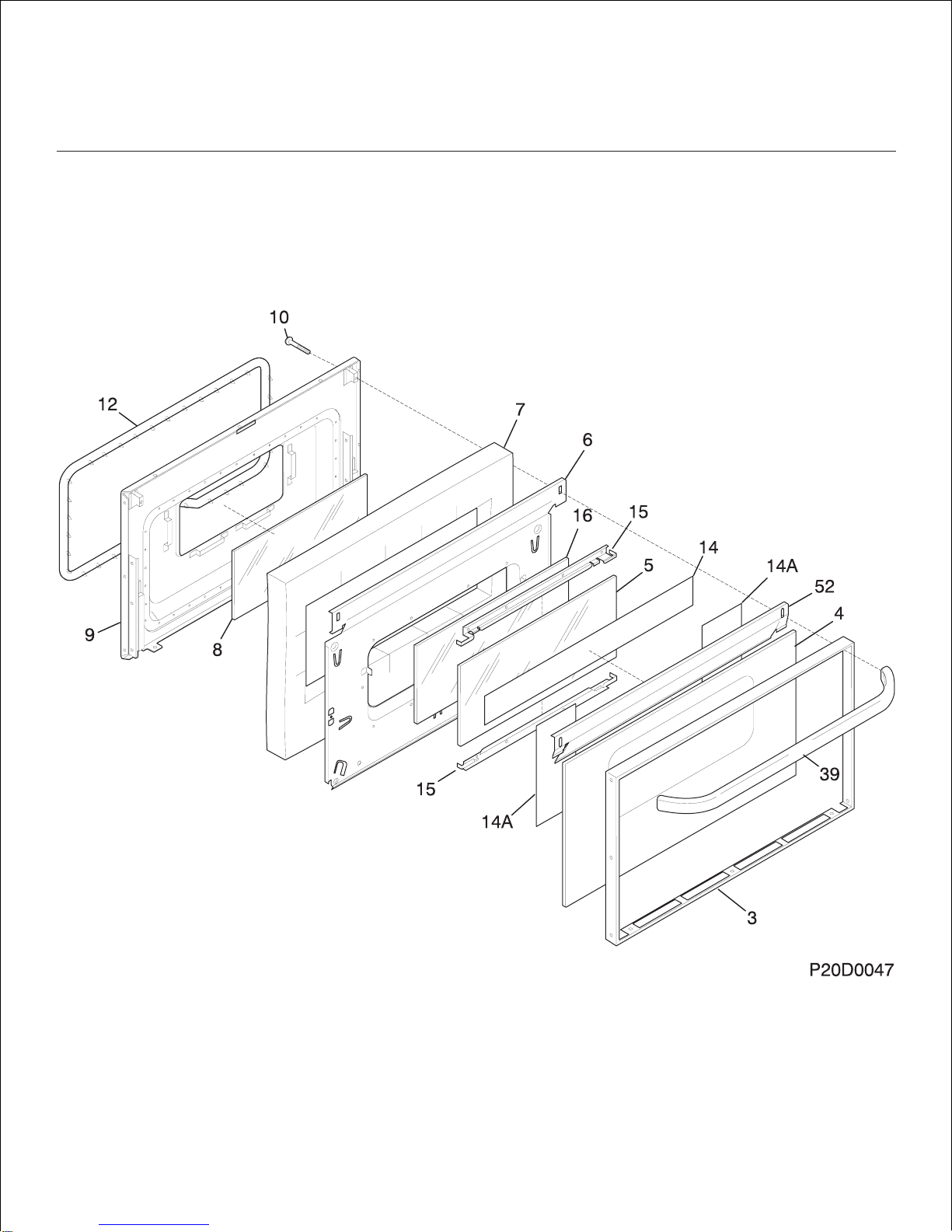

DOOR
