Frigidaire FGB557CE Manual de usuario

PRODUCT NO. FACTORY NO. COLOR MARKET

FGB557CESD 37454431F6014 WHITE U.S.A.

FGB557CEBD 37454431F6064 BLACK U.S.A.

GAS WALL OVEN

Model No.

FGB557CE

FACTORY PARTS CATALOG

GAS WALL OVEN

WIRING DIAGRAM #-318046304

OWNER’S GUIDE #-318200951

INSTALLATION INSTRUCTION # - 318201503

ELECTRONIC TIMER GUIDE # - 318130806

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995332953

000207

-EN/SERVICE

377

Publication No. FGB557CE

5995332953

02/00 2

CONTROL PANEL

238

LA00CP74431-1

18A

FGB557CE Publication No.

5995332953

# = Functional Part 302/00

* = Non-Illustrated Part

CONTROL PANEL

POS. NO PART NO DESCRIPTION

17 5303310384 ATrim-End white

17 5303310386 BTrim-End black

18 5303310391 AEnd Cap RH white

18 5303280338 BEnd Cap RH black

18 A 5303310389 AEnd Cap LH white

18 A 5303280339 BEnd Cap LH black

19 318030701 APanel-control white

19 318030700 B Panel-control black

20 # 318010800 A B Clock/Timer

21 5303308462 ATrim-splasher satin

21 5303308451 BTrim-splasher black

23 318111610 A B Bracket trimer

42 5303310387 ATrim-vent satin

42 5303310388 BTrim-vent black

53 318056902 ADeflector trim satin

53 318056901 BDeflector trim black

80# 318111500 A B Relay, oven

99 5303325697 AScrew trim splasher chrome

99 5303311528 BScrew trim splasher black

238 318111700 A B Bracket-relay

*3201861 A B Screw, 6 X 3/8

*5303323130 A B Screw, 8 x ¼

*5303211311 A B Screw, #8 X 1/2

*5303308458 A B Screw, 10-24 X 1/4

A= FGB557CE (FGB557CESD)

B= FGB557CE (FGB557CEBD)

FGB557CE Publication No.

5995332953

02/00 6

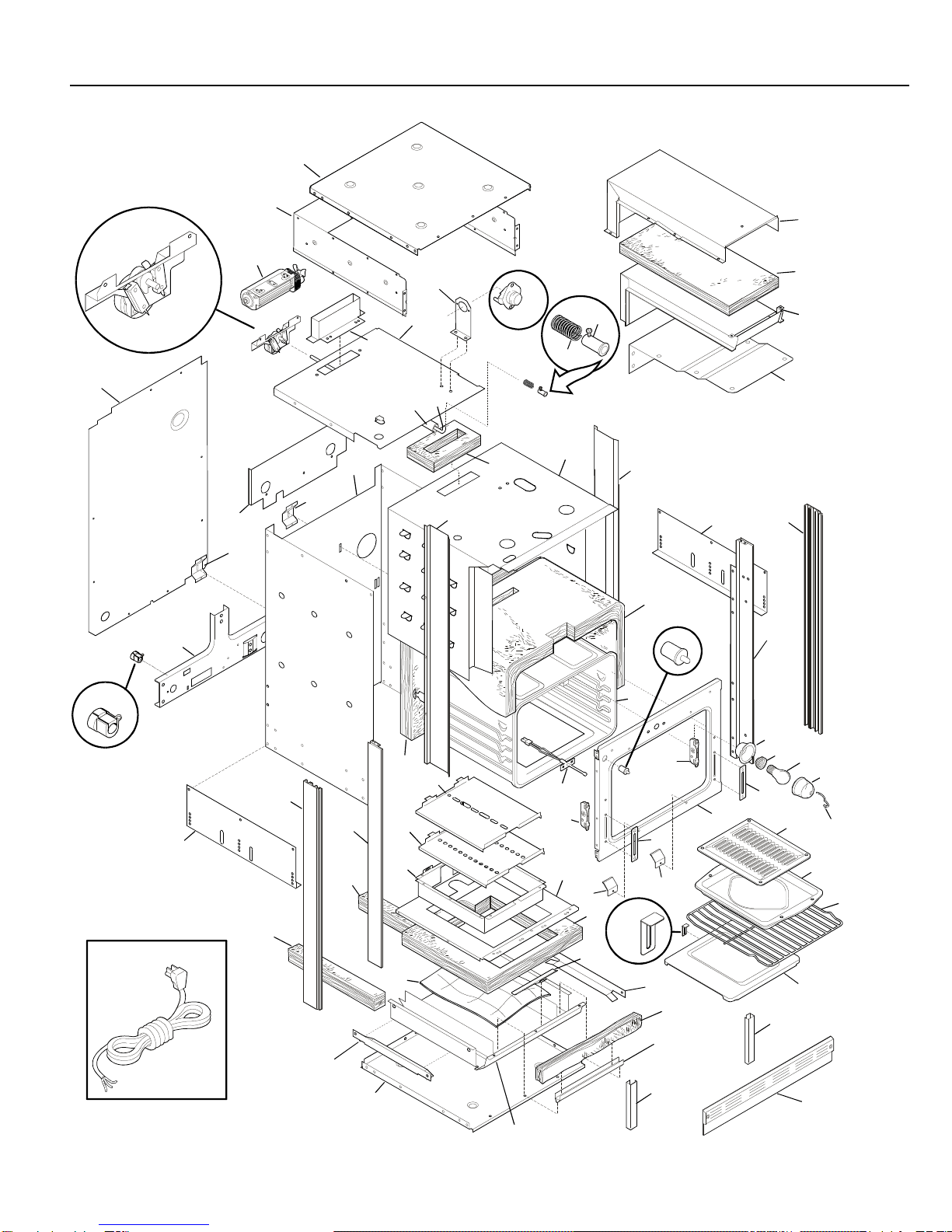

CAVITY / ELEMENTS

132

240

58C

119

117

187

121

239

122

234

58F

236

58E

235

58 227

102

103

LA00B74431-1

58B

98A

58A

123

58G

100

54 15 16

104

108

58D

70A

129

128

FGB557CE Publication No.

5995332953

# = Functional Part 702/00

* = Non-Illustrated Part

CAVITY / ELEMENTS

POS. NO PART NO DESCRIPTION

2 318145003 A B Wrapper-top

2 A 318102400 A B Mid top cover

4 318161500 A B Box-oven burner

6 5303299366 A B Rack-oven

8 318121400 A B Panel-oven bottom

9318138800 A B Pan-broiler

10 318126400 A B Insert-broiler pan

12 318089910 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

25 5303210844 A B Shield heat lower

33 318187301 A B Shield rear wall

36 3203725 A B Flue

37# 318087701 A B Probe-oven temp

39 # 5303308453 A B Cord-electric power

41 5303310526 A B Cover-hinge cutout

54 5303310514 A B Housing-oven light

55 5303326219 A B Shield-flue

56 5303308459 ATrim-bodyside white

56 318145508 BTrim-bodyside black

57 318071130 A B Shield-rear wall

58 5303326121 A B Insulation oven bottom

58A 5303326123 A B Insulation oven back

58B 5303323699 A B Insulation wrapper

58C 5303326120 A B Insulation adaptor

58D 5303326117 A B Insulation deflector

58E 5303326118 A B Insulation deflector

58F 5303326122 A B Insulation deflector

58G 5303326119 A B Insulation flue

70A 5303210843 A B Shield insulation

72 5303210685 A B Wrapper-shield

76 318056137 A B Front-oven

80 5303301261 A B Spring-oven

81 5303323710 A B Bracket-oven

83 318089410 A B Liner-oven assy

86 5303310524 A B Channel-hinge

87 5303308443 A B Bracket-safety valve

88 318118903 A B Rod-latch

89# 318095903 A B Motor-latch/lock

89* 318120710 A B Switch-cooktop shut-off

97 318066802 A B Wrapper-back side

98 318029400 A B Trim-side black

98A 318029401 A B Trim-side black

99 5303299686 A B Support-adjustable

100 5303302715 A B Shield-flue

102 3203688 A B Support-oven front black

103 5303316734 ATrim-base white

103 5303316735 BTrim-base black

104 318170210 A B Flue box adaptor

108 318073001 A B Motor-blower

117 5303302718 A B Bracket-thermo protector

118 5303308461 A B Bracket-latch

119# 5303326252 A B Switch-thermal

121 318145001 A B Wrapper-base

122 318179000 A B Lower shield-insulation

123 318071421 A B Wrapper shield-insulation

128 5303311163 A B Bushing

129 5033311164 A B Spring

132 3201437 A B Strain relief

187 318013501 A B Tube-rod latch

227 5303123958 A B Retainer oven bottom

A= FGB557CE (FGB557CESD)

B= FGB557CE (FGB557CEBD)

Publication No. FGB557CE

5995332953 BURNER

# = Functional Part 402/00

* = Non-Illustrated Part

LA00BR74431-1

24A

FGB557CE Publication No.

BURNER 5995332953

# = Functional Part 502/00

* = Non-Illustrated Part

POS. NO PART NO DESCRIPTION

93201885 A B Nut

14# 5303210167 A B Regulator-pressure

17# 5303210798 A B Valve-safety

18# 5303210787 A B Burner-oven

19# 5303308452 A B Ignitor-oven

20 3203676 A B Baffle-oven burner

22 5303271092 A B Tubing-valve

23# 5303283132 A B Burner-broiler

24# 5303210786 A B Mixer elbow bake

24A# 5303210807 A B Mixer elbow broiler

25 5303326220 A B Baffle-broiler burner

26# 5308067970 A B Ignitor-broiler

28 5303295305 A B Valve-shut off

30 5303305657 A B Elbow fitting

36# 318177801 A B Tubing-thermo/safety

58 318123600 A B Shield broiler

*08002868 A B Screw, 10-24 X ½

*5303311549 A B Screw, burner mtg

*3051070 A B Screw, 10-24 X 7/16

*5303311306 A B Screw, 8-18 X 3/8

A= FGB557CE (FGB557CESD)

B= FGB557CE (FGB557CEBD)

Publication No. FGB557CES

5995332953 CAVITY

02/00 8

POS. NO PART NO DESCRIPTION

234 5303210851 A B Shield, burner box

235 5303326207 A B Bracket

236 318108900 A B Shield-insulation

239 5303326183 A B Angle-burner box

240 318119300 A B Shield-bodyside

*3018802 A B Clip-cable

*3015722 A B Clip-wire

*5303302745 A B Screw, 10-16 X 1 1/8” (black)

*5303935083 AScrew, 10-16 X 1 ¼ (white)

*5303211311 A B Screw, # 8 X ½

*5303300195 A B Screw, 10-32 X 3/8

*5303321212 APlug-button

*5308007939 A B Plug, door liner

*08002868 A B Screw, 10-24 X 1/2

A= FGB557CE (FGB557CESD)

B= FGB557CE (FGB557CEBD)

FGB557CE Publication No.

5995332953

02/00 9

DOOR

12 7

17 5

6134

134

135

37A

LA00D74431-1

FGB557CE Publication No.

5995332953

# = Functional Part 10 02/00

* = Non-Illustrated Part

DOOR

S. NO PART NO DESCRIPTION

3 318026520 A B Trim-oven door black

4 5303302707 AGlass-oven door white

4 3202420 BGlass-oven door black

55303323828 A B Glass-oven door

6 318073600 A B Shield-air wash

7 5303308470 A B Insulation

9 318038600 A B Liner-oven door

10 5303311217 A B Screw-handle 10-24 X 2 3/16

11 318065102 A B Strike plate

12 5303325053 A B Seal-oven door

14 5303271093 A B Reflector, aluminium

16 5303324250 A B Glass-oven door

17 318139100 A B Spacer-glass

18 3016263 A B Seal-rope

19 318139201 A B Collar-glass mtg

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 5303310506 A B Hinge-oven door

25 318048309 A B Liner-door baffle

27 5303210003 A B Spacer-handle mtg

33 5303308464 AGlass-drawer white

33 3203715 BGlass-drawer black

34 5303210010 A B Panel-inner drawer

35 5303326215 A B Drawer-utility

36 5303935079 A B Roller

37 3203722 A B Rail-drawer & roller, RH

37A 3203723 A B Rail-drawer & roller, LH

39 316091104 AHandle-door white

39 316091103 BHandle-door black

54 5303308456 A B Screw, 8-18 x 17/32

59 3202113 A B Button-plug

60 5303310510 A B Screw, 10-24 x 5/8

61 5303300414 A B Spacer, cork & rubber

134 318122101 A B Bracket-glass

135 3131903 A B Bumper door/ drawer

*5303211311 A B Screw, #8 x ½

*3051070 A B Screw, 10-24 X 7/16

*3201885 A B Nut

*5303325981 A B Screw, 10-16 X 1 1/2

*5303308458 A B Screw, 10-24 X 1/4

A= FGB557CE (FGB557CESD)

B= FGB557CE (FGB557CEBD)
