Frigidaire FEB374CH Manual de usuario

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB374CHSB 38254331F9012 WHITE U.S.A.

FEB374CHBB 38254331F9062 BLACK U.S.A.

FEB374CHTB 38254331F9032 ALMOND U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB374CH

Inc.

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM # - 318046208

OWNER’S GUIDE # - 318200912

INSTALLATION INSTR. # - 318064310

ELECTRONIC TIMER GUIDE # - 318130806

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995333589

000215

-EN/SERVICE

377

Publication No. FEB374CH

5995333589

02/00 2

CONTROL PANEL

LA00CP82331-1

FEB374CH Publication No.

5995333589

# = Functional Part 302/00

* = Non-Illustrated Part

CONTROL PANEL

POS. NO PART NO DESCRIPTION

19 318030118 APanel-control white

19 318030117 B Panel-control black

19 318030120 C Panel-control almond

20 # 318010900 AB C Clock/Timer

23 318111602 AB C Bracket-timer

42 318027401 ATrim-vent white

42 318027409 B Trim-vent black

42 318027402 C Trim-vent almond

80 318111500 AB C Relay

* 5303300265 AB C Screw 8-18 X ½

*5303211311 AB C Screw, #8 X ½

*3201861 AB C Screw, 6 X 3/8

*5303300414 AB C Spacer cork & rubber

A = FEB374CH (FEB374CHSB)

B = FEB374CH (FEB374CHBB)

C = FEB374CH (FEB374CHTB)

FEB374CH Publication No.

5995333589

02/00 4

CAVITY / ELEMENTS

124

103

LA00B82331-1

58B

58A

89 108

119

127

129

128

99 98A

130

15 16

150A

150

2131 132

132A

185 102

185

102

177

188

188 264

FEB374CH Publication No.

5995333589

# = Functional Part 502/00

* = Non-Illustrated Part

CAVITY / ELEMENTS

POS. NO PART NO DESCRIPTION

1 318066402 AB C Back-main

2 318102101 AB C Shield-oven top

2A 318071703 AB C Shield-oven top

6 5303310522 AB C Rack-oven

6B 318025400 AB C Shelf-oven

9 5303317977 AB C Pan-broiler

10 5303317976 AB C Insert-broiler pan

12 # 318089910 AB C Switch-light

14 5308011085 AB C Socket-light/lamp

15 3201908 AB C Lamp-oven light

16 3201911 AB C Glass-oven light lens

17 5304400195 AB C Retainer-lens

37 # 316111203 AB C Probe-oven temp

41 5303310526 AB C Cover-hinge cutout

54 5303310514 AB C Housing-oven light

56 318083501 ATrim-bodyside white

56 318083500 B Trim-bodyside black

56 318083502 C Trim-bodyside almond

58A 5303310539 AB C Insulation

58B 5303310538 AB C Insulation oven back

59 318072504 AB C Tube-oven vent

62 # 5303310518 AB C Terminal Block

66 # 5303310513 AB C Element-broil

67 # 5303310512 AB C Element-bake

68 5304403015 AB C Support element

70 5303300142 AB C Shield-insulation

71 318071201 AB C Shield-wire

76 318056202 AB C Front-oven

80 5303301261 AB C Spring-oven

82 318072302 AB C Shield

83 318089608 AB C Liner-oven assy

86 5303310524 AB C Channel-hinge

88 5303311222 AB C Rod-latch

89 # 318095921 AB C Motor-latch assy

89* 318120710 AB C Switch-latch

98 318029201 AB C Trim-side RH

98A 318029203 AB C Trim-side LH

99 318055420 AB C Support-adjustable

102 318090900 AB C Support-oven front

103 318028501 ATrim-base white

103 318028500 B Trim-base black

103 318028502 C Trim-base almond

108# 318073001 AB C Motor-fan

119# 318004900 AB C Switch-thermal

124 318076903 AB C Box-vent

127 5303310542 AB C Adapter assy

128 5303311163 AB C Bushing

129 5303311164 AB C Spring

130 318070801 AEnd Cap-trim white

130 318070800 B End Cap-trim black

130 318070802 C End Cap-trim almond

131 318102301 AB C Cover-control housing

132 318101700 AB C End-cover RH

132A 318101701 AB C End-cover LH

150 318072205 AB C Bracket-support RH

150A 318072204 AB C Bracket-support LH

177 318053800 AB C Gasket-vent

185 318014700 AB C Spacer-oven shield

188 08007817 AB C Spacer

264 318143813 BHidden wires shield

* 5303211311 AB C Screw #8 X ½/

*3015722 AB C Clip-wire

A = FEB374CH (FEB374CHSB)

B = FEB374CH (FEB374CHBB)

C = FEB374CH (FEB374CHTB)

Publication No. FEB374CH

5995333589 CAVITY/ELEMENTS

02/00 6

POS.NO PART NO DESCRIPTION

* 5303300265 AB C Screw 8-18 X ½

*5303308449 AB C Fastener

*5303323136 AB C Screw ground

*5303323139 AB C Screw, 10-24 X 29/32

*5303323277 AB C Screw, 8-18 X 13/32

*5303324184 AB C Screw, 8 X 5/16

*5303323137 AB C Screw, 10-32 X 17/32

*# 318078511 AB C Box & wires assy

*3051807 AB C Button plug

*5303302745 AB C Screw, 10-16 X 1 1/8 (black)

A = FEB374CH (FEB374CHSB)

B = FEB374CH (FEB374CHBB)

C = FEB374CH (FEB374CHTB)

FEB374CH Publication No.

5995333589

02/00 7

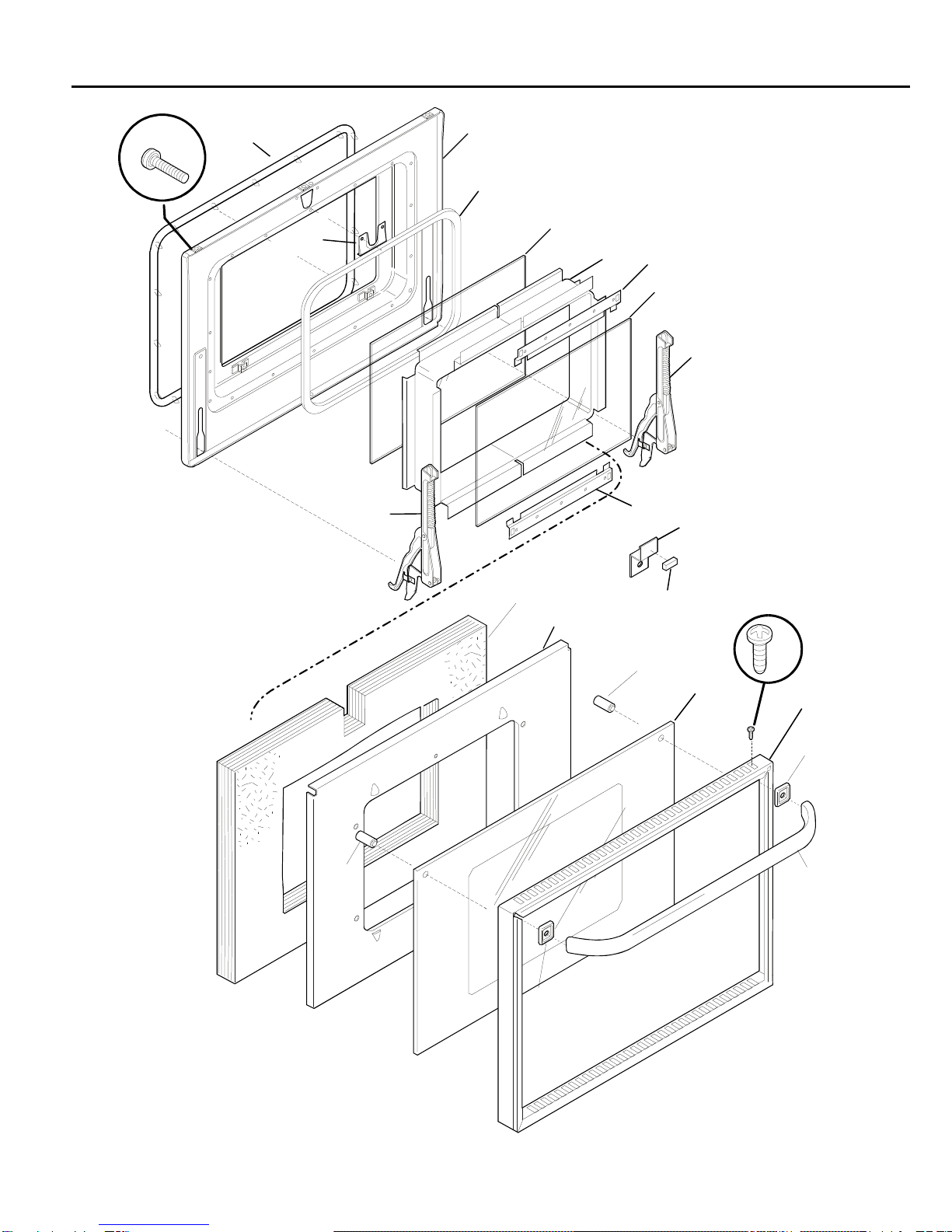

DOOR

LA00D82331-1

FEB374CH Publication No.

5995333589

# = Functional Part 802/00

* = Non-Illustrated Part

DOOR

POS. NO PART NO DESCRIPTION

3 318026125 ATrim-oven door white

3 318026710 B Trim-oven door black

3318026126 C Trim-oven almond

4 318041304 AGlass-oven door white

4 318041303 B Glass-oven door black

4318041305 C Glass-oven door almond

6 318056811 AB C Baffle-door

7 318106001 AB C Insulation

9 318048606 AB C Liner-oven door

10 5303311217 AB C Screw-handle10-24X2 3/16

12 318053103 AB C Seal-oven door

15 318091102 AB C Bracket glass

16 318041603 AB C Glass-oven door

17 318042102 AB C Spacer-glass

18 318053001 AB C Seal-window

20 318014301 ASpacer-handle white

20 318014300 B Spacer-handle black

20 318014302 C Spacer-handle almond

23 5303310506 AB C Hinge-oven door

29 5303210003 AB C Spacer-handle mtg

31 318065102 AB C Latch-door

39 316091111 AHandle-door white

39 316091110 B Handle-door black

39 316091112 C Handle-door almond

54 5303308456 AB C Screw 8-18 X 0.531

*5303323277 AB C Screw, 8-18 X 13/32

*530321311 AB C Screw, #8 X ½

A = FEB374CH (FEB374CHSB)

B = FEB374CH (FEB374CHBB)

C = FEB374CH (FEB374CHTB)

Publication No. FEB374CH

5995333589

02/00 9

WIRING DIAGRAM
