Drop-In Cooktop

FPEC3085K S

30" Electric

Signature Features

24" Gas

Single Wall Ovens

FGB24L2A S / B

Large Capacity

Our large capacity oven gives you room

to cook more at once.

Ready-Select® Controls

Easily select options or control

cooking temperature with our

easy-to-use controls.

Product Dimensions

Height 38-7/16"

Width 23-7/8"

Depth 25-3/8"

More Easy-To-Use Features

GlideOut™ Broiler

Bright Oven Lighting

Our bright lighting makes it easy to see

what’s inside.

Timer Function

Manual-Clean Oven

A.D.A. Compliant1

Available in:

1When properly installed, meets the appliance

standards in the Americans with Disabilities Act

and the Architectural Barriers Act Accessibility

Guidelines as published by the United States

Access Board on June 23, 2004, as amended

August 5, 2005.

Large Window

Our large oven window lets you easily

see what’s inside.

Vari-Broil™ Option

Allows you to choose between two

heat levels.

White

(S)

Black

(B)

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

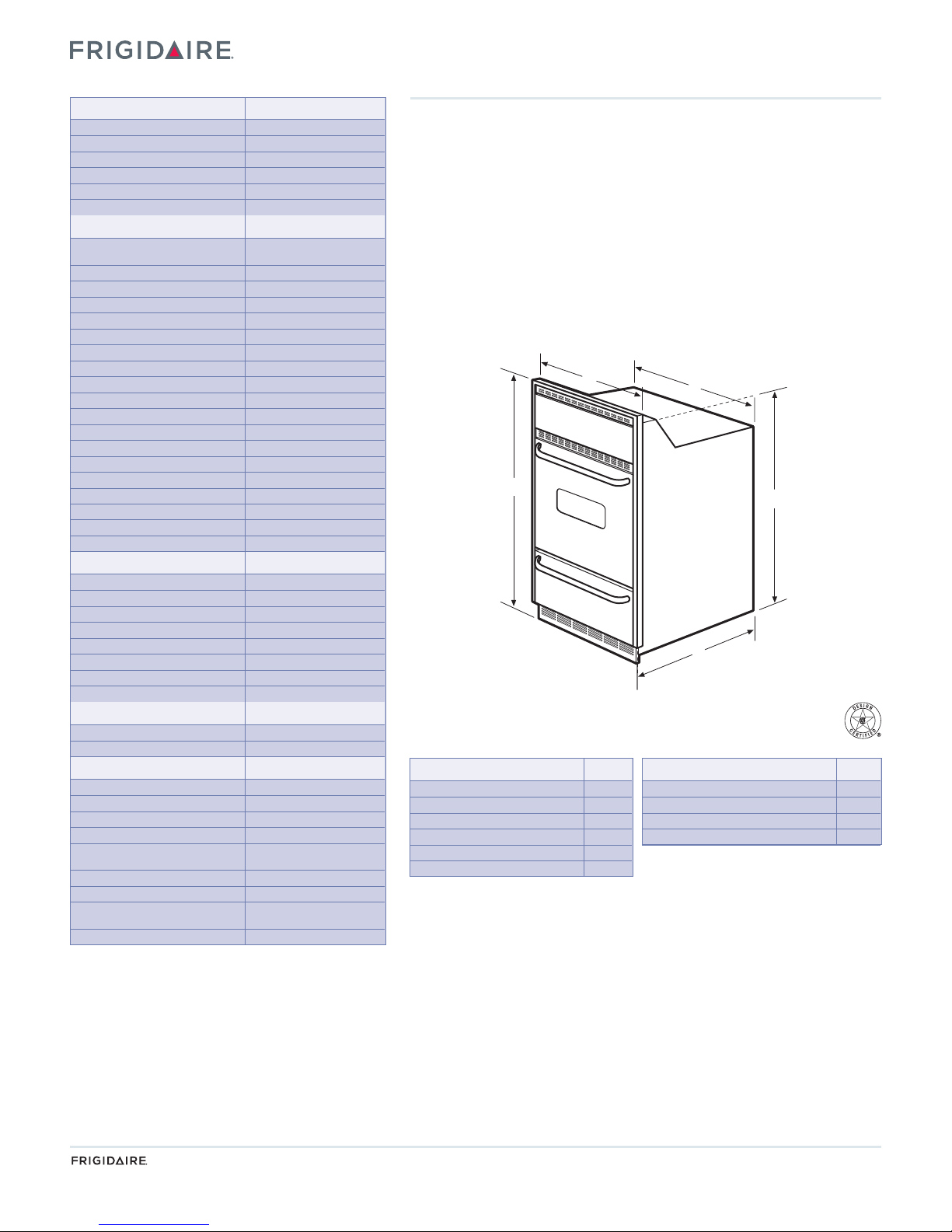

Specifications

subject to change.

Single Wall Ovens

FGB24L2A S / B 24" Gas

Cutout Dimensions

Height (Min.)

Height (Max.)

Width (Min.)

Depth (Min.)

37-1/2"

38"

22"

23-1/2"

Product Dimensions

A - Height

B - Width

C - Depth

D - Height (Wrapper)

E - Width (Wrapper)

Depth with Door Open 90˚

38-7/16"

23-7/8"

25-3/8"

37-3/8"

21-11/16"

43"

24" Single Gas Wall Ovens_1-1/2 Cell

Frigidaire Baseline

NOTE: For planning purposes only. Always consult local and national electric and gas codes. Refer

to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

1When properly installed, meets the appliance standards in the

Americans with Disabilities Act and the Architectural Barriers Act

Accessibility Guidelines as published by the United States

Access Board on June 23, 2004, as amended August 5, 2005.

2For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded for

safe operation.

Features

Oven Control / Timing System

Window

Exterior Door Finish

Handle Design

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake / Broil

Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

PowerPlus® / Quick Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Bake

Self-Clean

Rapid / Quick Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Control Lock

Auto Oven Shut-O

Oven Lock-Out

Oven Features

Capacity (Cu. Ft.)

Convection System

Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Bake / Broil Element (BTU)

Certiﬁcations

A.D.A. Compliant1

Sabbath Mode (Star-K® Certiﬁed)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Gas Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 120 Volts2

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Approved for Under-Counter

Installation

Shipping Weight (Approx.)

Ready-Select®

Large

Color-Coordinated

Manual Clean

GlideOut™ Broiler

Yes /

Variable (Hi - Lo)

Yes

3.2

2 Racks

Regular

Vari-Broil™

16,000 / 16,000

Yes

16" x 18-1/2" x 18-1/2"

Right Bottom Rear

120V / 60Hz

.001

5.0

150 Lbs.

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE •frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

Single Wall Ovens

FGB24L2A S / B 24" Gas

Single Wall Oven Specifications

•Product Shipping Weight (approx.) – 150 Lbs.

•Voltage Rating – 120V / 60 Hz / 15 Amps

•Connected Load (kW Rating) @ 120 Volts = .60 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•Amps @ 120V = 5 Amps

•Always consult local and national electric and gas codes.

•Oven ships with 3/4" factory regulator.

•LP Gas convertible.

•Do not obstruct flow of combustion air at oven vent nor around base

or beneath lower front panel of appliance. Oven requires fresh air for

proper burner combustion.

•Minimum 19-3/8" clearance for oven door depth when open.

•Full oven base of solid plywood or similar material required, capable

of supporting 150 Lbs.

•Base must be level and cabinet front must be square.

•Single Wall Oven is NOT approved to be used in side-by-side

installation.

•Single Wall Oven is NOT approved to be used alone in under-counter

installation or in combination with any Frigidaire® Warmer Drawer or

Built-In Microwave Oven.

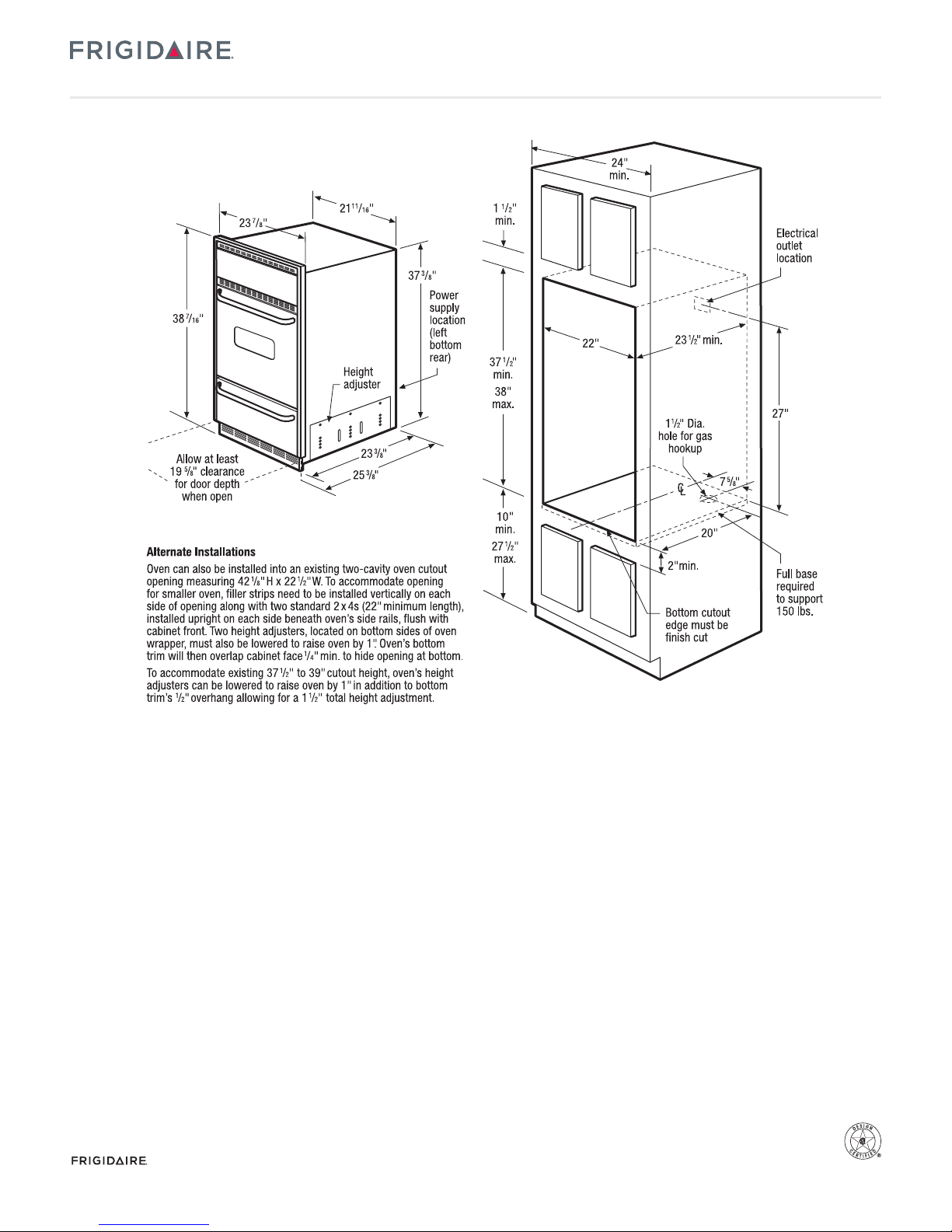

Alternate Installations

•Oven can also be installed into an existing two-cavity oven cutout

opening measuring 42-1/8" H x 22-1/2" W. To accommodate opening

for smaller oven, filler strips need to be installed vertically on each

side of opening along with two standard 2 x 4s (22" minimum length),

installed upright on each side beneath oven’s side rails, flush with

cabinet front. Two height adjusters, located on bottom sides of oven

wrapper, must also be lowered to raise oven by 1". Oven’s bottom

trim will then overlap cabinet face 1/4" minimum to hide opening at

bottom.

•To accommodate existing 37-1/2" to 39" cutout height, oven’s height

adjusters must be lowered to raise oven by 1" in addition to bottom

trim’s 1/2" overhang allowing for a 1-1/2" total height adjustment.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

24" Single Gas Wall Ovens_1-1/2 Cell

Baseline

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

General Installation Guidelines

with French Door Refrigerator
