Frigidaire FEB398CEBD Manual de instrucciones

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB398CESD 37056391G6014 WHITE U.S.A.

FEB398CEBD 37056391G6064 BLACK U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB398CE

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM #- 318046110

OWNER’S GUIDE #- 318200914

INSTALLATION INSTR. # - 318201506

TIMER INSTRUCTION GUIDE # - 318200130

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995334124

000228

-EN/SERVICE

377

Galler y

UPPER OVEN

BROILBAKE

BAKE

TIME CLEAN CANCEL CLOCK

TIMER

ON/OFF

STOP

TIME

LOWER OVEN

BAKE

TIME CLEAN CANCEL

SELF-CLEANING CONVECTIONOVENS

BROIL

UPPEROVEN LO WER OVEN

DUAL RADIANT BAKING AND R OASTING

CONV

BAKE/R OAST

CONV

BAKE/R OAST

OVEN LIGHT

Publication No. FEB398CE

5995334124

02/00 2

CONTROL PANEL

82A

20 19

LA00CP70391-1

FEB398CE Publication No.

5995334124

# = Functional Part 302/00

* = Non-Illustrated Part

CONTROL PANEL

A=FEB398CE (FEB398CESD)

B=FEB398CE (FEB398CEBD)

POS. NO PART NO DESCRIPTION

19 318030112 APanel-control white

19 318030111 BPanel-control black

20 # 318010501 A B Clock/Timer white

23 318015110 A B Bracket timer

42 318027405 ATrim-vent white

42 318027410 BTrim-vent black

80# 318022001 A B Board relay/ Relais

81# 318022002 A B Board relay/ Relais

82A 5303317199 A B Support, snap in/ Support

*3201861 A B Screw, 6 X 3/8

FEB398CE Publication No.

5995334124

02/00 4

CAVITY / ELEMENTS UPPER OVEN

108

131

132

132A 264

LA00B70391-1

58B

58A

89 119

127

129

128

185

54 15 16 17

107

222

177

UPPER BODY PARTS ONLY

FEB398CE Publication No.

5995334124

# = Functional Part 502/00

* = Non-Illustrated Part

CAVITY / ELEMENTS UPPER OVEN

A=FEB398CE (FEB398CESD)

B=FEB398CE (FEB398CEBD)

POS. NO PART NO DESCRIPTION

1318066402 A B Back-main

2 318102101 A B Shield oven top

2A 318071705 A B Shield oven top

6 5303310522 A B Rack-oven

6A 5303311206 A B Rack-broiler pan

6B 318025400 A B Shelf-oven

95303317977 A B Pan-broiler

10 5303317976 A B Insert broiler pan

12 318089910 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

37# 316111203 A B Probe-oven temp

41 5303310526 A B Cover-hinge cutout

54 5303310514 A B Housing-oven light

58A 5303310539 A B Insulation wrapper

58B 318132600 A B Insulation oven back

59 318072506 A B Tube-oven vent

62# 5303310518 A B Terminal block

66# 5303310513 A B Element-broil

67# 5303310512 A B Element-bake

68 5304403015 A B Support-element

70 5303300142 A B Shield insulation

76 318056202 A B Front-oven

80 5303301261 A B Spring-oven

81 5303320846 A B Plate oven mtg

82 318072301 A B Shield oven bottom

83 318089609 A B Liner-oven assy

86 5303310524 A B Channel-hinge

88 5303311222 A B Rod-latch

89# 318095921 A B Motor-latch lock

89* 318120710 A B Switch latch/ Interrupteur

107 318119600 A B Cover fan

108 318073001 A B Motor-fan

109 5303311203 A B Fan blade

111 5303311205 A B Nut-fan retainer

119 318004900 A B Switch thermal

125# 5303311202 A B Motor-convection

127 5303310542 A B Adapter assy

128 5303311163 A B Bushing

129 5303311164 A B Spring

131 318102301 A B Cover-control housing

132 318101700 A B End-cover control housing RH

132A 318101701 A B End-cover control housing LH

177 318053800 A B Gasket vent

185 318014700 A B Spacer-oven shield

222 318080000 A B Plate, oven temp probe

263 5303322885 A B Spacer

264 318143815 BHidden wires shield

*08002868 A B Screw, 10-24 X ½

*5303211311 A B Screw, #8 X ½

*5303323139 A B Screw, 10-24 X 29/32

*5303323144 A B Nut, #10-32

*318078507 A B Box & wires assy

*5303311528 A B Screw, 6-20 X 5/8

*5303302745 A B Screw, 10-16 X 1 1/8

Publication No. FEB398CE

5995334124 CAVITY/ELEMENTS LOWER OVEN

02/00 6

102

124

59A

103

LA0070391-2

58B

58A

58C

58D

119

127

37 12

129

128

209

185

209

185

130

15 16 17

188

150A

150

107

222

56A

98A

177

156

96A

LOWER BODY PARTS ONLY

FEB398CE Publication No.

CAVITY/ELEMENTS LOWER OVEN 5995334124

# = Functional Part 702/00

* = Non-Illustrated Part

A=FEB398CE (FEB398CESD)

B=FEB398CE (FEB398CEBD)

POS. NO PART NO DESCRIPTION

1318066402 A B Back main

2A 318071704 A B Shield-oven bottom

65303310522 A B Rack-oven

6B 318025400 A B Shelf oven

12# 318089910 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

37 316111203 A B Probe-oven temp

41 5303310526 A B Cover-hinge cutout

54 5303310514 A B Housing-oven light

56 318083504 ATrim bodyside white

56 318083503 BTrim bodyside black

56A 318083501 ATop trim white

56A 318083500 BTop trim black

58A 5303310539 A B Insulation wrapper

58B 318132600 A B Insulation oven back

58C 318106002 A B Insulation

58D 318132500 A B Insulation

59 318072504 A B Tube-oven vent

59A 5303320844 A B Tube-oven vent

66# 5303310513 A B Element-broil

67# 5303310512 A B Element-bake

68 5304403015 A B Support-element

70 5303300142 A B Shield insulation

71 318071211 A B Shield wire

76 318056202 A B Front-oven

80 5303301261 A B Spring-oven

81 5303320846 A B Bracket-oven

82 318072302 A B Shield

83 318089607 A B Liner-oven assy

86 5303310524 A B Channel-hinge

88 5303311222 A B Rod-latch

89# 318095921 A B Motor-latch lock

89* 318120710 A B Switch latch

96 5303317197 A B Duct-oven vent assy

96A 3016325 A B Duct-oven vent center

98 318029211 A B Trim-side bodyside black RH

98A 318029213 A B Trim-side bodyside black LH

99 318055410 A B Support-adjustable

102 318090900 A B Fixation support

103 318028501 ATrim-base white

103 318028500 BTrim-base black

107 318119600 A B Cover fan

109 5303311203 A B Fan blade

111 5303311205 A B Nut-fan retainer

119# 318004900 A B Switch-thermal

124 318076903 A B Box vent

125# 5303311202 A B Motor convection

127 5303310542 A B Adapter assy

128 5303311163 A B Bushing

129 5303311164 A B Spring

130 318070801 AEnd cap trim white

130 318070800 BEnd cap trim black

150 318072205 A B Bracket-support RH

150A 318072204 A B Bracket-support LH

156 5303317198 A B Bracket-oven vent

177 318053800 A B Gasket-vent

185 318014700 A B Spacer-oven shield

188 08007817 A B Spacer

209 318086200 A B Retainer plate

222 318080000 A B Plate, oven temp probe

263 5303322885 A B Spacer

*08002868 A B Screw, 10-24 X ½

*5303211311 A B Screw, #8 X ½

FEB398CE Publication No.

5995334124

02/00 8

LA00D70391-1

UPPER/ LOWER DOORS

FEB398CE Publication No.

5995334124

# = Functional Part 902/00

* = Non-Illustrated Part

UPPER/ LOWER DOORS

A=FEB398CE (FEB398CESD)

B=FEB398CE (FEB398CEBD)

POS. NO PART NO DESCRIPTION

3 318026125 ATrim-oven door white

3318026710 BTrim-oven door black

4 318041304 AGlass-oven door white

4 318041303 BGlass-oven door black

6 318056811 A B Shield-air wash

7 318106001 A B Insulation oven door

9318048606 A B Liner-door baffle

10 5303311217 A B Screw-handle door (10-24 x 2 3/16)

12# 318053103 A B Seal-oven door

15 318091102 A B Bracket-glass

16 318041603 A B Glass-oven door inner

17 318042102 A B Spacer-glass

18 318053001 A B Seal-rope window

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 5303310506 A B Hinge-oven door upper

29 5303210003 A B Spacer-handle mtg

31 318065102 A B Latch-door

39 316091111 AHandle-door white

39 316091113 BHandle-door black

54 5303308456 A B Screw, 8-18 X 17/32

*5303316982 A B Foam seal

*5303211311 A B Screw, #8 X ½

*5303323277 A B Screw, 8-18 X 13/32

Publication No. FEB398CE

5995334124

02/00 10

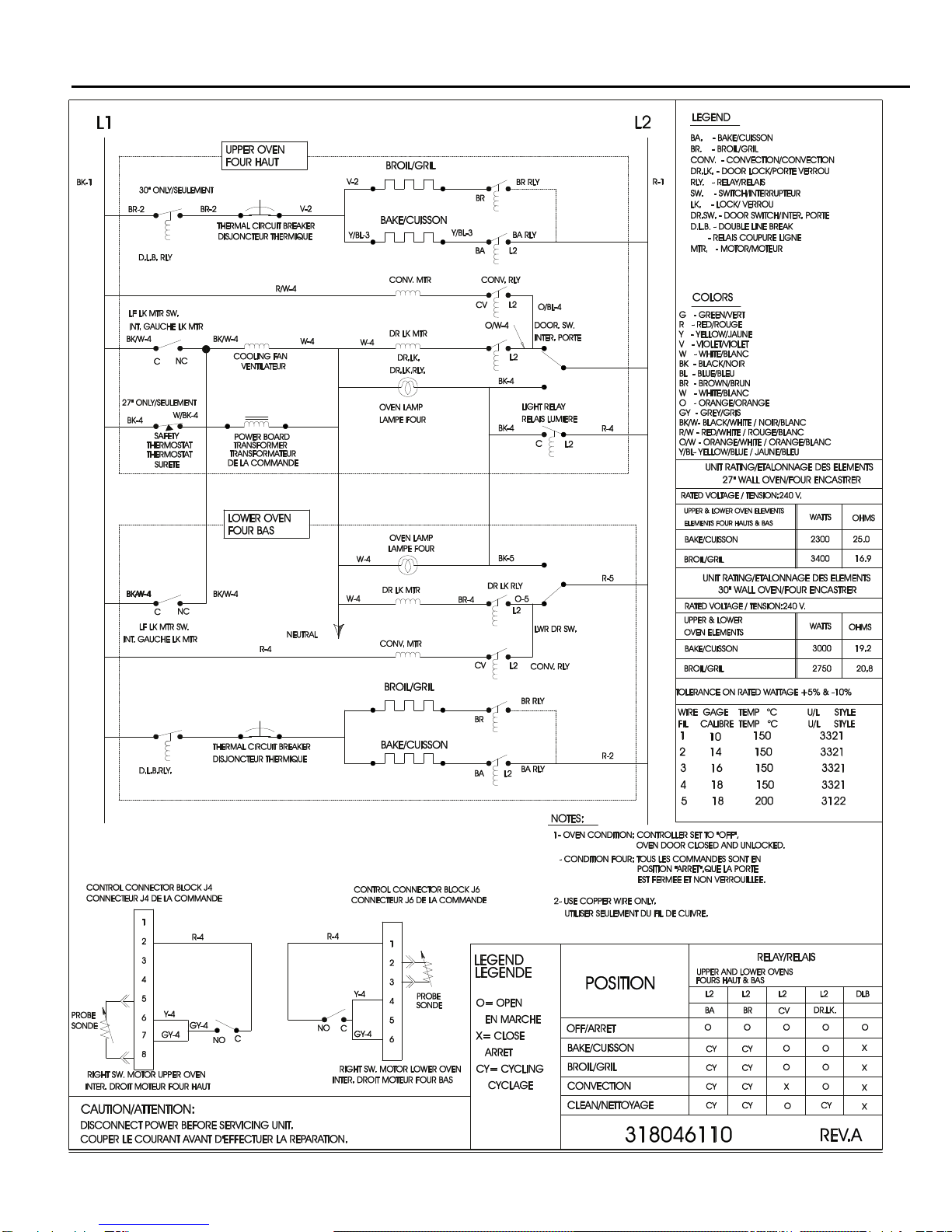

WIRING DIAGRAM
