Frigidaire FEB386WECH Manual de instrucciones

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB386WECH 38257391H6068 BLACK U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB386WE

Inc.

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM # - 318046208

OWNER’S GUIDE # - 318200914

INSTALLATION INSTR. # - 318064310

ELECTRONIC TIMER GUIDE # - 318130806

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995333100

000208

-EN/SERVICE

377

Publication No. FEB386WE

5995333100

02/00 2

CONTROL PANEL

19A

19B

LA00CP82391-1

FEB386WE Publication No.

5995333100

# = Functional Part 302/00

* = Non-Illustrated Part

CONTROL PANEL

POS. NO PART NO DESCRIPTION

19 318030205 APanel-control black

19A 318041900 APanel-decorative

19B 318041702 APanel-decorative with name plate

20 # 318010700 AClock/Timer

21 318029700 ATrim-top stainless steel

23 318111602 ABracket-timer

42 318027409 ATrim-vent black

51 316082300 ANameplate black

80 318111500 ARelay

99 5303300265 AScrew, 8-18 X ½

*3201861 AScrew, 6 X 3/8

*5303300414 ASpacer, cork & rubber

A = FEB386WE (FEB386WECH)

FEB386WE Publication No.

5995333100

02/00 4

CAVITY / ELEMENTS

222

264

124

103

103A

LA00B82391-1

58B

58A

108

119

127

37 12

129

128

185

56A

185

15 16

150A

150

107

131

132

132A

102

177

188

FEB386WE Publication No.

5995333100

# = Functional Part 502/00

* = Non-Illustrated Part

CAVITY / ELEMENTS

POS. NO PART NO DESCRIPTION

1 318066402 ABack-main

2 318102101 A Shield-oven top

2A 318071703 AShield-oven top

6 318025301 ARack-oven

6A 5303311206 ARack broiler pan

6B 318025401 AShelf-oven

9 318138800 APan-broiler

10 318126400 AInsert-broiler pan

12# 318089910 ASwitch-light

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer-lens

37 # 316111203 AProbe-oven temp

41 5303310526 ACover-hinge cutout

54 5303310514 AHousing-oven light

56 318029101 ATrim-bodyside stainless

56A 318029100 ATrim-bodyside stainless

58A 5303310539 AInsulation

58B 5303310538 AInsulation oven back

59 318072504 ATube-oven vent

62 # 5303310518 ATerminal Block

66 # 5303310513 AElement-broil

67 # 5303310512 AElement-bake

68 5304403015 ASupport element

70 5303300142 AShield-insulation

71 318071201 AShield-wire

76 318056202 AFront-oven

80 5303301261 ASpring-oven

81 5303320846 APlate-oven mtg

82 318072302 AShield

83 318089609 ALiner-oven assy

86 5303310524 AChannel-hinge

88 5303311222 ARod-latch

89 # 318095921 AMotor-latch

89* 318120710 ASwitch-latch

99 318055420 ASupport-adjustable

102 318090900 ASupport oven front

103 318028500 ATrim-base black

103A 318027700 ATrim-base stainless

107 318119600 ACover-fan

108# 318073001 AMotor-fan

109 5303311203 AFan blade

111 5303311205 ANut-fan retainr

119# 318004900 ASwitch-thermal

124 318076903 ABox-vent

125# 5303311202 AMotor-convection

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

131 318102301 ACover-control housing

132 318101700 AEnd-cover RH

132A 318101701 AEnd-cover LH

150 318072205 ABracket-support RH

150A 318072204 ABracket-support LH

177 318053800 AGasket-vent

185 318014700 ASpacer-oven shield

188 08007817 ASpacer

222 318080000 APlate, Hole convection element

263 5303322885 ASpacer

264 318143813 AShield-wires

* 5303211311 AScrew #8 X ½

A = FEB386WE (FEB386WECH)

Publication No. FEB386WE

5995333100 CAVITY/ELEMENTS

02/00 6

POS.NO PART NO DESCRIPTION

*3051070 AScrew, 10-24 X 7/16

*5303302745 AScrew, 10-16 X 1 1/8

*5303323139 AScrew, 10-24 X 29/32

*5303311528 AScrew, trim splasher

*5303323134 AScrew, 8-32 X 3/16

* 5303300265 AScrew 8-18 X ½

*5303323136 AScrew ground

*5303323277 AScrew, 8-18 X 13/32

*5303324184 AScrew, 8 X 5/16

*3131048 AScrew, 8 X 5/8

*5303302745 AScrew, 10-16 x 1 1/8, Black

*# 318078511 ABox & wires assy

*3201885 ANut

A = FEB386WE (FEB386WECH)

FEB386WE Publication No.

5995333100

0299 7

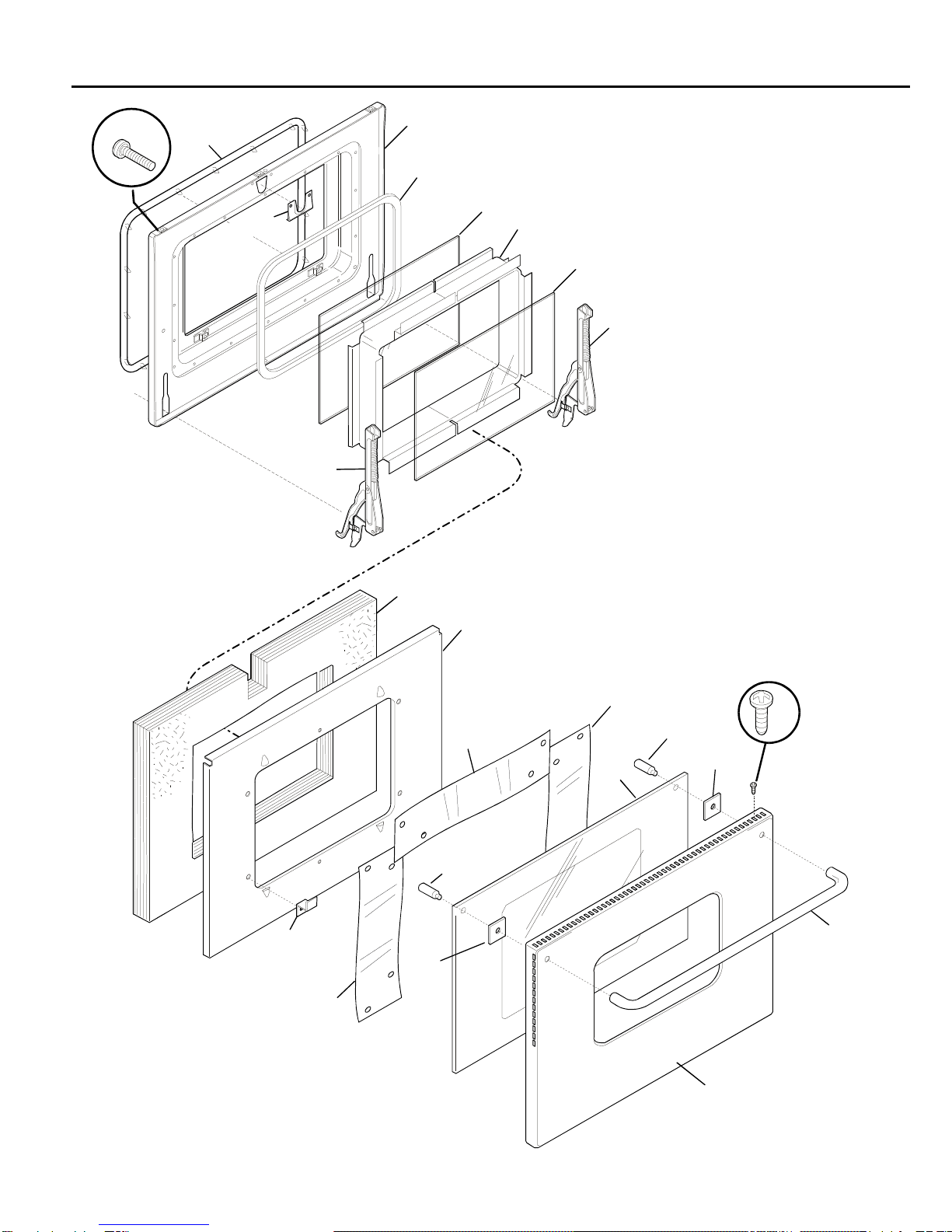

DOOR

LA00D82391-1

FEB386WE Publication No.

5995333100

# = Functional Part 802/00

* = Non-Illustrated Part

DOOR

POS. NO PART NO DESCRIPTION

4 318041210 AGlass-oven door black

6 318056811 ABaffle-door

7 318106001 AInsulation

9 318048607 ALiner-oven door

10 5303316953 AScrew, 1032 X 2 1/4-handle

12 318053103 ASeal-oven door

13 318009210 APanel, oven door stainless

15 318091101 ABracket glass (3)

16 318041603 AGlass-oven door

17 318042102 ASpacer-glass

18 318053001 ASeal-window

20 318086020 ASpacer-handle

23 5303320452 AHinge-oven door

29 318014400 ASpacer-handle mtg

31 318065102 ALatch-door

32 318056701 ADeflector (1)

32A 318056700 ADeflector (2)

39 318039801 AHandle-door stainless

54 5303300265 AScrew 8-18 X ½

*5303323277 AScrew, 8-18 X 13/32

*5303316982 ATape seal

*5303211311 AScrew, 8 X ½

*5303300414 ASpacer, cork & rubber

*5303325166 AScrew, 8-18 X ½

*5303323175 AAdhesive tape

A = FEB386WE (FEB386WECH)

Publication No. FEB386WE

5995333100

02/00 9

WIRING DIAGRAM

FEB386WE Publication No.

5995333100

# = Functional Part 10 02/00

* = Non-Illustrated Part

WIRING DIAGRAM
