Frigidaire FEB27S5A Manual de usuario

PRODUCT NO. BASE MODEL NO. FACTORY NO. SERIES COLOR

FEB27S5ABB FEB27S5A 38254731E1062 27" single black

FEB27S5ASB FEB27S5A 38254731E1012 27" single white

MARKET

North America

Publication No.

5995393690

030805

-EN/SERVICE /ECL

377

ELECTRIC

WALL OVEN

Model No.

FEB27S5A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318046220

OWNER’S GUIDE - # 318200919

TIMER INSTRUCTION SHEET - # 318200181

INSTALLATION INSTRUCTIONS - # 318201507

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

08/03 2

Publication No. FEB27S5A

5995393690

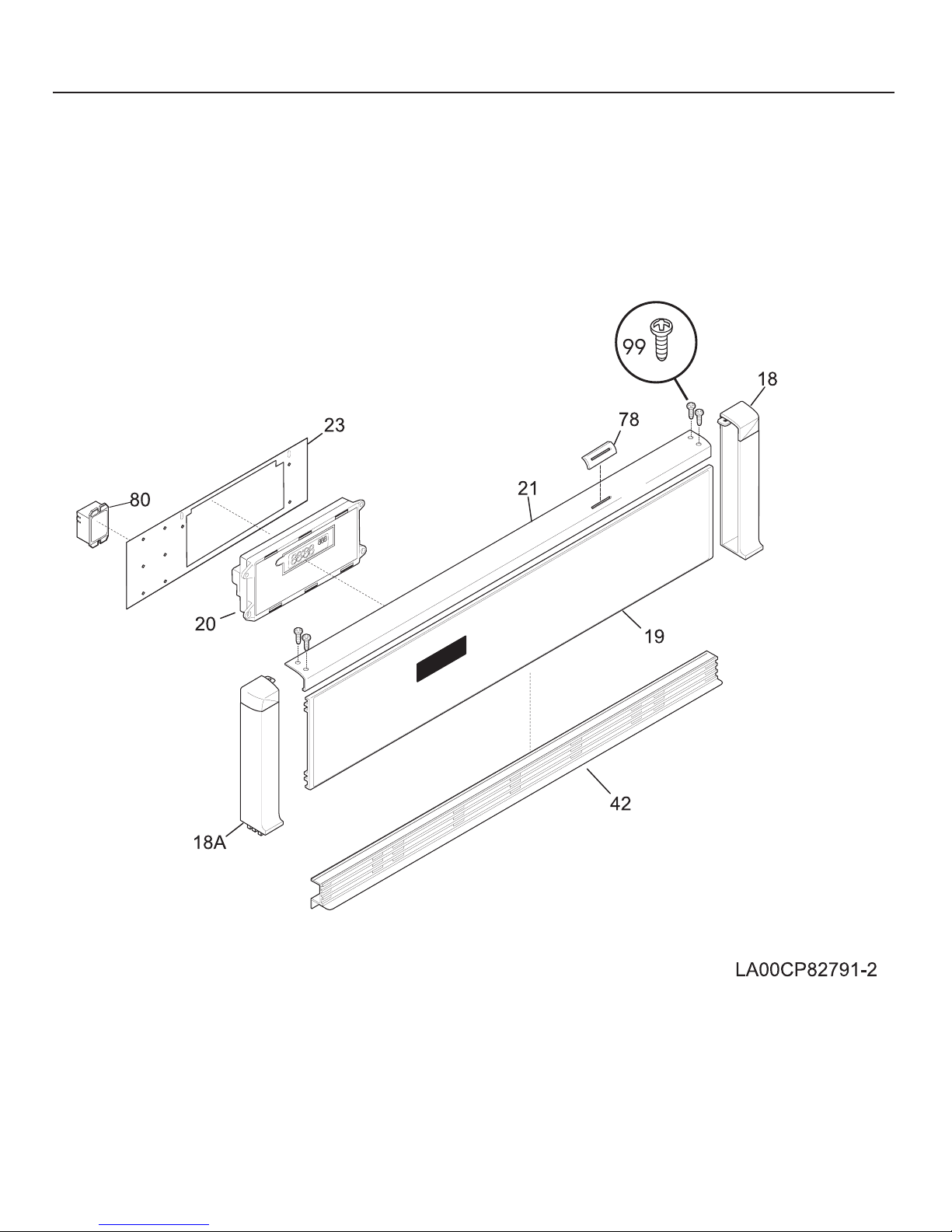

CONTROL PANEL

# = Functional Parts 3 08/03

* = Non-Illustrated Parts

FEB27S5A Publication No.

5995393690

CONTROL PANEL

A = FEB27S5A (FEB27S5ASB)

B = FEB27S5A (FEB27S5ABB)

POS. NO PART NO DESCRIPTION

18 5303311208 A - End Cap,white ,RH

18 5303311231 - B End Cap,black ,RH

18A 5303311209 A - End Cap,white ,LH

18A 5303311232 - B End Cap,black ,LH

19 318030032 A - Panel,control ,white

19 318030033 - B Panel,control ,black

20 # 318010900 A B Clock/Timer,EOC

21 5303301310 - B Trim,canopy ,black ,top

21 5303311212 A - Trim,canopy ,white ,top

23 318111602 A B Bracket,clock & relay

42 5303318709 A - Trim,vent ,white

42 5303316983 - B Trim,vent ,black

78 318037122 A - Cover,oven vent ,white

78 5303302396 - B Cover,oven vent ,black

80 # 318111501 A B Relay,convection ,oven light ,(1)

99 5303316956 A - Screw,6-32 x 3/8 ,white ,(2)

99 5303307406 - B Screw,6-32 x 3/8 ,black ,(2)

* 3201861 A B Screw,6 x 0.375

* 5303211311 A B Screw,8 x 0.500

08/03 4

Publication No. FEB27S5A

5995393690

BODY

# = Functional Parts 5 08/03

* = Non-Illustrated Parts

FEB27S5A Publication No.

5995393690

BODY

A = FEB27S5A (FEB27S5ASB)

B = FEB27S5A (FEB27S5ABB)

POS. NO PART NO DESCRIPTION

1 318066703 A B Wrapper,back and sides

2 318102001 A B Shield,oven top

2A 318071501 A B Shield,oven top

6 5303299719 A B Rack,oven

9 5303317977 A B Pan,broiler

10 5303317976 A B Insert,broiler pan

12 # 318089913 A B Switch,light

14 318224000 A B Receptacle,oven light

15 5303013071 A B Bulb/Lamp,oven light

16 3201911 A B Cover,oven light ,glass

17 5304400195 A B Retainer,light cover

37 # 316217002 A B Probe,oven temp

41 5303310526 A B Cover,hinge cutout

54 318222400 A B Housing,oven light

56 5303302711 A - Trim,bodyside ,white

56 5303298951 - B Trim,bodyside ,black

58A 318133758 A B Insulation,oven wrapper

58B 318133749 A B Insulation,oven back

59 318072510 A B Tube,oven vent

62 # 316056000 A B Terminal Block

62* 5303323144 A B Nut,10-32

66 # 5303322963 A B Element,broil

67 # 5303299718 A B Element,bake

68 5304403015 A B Support,element hanger

70 5303300142 A B Shield,insulation

71 318071102 A B Shield,rear wall

76 318056104 A B Front,oven

80 318192400 A B Spring,oven

82 318071802 A B Shield,oven bottom

83 318089517 A B Liner,oven

86 5303310524 A B Receptacle,hinge

88 5303311222 A B Rod,latch

89 # 318095936 A B Motor,latch assy ,w/brkt & switch

89* 318120711 A B Switch

98 318029900 A B Trim-side,inner,RH

98A 318029901 A B Trim-side,inner,LH

99 318055420 A B Support,adjustable

101 318039512 A - Bracket,trim ,white

101 318039511 - B Bracket,trim ,black

102 318070700 A B Cap,top panel ,RH

102A 318070701 A B Cap,top panel ,LH

103 318028701 A - Trim,base ,white

103 318028700 - B Trim,base ,black

103* 318028801 A - Trim,base ,white ,(under counter)

103* 318028800 - B Trim,base ,black ,(under counter)

108# 318073001 A B Motor,fan

119# 318004900 A B Switch,thermal

124 318076904 A B Box,vent

127 5303310542 A B Adapter,vent tube ,with converter

128 5303311163 A B Bushing

129 5303311164 A B Spring

131 318102204 A B Cover,control housing

132 318101704 A B End,cover ,RH ,control housing

132A 318101705 A B End,cover ,LH ,control housing

150 318072205 A B Bracket,support ,LH

150A 318072204 A B Bracket,support ,RH

185 318014700 A B Spacer,oven shield

187 318013501 A B Tube,latch rod

188 318014110 A B Spacer

264 318143811 - B Shield,wire

* # 318078527 A B Box & wires assy

* 3015722 A B Clip-wire

* 5303302745 A B Screw,10-16x1-1/8 ,square drive

08/03 6

Publication No. FEB27S5A

5995393690

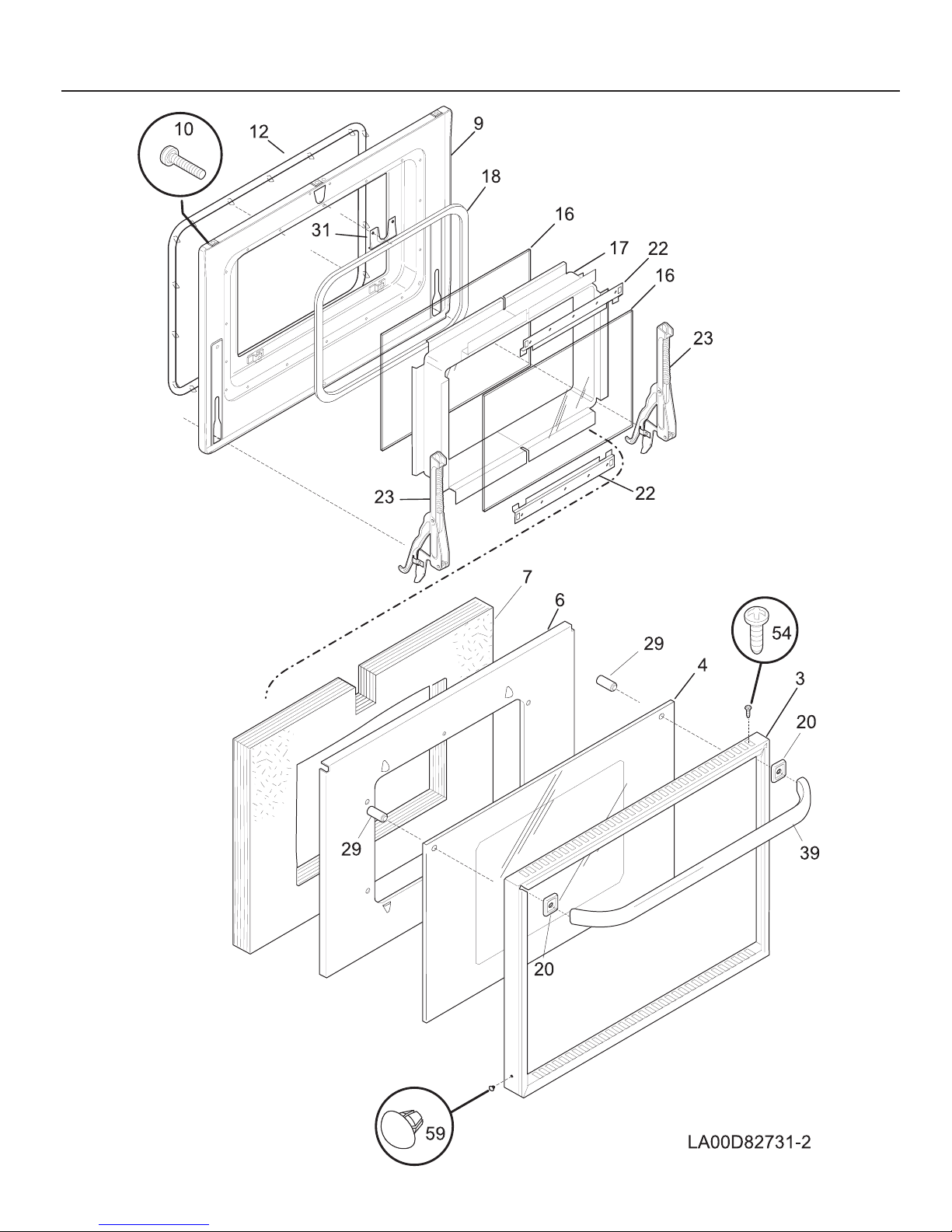

DOOR

# = Functional Parts 7 08/03

* = Non-Illustrated Parts

FEB27S5A Publication No.

5995393690

DOOR

A = FEB27S5A (FEB27S5ASB)

B = FEB27S5A (FEB27S5ABB)

POS. NO PART NO DESCRIPTION

3 318026110 A - Trim,oven door ,white

3 318026600 - B Trim,oven door ,black

4 318051615 A - Glass,oven door ,white ,outer

4 318051616 - B Glass,oven door ,black ,outer

6 318073502 A B Shield,air wash

7 318133751 A B Insulation,oven door

9 318048503 A B Liner,oven door

10 5303311217 A B Screw,handle ,door

12 318053100 A B Seal,oven door

16 318042300 A B Glass,oven door ,heat barrier ,(2)

17 318042000 A B Spacer,glass

18 318053000 A B Seal,rope

20 318014301 A - Spacer,handle ,white ,(2)

20 318014300 - B Spacer,handle ,black ,(2)

22 5303310511 A B Bar,glass retainer

23 5303310506 A B Hinge,oven door ,assembly

29 318014400 A B Spacer,door

31 318065102 A B Latch,door

39 316091107 A - Handle,door ,white ,oven

39 316091106 - B Handle,door ,black ,oven

54 5303308456 A B Screw,8-18 x 0.531 ,black ,door frame

59 3202113 A B Plug,button

* 5303211311 A B Screw,8 x 0.500

* 5303302745 A B Screw,10-16x1-1/8 ,square drive

* 5303323277 A B Screw (8-18X13/32)

08/03 8

Publication No. FEB27S5A

5995393690

WIRING DIAGRAM
