Product No. FEB27T6DBC FEB27T6DQC FEB27T6DSC

37054781E4063 37054781E4043 37054781E4013

Series 27" double 27" double 27" double

Color black bisque white

Market North America North America North America

Wiring Diagram 318046121 318046121 318046121

Owner's Guide 318200924 318200924 318200924

Installation Instructions 318201514 318201514 318201514

Service Data Sheet 318047306 318047306 318047306

Timer Guide 318200137 318200137 318200137

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459319

06/01/23

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T6D

Publication No: 5995459319 FEB27T6D

01/06 2

CONTROL PANEL

FEB27T6D Publication No: 5995459319

# Functional Parts 3 01/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB27T6D (FEB27T6DSC)

BFEB27T6D (FEB27T6DBC)

CFEB27T6D (FEB27T6DQC)

POS. NO PART NO. DESCRIPTION

2A 318257301 A B C Shield, oven top

2B 318260101 A B C Cover, box

19 318342801 A - - Control Panel Assembly, glass, white, w/touch pad

19 318342803 - B - Control Panel Assembly, glass, black, w/touch pad

19 318342802 - - C Control Panel Assembly, glass, bisque, w/touch pad

20 # 316443801 A B C Control, electronic, ES610W2, dual oven

97 316443902 A B C Board, relay, dual oven

* 318231751 A B C Harness, wiring, control-relay

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995459319 FEB27T6D

01/06 4

UPPER OVEN

FEB27T6D Publication No: 5995459319

# Functional Parts 5 01/06

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB27T6D (FEB27T6DSC)

BFEB27T6D (FEB27T6DBC)

CFEB27T6D (FEB27T6DQC)

POS. NO PART NO. DESCRIPTION

1 318259210 A B C Back, main

2 318258910 A B C Shield, insulation, upper

6 318262602 A B C Rack, oven, (2)

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

58A 318285060 A B C Insulation, rear & bottom, oven wrapper

58B 318285059 A B C Insulation, top & sides, oven wrapper

58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

66 # 318255601 A B C Element, broil, 3400W

67 # 318255103 A B C Element, bake, 2300W

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260001 A B C Panel, rear box

76 318056222 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

* 318249401 A B C Tube, protector

81 318192400 A B C Spring, oven

82 318258710 A B C Shield, insulation, lower

83 318261503 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

89 # 318261211 A B C Motor, latch assy

* # 318231750 A B C Harness, wiring, main, latch

* # 318199744 A B C Wiring Harness, latch, BAS

* # 318199746 A B C Wiring Harness, latch, NO BAS

99 318252800 A B C Support, side

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

125* 5303316994 A B C Insulation, 3.81 x 3.13

126 318142100 A B C Washer, motor, RH, convection

Publication No: 5995459319 FEB27T6D

01/06 6

UPPER OVEN

FEB27T6D Publication No: 5995459319

# Functional Parts 7 01/06

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB27T6D (FEB27T6DSC)

BFEB27T6D (FEB27T6DBC)

CFEB27T6D (FEB27T6DQC)

POS. NO PART NO. DESCRIPTION

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003614 A B C Thermostat, safety

263 316136500 A B C Washer, flat

264 318257711 A B C Trim, oven, black, front

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

* 3201861 A B C Screw, 6 x 0.375, (4)

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995459319 FEB27T6D

01/06 8

LOWER OVEN

FEB27T6D Publication No: 5995459319

# Functional Parts 9 01/06

* Non-Illustrated Parts

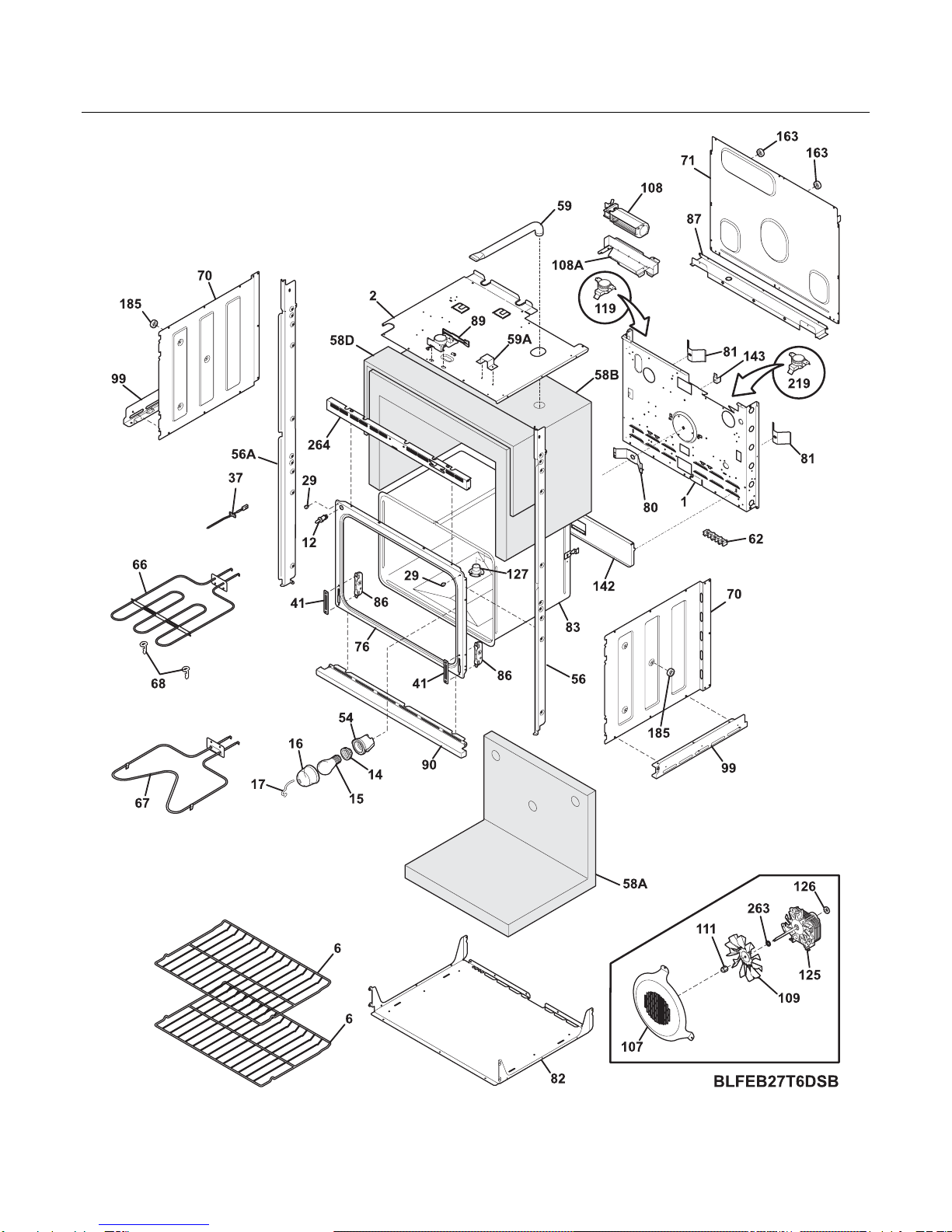

LOWER OVEN

Model Index: AFEB27T6D (FEB27T6DSC)

BFEB27T6D (FEB27T6DBC)

CFEB27T6D (FEB27T6DQC)

POS. NO PART NO. DESCRIPTION

1 318259210 A B C Back, main

2 318258910 A B C Shield, insulation, upper

6 318262602 A B C Rack, oven, (2)

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318259912 A - - Trim, side filler, white, RH

56 318259914 - B - Trim, side filler, black, RH

56 318259916 - - C Trim, side filler, bisque, RH

56A 318259913 A - - Trim, side filler, white, LH

56A 318259915 - B - Trim, side filler, black, LH

56A 318259917 - - C Trim, side filler, bisque, LH

58A 318285060 A B C Insulation, rear & bottom, oven wrapper

58B 318285059 A B C Insulation, top & sides, oven wrapper

58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255601 A B C Element, broil, 3400W

67 # 318255103 A B C Element, bake, 2300W

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260001 A B C Panel, rear box

71* 318340200 A B C Bracket, insul. panel

76 318056222 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

* 318249401 A B C Tube, protector

81 318192400 A B C Spring, oven

82 318258710 A B C Shield, insulation, lower

83 318261503 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260601 A B C Bracket, cable mtg.

89 # 318261211 A B C Motor, latch assy

* # 318231750 A B C Harness, wiring, main, latch

* # 318199744 A B C Wiring Harness, latch, BAS

* # 318199746 A B C Wiring Harness, latch, NO BAS

90 318259710 A - - Trim, oven front, white, bottom

90 318259711 - B - Trim, oven front, black, bottom

90 318259712 - - C Trim, oven front, bisque, bottom
