Frigidaire CPET3085KF Manual de usuario

frigidaire.ca

30" Electric

Signature Features

Double Wall Oven

CPET3085KF

Powerful Performance

Eortless™ Convection Conversion

PowerPlus™ and Rapid Clean Options

Broil ( 4,000W )

Performance-Driven Style

Real Stainless Steel

Even Baking Technology

SpaceWise™ Design

SpaceWise™ Half Rack

One-Touch Options

Keep Warm

My Favourite

Chicken Nuggets

Pizza

Add-a-Minute

More Easy-To-Use Features

Hidden Bake

Extra-Large Windows with Pro-Tint Finish

Sabbath Mode (Star-K® Certiﬁed)

Capacities

4.2 Cu. Ft. Upper Oven Capacity

4.2 Cu. Ft. Lower Oven Capacity

Overall Exterior Dimensions

Height 50-7/16"

Width 30"

Depth 24-1/2"

Available in:

1 Based on single rack cooking performance, not set

temperature, using PowerPlus™ Preheat.

Stainless

(F)

PowerPlus™ Preheat

Preheat in less than six minutes.1

PowerPlus™ Convection

You can roast to tender, juicy

perfection in less time.

Keep Warm Setting

Keep food warm until everything —

and everyone — is ready.

Pro-Select™ Controls

Precise control at your fingertips.

Double Wall Oven

CPET3085KF 30" Electric

FRIGIDAIRE®

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

30" Double Electric Wall Oven

Professional

Double Wall Oven Specifications

• Product Shipping Weight (approx.) – 300 Lbs.

• Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz

AC only electrical supply with ground required on separate circuit

fused on both sides of line.

• Connected Load (kW Rating) @ 240 / 208 Volts = 10.0 / 7.6 kW

• Amps @ 240 / 208 Volts = 42.0 / 36.0 Amps

• Recommended Circuit Breaker – 40 Amps

• Always consult local and national electric codes.

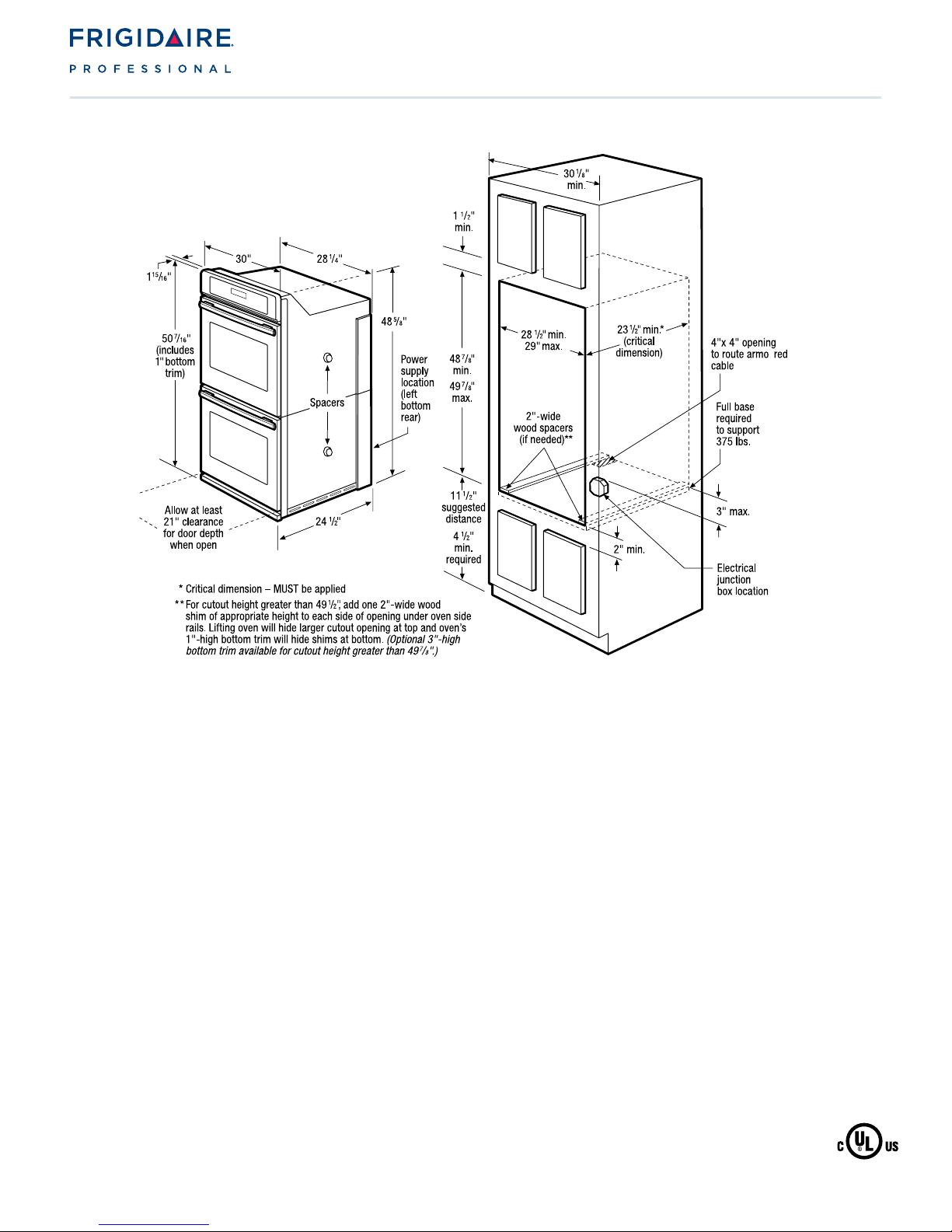

• Minimum 21" clearance for oven door depth when open.

• Suggested distance from floor is 11-1/2". Minimum required distance

is 4-1/2".

• Minimum 23-1/2" deep cutout dimension is critical for proper

installation, to ensure that oven’s faceplate will fit flush against

cabinet front.

• To adapt oven to fit cutout height greater than 49-1/2", add one

2"-wide wood shim of appropriate height to each side of opening

under oven side rails. Lifting oven will hide larger cutout opening

at top and oven’s 1"-high bottom trim will hide shims at bottom.

(Standard 1"-High Bottom Trim included.)

• To adapt oven to fit cutout height greater than 49-7/8", optional

3"-High Bottom Trim available.

• Full oven base of solid plywood or similar material required,

capable of supporting 375 Lbs.

• Base must be level and cabinet front must be square.

• Double Wall Oven is NOT approved to be used in stackable or

side-by-side installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.ca for detailed instructions.

Optional Accessories

• 3"-High Stainless Steel Bottom Trim – PN # 318258707.
