Frigidaire FMV158FM Manual de usuario

FMV158FM.eps FMV158FM cabinet.eps FMV158F schematic.eps FMV158F

wiring.eps

Product No. FMV158FMA

Market North America

Color silver mist

Volts 120

Watts 950

Owner's Guide 316488512

Installation Instructions 316488506

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995466959

06/05/25

(EN/SERVICE/ECL)

099

OVER-RANGE

MICROWAVE

Model No.

FMV158F

Publication No: 5995466959 FMV158FMA

05/06 2

RECOMMENDED SPARE PARTS

FMV158FMA Publication No: 5995466959

# Functional Parts 3 05/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

1 5304456147 Cavity, assembly

2 5304456148 Screen, door

3 5304456149 Handle, door

4 5304456150 Front, door

5 5304456151 Spring, latch, (2)

6 5304456152 Key, latch, (2)

7 5304456153 Pin, hinge, (2)

9 5304456154 Middle Door

10 5304456118 Film, door

11 5304456117 Liner, door

12 # 5304456155 PC Board, assembly

13 5304456156 Bracket, control panel

14 5304456157 Window, display

15 # 5304456158 Membrane, switch

16 5304456159 Panel, control

17 5304456160 Bracket, lamp mounting

18 # 5304456067 Holder, lamp, (3)

19 # 5304456066 Lamp, incandescent, (3)

20 5304456161 Base, bottom

21 5304456162 Filter, air, (2)

22 5304456163 Glass, cooktop lamp

23 5304456164 Cover, glass

24 5304456165 Middle Door, assembly, w/film

25 5304456166 Duct, side

26 # 5304456068 Capacitor, motor

27 # 5304456167 Thermostat, motor

28 5304456168 Latch Body, assembly

29 # 5304456100 Switch, micro, (2)

30 # 5304456101 Switch, micro

31 5304456099 Lever, switch, lower

34 5304456169 Blade, stirrer

35 5304456170 Holder, stirrer

36 5304456171 Tip, stirrer

37 5304456141 Cover, stirrer

38 5304456142 Button, lock

39 5304456172 Holder, rack, (4)

40 5304456173 Coupler, turntable

42 5304456174 Cover, front

43 # 5304456175 Motor, drive

45 5304456176 Bracket, air guide

46 # 5304456082 Filter, noise

49 # 5304456177 Capacitor, oil

50 # 5304456178 Diode, high voltage

51 5304456179 Bracket, capacitor

52 5304456125 Cover, damper

53 5304456126 Damper, main

54 5304456180 Bracket, vent motor

55 5304456122 Nut, holder assembly, (2)

56 5304456181 Bracket, power cord

57 # 5304456128 Cord, power assembly

58 5304456182 Wrapper, outer

Publication No: 5995466959 FMV158FMA

05/06 4

RECOMMENDED SPARE PARTS

FMV158FMA Publication No: 5995466959

# Functional Parts 5 05/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

59 # 5304456183 Motor, ventilation

60 # 5304456184 Motor

61 # 5304456094 Thermostat, upper

62 # 5304456185 Sensor, gas

63 5304456186 Holder, sensor

64 # 5304456187 Harness, wiring, sensor

65 5304456188 Dust, upper

68 5304456189 Bracket, duct assembly, upper

69 5304456190 Nut, flange, (4)

70 5304456191 Grille, assembly

71 5304456192 Film, display window

73 # 5304456105 Magnetron Assembly

74 # 5304456106 Thermostat, magnetron

75 # 5304456193 Transformer, high voltage

76 5304456194 Plate, base

77 # 5304456139 Thermostat, RH, lower

79 # 5304456195 Motor, fan assembly

80 5304455656 Filter, charcoal

82 5304456196 Rack, wire

83 5304456197 Plate, mounting, assembly

84 5304456198 Tray, turntable

85 5304456199 Guide, roller assembly

86 5304456200 Hardware Assembly, mounting

88 # 5304456201 Harness, wiring, main

91 5304456202 Bracket, filter

94 5304456135 Screw, inch mach, (2)

95 5304456136 Bolt, toggle, (4)

96 5304456138 Bolt, flat, (3)

97 5304456134 Nut, toggle, (4)

98 5304456137 Grommet, (2)

100 5304456203 Stirrer, assembly

101 5304456204 Door Complete, assembly

102# 5304456205 Control Box, assembly

103# 5304456206 Bottom Base, assembly

104 5304456207 Hood Damper, assembly

105# 5304456208 Control Panel, assembly

109 5304456209 Bracket, grille

110 5304456210 Bracket, grille, LH

111 5304456211 Cover, motor

112# 5304456212 Motor, fan

113 5304456213 Blade, fan

114 5304456214 Holder, LED

115 5304456215 Grille

116 5304456216 Clip, grille

* 316488512 Owners Manual

* 316488506 Installation Instructions

* 316488507 Template, rear wall instl

* 316488508 Template, installation, top

Publication No: 5995466959 FMV158FMA

05/06 6

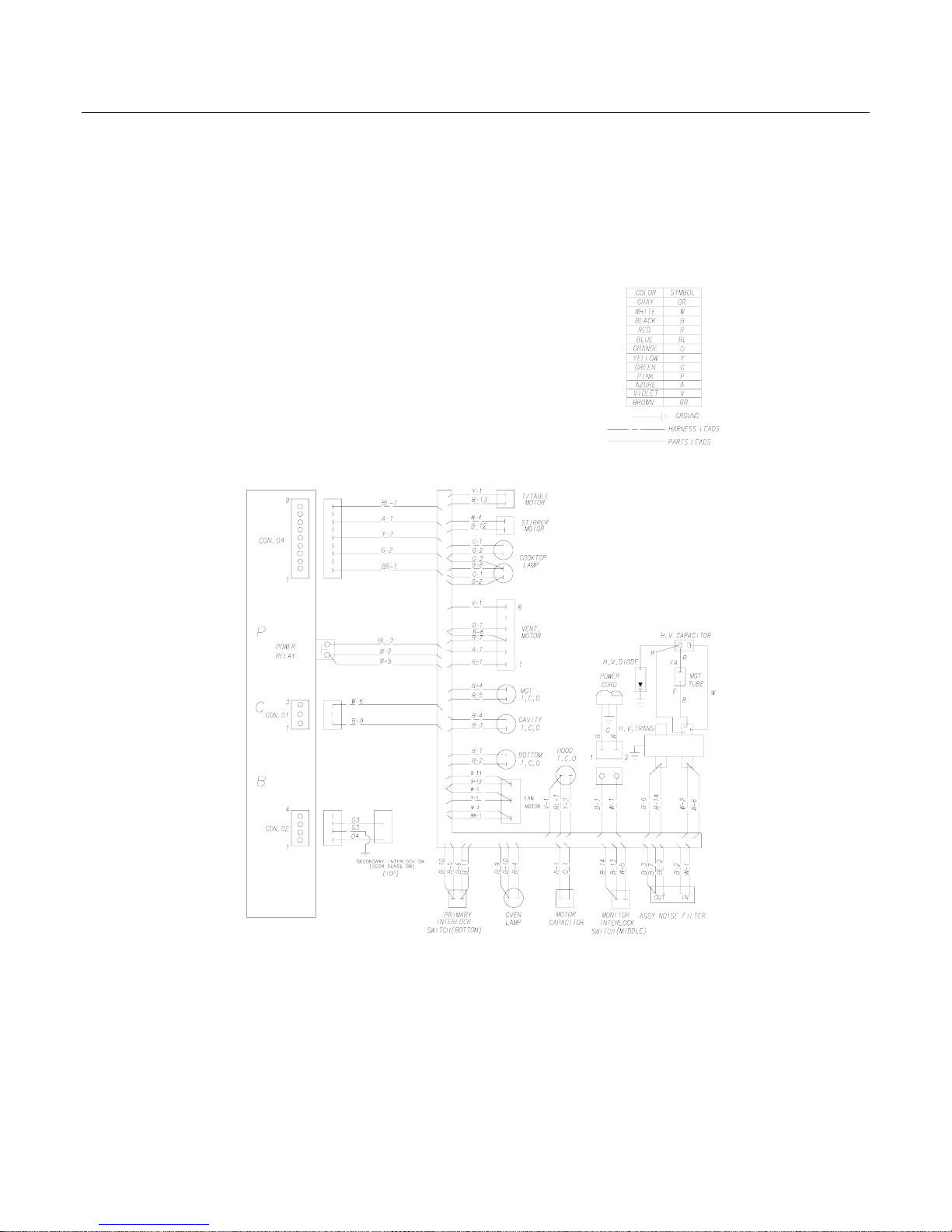

WIRING SCHEMATIC

NOTE: Door is open.

FMV158FMA Publication No: 5995466959

# Functional Parts 7 05/06

* Non-Illustrated Parts

WIRING SCHEMATIC
