UPRIGHT FREEZER

Model number

FFU21G3AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803200

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803200

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU21G3AW0 FFU21G3AW 134A white 115

MARKET

North America

Publication No.

5995361713

011205

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

12/01 2

Publication No FFU21G3AW0

5995361713

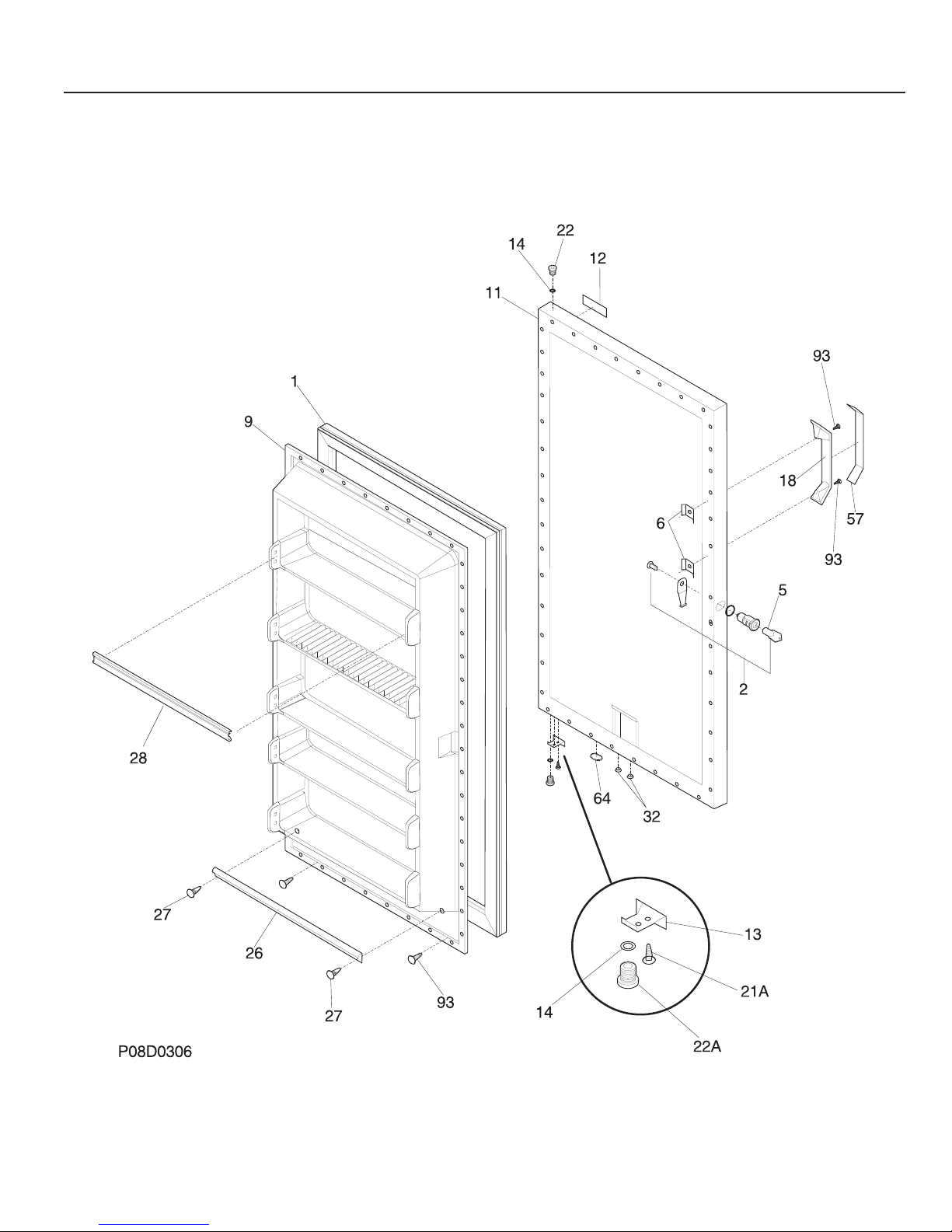

DOOR

# = Fast-moving Parts 3 12/01

* = Non-Illustrated Parts

FFU21G3AW0 Publication No.

5995361713

DOOR

POS. NO PART NO DESCRIPTION

1 216522312 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

6 5300158222 Screw-anchor,8-18

9 216528107 Panel-inner door,white

11 5303925476 Panel-outer door,white

12 240449701 Nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216446900 Handle,white

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

28 216807700 Rack-door

32 5309950074 Valve-breather

57 3017682 Insert-handle

64 216403700 Plug-button,door base

93 5303161215 Screw

12/01 4

Publication No FFU21G3AW0

5995361713

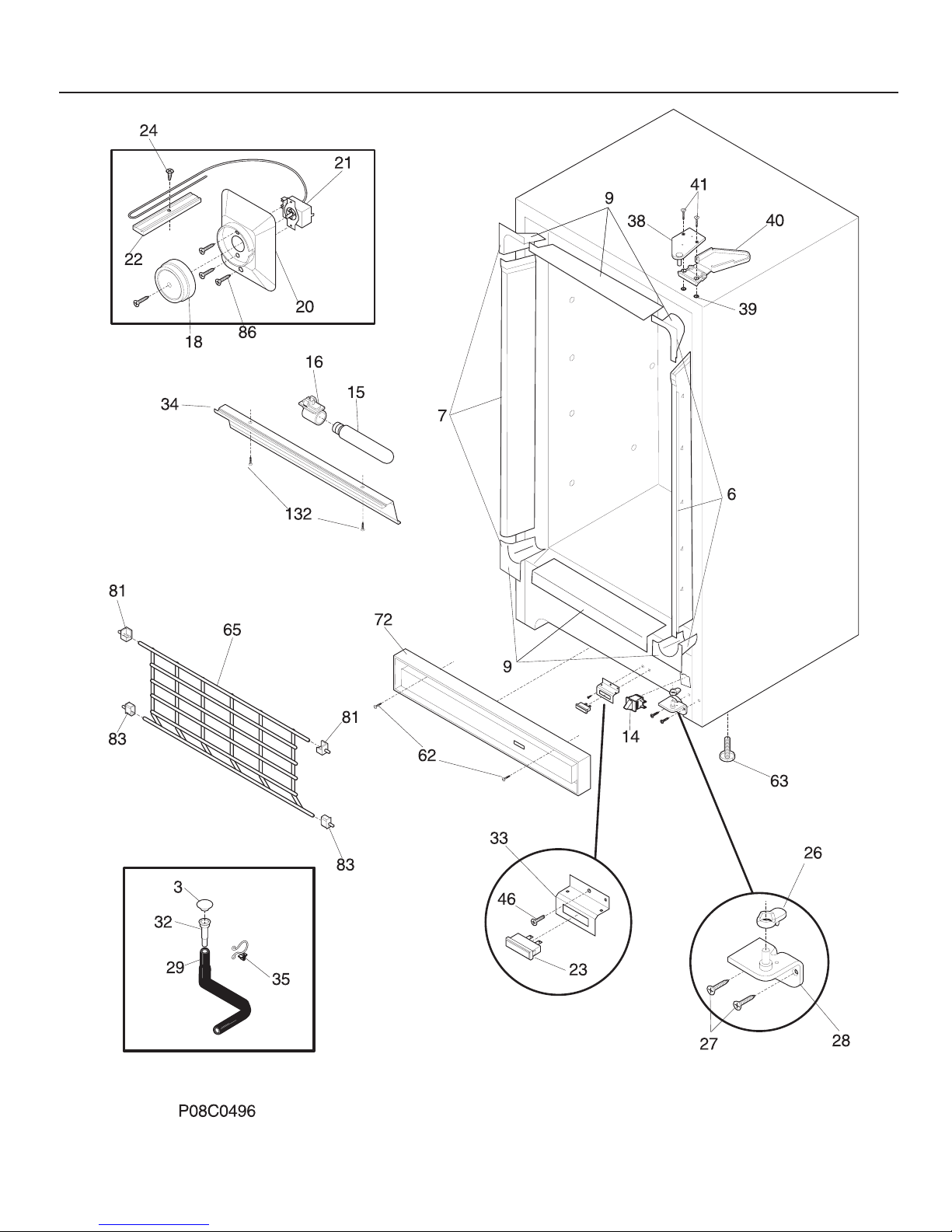

CABINET

# = Fast-moving Parts 5 12/01

* = Non-Illustrated Parts

FFU21G3AW0 Publication No.

5995361713

POS. NO PART NO DESCRIPTION

3 216502600 Plug-drain,interior ,interior

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners,32" ,top or bottom

14 216822900 Light/Lamp,ramp

15 # 216608600 Lamp,light bulb ,40 W ,120 V

16 # 216688600 Socket-light/lamp

18 216707200 Knob-control cold

20 216707300 Cover-control housing

21 216715100 Control-temperature

22 08037931 Clamp,cap tube ,cold control

23 06594648 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313502 Hose-drain

32 5308005500 Drain

33 216252001 Bracket,signal light

34 216557600 Shield-light

35 216273000 Clip,drain hose

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

62 131420300 Screw,cr truss head ,8-18AB x 0.750

63 216396900 Foot-adjustable

65 216443500 Drop front

72 216591110 Grille/Kickplate

81 216571000 Support-drop front,top

83 216571100 Support-drop front,btm

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216802800 Owners guide

* 5303305324 Paint,touch-up ,white

CABINET

12/01 6

Publication No FFU21G3AW0

5995361713

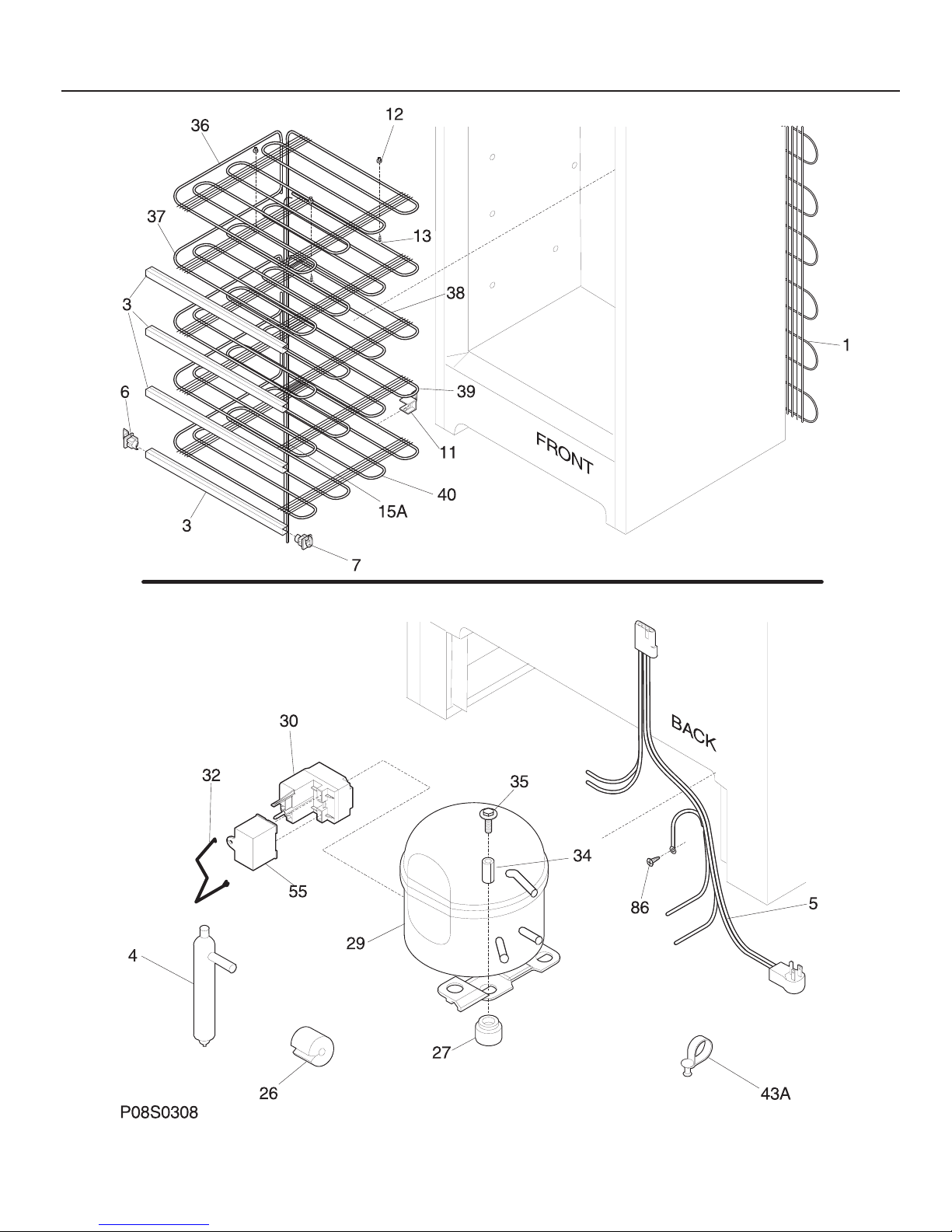

SYSTEM

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FFU21G3AW0 Publication No.

5995361713

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

3 216743100 Trim-shelf,decorated ,evap

4 216634500 Drier-filter

5 # 216809900 Harness,electrical

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A# 216401500 Heat Exchanger

26 216511900 Spacer tube,(3)

27 216498900 Grommet,compressor

29 # 216788300 Compressor,w/o electricals

30 216649311 Controller

32 218740800 Clamp,elec cont mtg ,compressor

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

36 # 216070900 Grid-top evaporator

37 # 216071000 Shelf-top evaporator

38 # 216071100 Shelf-middle evaporator

39 # 216071200 Shelf-third evaporator

40 # 216071300 Shelf-bottom evaporator

43A 216629700 Clip-harness

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

* 216502500 Sleeve-tube insert
