Frigidaire FFU12M2AW Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU12M2AW0 FFU12M2AW 134A white 115

FFU14M2AW0 FFU14M2AW 134A white 115

MARKET

North America

Publication No.

5995354080

010530

-EN/SERVICE /S

365

UPRIGHT FREEZER

Model number

FFU12M2AW

FFU14M2AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803100

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - # 216803100

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FFU12/14M2AW0

5995354080

DOOR

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FFU12/14M2AW0 Publication No.

5995354080

DOOR

A = FFU12M2A (FFU12M2AW0)

B = FFU14M2A (FFU14M2AW0)

POS. NO PART NO DESCRIPTION

1 216522303 A - Gasket-door,white

1 216522306 - B Gasket-door,white

9 216527402 A - Panel-inner door,frzr

9 216527612 - B Panel-inner door,white ,frzr

11 216565401 A - Panel-outer door,white

11 216557801 - B Panel-outer door,white

12A 240415201 A B Label-nameplate,white

13 08016354 A B Door Stop

14 5303313518 A B Washer,sealing

21A 08005520 A B Screw-door stop mtg,flat hd metric ,

4.0 x 0.7-19.7

22 216443600 A B Bearing

22A 216503200 A B Bearing-hinge,btm

26 216524300 A B Gasket,secondary

27 5303212828 A B Clip,panel

28 216523302 A B Rack-shelf

32 5309950074 A B Valve-breather

64 216403700 A B Plug-button,base door

93 5303161215 A - Screw

06/01 4

Publication No. FFU12/14M2AW0

5995354080

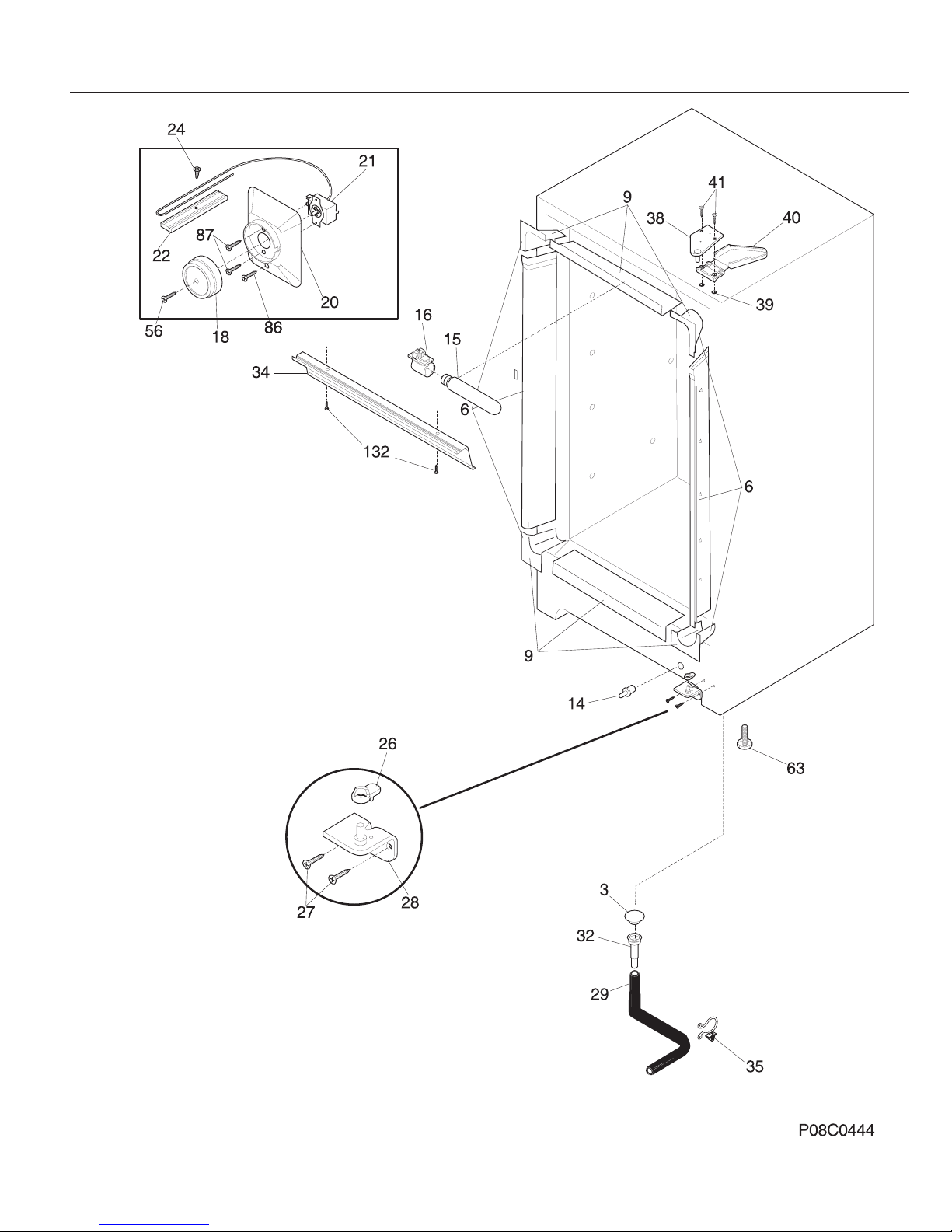

CABINET

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FFU12/14M2AW0 Publication No.

5995354080

A = FFU12M2A (FFU12M2AW0)

B = FFU14M2A (FFU14M2AW0)

POS. NO PART NO DESCRIPTION

3 216502600 A B Plug-drain,interior ,interior

6 216604400 A - Breaker Kit w/corners

6 216604300 - B Breaker Kit w/corners

9 216603400 A B Breaker Kit w/corners,28", top or bottom

14 # 216472300 A B Switch-light plunger

15 # 216608600 A B Lamp,light bulb ,40 W ,120 V

16 # 5300136117 A B Socket-light/lamp

18 216707200 A B Knob-control cold

20 5303288184 A B Cover-control housing

21 # 216788100 A B Control-temperature

22 08037931 A B Clamp,cap tube ,cold control

24 5300052943 A B Screw-clamp,truss hd cr ,control

26 216503300 A B Ramp,closer ,door

27 5303205738 A B Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 A B Hinge-bottom

29 216313502 A B Hose-drain

32 5308005500 A B Drain

34 216557500 A B Shield-light

35 216273000 A B Clip,drain hose

38 5303925086 A B Hinge-upper

39 5303294372 A B Nut-insert,hinge

40 5303212912 A B Cover-hinge

41 5303212937 A B Screw-top hinge

56 09950853 A B Screw-control knob,phillips ,4-40 x 3/8

63 216396900 A B Foot-adjustable

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 A B Screw

132 5303283898 A B Screw,6-20AB x 3/8

* 09948773 A B Insulation,drain tube

* 216802800 A B Owners guide

* 5303305324 A - Paint,touch-up ,white

CABINET

06/01 6

Publication No. FFU12/14M2AW0

5995354080

SYSTEM

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FFU12/14M2AW0 Publication No.

5995354080

A = FFU12M2A (FFU12M2AW0)

B = FFU14M2A (FFU14M2AW0)

POS. NO PART NO DESCRIPTION

1 # 5300123788 A B Condenser

3 216743000 A B Trim-shelf,evaporator

4 216634500 A B Drier-filter

5 # 216791000 A B Harness-ext,main

6 3091418 A B Support-shelf,front LH

7 08037928 A B Support-shelf,front RH

11 216474600 A B Support-rear shelf

12 216225700 A B Grommet-spacer

13 216138900 A B Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 A B Heat Exchanger

27 216498900 A B Grommet,compressor

29 # 216696500 A - Compressor,w/o electricals

29 # 216784300 - B Compressor,w/o electricals

30 216649305 A - Controller

30 216649313 - B Controller

32 216694500 A - Clip,controller

32 216649200 - B Clip,controller

34 5306594529 A B Sleeve-compressor

35 5303272328 A B Screw,Ind hex sems ,1/4-28 unfx ,compr

36 # 216069700 A - Grid-top evaporator

36 # 216070100 - B Grid-top evaporator

37 # 216069800 A - Shelf-top evaporator

37 # 216070200 - B Shelf-top evaporator

38 # 216069900 A - Shelf-middle evaporator

38 216070300 - B Shelf-middle evaporator

40 # 216070000 A - Shelf-bottom evaporator

40 # 216070400 - B Shelf-bottom evaporator

43A 216629700 A B Clip-harness

55 # 216696700 A - Capacitor-run,180 VAC ,15 microfarad

55 # 216787800 - B Capacitor-run

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2

SYSTEM
