Frigidaire FFU14K0DW Manual de usuario

Product No. FFU14K0DW0

Series 134A

Color white

Volts 115

Wiring Diagram 216903500

Owner's Guide 216960000

Market North America

Energy Guide 216794906

4/05

P08F0009.EPS P08D0350.eps P08C0721.eps P08S0350.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995409926

04/05/13

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU14K0DW

Publication No: 5995409926 FFU14K0DW0

05/04 2

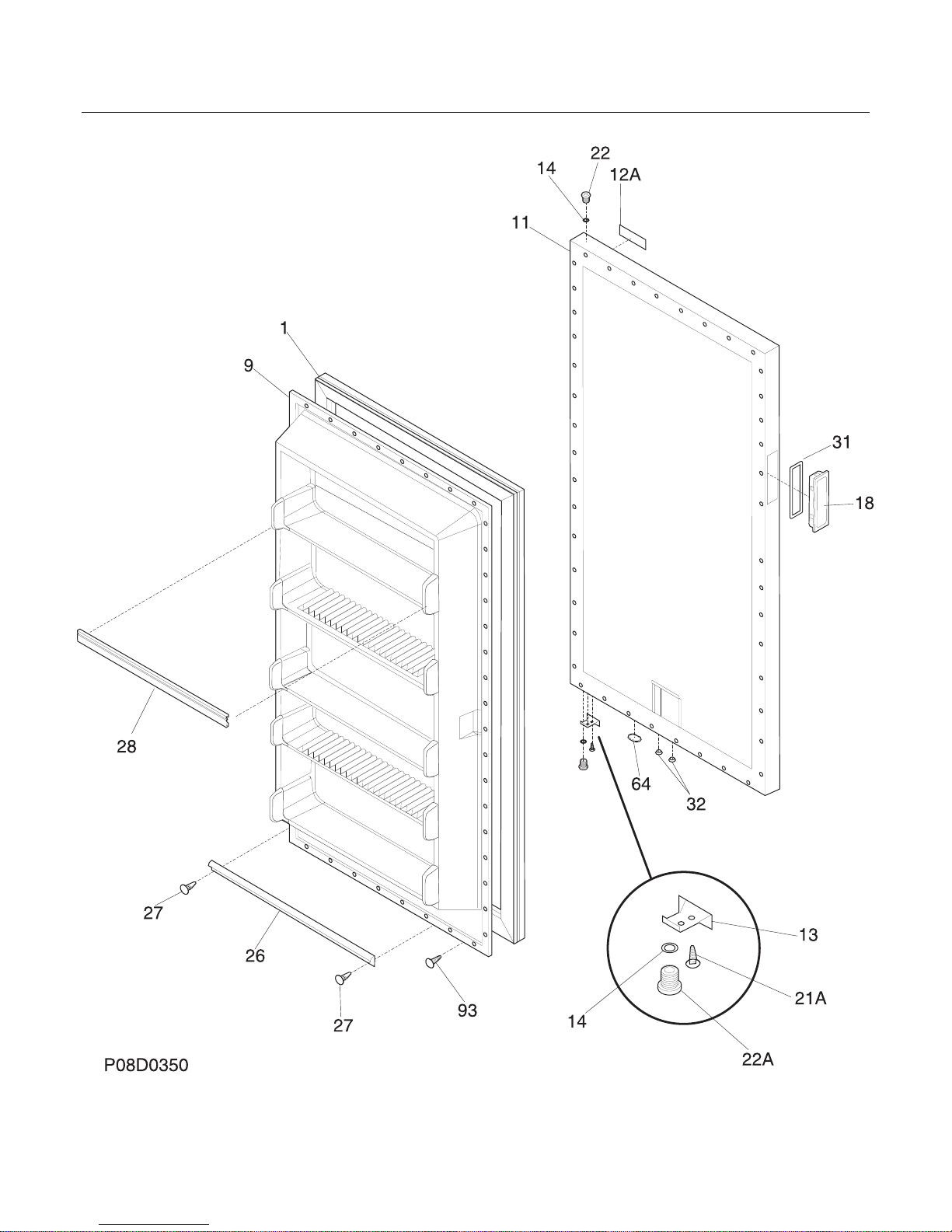

DOOR

FFU14K0DW0 Publication No: 5995409926

# Functional Parts 3 05/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522306 Gasket, door seal, white

9 216527617 Panel-inner door, frzr

11 216557801 Panel-outer door, white

12A 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer, sealing

18 216140200 Handle, recessed, white

21A 08005520 Screw, door stop mtg, 4.0 x 0.7-19.7, flat hd, metric

22 216443600 Bearing, hinge, top

22A 216503200 Bearing, hinge, bottom

26 216524300 Gasket, secondary

27 5303212828 Clip, panel mtg

28 216951601 Rack-door, (5)

31 08009392 Gasket, white

32 5309950074 Valve, breather, door base

64 216403700 Plug-button, hole filler, door base

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995409926 FFU14K0DW0

05/04 4

CABINET

P08C0721

41 28

132

FFU14K0DW0 Publication No: 5995409926

# Functional Parts 5 05/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216502600 Plug, drain, interior

6 216603400 Breaker Kit w/corners, 22.13" long, top or bottom

9 216604300 Breaker Kit w/corners, 45.13" long, no lock slot

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

20 216707300 Cover-control housing

21 # 216788100 Control-temperature

22 216823500 Clamp, cap tube, cold control

24 5300052943 Screw-clamp, truss hd cr, control

26 216503300 Ramp, door closer

28 216247400 Hinge, bottom

29 216313502 Hose-drain

32 5308005500 Drain

34 216816201 Shield-light

35 216273000 Clip, drain hose

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216954400 Screw, 12-24 x.700 hwh, hinge mtg.

63 216396900 Screw, leveling foot, plastic, adjustable

72 216952700 Grille/guard, (2)

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

132 5303283898 Screw, 6-20AB x 3/8

* 09948773 Insulation, drain tube

* 5303305324 Paint, touch-up, white

* 216794906 Energy Guide

Publication No: 5995409926 FFU14K0DW0

05/04 6

SYSTEM

FFU14K0DW0 Publication No: 5995409926

# Functional Parts 7 05/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300123788 Condenser

3 216847804 Trim-shelf, white, evaporator, (3)

4 216634500 Drier-filter

5 # 216943100 Harness-main

6 3091418 Support-shelf, front LH

7 08037928 Support-shelf, front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw, hex sems, 8-18AB x 1.00, evap

27 5308002681 Grommet, compressor

29 # 216888100 Compressor, w/o electricals

30 216596800 Starter, relay

31 # 216100106 Overload Protector

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

36 # 216940000 Evaporator, tubing assy, white

43A 216629700 Clip

53 216347800 Cover terminal, cover-comp term

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

* 216502500 Sleeve, suction line
