Frigidaire FDR252RB S Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDR252RBB0 FDR252RB 18" Built-in black

FDR252RBS0 FDR252RB 18" Built-in white

MARKET

North America

Publication No.

5995367264

020301

-EN/SERVICE /ECL

821

18" Built-In

DISHWASHER

Model No.

FDR252RB

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154384501

OWNER’S GUIDE # - 154418701

INSTALLATION INSTRUCTIONS # - 154418801

ENERGY GUIDE LABEL # - 154399018

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

03/02 2

Publication No. FDR252RB

5995367264

CONTROL PANEL

# = Fast Moving Part 3 03/02

* = Non-Illustrated Part

FDR252RB Publication No.

5995367264

CONTROL PANEL

A = FDR252RB (FDR252RBS0)

B = FDR252RB (FDR252RBB0)

POS. NO PART NO DESCRIPTION

1 154357602 A - Panel,control ,white

1 154357601 - B Panel,control ,black

2 154418601 A - Insert,control panel ,white

2 154418603 - B Insert,control panel ,black

3 # 154376202 A B Timer

8 # 154220401 A B Switch,selector ,5 button

8* 154242201 A B Shield,switch

8* 5303318719 A B Screw,mtg.

11 5300809036 A B Lens,light

12 154236502 A - Pushbutton,white

12 154236501 - B Pushbutton,black

13 154239504 A - Knob,timer ,white

13 154239509 - B Knob,timer ,black

* # 154410401 A B Wiring Harness

* 154416601 A - Shield,wire ,white

* 154416603 - B Shield,wire ,black

* 154399018 A B Label,energy guide

03/02 4

Publication No. FDR252RB

5995367264

DOOR

# = Fast Moving Part 5 03/02

* = Non-Illustrated Part

FDR252RB Publication No.

5995367264

A = FDR252RB (FDR252RBS0)

B = FDR252RB (FDR252RBB0)

POS. NO PART NO DESCRIPTION

1 154237401 A B Spring,door ,(2)

2 154093301 A B Screw,arm assy ,(4)

3 5303270031 A B Arm Assy,RH & LH

3* 154221401 A B Cover,arm assy

3* 5303298513 A B Pin,arm assy

4 5300805884 A B Pad,door spring

5 154079601 A B Nut,arm assy ,(4)

7 154352201 A B Door,inner assy

8 154411701 A - Toeplate,adjustable ,white

8 154411703 - B Toeplate,adjustable ,black

9 154230101 A B Dispenser,det/rinse aid ,includes #22

9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.

10 154419401 A - Screw,access panel ,white

10 154419403 - B Screw,access panel ,black

11 # 154221101 A - Baffle,door ,white

11 # 154221103 - B Baffle,door ,black

12 # 154361201 A - Latch assy,white

12 # 154361203 - B Latch assy,black

15 154103702 A B Screw,latch mtg ,(2)

20 154416101 A - Panel,outer door assy ,white

20 154416103 - B Panel,outer door assy ,black

21 154399501 A - Panel,access ,white

21 154399503 - B Panel,access ,black

22 154388801 A B Cap,Rinse aid

28 154400301 A - Trim,access panel ,white

28 154400303 - B Trim,access panel ,black

30 154026601 A B Speednut,door baffle

43 154229301 A B Cover,vent

43* 154229401 A B Screw,vent cover ,(2)

44 154221001 A B Gasket,vent cover

51 154320301 A B Clamp,drip loop ,wire

* # 154227808 A B Thermostat,temp boost

* 154395501 A B Retainer,thermostat

DOOR

03/02 6

Publication No. FDR252RB

5995367264

TUB

# = Fast Moving Part 7 03/02

* = Non-Illustrated Part

FDR252RB Publication No.

5995367264

A = FDR252RB (FDR252RBS0)

B = FDR252RB (FDR252RBB0)

POS. NO PART NO DESCRIPTION

1 # 154218701 A B Tub assy,w/gasket

2 154211601 A B Strike,door

3 # 154219501 A B Gasket,tub

4 154200601 A B Screw,#10-16 x 3/8

5 154333902 A B Roller,tub

6 5303943103 A B Screw,w/washer ,(8)

22 154239801 A B Tubing,water inlet

23 5303318539 A B Clamp,tubing ,(2)

24 # 154411001 A B Hose,drain

25 # 154209701 A B Float

* 154238301 A B Insulation,tub

* 5300807270 A B Screw,(2) ,countertop mtg.

TUB

03/02 8

Publication No. FDR252RB

5995367264

MOTOR & PUMP

# = Fast Moving Part 9 03/02

* = Non-Illustrated Part

FDR252RB Publication No.

5995367264

A = FDR252RB (FDR252RBS0)

B = FDR252RB (FDR252RBB0)

POS. NO PART NO DESCRIPTION

1 # 154220901 A B Heater

1* 154289801 A B Shield,heater terminal

2 154359701 A B Bracket,heater ,(2)

3 154106201 A B Nut,heater ,(2)

7 154365101 A B Macerator

10 154365302 A B Cover,volute

12 154365401 A B Impeller,lower drain

12A 154365501 A B Slinger,pump

14 154364802 A B Housing,pump

15 # 154367701 A B Check valve

16 154246502 A B Retainer,sump

18 # 154384301 A B Motor

22 154200201 A B Screw,pump housing

23 154234301 A B Nut,spray arm

24 154219201 A B Spray arm,lower

24* 154232601 A B Shield,heat ,spray arm

27 154377501 A B Screw,upper impeller

28 154370601 A B Impeller,upper

34 154064901 A B Washer,insulating

35 154200901 A B Screw,motor mtg

36 154387601 A B Sleeve & seal assy.

38 154367402 A B Diffuser

42 154365601 A B Gasket,pump

44 154122502 A B Base,tower

45 154122601 A B Middle,tower

46 154122701 A B Tip,tower

52 154365201 A B Cover,pump housing

* 154380601 A B Clamp,hose ,(1)

* 154200601 A B Screw,#10-16 x 3/8

MOTOR & PUMP

03/02 10

Publication No. FDR252RB

5995367264

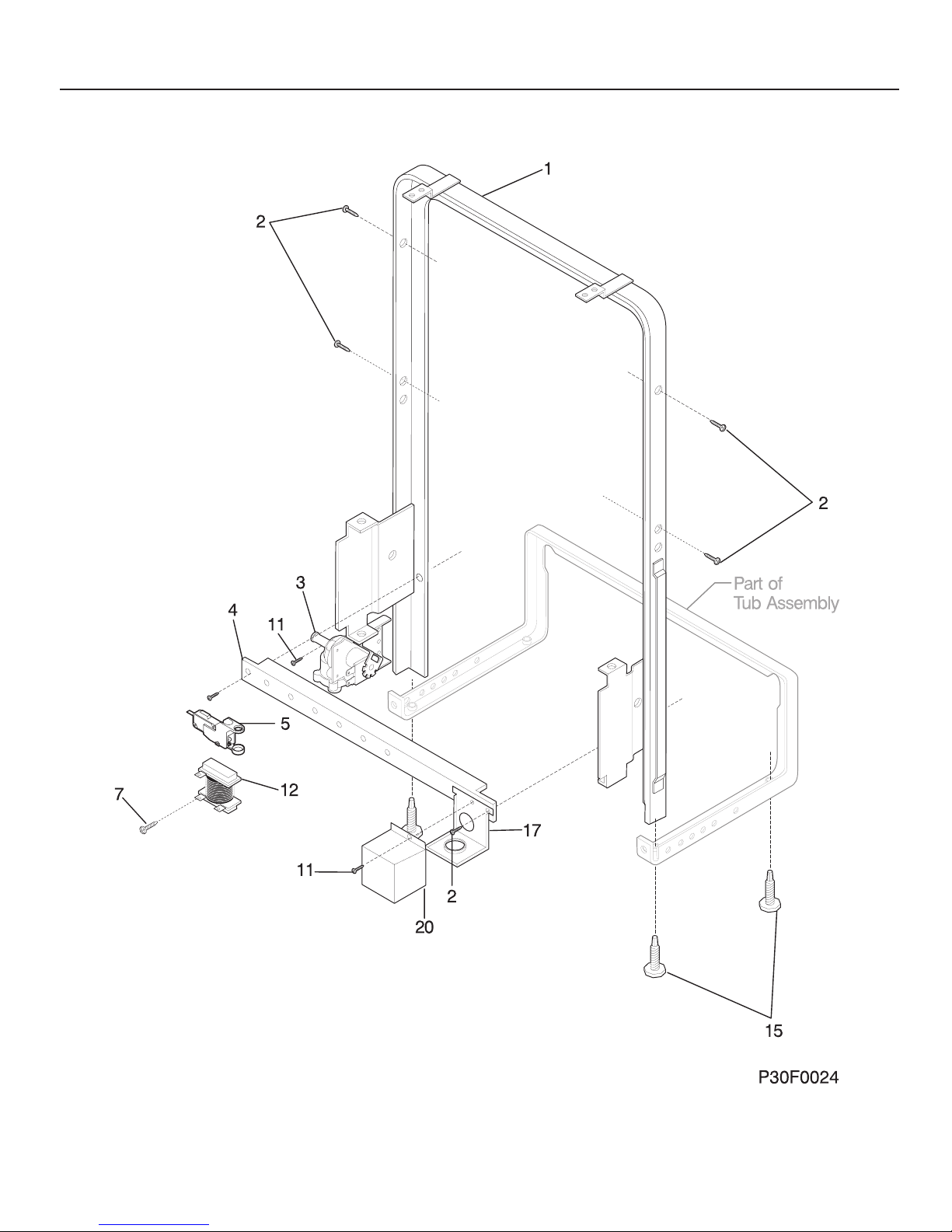

FRAME
