Frigidaire FDB126RB Manual de usuario

P30L0036.eps P30C0131.eps P30B0032.eps P30U0018.eps P30M0034.eps P30F0022.eps

P30R0045.eps

Product No. FDB126RBB2 FDB126RBQ2 FDB126RBS2

Series Built-in 24" Built-in 24" Built-in 24"

Color black bisque white

Wiring Diagram 154441501 154441501 154441501

Owner's Guide 154428101 154428101 154428101

154428301 154428301 154428301

154428201 154428201 154428201

Service Data Sheet 154441501 154441501 154441501

Energy Guide 154485201 154485201 154485201

Installation Instructions 154427301 154427301 154427301

Market North America North America North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995404661

04/02/25

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB126RB

Publication No: 5995404661 FDB126RB

02/04 2

CONTROL PANEL

FDB126RB Publication No: 5995404661

# Functional Parts 3 02/04

* Non-Ilustrated Parts

CONTROL PANEL

Model Index: AFDB126RB (FDB126RBS2)

BFDB126RB (FDB126RBB2)

CFDB126RB (FDB126RBQ2)

POS. NO PART NO. DESCRIPTION

1 154368301 A - - Panel, control, white

1 154368303 - B - Panel, control, black

1 154368304 - - C Panel, control, bisque

2 154432801 A - - Insert, control panel, white

2 154432803 - B - Insert, control panel, black

2 154432804 - - C Insert, control panel, bisque

3 # 154437501 A B C Timer

3* 154131204 A B C Shield, timer

3* 154095701 A B C Screw, thread rolling, (2), timer

8 # 154240401 A - - Switch, rocker/selector, white

8 # 154240403 - B - Switch, rocker/selector, black

8 # 154240404 - - C Switch, rocker/selector, bisque

8* 5303318719 A B C Screw, mtg.

13 154239504 A - - Knob, timer, white

13 154239509 - B - Knob, timer, black

13 154239508 - - C Knob, timer, bisque

20 154433001 A B C Vent assy, static dry

20* 154436201 A B C Screw, dry duct, (3)

* 154475001 A B C Harness, wiring

* 154399001 A B C Label, ENERGY GUIDE

Publication No: 5995404661 FDB126RB

02/04 4

DOOR

FDB126RB Publication No: 5995404661

# Functional Parts 5 02/04

* Non-Ilustrated Parts

DOOR

Model Index: AFDB126RB (FDB126RBS2)

BFDB126RB (FDB126RBB2)

CFDB126RB (FDB126RBQ2)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C Spring, door, (2)

1A 154325201 A B C Linkage, door spring, (2)

2 154093301 A B C Screw, arm assy, (4)

3 154325304 A B C ArmAssy, LH

3A 154325303 A B C Arm Assy, RH

* 154400601 A B C Pin,arm assy

5 154079601 A B C Nut, arm assy, and handle mtg.

7 154299004 A B C Door, inner assy

9 154230103 A B C Dispenser, det/rinse aid, includes #22

9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C Screw, latch mtg, (2)

12 # 154475201 A - - Latch assy, white

12 # 154475203 - B - Latch assy, black

12 # 154475204 - - C Latchassy, bisque

20 154359105 A - - Door, white

20 154359107 - B - Door, black

20 154359110 - - C Door, bisque

20* 5304428306 A B C Screw, door mtg., (2)

22 154388801 A B C Cap, Rinse aid

49 154297603 A B C Gasket, door, bottom

50 154211401 A B C Support, door hinge

51 154320301 A B C Clamp, drip loop, wire

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995404661 FDB126RB

02/04 6

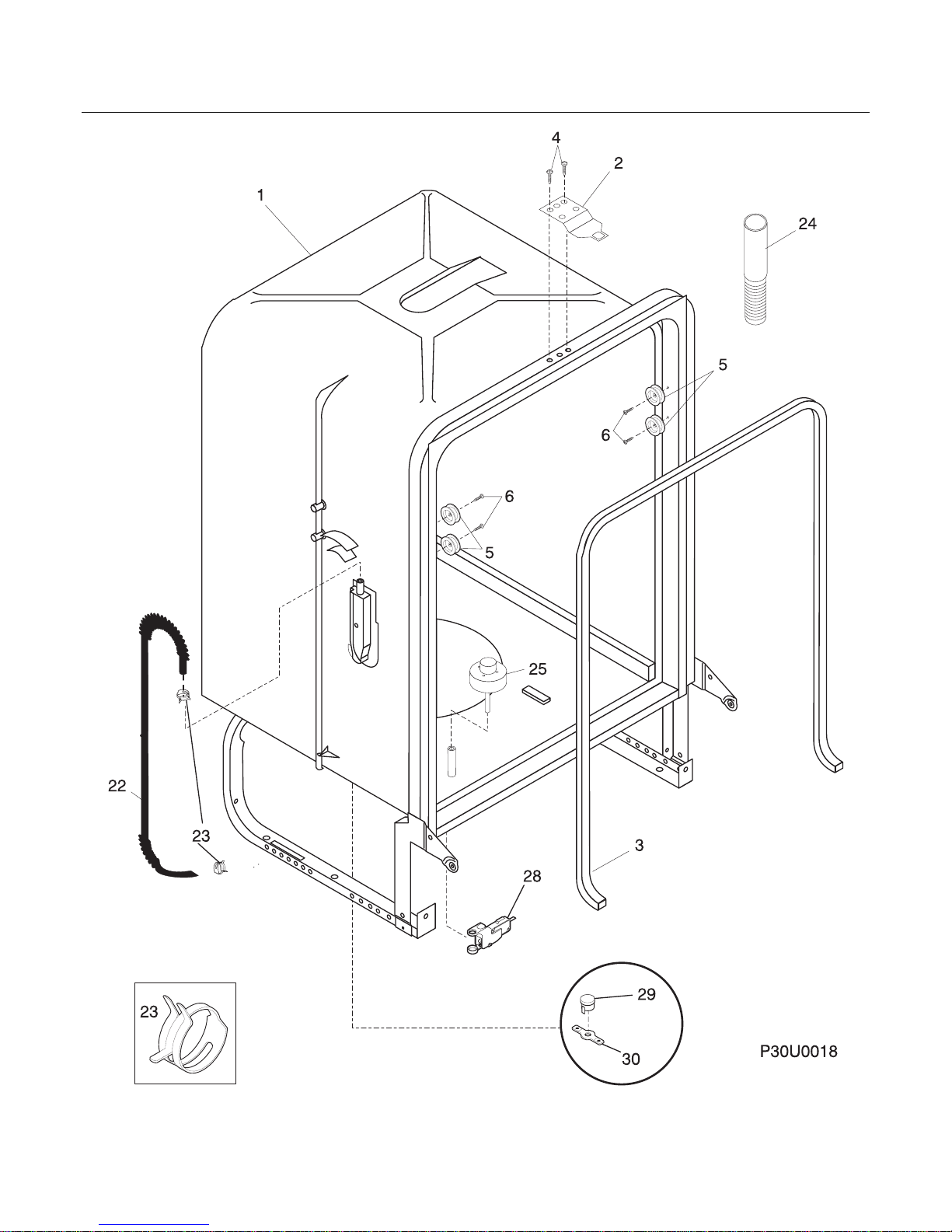

TUB

FDB126RB Publication No: 5995404661

# Functional Parts 7 02/04

* Non-Ilustrated Parts

TUB

Model Index: AFDB126RB (FDB126RBS2)

BFDB126RB (FDB126RBB2)

CFDB126RB (FDB126RBQ2)

POS. NO PART NO. DESCRIPTION

1 # 154209204 A B C Tub, plastic

2 154429101 A B C Strike, door

3 # 154211801 A B C Gasket, tub

4 154200602 A B C Screw, 10-16 x 3/8, hex

5 154333902 A B C Roller, tub

6 5303943103 A B C Screw, w/washer, (8)

22 154239801 A B C Tubing, water inlet

23 5303318539 A B C Clamp, tubing, (2)

24 # 154411003 A B C Hose, drain

25 # 154209701 A B C Float

28 154408701 A B C Switchassy,float

29 # 154290204 A B C Thermostat, re-settable

30 154241101 A B C Retainer, thermostat

30* 154297701 A B C Screw,retainer-thermo

* 154447102 A B C Insulation,blanket

* 154041001 A B C Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C Screw, (2), countertop mtg.

Publication No: 5995404661 FDB126RB

02/04 8

MOTOR & PUMP

FDB126RB Publication No: 5995404661

# Functional Parts 9 02/04

* Non-Ilustrated Parts

MOTOR & PUMP

Model Index: AFDB126RB (FDB126RBS2)

BFDB126RB (FDB126RBB2)

CFDB126RB (FDB126RBQ2)

POS. NO PART NO. DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut, heater, (2)

1* 154289801 A B C Shield, heater terminal

2 154359701 A B C Bracket, heater, (2)

10 154335301 A B C Cover,volute

13 154246801 A B C Gasket, sump

14 154365903 A B C Housing, sump

16 154246502 A B C Retainer, sump

24 154414201 A B C Spray arm, lower, w/heat shield

24A 154335201 A B C Nut, spray arm

40 154348401 A B C Clamp, red, pump

40 154348501 A B C Clamp, silver, pump

40* 154380601 A B C Clamp, hose, (1)

54 154234401 A B C Hose, connector

55 154362301 A B C Bracket, motor, askoll

55* 5303316032 A B C Screw, truss ss, 8 .625

59 154246901 A B C O-ring, rear

59A 154247001 A B C O-ring,front

60 154474101 A B C DrainPumpAssy

60* 154426201 A B C Bracket, motor, drain

63 154252201 A B C Base,soil director

64 154332602 A B C Filter, soil director

65 154252401 A B C Filter, polypro

70 # 154474001 A B C Motor assembly, circulation, w/o o'rings

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995404661 FDB126RB

02/04 10

FRAME
