Frigidaire FDB1502RG Manual de instrucciones

P30L0076.eps P30C0158.eps P30B0037.eps P30U0021.eps P30M0039.eps P30F0022.eps

P30R0107.eps

Product No. FDB1502RGM0

Series Built-in 24"

Color silver mist

Owner's Guide English 154595201

Owner's Guide Spanish 154595203

Owner's Guide French 154595202

Service Data Sheet 154595301

Energy Guide 154540045

Installation Instructions 154427301

Market North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995494522

07/07/05

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB1502RG

This Publication Supercedes

Publication # 5995492245

Publication No: 5995494522 FDB1502RGM0

07/07 2

CONTROL PANEL

FDB1502RGM0 Publication No: 5995494522

# Functional Parts 3 07/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 154576703 Panel, control, black

2 154591803 Insert, control panel, black, 10 pad

3 # 154635501 Board, electronic, K4

3* 154200401 Screw, 6-10 x 3/8, pan plask

4 154552101 Cover, control

8 154552201 Switch Assembly, tactile

8* 5303318719 Screw, mtg.

20 154423601 Vent assy, active dry, w/actuator

20* 154436201 Screw, dry duct, (3)

27 154433501 Actuator, active dry vent

33 154553501 Gasket, cover

* 154227501 Thermistor

* # 154555601 Wiring Harness, main

* 154540045 Energy guide label

* 154409401 Screw, #8-18 x .375

Publication No: 5995494522 FDB1502RGM0

07/07 4

DOOR

FDB1502RGM0 Publication No: 5995494522

# Functional Parts 5 07/07

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 154430501 Spring, door, (2)

1A 154325201 Linkage, door spring, (2)

2 154093301 Screw, armassy, (4)

3 154597503 Arm Assy, LH

3A 154596103 Arm Assy, RH

* 154529101 Pin, arm assy

5 154079601 Nut, arm assy, and handle mtg.

7 154299006 Door, inner assy

9 154542103 Dispenser, det/rinse aid, w/o reed

9* 154294701 Screw, #7 plas .375, (6), disp. assy.

10 154103702 Screw, latch mtg, (2)

12 # 154556703 Latch assy, black

20 154538312 Door, silver mist

20* 5304428306 Screw, door mtg., (2)

49 154576501 Gasket, door, bottom

50 154211401 Support, door hinge

51 154320301 Clamp, drip loop, wire

* 154409401 Screw, #8-18 x .375

Publication No: 5995494522 FDB1502RGM0

07/07 6

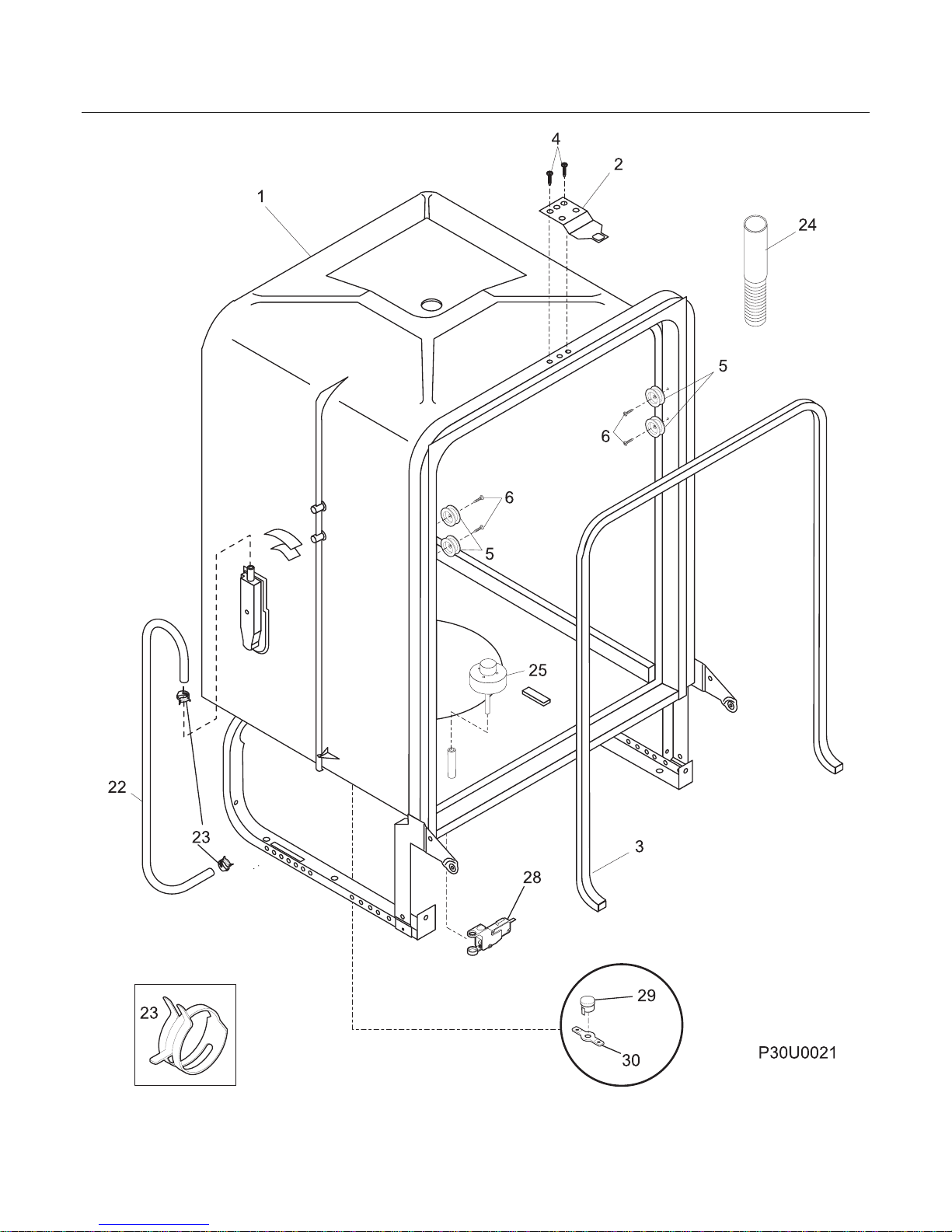

TUB

FDB1502RGM0 Publication No: 5995494522

# Functional Parts 7 07/07

* Non-Illustrated Parts

TUB

POS. NO PART NO. DESCRIPTION

1 # 154534701 Tub assy, w/frame parts

2 154429101 Strike, door

3 # 154561001 Gasket, tub

4 154200602 Screw, 10-16 x 3/8, hex

5 154333902 Roller, tub

6 5303943103 Screw, w/washer, (8)

22 154446002 Tubing, water inlet

23 5303318539 Clamp, tubing, (2)

24 # 154525301 Hose, drain

25 # 154209701 Float

28 154408701 Switch Assy, float

29 # 154290204 Thermostat, re-settable

30 154241101 Retainer, thermostat

30* 154297701 Screw, retainer-thermo

* 154447102 Insulation, blanket

* 154041001 Screw, plask #1, 10-10 x 9/16

* 5300807270 Screw, (2), countertop mtg.

Publication No: 5995494522 FDB1502RGM0

07/07 8

MOTOR & PUMP

FDB1502RGM0 Publication No: 5995494522

# Functional Parts 9 07/07

* Non-Illustrated Parts

MOTOR & PUMP

POS. NO PART NO. DESCRIPTION

1 # 154482901 Heater, round

1* 154106202 Nut, heater, (2)

1* 154289801 Shield, heater terminal

2 154465101 Bracket, heater, (2)

10 154245501 Cover, volute

13 154246801 Gasket, sump

14 154461901 Housing, sump

16 154246502 Retainer, sump

24 154568002 Spray arm, grey, lower, w/heat shield

24A 154468502 Spray arm, grey, center

24B 154520601 Nozzle, shower, assembly

32 154464101 Tube, delivery

32* 154491101 Screw, delivery tube

32A 154406401 Gasket, delivery tube

40 154106801 Clamp, hose, worm/drain

40 154348401 Clamp, red, pump

40* 154380601 Clamp, hose, worm/gear

54 154234401 Hose, connector

55 154595901 Bracket, motor

55* 5303316032 Screw, truss ss, 8 .625

58 154246402 Check ball

59 154246901 O-ring, rear

59A 154247001 O-ring, front

60 # 154580301 Pump Assy, drain

60* 154581501 Screw, drain motor, (3)

61 154463402 Grommet, delivery tube

62 154294101 Support, spray arm, lower

63 154252201 Base, soil director

64 154252301 Filter, soil director, white

65 154252401 Filter, polypro

66 154252701 Trap, glass

70 # 154594201 Motor & Pump Assy

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995494522 FDB1502RGM0

07/07 10

FRAME
