Frigidaire FDB101SA Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB101SAW1 FDB101SA 24" Built-in black/white

MARKET

North America

Publication No.

5995367256

020301

-EN/SERVICE /ECL

821

24" Built-In

DISHWASHER

Model No.

FDB101SA

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154415401

OWNER’S GUIDE # - 154397701

INSTALLATION INSTRUCTIONS # - 154416401

ENERGY GUIDE LABEL # - 154399001

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

03/02 2

Publication No. FDB101SAW1

5995367256

CONTROL PANEL

# = Fast Moving Part 3 03/02

* = Non-Illustrated Part

FDB101SAW1 Publication No.

5995367256

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154398103 Panel,control ,black

2 154401903 Insert,control panel ,black

3 # 154396701 Timer

3* 5303318719 Screw,mtg.

8 # 154240403 Switch,rocker/selector ,black

13 154338303 Knob,timer ,black

20 154345102 Vapor Chamber Assy,w/vent gasket

25 154229201 Seal,chamber

* # 154394501 Wiring Harness

* 154399001 Label,energy guide

* 154283901 Screw,#8-10 ,3/8 phillips

03/02 4

Publication No. FDB101SAW1

5995367256

DOOR

# = Fast Moving Part 5 03/02

* = Non-Illustrated Part

FDB101SAW1 Publication No.

5995367256

POS. NO PART NO DESCRIPTION

1 154345902 Spring,door ,(2)

1A 154325201 Linkage,door spring ,(2)

2 154093301 Screw,arm assy ,(4)

3 154325304 Arm Assy,LH

3A 154325303 Arm Assy,RH

* 154400601 Pin,arm assy

5 154079601 Nut,arm assy ,(4)

7 154299002 Door,inner assy

7A 154332701 Grate,liner

9 154230101 Dispenser,det/rinse aid ,includes #22

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 Screw,latch mtg ,(2)

12 # 154361203 Latch assy,black

20 154359105 Door,white

22 154388801 Cap,Rinse aid

49 154297602 Gasket,door ,bottom

50 154211401 Support,door hinge

51 154320301 Clamp,drip loop ,wire

* 154200601 Screw,#10-16 x 3/8

DOOR

03/02 6

Publication No. FDB101SAW1

5995367256

TUB

# = Fast Moving Part 7 03/02

* = Non-Illustrated Part

FDB101SAW1 Publication No.

5995367256

POS. NO PART NO DESCRIPTION

1 # 154209204 Tub,plastic

2 154211601 Strike,door

3 # 154211801 Gasket,tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154333902 Roller,tub

6 5303943103 Screw,w/washer ,(8)

22 154239801 Tubing,water inlet

23 5303318539 Clamp,tubing ,(2)

24 # 154411002 Hose,drain

25 # 154209701 Float

28 154408701 Switch assy,float

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer,thermostat

30* 154297701 Screw,retainer-thermo

* 154041001 Screw,plask #1 ,10-10 x 9/16

* 5300807270 Screw,(2) ,countertop mtg.

TUB

03/02 8

Publication No. FDB101SAW1

5995367256

MOTOR & PUMP

# = Fast Moving Part 9 03/02

* = Non-Illustrated Part

FDB101SAW1 Publication No.

5995367256

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut,heater ,(2)

1* 154289801 Shield,heater terminal

2 154359701 Bracket,heater ,(2)

10 154335301 Cover,volute

13 154246801 Gasket,sump

14 154365903 Housing,sump

16 154246502 Retainer,sump

24 154414201 Spray arm,lower ,w/heat shield

24A 154335201 Nut,spray arm

40 154348401 Clamp,red ,pump

40 154348501 Clamp,silver ,pump

40* 154106801 Clamp,hose ,(2)

54 154234401 Hose,connector

55 154362301 Bracket,motor ,askoll

55* 5303316032 Screw,truss ss ,8 .625

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154407401 Drain Pump Assy

60* 154234501 Bracket,motor ,drain

63 154252201 Base,soil director

64 154332602 Filter,soil director

65 154252401 Filter,polypro

70 # 154395402 Motor assembly,circulation ,w/o o’rings

* 154200601 Screw,#10-16 x 3/8

MOTOR & PUMP

03/02 10

Publication No. FDB101SAW1

5995367256

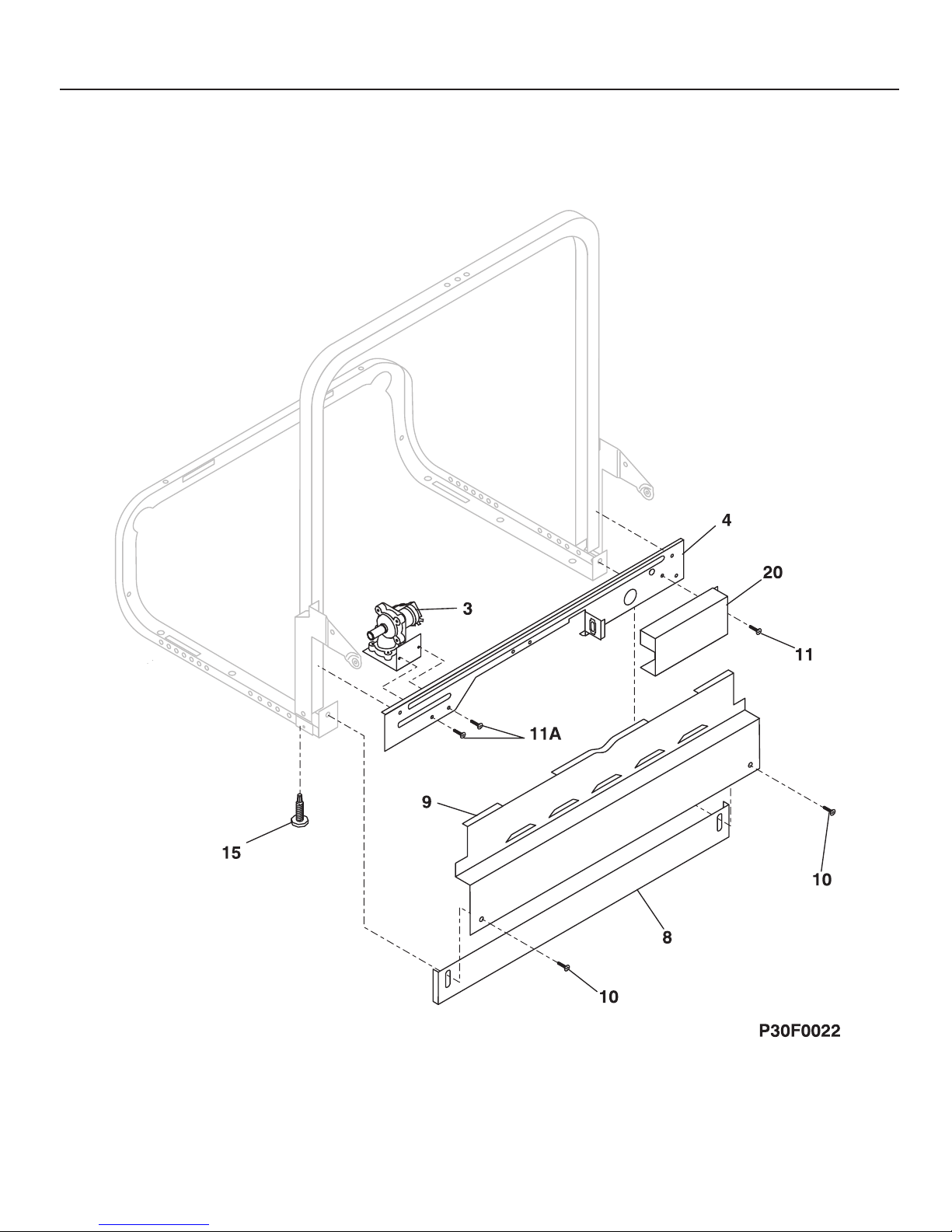

FRAME
