Frigidaire FGC6X7XE Manual de usuario

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC6X7XESD 3775442366014 WHITE U.S.A.

FGC6X7XEBD 3775442366064 BLACK U.S.A.

GAS COOKTOP

Model No.

FGC6X7XE

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047102

OWNER’S GUIDE # - 318068118

INSTALLATION INSTR. # - 318063906

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995317970

990208

-EN/SERVICE

377

Publication No. FGC6X7XE

5995317970

02/99 2

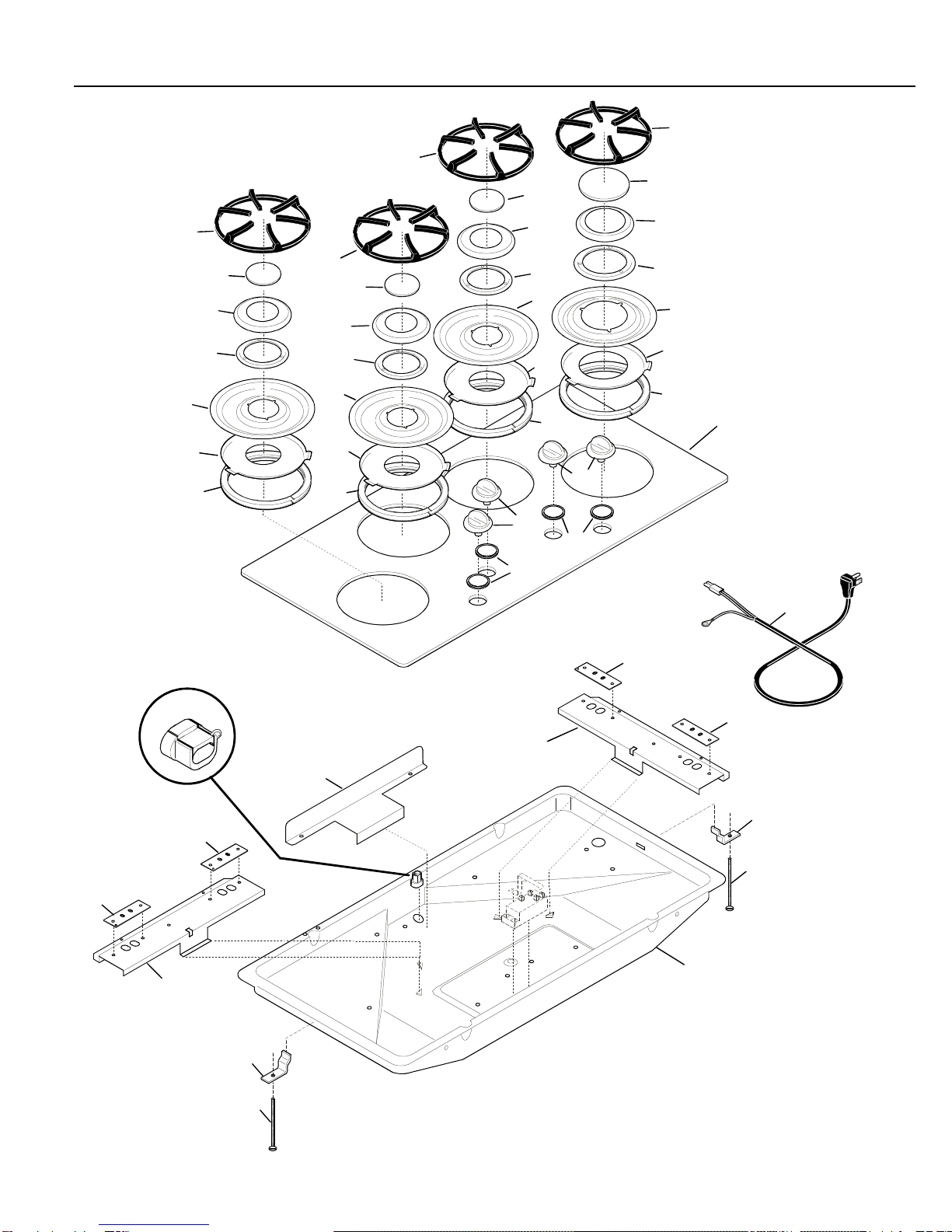

COOKTOP

136

137

132

LAP22T0023

20 20

31 31

73 73A

22 22

22 22A

21 21

21 21A

19 19

61 61A

19A

130

101

45 45

FGC6X7XE Publication No.

5995317970

# = Functional Part 302/99

* = Non-Illustrated Part

COOKTOP

A=FGC6X7XE (FGC6X7XES4)

B=FGC6X7XE (FGC6X7XEB4)

POS. NO PART NO DESCRIPTION

16 318079400 AGlass cooktop assy

16 318079401 BGlass cooktop assy

19 318067503 APan-burner grey

19 318067501 BPan-burner black

19A 318065723 APan-burner large grey

19A 318065721 BPan-burner large black

20 318120004 AGrate grey

20 318120003 BGrate black

21 316098508 ACap-burner small grey

21 316098501 BCap-burner small black

21A 316098509 ACap-burner large grey

21A 316098505 BCap-burner large black

22 318050500 ATrim ring small grey

22 5303209009 BTrim ring small black

22A 318050600 ATrim ring large grey

22A 316011304 BTrim ring large black

31 318052900 A B Gasket pan

33 318072000 A B Bracket burner mtg

43 318016507 AKnob-control white

43 318016506 BKnob-control black

45 5303307933 A B Bushing

46 318077100 A B Burner Box

47 5303303991 A B Cord-electric power

61 318083900 A B Trim ring (stainless)

61A 318083901 A B Trim ring (stainless)

73 318143400 A B Shield burner small

73A 318143401 A B Shield burner large

101 318090400 A B Bracket-burner

130 318125001 A B Shield burner box

132 3201437 A B Strain relief

136 5303935029 A B Fixation support

137 5303323138 A B Screw, 10-24 X 2 ½

*318052106 A B Wire harness

*5303307980 A B Screw, 8-32 X 7/16

*5303311532 A B Screw back

*5303311306 A B Screw, 8-18 X 3/8

*5303323140 A B Screw

*5303325982 A B Nut, 10-32

FGC6X7XE Publication No.

5995317970

02/99 4

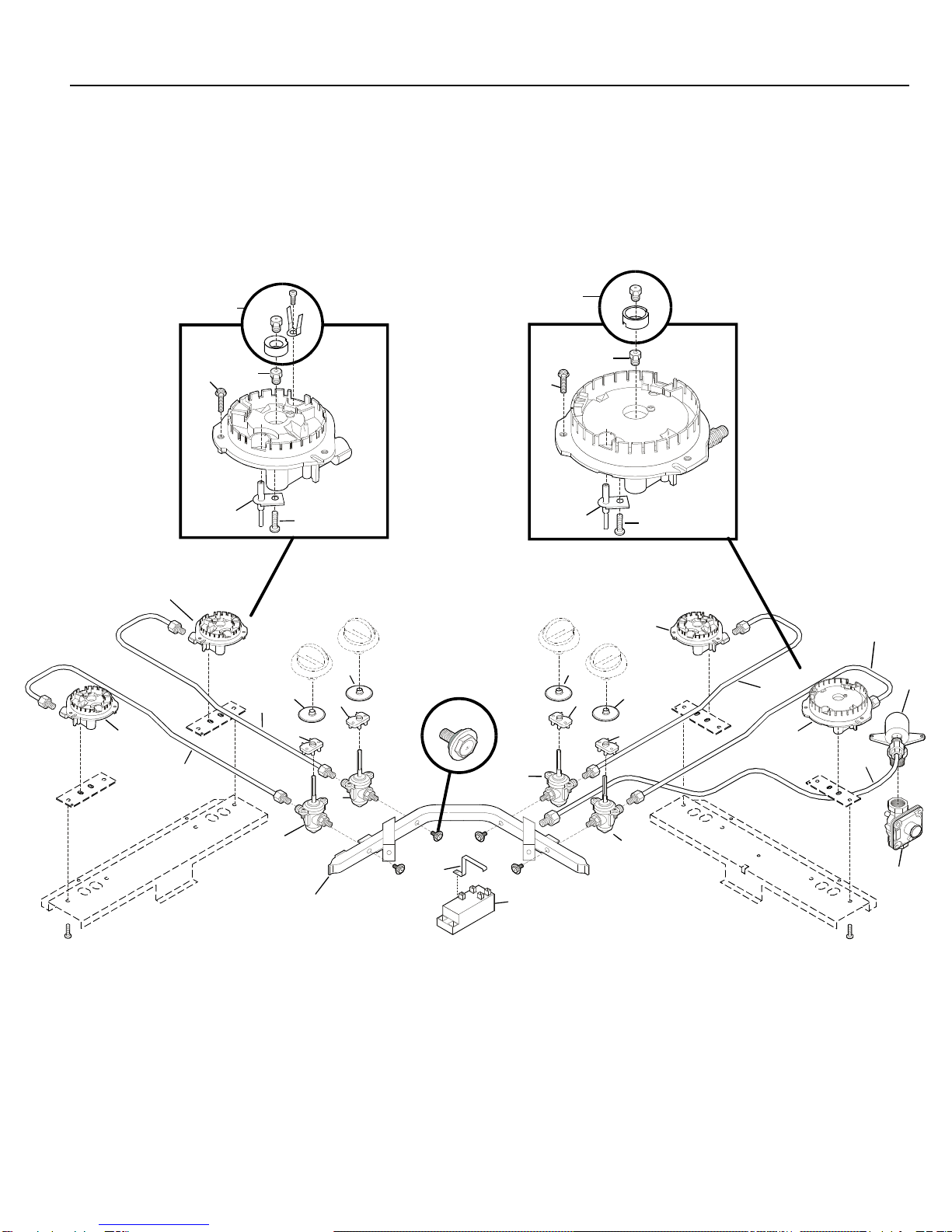

BURNER

3535

11 45

10A

44A

372

LAP22B0028

10A

11 45

FGC6X7XE Publication No.

5995317970

# = Functional Part 502/99

* = Non-Illustrated Part

BURNER

A=FGC6X7XE (FGC6X7XES4)

B=FGC6X7XE (FGC6X7XEB4)

POS. NO PART NO DESCRIPTION

1 318177100 A B Manifold Pipe

2 # 5303935042 A B Valve-top burner

2A 318087020 A B Valve-top burner

3 # 316032002 A B Switch-ignitor

4 # 318054604 A B Tube-burner

5 # 318054605 A B Tube-burner

8 # 5303280394 A B Spark Module

10 # 318055011 A B Burner Assy-top (9100 BTU)

10A 318055100 A B Burner Ass-top (11000 BTU)

11 316011200 A B Ignitor-top burner

13 318054504 A B Tube connector manifold

14 # 5308007974 A B Regulator-pressure

24 318054000 A B Elbow fiting

35 5303307978 A B Bushing-insulation

37 5303320671 A B Screw metric M3 X 5/8

44 318088700 A B Orifice (9100 BTU)

44A 318088702 A B Orifice (11000 BTU)

45 316011100 A B Screw-ignitor mtg

47# 318127405 A B LP Conversion Kit

51 318024200 A B Bracket spark module

72 5303323141 A B Screw valve 1/4-20 X 5/16

* 08011955 A B Screw 10-24 X 3/8

*5303211311 A B Screw, #8 X ½

*5303311532 A B Screw, back

*5303311306 A B Screw, 8-18 X 3/8

*5303307980 A B Screw, 8-32 X 7/16

FGC6X7XE Publication No.

5995317970

02/99 6

WIRING DIAGRAM
