Frigidaire FGC6X5XE Manual de usuario

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC6X5XEWD 3775441356014 WHITE U.S.A.

FGC6X5XEDD 3775441356034 ALMOND U.S.A.

GAS COOKTOP

Model No.

FGC6X5XE

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047102

OWNER’S GUIDE # - 318068117

INSTALLATION INSTR. # - 318063905

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995317905

990208

-EN/SERVICE

377

Publication No. FGC6X5XE

5995317905

02/99 2

COOKTOP

136

137

132

LA9922T05

20 20

88A

88B

73 73

73A

22 22

22 22A

21 21

21 21A

19 19

61 61A

19A

88 46

130

33 107

107

101

FGC6X5XE Publication No.

5995317905

# = Functional Part 302/99

* = Non-Illustrated Part

COOKTOP

A=FGC6X5XE (FGC6X5XEWD)

B=FGC6X5XE (FGC6X5XEDD)

POS. NO PART NO DESCRIPTION

16 318065901 AMain top white

16 318065902 BMain top almond

19 318067501 A B Pan-burner black

19A 318065721 A B Pan-burner large black

20 318120003 A B Grate black

21 5303209009 A B Trim ring small black

21A 316011304 A B Trim ring large black

22 316098501 A B Cap-bunrer black small

22A 316098505 A B Cap-burner black large

23 318021700 APanel control black

23 318021701 BPanel control black

33 318072000 A B Bracket burner mtg

43 318016506 A B Knob-top valve black

46 318077100 A B Burner Box

47 5303303991 A B Cord-electric power

58 5303326117 A B Insulation deflector

61 318083900 A B Trim ring (stainless)

61A 318083901 A B Trim ring (stainless)

73 318143400 A B Shield-burner small

73A 318143401 A B Shield-burner large

88 318052801 A B Gasket-cooktop

88A 318052800 A B Gasket-cooktop

88B 318052802 A B Gasket-cooktop

101 318090400 A B Bracket-burner

107 318113600 A B Bracket

130 318125001 A B Shield-burner box

132 3201437 A B Strain relief

136 5303935029 A B Fixation support

137 5303323138 A B Screw, 10-24 X 2 ½

*5303211311 A B Screw, #8 X ½

*5303307980 A B Screw, 8-32 X 7/16

*5303311532 A B Screw back

*5303311306 A B Screw, 8-18 X 3/8

*5303323140 A B Screw, 10-32 X 3/8

*5303325982 A B Nut, 10-32

*5303311532 A B Screw, 6-32 X ¼

*5303311306 A B Screw, 8-32 X 3/8

*318052106 A B Harness wiring

FGC6X5XE Publication No.

5995317905

02/99 4

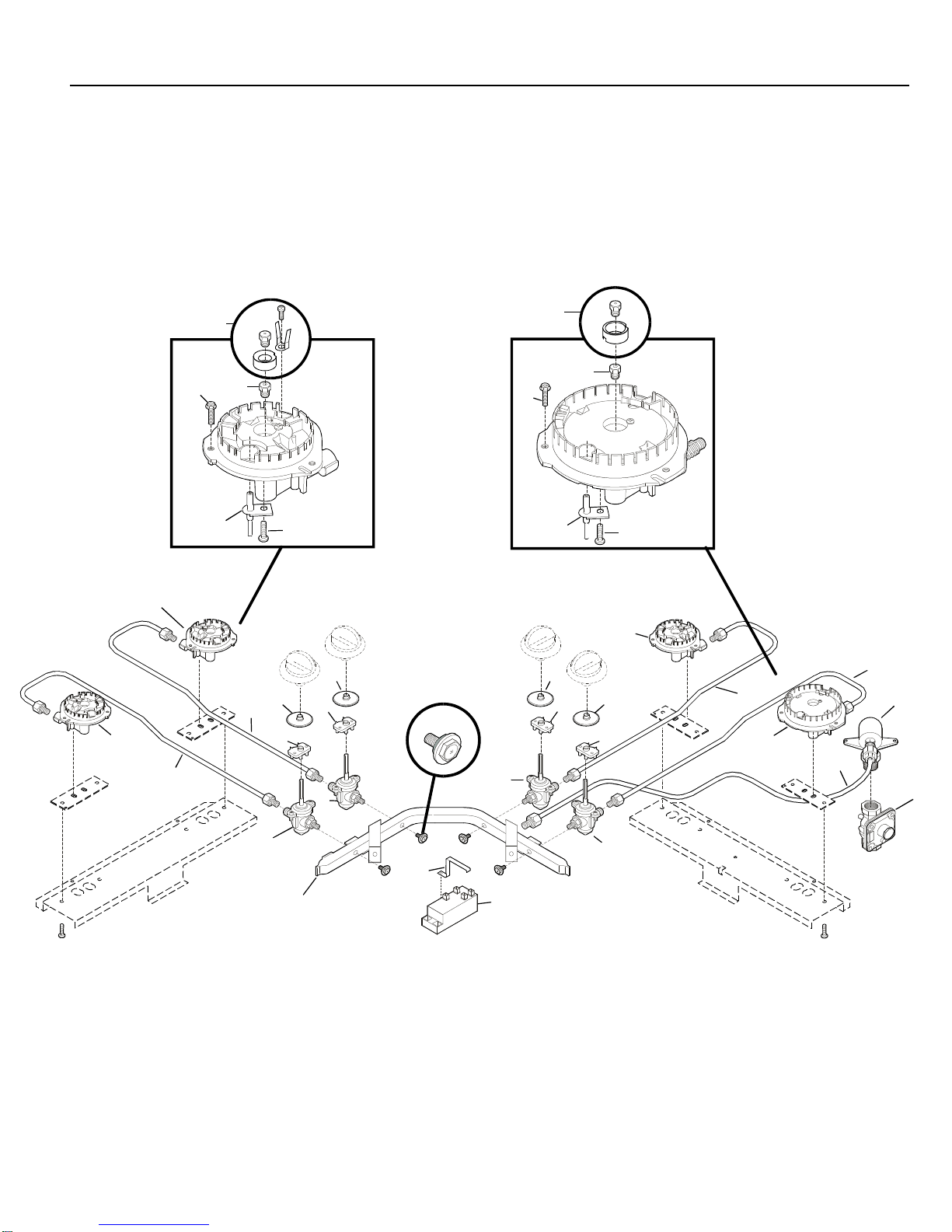

BURNER

3535

11 45

10A

44A

372

LAP22B0028

10A

11 45

FGC6X5XE Publication No.

5995317905

# = Functional Part 502/99

* = Non-Illustrated Part

BURNER

A=FGC6X5XE (FGC6X5XEWD)

B=FGC6X5XE (FGC6X5XEDD)

POS. NO PART NO DESCRIPTION

1 318177100 A B Manifold Pipe

2 # 5303935042 A B Valve-top burner

2A 318087020 A B Valve-top burner

3 # 316032002 A B Switch-ignitor

4 # 318054604 A B Tube-burner

5 # 318054605 A B Tube-burner

8 # 5303280394 A B Spark Module

10 # 318055011 A B Burner Assy-top (9100 BTU)

10A 318055100 A B Burner Ass-top (11000 BTU)

11 316011200 A B Ignitor-top burner

13 318054504 A B Tube connector manifold

14 # 5308007974 A B Regulator-pressure

24 318054000 A B Elbow fiting

35 5303307978 A B Bushing-insulation

37 5303320671 A B Screw metric M3 X 5/8

44 318088700 A B Orifice (9100 BTU)

44A 318088702 A B Orifice (11000 BTU)

45 316011100 A B Screw-ignitor mtg

47# 5304410022 A B LP Conversion Kit

51 318024200 A B Bracket, spark module

72 5303323141 A B Screw valve 1/4-20 X 5/16

* 08011955 A B Screw 10-24 X 3/8

*5303211311 A B Screw, #8 X ½

*5303307980 A B Screw, 8-32 X 7/16

*5303311306 A B Screw, 8-18 X 3/8

FGC6X5XE Publication No.

5995317905

02/99 6

WIRING DIAGRAM
