Frigidaire FRS12PYS1 Instrucciones de instalación

frigidaire.com

Signature Features

Eortless™ Temperature

Control

Our air conditioners maintain the preset

room temperature, so you will remain

comfortable at all times.

Ready-Select™ Controls

Easily select options with the touch of a

button.

Eortless™ Clean Filter

Our anti-microbial filter cleans the air,

removing harmful bacteria.

Remote Control

Allows you to precisely control the

temperature and fan speed from across

the room.

Performance

Cool

Heat

Ductless Mini-Split

Air Conditioner / Heat Pump

Product Dimensions

Evaporator (Indoor) Model

Height 10-7/8"

Width 33-1/4"

Depth 7-1/8"

Product Dimensions

Condenser (Outdoor) Model

Height 21-1/4"

Width 33-3/8"

Depth 12-5/8"

More Easy-To-Use Features

Energy and Cost Savings

A split system helps avoid the energy

losses that normally come with ductwork.

This loss can amount to up to 40% due to

leaks, tears and long lengths.

Inverter Technology

Allows the unit to maintain room

temperatures while operating at a

lower and quieter speed.

Multi-Speed Fan

Features three different fan speeds, for

more cooling flexibility.

Sleep Mode

Quiet operation keeps you cool without

keeping you awake. Plus, Sleep Mode

gradually increases room temperature

after being activated.

Quickly Cools

Turbo Mode for that quick cool-down

when you first turn it on

Comfort Control Design

Easily control the direction of your cool air,

wherever your unit is.

Eortless™ Restart

Automatically resumes operating at its

previous settings when power is restored

to your unit.

Heat Pump

Our versatile unit offers the capability and

capacity to provide the heat required to

hold the desired temperature.

24 Hour On/O Timer

ENERGY STAR®

1Photo may not represent actual model.

BTUs

12,000

13,000

FRS12PYC11 Outdoor

FRS12PYW11Indoor

Home Comfort

FRS12PYS1

Model Numbers

System Model Number

Indoor Unit Part Number

Outdoor Unit Part Number1

Performance

BTU (Cool)

BTU (Heat Pump)

Cooling Area (Sq. Ft.)

SEER (Air Conditioner)

HSPF (Heat Pump)

Inverter Technology

Electrical

Volts

Amps (Cool) Indoor/Outdoor

Watts (Cool) Indoor/Outdoor

Amps (Heat) Indoor/Outdoor

Watts (Heat) Indoor/Outdoor

Fuse (Amps) Indoor/Outdoor

Features

Controls

Fan Speeds (Cool/Fan/Heat)

Low Voltage Start-Up

Turbo Fan

Auto Fan

Energy Saver

Sleep Mode

24 Hour On/O Timer

Remote Control

Air CFM (High/Med/Low) Indoor

Air Direction Control (Vert. / Horz.)

Air Discharge (Full-Width)

Filter Type

Filter Access

Air Direction Control - Horizontal

Air Direction Control - Vertical

dB (Indoor) (High/Med/Low)

dB (Outdoor)

Warranty2

Included Accessories

Drain Kit (Outdoor Unit)

Installation Plate (Indoor Unit)

Line Set (Indoor Unit)

Remote Holder (Indoor Unit)

Certiﬁcations

ENERGY STAR®

Performance

Speciﬁcations

Refrigerant

Shipping Weight (Approx.)

Specifications

subject to change.

1Includes 16.4 ft. line set.

2Warranty 5 year sealed system / 1 year full parts and labor.

1Illustration may not represent actual model.

All refrigeration and electrical work must be performed by a certiﬁed and licensed

refrigeration technician for full parts and labor warranty validation. Insulated line sets

and control wires are required and available for Frigidaire split systems in 16.4 ft.

length. Each line set is equipped with ﬂare nuts on both ends. Each system requires

one line set for each indoor unit installed.

NOTE: For planning purposes only. Always consult local and

national electric codes. Refer to Product Installation Guide for

detailed installation instructions on the web at frigidaire.com.

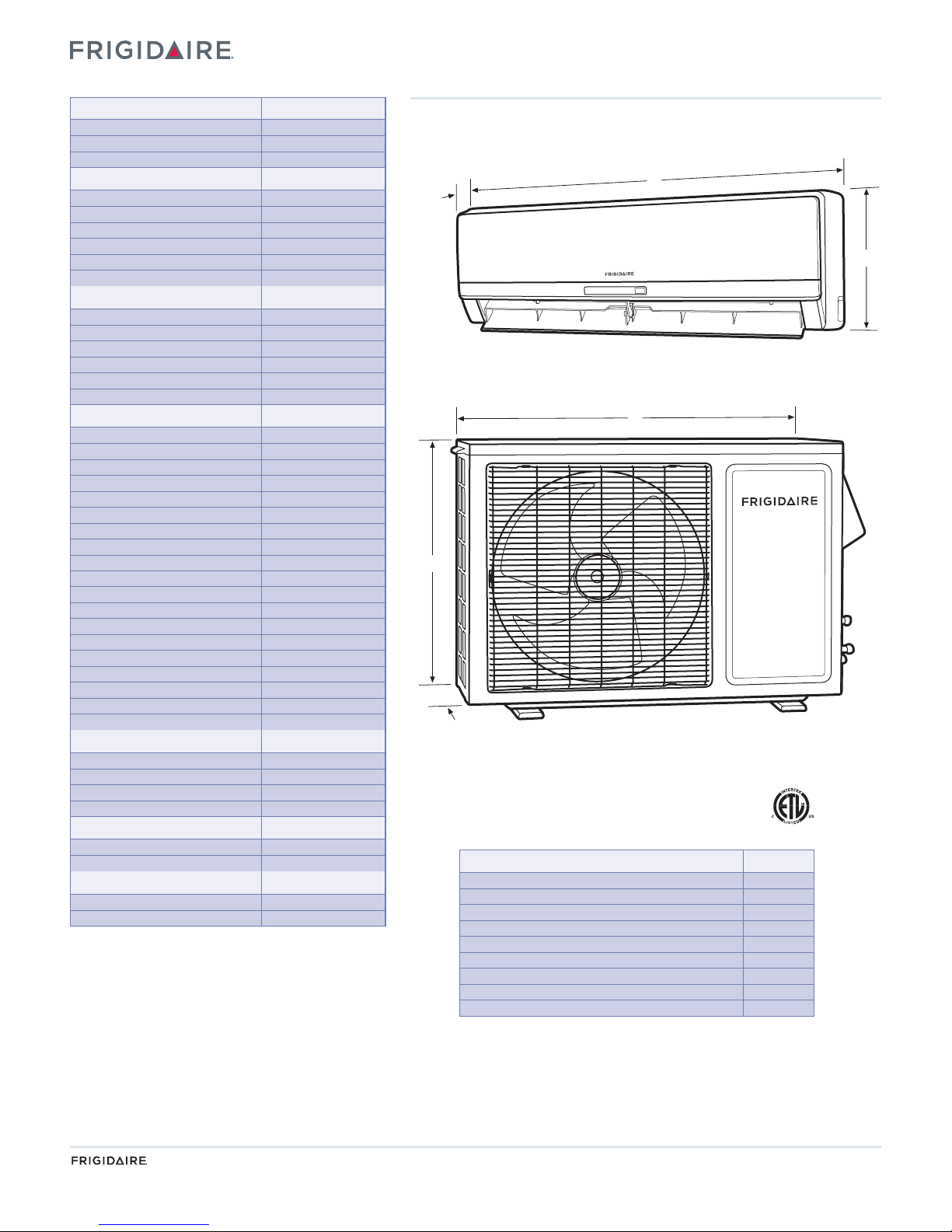

Product Dimensions

Indoor –

A - Height

B - Width

C - Depth

Max. Wall Thickness

Outdoor –

A - Height

B - Width

C - Depth

RAC Indoor/Outdoor Ductless Heat Pump Split Models

Frigidaire Baseline

Accessories information available

on the web at frigidaire.com

FRS12PYC11Outdoor

FRS12PYW11Indoor

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Home Comfort

FRS12PYS1 Ductless Mini-Split Air Conditioner / Heat Pump

10-7/8"

33-1/4"

7-1/8"

18"

21-1/4"

33-3/8"

12-5/8"

FRS12PYS1

FRS12PYW1

FRS12PYC1

12,000

13,000

640

9.6

Yes

115

0.4 / 11.6

20 / 980

0.4 / 13.6

20 / 11.8

3.15 / 25

Ready-Select™ Controls

4 / 3 / 4

Yes

Full-Function

173 /147 / 129

Yes / Yes

Bottom

Antimicrobial Mesh

Slide-Out

Manual

Swing

47 / 43 / 40

Yes

ARI

R410a

TS-FRS12PYS1-07/10-1

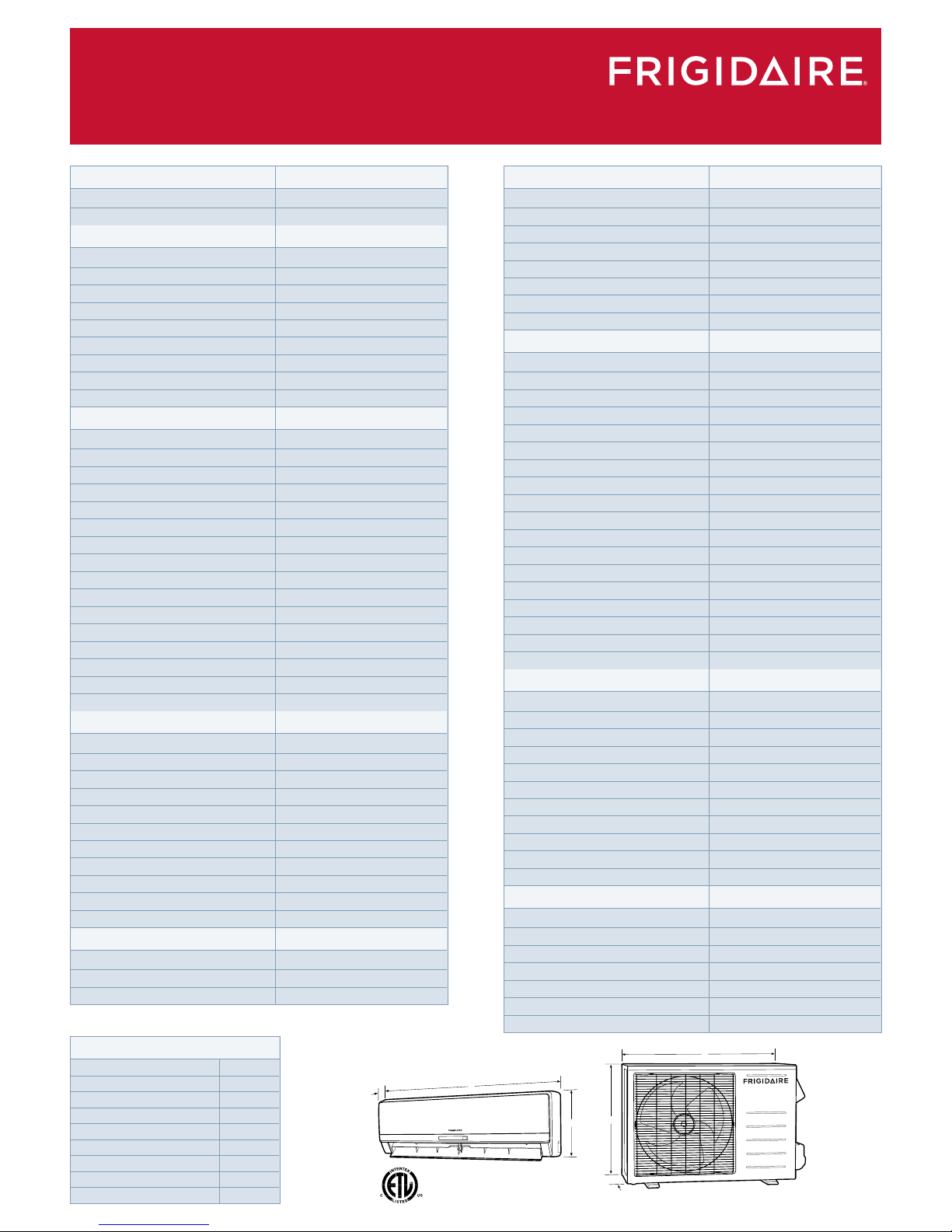

Ductless Mini-Split System Air Conditioners

Servicer Technical Data Sheet

FRS12PYS1

REFRIGERANT SYSTEM

Refrigerant

Ounces

Control

Lineset

Maximum Height

Maximum Line length

Discharge Vapor Line (od)

Suction (od)

OUTDOOR UNIT

Sound rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Recommended Fuse

Minimum Amps

Running Current

Fan Type

Fan Diameter/Number of Speeds

Drive Type

Motor Watts

Number of Poles and RPM

CFM (High)

Coil Type

Fin Type

Pipe Type

Fin Rows (FPI)

Tube Size

OPERATING RANGE

Cooling

Heating

Cooling

Heating

HEATING

Total Capacity (BTU)

HSPF

Amps

Max Amps

Power Inputs

Back Up Strip Heater

Outdoor Sound Rating

R410A

45.8

electric expansion valve

16.4 ft

33 ft

66 ft

6 mm (1/4")

9 mm (3/8")

£ 55 dB (A)

82.38 lb

89 lb

12.60" x 33.39" x 21.26"

25 A

15 A

18.2 A

propeller

15.67"-1

dc motor

30 W

1-900 RPM

1058

aluminum ﬁn & copper tube

ﬂat aluminum ﬁn

innergroove copper

¢ 9.52 mm (3/8")

Indoor Air

intake temp

90° F db/wb

41° F db/wb

81° F db/wb

32° F db/wb

Outdoor Air

intake temp

115° F db/wb

41° F db/wb

75° F db/wb

5° F db/wb

13000 Btu

9.6

12.5 A

18.2 A

1200 W

n/a

£ 55 dB (A)

POWER

Circuit Amps

Maximum Fuse Size

CAPACITIES

Cooling

Amps

Watts

Min/Max Cooling

SEER

EER

Low Ambient Temperature

Voltage/Frequency/Phase

Dehumidiﬁcation

INDOOR UNIT

Sound Rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Full Loaded Amps

Number of Fan Speeds

Fan Type

RPM at High Speed)

Motor Watts

Full Loaded Amps

Coil Type

Fin Type

Pipe Type

Fin Rows (FPI)

Tube Diameter

Drain Connection Size

FEATURES

Controls

Remote Control

Temperature Control

Timer

Air Louvers

Horizontal

Vertical

Low Voltage Restart

Self-Diagnosis

Quiet Operation

Air Filter

COMPRESSOR

Controls

Remote Control

Temperature Control

18.2A

25 A

12000 Btu

11 A

1000 W

4500 Btu-14000 Btu

5° F £T £115° F

115V/60Hz/1P

2.54PT/H

(40)/36/32/26dB (A)

22 lb

26 lb

10.83" x 33.27" x 7.09"

0.35 A

cross ﬂow

1080 RPM

20 W

0.33 A

aluminum ﬁn & copper tube

window

inner-wing

¢ 7.15 mm (9/32")

¢ 16 mm (5/8")

microprocessor

lcd wireless

16-30° C

24 hr

2 pieces

manual

swing

built-in

yes

washable, anti-mold

C-6RZ110H1A

twin rotary DC inverter

4.59 A

33 A

CFRS12PYC1 Outdoor

FRS12PYW1 Indoor

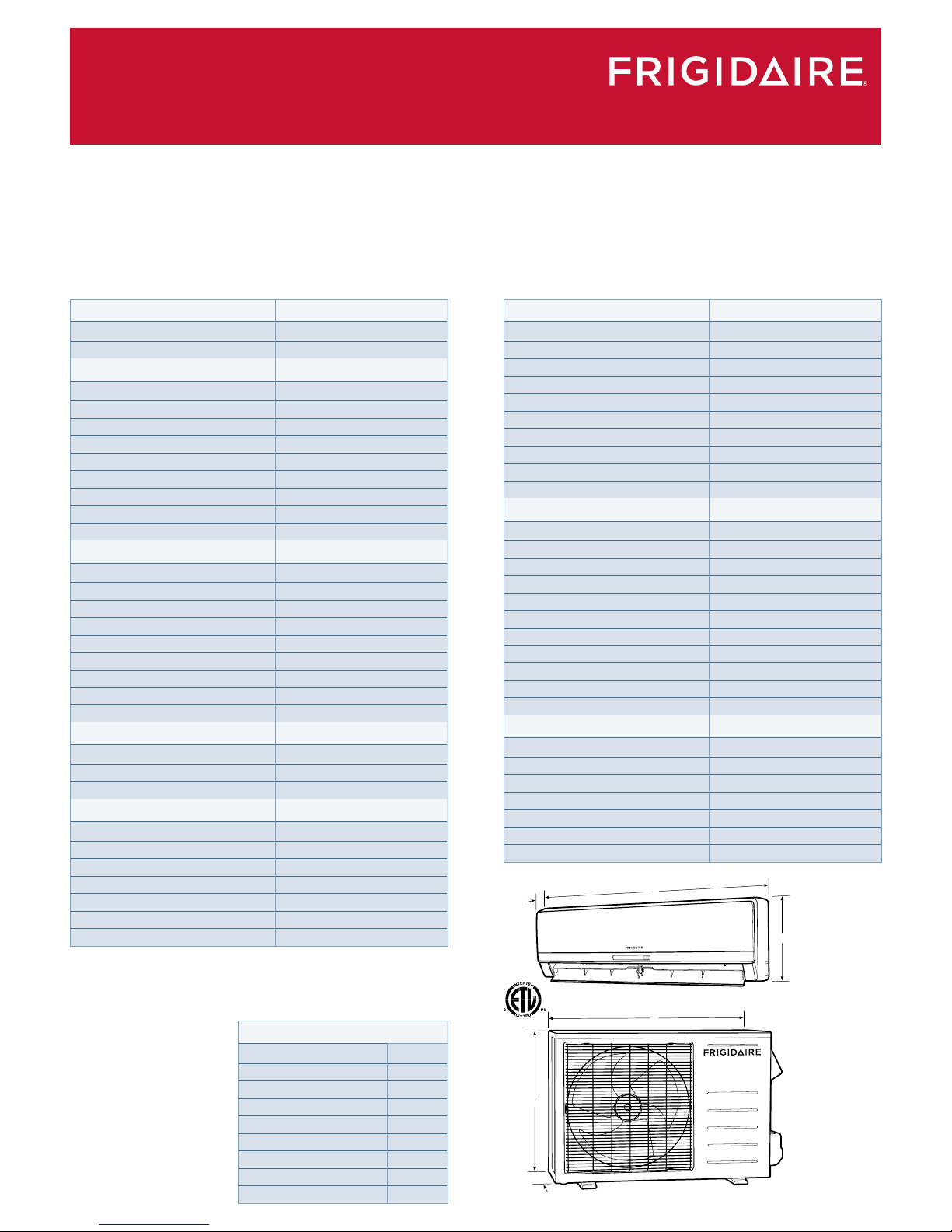

PRODUCT DIMENSIONS

Indoor –

A - Height

B - Width

C - Depth

Max. Wall Thickness

Outdoor –

A - Height

B - Width

C - Depth

10-7/8"

33-1/4"

7-1/8"

18"

21-1/4"

33-3/8"

12-5/8"

SS-FRS12PYS1-07/10-1

POWER

Circuit Amps

Maximum Fuse Size

CAPACITIES

Cooling

Amps

Watts

Min/Max Cooling

SEER

EER

Low Ambient Temperature

Voltage/Frequency/Phase

Dehumidiﬁcation

INDOOR UNIT

Sound Rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Full Loaded Amps

Number of Fan Speeds

Fan Type

Motor Watts

Full Loaded Amps

COMPRESSOR

Type

Amps

Locked Rotor Amps

HEATING

Total Capacity (BTU)

HSPF

Amps

Max Amps

Power Inputs

Back Up Strip Heater

Outdoor Sound Rating

18 A

25 A

12000 Btu

11 A

1000 W

4500 Btu-14000 Btu

5° F £T £115° F

115V/60Hz/1P

2.54PT/H

(40)/36/32/26dB (A)

22 lb

26 lb

10.83" x 33.27" x 7.09"

0.35 A

cross ﬂow

20 W

0.33 A

C-6RZ110H1A

twin rotary DC inverter

4.59 A

33 A

13000 Btu

9.6

12.5 A

18.2 A

1200 W

n/a

£ 55 dB (A)

Job: ______________________________

Location:__________________________

Engineer:__________________________

Submitted to: ______________________

Reference:_________________________

Approval: _________________________

Date: _____________________________

Submitted by:______________________

Construction: ______________________

Unit Number: ______________________

Drawing Number:___________________

CFRS12PYC1 Outdoor

FRS12PYW1 Indoor

OUTDOOR UNIT

Sound Rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Recommended Fuse

Minimum Amps

Running Current

Drive Type

Motor Watts

CFM (high)

FEATURES

Controls

Remote Control

Temperature control

Timer

Air Louvers

Horizontal

Vertical

Low Voltage Restart

Self-Diagnosis

Quiet Operation

Air Filter

REFRIGERANT SYSTEM

Refrigerant

Ounces

Lineset

Maximum Height

Maximum Line length

Discharge Vapor Line (od)

Suction (od)

£ 55 dB (A)

82.38 lb

89 lb

12.60" x 33.39" x 21.26"

25 A

15 A

18.2 A

dc motor

30 W

1058

microprocessor

lcd wireless

16-30° C

24 hr

2 pieces

manual

swing

built-in

yes

washable, anti-mold

R410A

45.8

16.4 ft

33 ft

66 ft

6 mm (1/4")

9 mm (3/8")

Ductless Mini-Split System Air Conditioners

Submittal Sheet

FRS12PYS1

PRODUCT DIMENSIONS

Indoor –

A - Height

B - Width

C - Depth

Max. Wall Thickness

Outdoor –

A - Height

B - Width

C - Depth

10-7/8"

33-1/4"

7-1/8"

18"

21-1/4"

33-3/8"

12-5/8"

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Frigidaire

Frigidaire

Frigidaire FAC084N7A Manual de usuario

Frigidaire

Frigidaire FAC124P1A - Compact II 12,000-BTU Room Air... Manual de usuario

Frigidaire

Frigidaire FAC084J7A1 Manual de usuario

Frigidaire

Frigidaire FAC104M1A1 Manual de usuario

Frigidaire

Frigidaire FFRH1122U1 Manual de usuario

Frigidaire

Frigidaire FRA182MT213 Manual del propietario

Frigidaire

Frigidaire FAK123N1V Guía de inicio rápido

Frigidaire

Frigidaire FAH106J1T1 Manual de usuario

Frigidaire

Frigidaire FAH106J2T1 Manual de usuario

Frigidaire

Frigidaire FRA156MT1 Manual de usuario

Frigidaire

Frigidaire FAC127S1AB Manual de usuario

Frigidaire

Frigidaire FAH125P2T1 Manual de servicio

Frigidaire

Frigidaire FAA065M7A1 Guía de inicio rápido

Frigidaire

Frigidaire FAS254M2A1 Manual de usuario

Frigidaire

Frigidaire FRA052XT7 Manual del propietario

Frigidaire

Frigidaire FAC064L7A1 Manual de usuario

Frigidaire

Frigidaire FRA18EMU2 Instrucciones de instalación

Frigidaire

Frigidaire FRA103BT1 Manual de usuario

Frigidaire

Frigidaire FRIGIDAIRE Manual de usuario

Frigidaire

Frigidaire FAZ08HS1A11 Manual de usuario

Frigidaire

Frigidaire CRA107CV116 Manual del propietario

Frigidaire

Frigidaire ELECTRONIC CONTROL AIR CONDITIONER Manual del propietario

Frigidaire

Frigidaire LRA057XT716 Manual del propietario

Frigidaire

Frigidaire Home ComfortFRA08PZU1 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Samsung

Samsung AS09HM3N Manual de usuario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manual de usuario
