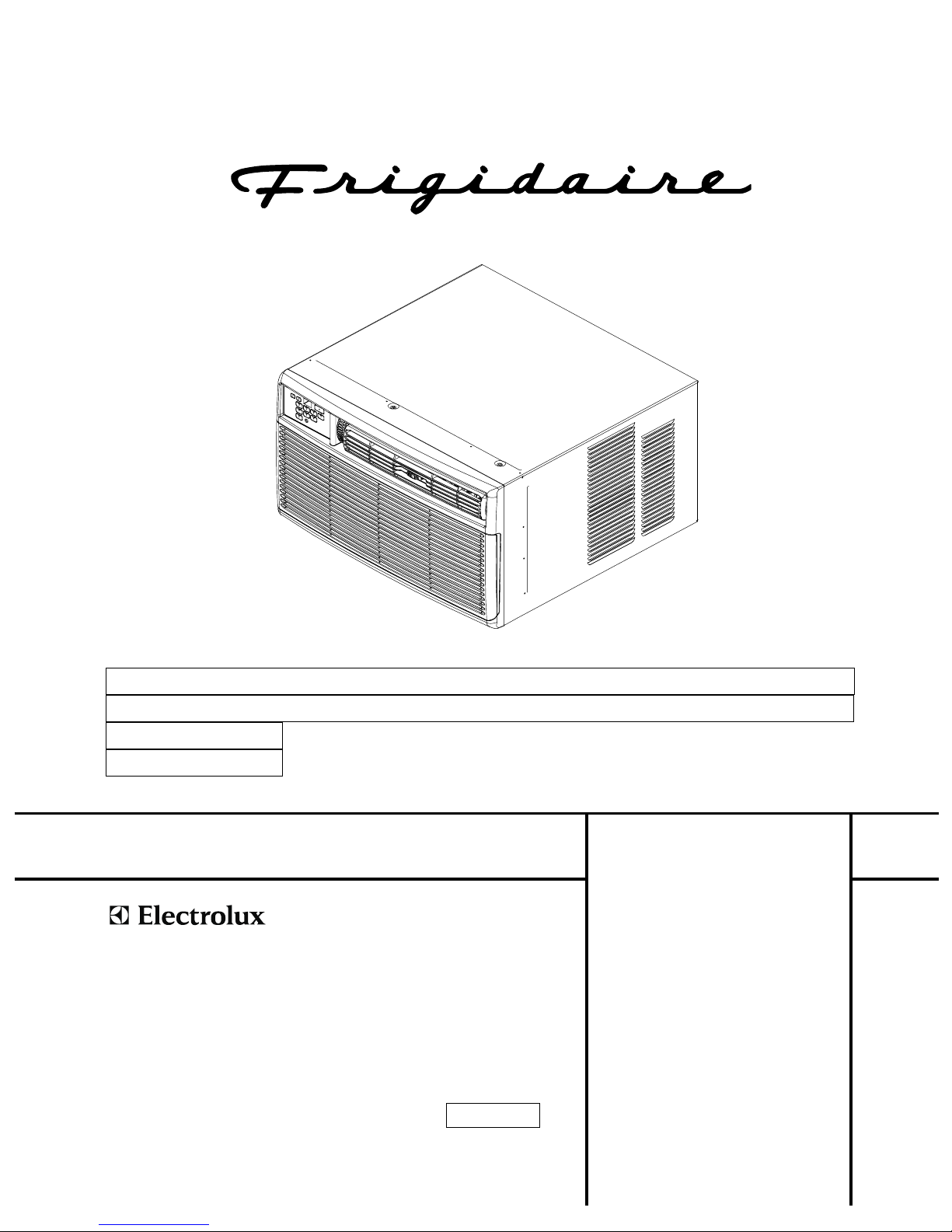

Frigidaire FAS255J2A6 Manual de usuario

ROOM AIR CONDITIONER

Model No.

FAS255J2A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309343701

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309367492

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAS255J2A6 FAS255J2A 230V 25000 BTU

MARKET

USA

Publication No.

5995372652

020522

-EN/SERVICE /BLT

345

05/02 2

Publication No. FAS255J2A

5995372652

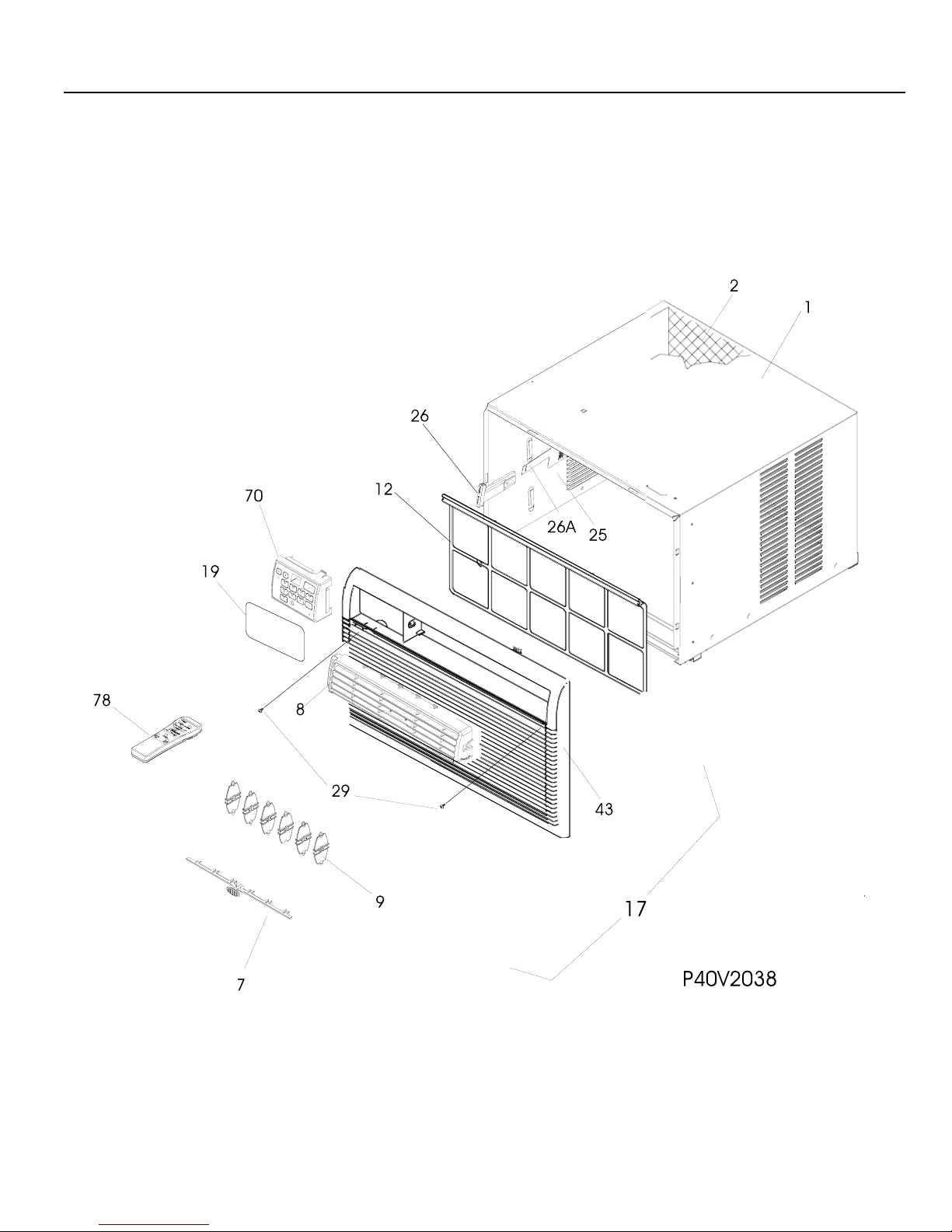

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 05/02

* = Non-Illustrated Parts

FAS255J2A Publication No.

5995372652

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

* 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver,w/handle

8 309630804 Louver,horizontal

8 309633305 Louver Assy,Incl-7,8,9

9 309631004 Louver,vertical

12 309631404 Filter,air ,molded plastic

17 309633205 Front Assembly,w/7,8,9,12,43

19 309341002 Overlay,Frig Gallery

25 309321401 Door,vent ,with actuator

26 309330404 Handle,vent ,gray

26A 309330202 Detent,vent

26A 309330206 Detent,vent ,with adhesive

43 309630904 Panel,cabinet front

29 3015312 Screw,8-18AB x 0.500

70 309342401 Enclosure,elec control mt

78 309342604 Remote Control,transmitter ,with batteries

* 5304402119 Seal-tube

05/02 4

Publication No. FAS255J2A

5995372652

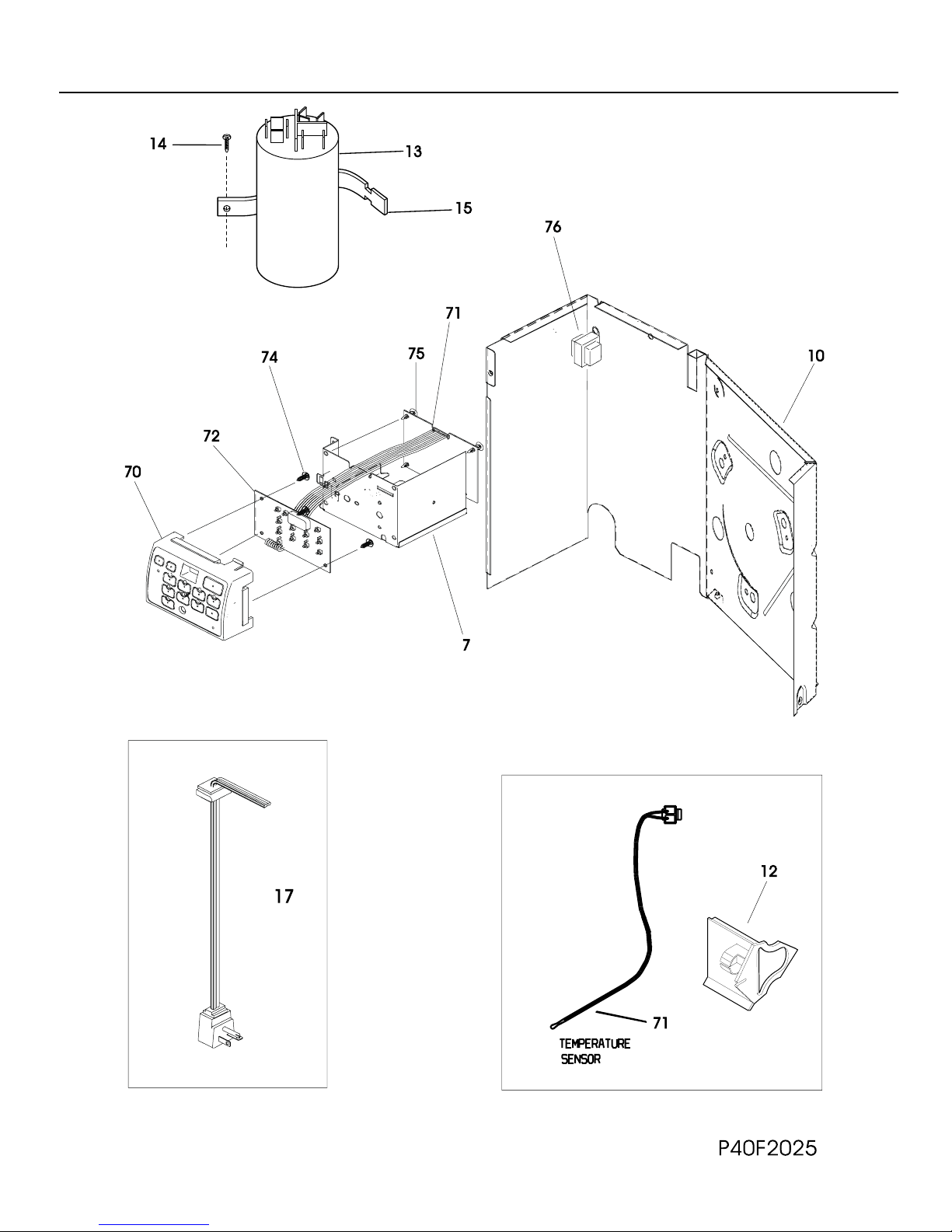

CONTROLS

# = Fast-moving Parts 5 05/02

* = Non-Illustrated Parts

FAS255J2A Publication No.

5995372652

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

7* 5303015427 Screw,truss head ,8-18AB x 0.47

10 309623602 Bulkhead,control system

10* 309111201 Grommet,wire protector

12 309331801 Clip,sensor retainer ,(2)

12A 5304413782 Holder,thermistor ,w/seal

12A 5304414108 Holder,thermistor ,without seal

13 # 5304426869 Capacitor,450 V ,40+7.5 mfd

14 3015312 Screw,8-18AB x 0.500

15 5303303077 Strap,capacitor mtg.

17# 309343114 Cord-electric power,Type-D ,12 AWG ,230 V

61 # 5304414095 Thermistor,defrost sensor

70 309342401 Enclosure,elec control mt

71 309340503 PC Board,power

72 309340701 PC Board,input

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111602 Transformer,240/12 Volt

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

05/02 6

Publication No. FAS255J2A

5995372652

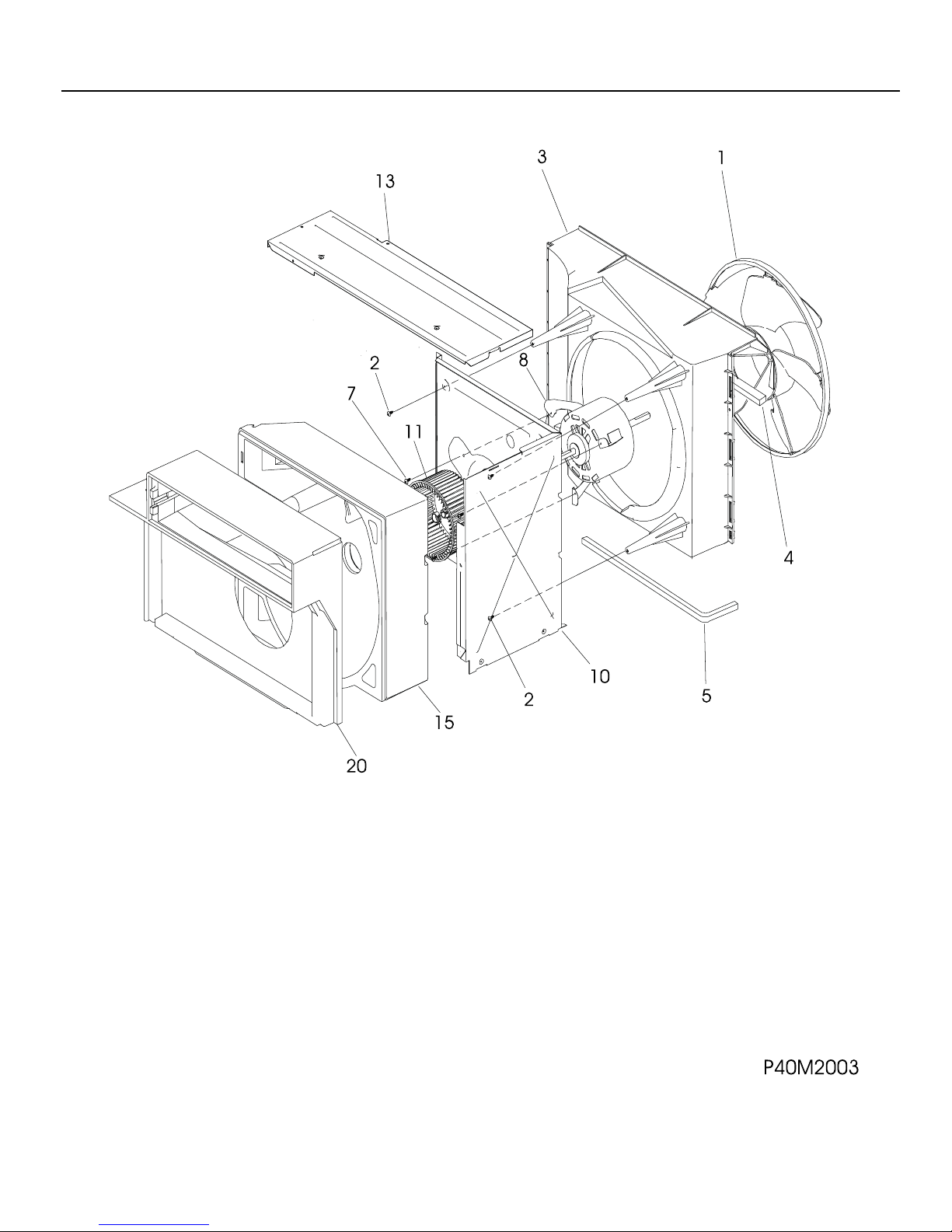

AIR HANDLING PARTS

# = Fast-moving Parts 7 05/02

* = Non-Illustrated Parts

FAS255J2A Publication No.

5995372652

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5304422465 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309623201 Shroud,cond fan motor

4 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

5 5303015311 Seal,fan housing ,19.56" x 0.50" ,lower

7* 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630608 Motor,fan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover,blower wheel ,top

15 309630101 Housing,blower scroll

20 309630201 Plate,scroll cover

05/02 8

Publication No. FAS255J2A

5995372652

COMPRESSOR PARTS

05/02 9

FAS255J2A Publication No.

5995372652

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309646901 Compressor,w/internal ovld

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 309364305 Gasket,terminal cover

7 309364301 Cover,compr terminal

9 309364302 Nut,terminal cover

11 # 309634203 Evaporator

12 # 5303306719 Condenser

13 309623501 Tray,evap drip

14 309632912 Base,compressor mtg ,with studs

16 # 5304426870 Capillary Tube,37.50 inch long

17 5300265301 Drier-filter,service kit

17* 5303290357 Strainer

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

* # 5304414095 Thermistor,defrost sensor

05/02 10

Publication No. FAS255J2A

5995372652

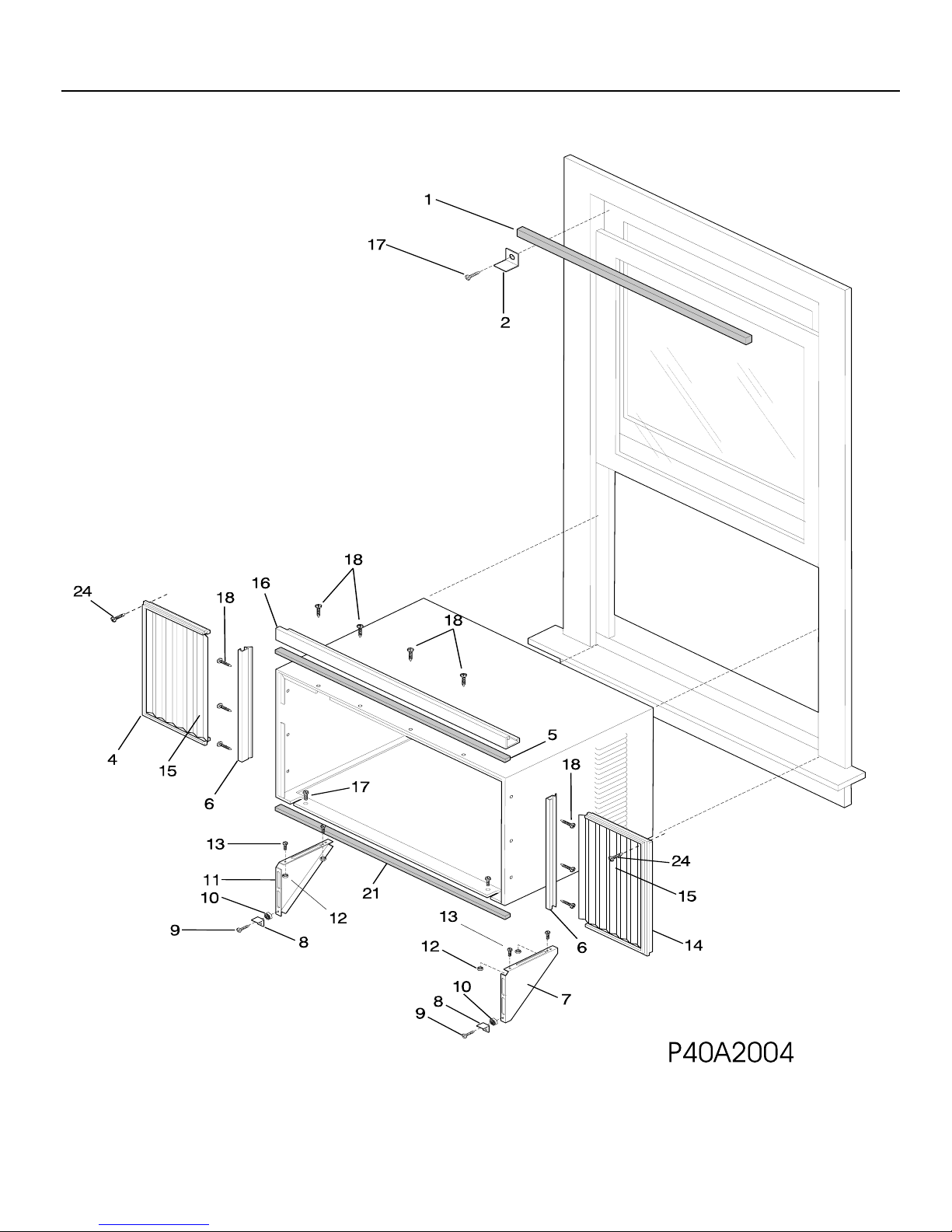

WINDOW MOUNTING PARTS
