EVAPORATIVE AIR

COOLER

FEC300WH00

Owner’s Manual

READ AND SAVE THESE

INSTRUCTIONS.

TABLE OF CONTENTS

Safety Information & Warnings ................................................................. 4

Parts List........................................................................................................... 6

Operating Intructions ................................................................................... 7

Control Panel ............................................................................................. 10

Use Of Remote Control.............................................................................. 12

Cleaning And Maintenance....................................................................... 14

Limited Manufacturer’s Warranty........................................................... 15

SPECIFICATIONS

MODEL NO

FEC300WH00

RATED VOLTAGE

120V

RATED FREQUENCY

60 Hz

RATED POWER

85W

NOISE

40dB –64dB

MAXIMUM TANK CAPACITY

1.84 Gallons

AIR FLOW

300 CFM

DIMENSIONS

(depth×width ×height)

10.6”D x 13.6”W x 41.3”H

Frigidaire is a registered trademark of Electrolux Home Products, Inc.

Manufactured under license by:

NewAir, LLC

6600 Katella Ave, Cypress, CA 90630

Comments/questions:

support@newair.com | 855-963-9247

Take advantage of all the benefits product registration has to

offer:

Service and Support

Diagnose troubleshooting and service issues faster and

more accurately

Recall Notifications

Stay up to date on safety notices, system updates, and

recall notifications

Special Promotions

Opt-in for NewAir promotions and offers.

Registering your product information online is safe &

secure and takes less than 2 minutes to complete:

Alternatively, we recommend you attach a copy of your sales

receipt below and record the following information, which can be

found on the manufacturer’s nameplate on the back of the unit.

You will need this information if it becomes necessary to contact

the manufacturer for service inquiries.

Date of Purchase:

___________________________________________

Serial Number:

____________________________________________

Model Number:

____________________________________________

newair.com/register

SAFETY INFORMATION & WARNINGS

Read Rules for Safe Operation and Instructions

Carefully.

•Read all instructions before using the fan.

•This appliance has a polarized plug (one blade is wider than

the other). To reduce the risk of electric shock, this plug is

intended to fit in a polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse the plug. If it still does

not fit, contact a qualified electrician. Do not attempt to

defeat this safety feature.

•WARNING: To reduce the risk of fire or electric shock, do not

use this fan with any solid-state speed control device.

•Do not leave the fan running unattended.

•Extreme caution is necessary when any heater is used by or

near children or those with reduced mental capacity, and

whenever the heater is left operating and/or unattended.

•Do not operate any heater with a damaged cord or plug or

after the heater malfunctions or been damaged in any

manner. Contact a professional operator or contact customer

service if any issues arise.

•This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety. Young

children should be supervised to ensure that they do not play

with the appliance.

•When the fan was assembled, the rotor blade guard shall not

be taken off anymore:

oPrior to cleaning, unplug the fan.

oThe rotor guard shall not be dissembled/opened to clean

the rotor blades.

oWipe the fan enclosure and rotor blade guard with a

slightly damp cloth.

RULES FOR SAFE OPERATION

1. Never insert fingers, pencils, or any other object through the

grille when fan is running.

2. Disconnect the fan from the power outlet when moving from

it one location to another.

3. Be sure the fan is on a stable surface when operating to avoid

overturning.

4. DO NOT use fan near a window, rain may create electrical

hazard.

5. Do not use the fan outdoors. Household use only.

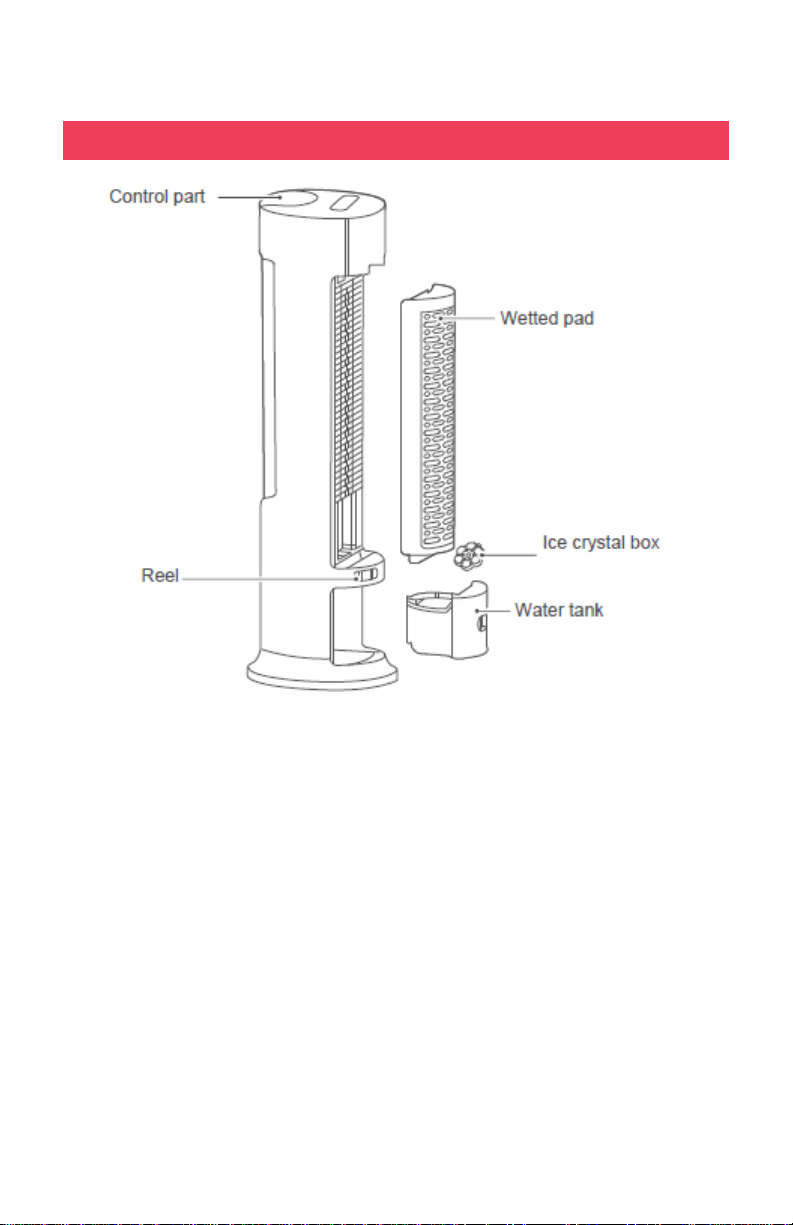

PARTS LIST

OPERATING INTRUCTIONS

Instructions for adding water to the water tank.

NOTE

•Please clear any remaining water collected at the bottom of

the water tank when the machine is not in use.

•When adding water to the tank or cleaning it, the power plug

should be removed from the outlet.

•Before you turn on the fan, make sure the pump module is

fixed into place.

•There are two ways to add water to the water tank:

1. Add water directly into the water tank. Make sure that the

water pump is properly placed inside.

2. Add water to the small chamber located above the

cooling pad. The water will filter down into the water tank.

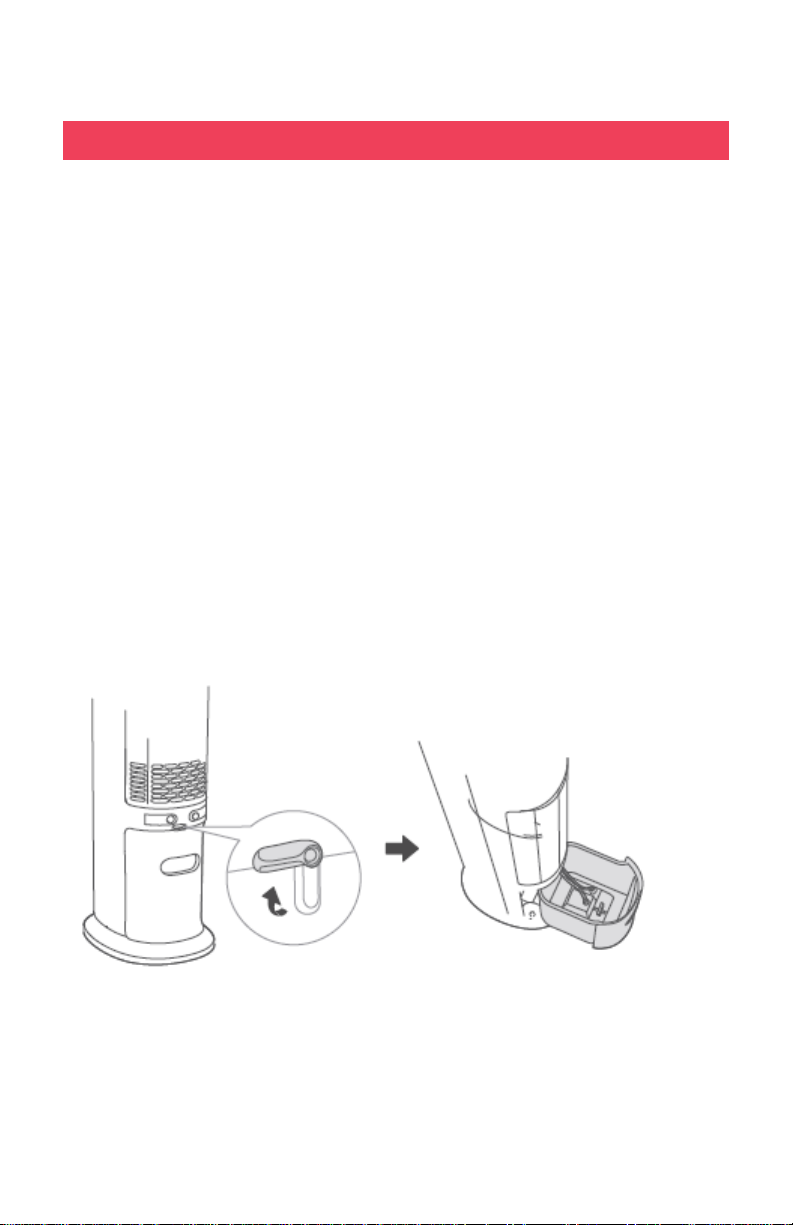

Instructions for cleaning the water tank once disassembled.

1. The water tank buckle should be

unlocked to the horizontal state.

2. Pumped out any remaing water

until the tank is empty. Proceed

by pulling out the water tank

from the fan.

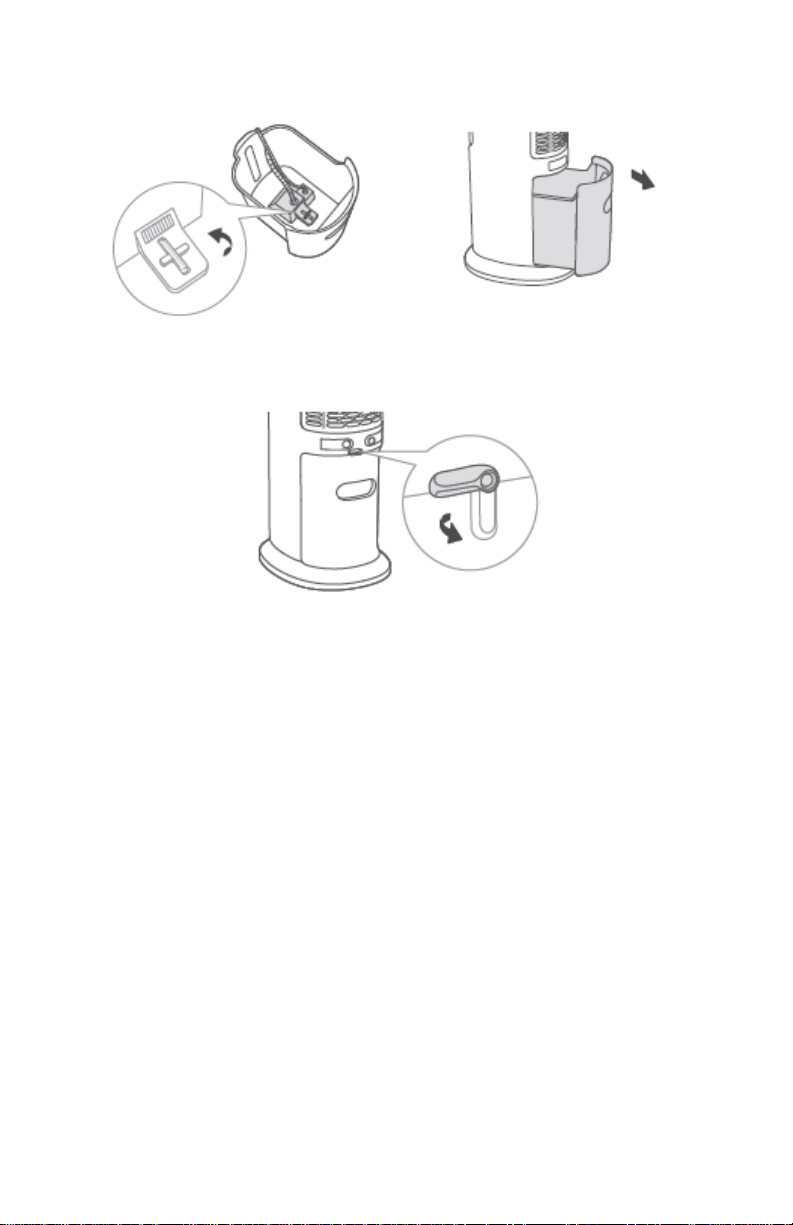

3. Separate the water tank from

the pump module (including

water tube) by turning the knob

90 degrees counterclockwise.

4. Clean the water tank and

replace the water tank to it’s

location at the bottom of the

fan.

5. Once the water tank is returned to it’s location, the water pump

module should be reattached, and then the water tank buckle should

be relocked.

USE OF ICE CRYSTAL BOX

NOTE

1. The ice crystal box can be repeatedly frozen and recycled; It

also not have to be used if you are satisfied with the fan

temperature.

2. The ice crystal box cover must not be opened to prevent

damage.

3. The ice crystal box material is environmentally friendly, non-

toxic and harmless; it can be safely placed in the refrigerator

for freezing.

4. The frozen ice crystal box should be placed in the water tank

during use, and after the humidification is turned on, the air

outlet temperature will be lowered.

5. The ice crystal box can be replaced by ice, which also has a

cooling effect.

6. When adding water, the water level of the water tank should

not exceed the "MAX" (maximum) indicating scale. If the

water level is lower than the "MIN" (minimum) indicating

scale, please add water.

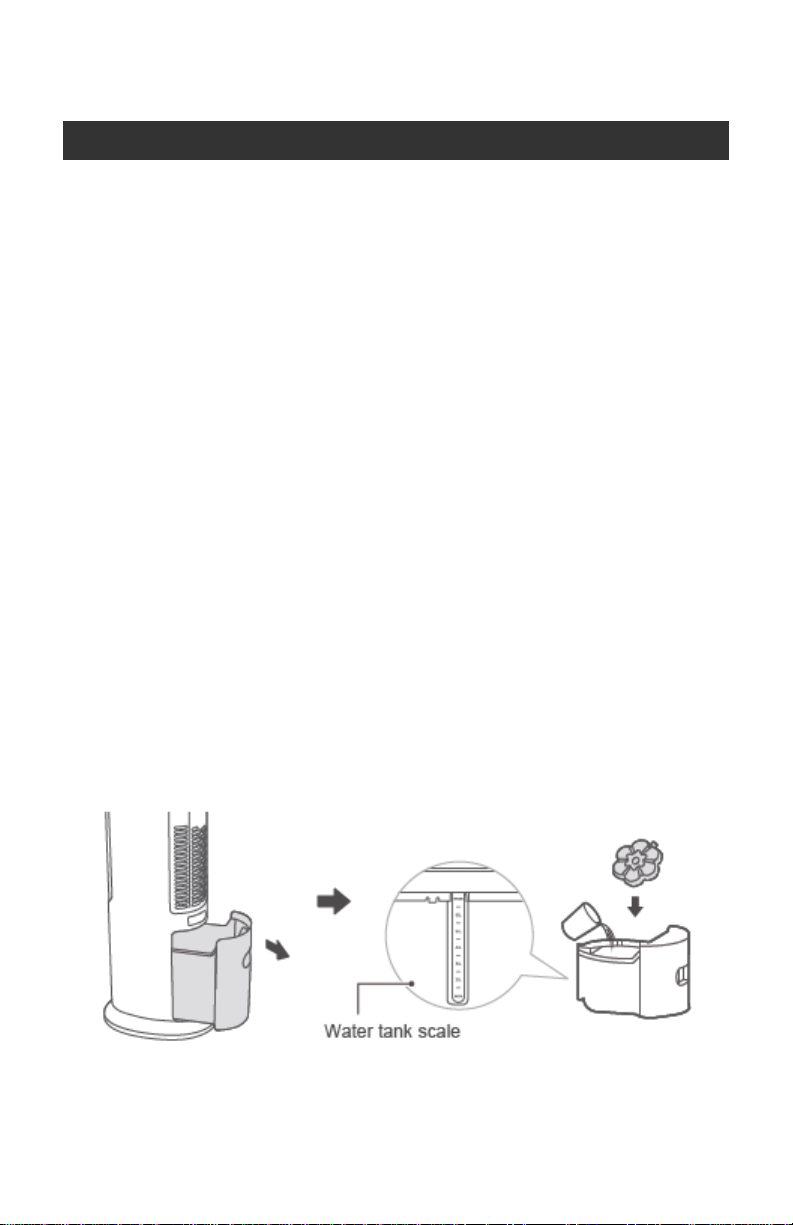

1. Pull out the water tank from the

bottom of the fan to check the

water level.

2. Remove the ice crystal box from

the package and put it in the

refrigerator for 3 hours or more.

Place the frozen ice crystal box

in the water tank and add water.

Do not exceeding the "MAX"

indicating scale.

CONTROL PANEL

Key

Function description

On and Off button.

Touch the oscillation key to start or stop air rotation.

Press the humidification button once the fan is on. In the

dry or hot weather, start the humidification function to

have a better cooling experience.

There are two fan speeds: Normal (level 3, normal

indicator light is lit up), natural (level 2, natural indicator

light is lit up).

When adjusting the fan speed, press the minus or plus

buttons to either decrease or increase the fan speed. Use

these buttons to also adjust the fan timer. Increase or

decrease the timer by .5-hour increments when you set

the fan to run between 0-3 hours. If you set the fan to

run longer, between 4-10 hours, then you will only be

able to increase or decrease the timer by 1-hour

increments.

To set the timer, press the timer button once the device

has been turned on. Once the timer icon begins to flash

on the display you can use the increase and decrease

buttons to set the length of the timer. The icon will flash

a total of 6 times to indicate the timer has been set.

To cancel timer mode:
