Frigidaire FAK103J1V1 Manual de usuario

PRODUCT NO.

BASE MODEL NO.

VOLTS

BTU-COOLING

FAK103J1V1 FAK103J1V 115 10000

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAK103J1V1+D34

WIRING DIAGRAM # - A232012

OWNERS GUIDE # - 309000816

Publication No.

000413

-EN/SERVICE /REP

345

5995338844

FAK103J1V1

CABINET FRONT AND WRAPPER

4/00 1

FAK103J1V1

1 309622004 Cabinet

2 5303317604 Grille,rear

7 5304414855 Link,louver

8 309622204 Louver,Horizontal

9 309622103 Louver,vertical ,(4)

10 309622104 Louver,vertical ,w/handle

12 309622304 Filter

17 309622404 Front,cabinet ,complete

19 309622609 Dial plate

20 309307011 Knob-control

39 3015312 Screw,8-18 x 0.47

# = Functional Parts

* = Non-illustrated Parts

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

4/00 2

FAK103J1V1

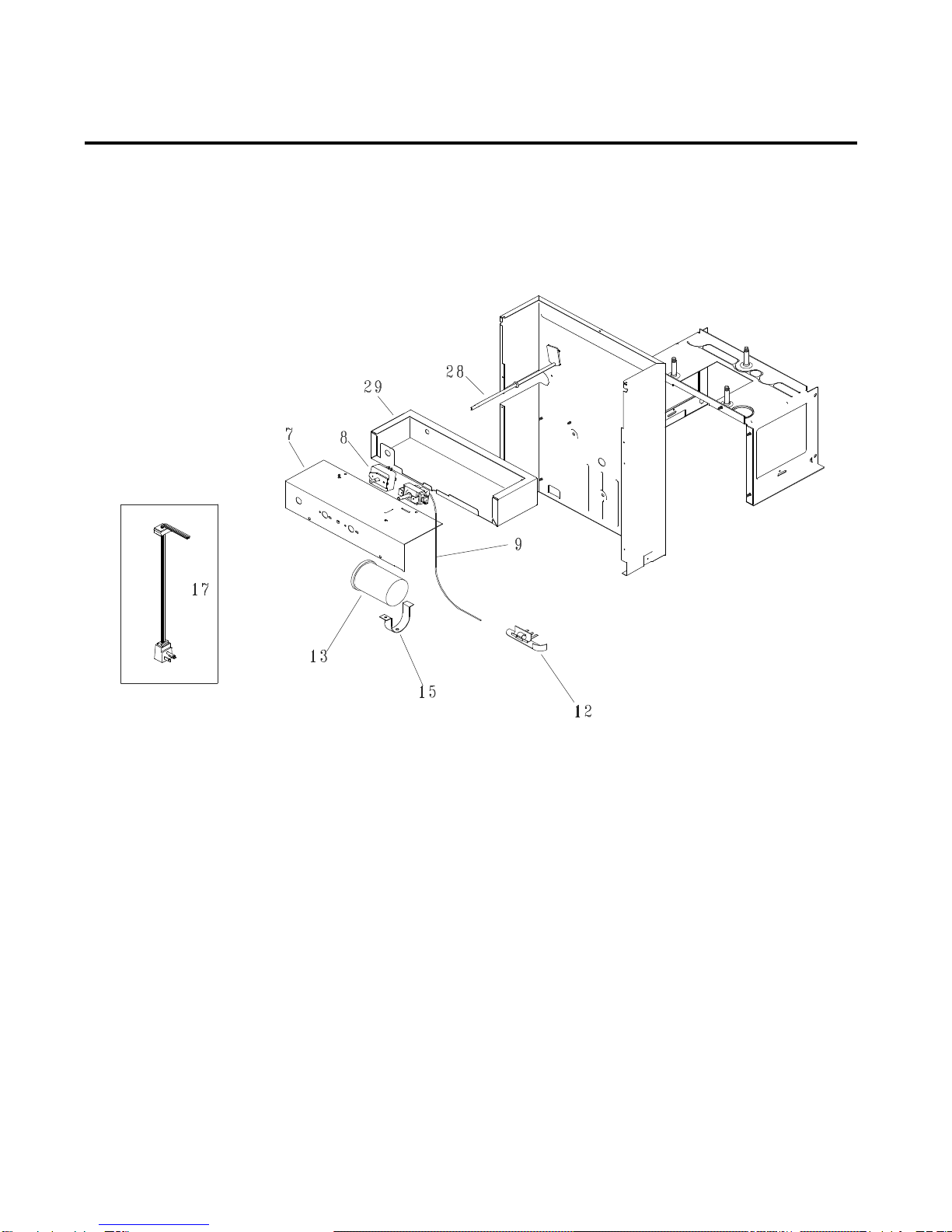

CONTROL PARTS

4/00 3

FAK103J1V1

7 309606501 Panel-mounting,controls

8 # 5303323284 Switch-selector

9 # 5304409252 Control-temperature

12 309321201 Clip-control bulb

13 # 5304403167 Capacitor,370 V ,35-15

15 5303303077 Strap-capacitor

17 # 309343105 Cord-electric power,type A

18 5303007754 Screw,.138-32 x .188

28 309625301 Control-vent door

29 309606402 Control Box

POS. NO. PART NO. DESCRIPTION

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

4/00 4

FAK103J1V1

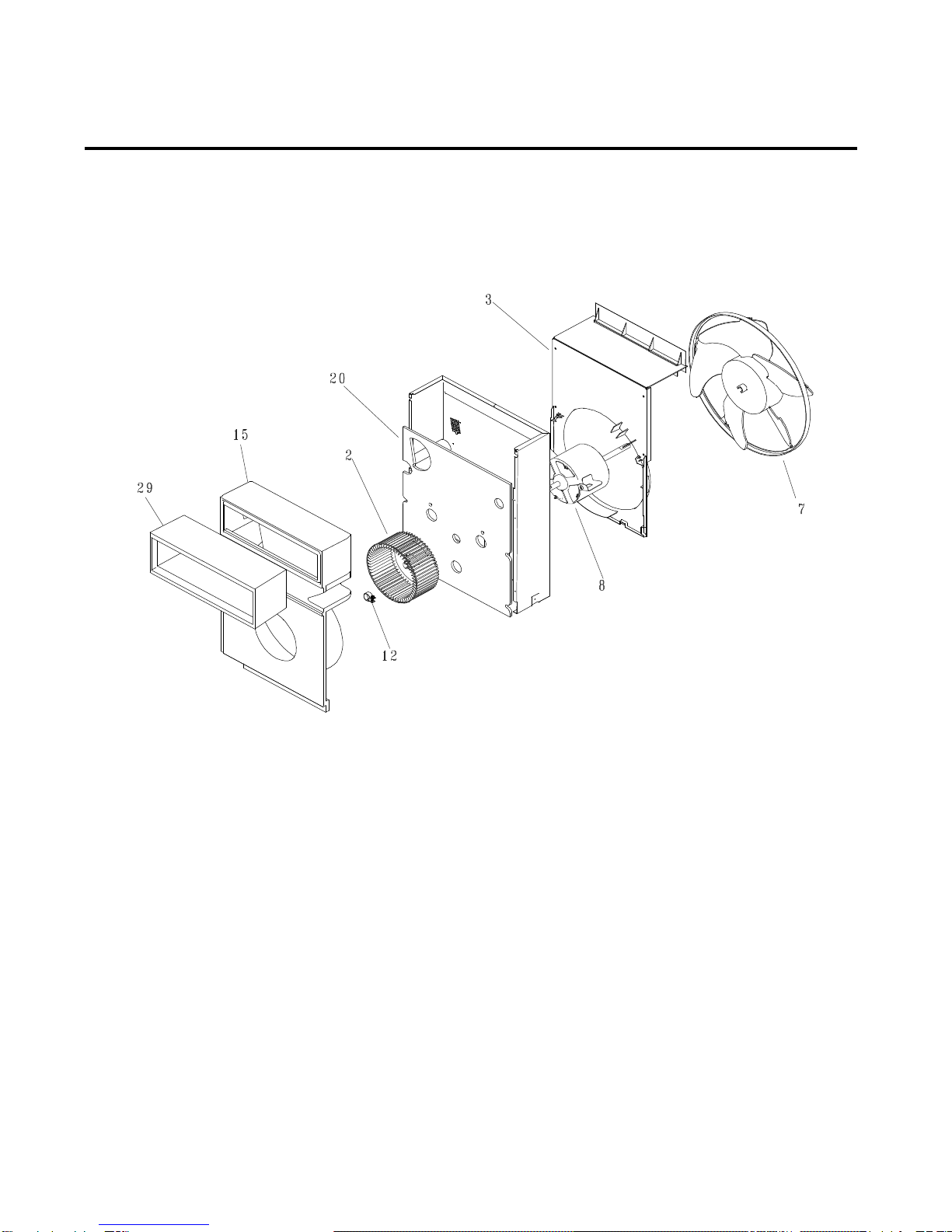

AIR HANDLING PARTS

4/00 5

FAK103J1V1

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309620501 Housing-fan

7 309626001 Fan Blade

8 # 309617703 Motor-fan

11 # 309625201 Blower Wheel,plastic

12 5303012110 Clamp-blower

15 309624801 Housing-blower

22 5303313964 Seal,condenser ,upper

29 309624901 Adaptor,housing-blower

30 309624601 Back Plate,housing-blower

# = Functional Parts

* = Non-illustrated Parts

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

4/00 6

FAK103J1V1

COMPRESSOR PARTS

4/00 7

FAK103J1V1

1# 309616912 COMPR-TEC RGA5492EXA

2 5303015945 Grommet,compressor ,(3)

3 5303015946 Nut,plastic ,compressor ,(3)

6 3201668 Gasket-cover

7 5304405245 Protective Cover

8 # 5304403940 Overload Protector

9 3201670 Nut,cover

10 # 5303317601 Start Assist Kit,compressor

11# 309617007 Evaporator

12# 309617307 Condenser

13 309624101 Tray-evaporator

16 # 08017122 Capillary Tube

16A # 08017122 Capillary Tube

17 # 309325201 Drier-filter

22 5303313964 Seal,condenser ,upper

23 309614105 Base,compressor

# = Functional Parts

* = Non-illustrated Parts

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

4/00 8

FAK103J1V1

1 5303313968

Seal,frame ,top

2 5303211056 Bracket

8 5304414856

Bracket-support

17 5308013771

Screw-wood,rnd hd ,8-15 x 0.750

20 5303295750

Screw,8-18 x 0.750

25 5308047516

Panel-window,plastic

33 5304414858

Frame-window,sliding

34 5304414861

Retainer-window panel

35 5304414857

Plate-mounting,unit

36 5308047524

Seal,mounting plate

37 5308047558 Screw,pan head ,8-32D x 0.75

38 5308047562

Screw-adjusting,mounting plate

39 5303313967

Seal,frame ,side ,(2)

40 5303302870 Bracket,safety

41 5300125233 Screw,pan head ,10-12A x 1.00

42 5300507212 Screw,pan head ,10-12A x 1.75

43 5300507693 Screw,flat head ,10-12A x 2.50

44 5300516543

Nut,hex flange ,1/4-20

48 309305302

Channel-slide,(2)

*309625802

Kit-window mtg.

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

4/00 9
