Frigidaire FAK124Q1 Manual de usuario

Electrical Shock and Personal Injury Hazard

Electrical ground is required on this appliance.

DO NOT ground to a gas line.

If cold water pipe is interrupted by plastic,

non-metallic gaskets, or other insulating

materials, DO NOT use for grounding.

Check with a qualified electrician if you are in

doubt as to whether the appliance is properly

grounded.

DO NOT modify power supply cord plug. If it

does not fit outlet, have a proper outlet

installed by a qualified electrician.

DO NOT have a fuse in the neutral or

grounding circuit. A fuse in the neutral, or

grounding circuit could result in an elecrtrical

shock.

DO NOT use an extension cord with this

appliance.

Failure to follow these instructions could result in

electrical shock, serious injury, or death.

WARNING

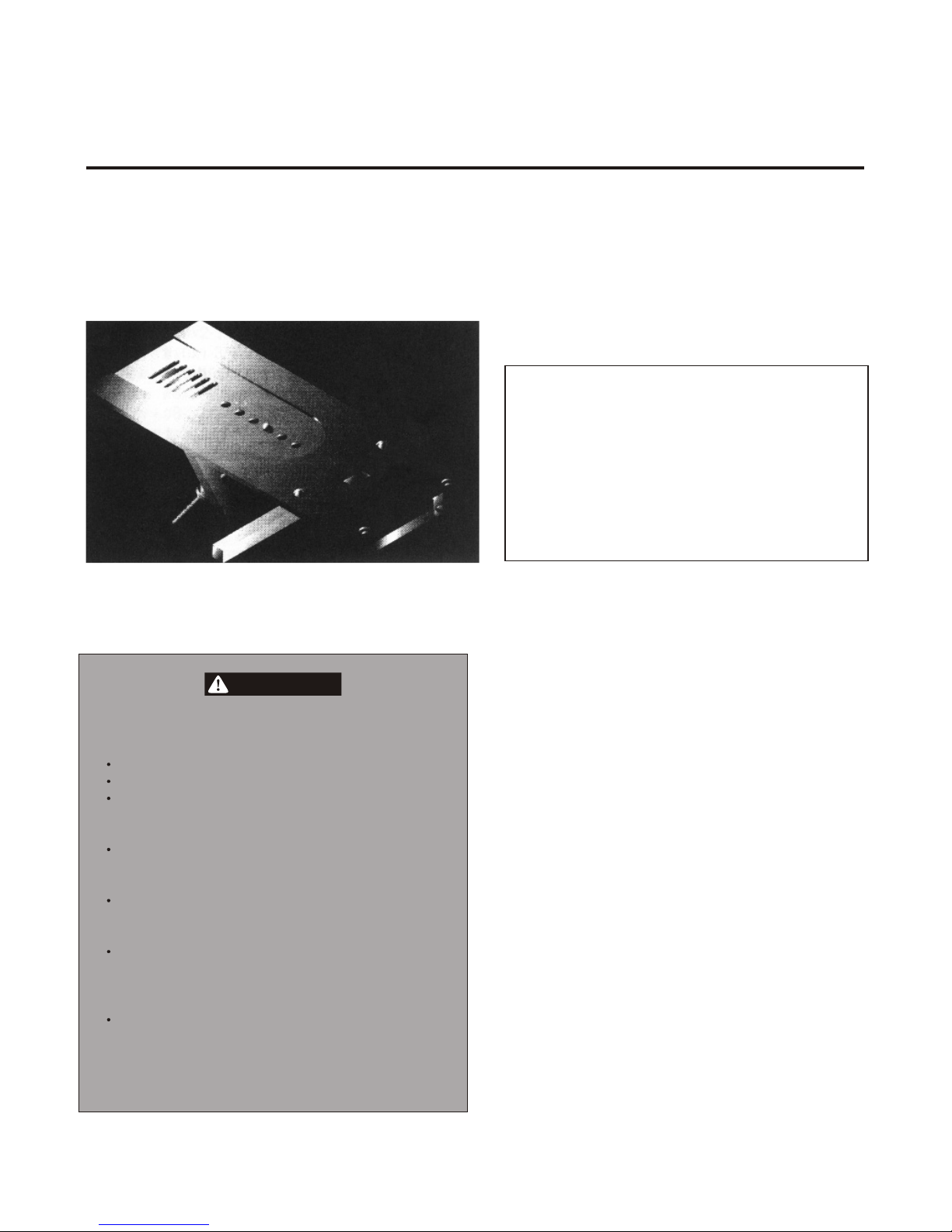

Installation Instructions

For Slider Casement Air Conditioners

NOTE: These instructions describe installation in a typical wood framed window with a wood SLIDE-BY sash,

or installation in a metal CASEMENT window. Modification may be necessary when installing in windows made

differently than those shown in these instructions.

A high window accessory kit is available for window heights up to 62" (1575mm). Part # EA103W.

Meeting Electrical Requirements

OBSERVE ALL LOCAL GOVERNING CODES

AND ORDINANCES.

DO NOT, UNDER ANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD

GROUNDING PRONG.

ELECTRICAL REQUIREMENTS

A 115 volt (103.5 minimum, 126.5 maximum), 60

Hertz, AC only, 15 ampere fused electrical supply

is required. A time delay fuse or time delay circuit

breaker is also required. A separate circuit, serving

only this appliance, MUST be provided.

NOTE: If codes permit, and a separate

grounding wire is used; it is recommended that a

qualified electrician determine that the grounding

path is adequate and not interrupted by plastic,

non-metallic gaskets, or other insulating materials.

RECEPTACLE WIRING

Receptacle wiring should be a minimum of 14

gauge. Use copper wire only. It is your responsibility

to provide proper and adequate receptacle wiring,

installed by a qualified electrician.

P/N 220215A055

SUBJECT PAGE

Meeting Electrical Requirements 1

Electrical Connection 2

Preparing For Installation 2

Installing Unit in a Sliding Window 4

Alternate Window Jamb Applications 7

Installing Unit in a Casement Window 8

TABLE OF CONTENTS

Recommended grounding method:

For your personal safety, this appliance must be

grounded. This air conditioner includes a power

supply cord with a 3-prong grounding plug. To

minimize possible electrical shock hazard:

-cord must be plugged into a mating 3-prong

grounding-type wall receptacle,

-must be grounded in accordance with

National Electrical Code (ANSI/NFPA 70-

latest version) and

-all local codes and ordinances.

If a mating 3-prong grounding-type wall receptacle is

not available, it is the responsibility of the consumer

to have a properly grounded 3-prong wall receptacle

installed by a qualified electrician.

Electrical Connection

Electrical ground is required on this appliance.

Preparing for Installation

For wood-frame casement windows: It may be

necessary to construct a frame, using at least 1-inch

thick wood, with a 15-1/2-inch wide opening.

For brick or cement building construction: It may

be necessary to put a wood stool strip under AC, for

mounting purposes.

Installation Tips

Tools Required

Flat-head screwdriver

Phillips-head screwdriver

Carpenter's level

Tape measure

Fine tooth saw

Electric or hand drill

WARNING

3 Prong

Grounding Plug

3 Prong

Grounding Type

Wall Receptacle

Grounding

prong

Power Supply Cord

(6 feet long)

Failure to adhere to the following precautions could

result in personal injury and product damage.

Because this unit weighs about 88 to 105 pounds,

it is recommended that you have someone help

you when install your new unit, and that you both

use proper lifting techniques. Inspect the condition

of the window where unit will be installed. Be sure

it will support the weight of the unit.

This appliance must be installed according to all

applicable codes and ordinances.

Handle AC with care. AVOID sharp metal fins on

front and rear coils.

Make sure your AC does not fall during installation.

Do not use water collected in the unit for drinking

purposes. It is not sanitary.

Knife and scissors

Pencil

1. Make sure you have all the necessary parts.

Installation kit contents:

1. Platform (1)

2. Support brace (1)

3. Adjustment bolt (1)

4. Hex flange nut - 1/4" (1)

5. Track seal (1)

6. Side channel seal (1)

7. Foam seal strip/Sash seal

8. Safety bracket (1)

9-11. Screw - #10x2-1/2" flat-head (2), OR

Screw - #10xl-3/4" pan-head (2), OR

Screw - #10xl" pan-head (2)

12. Screw - #8x3/4" pan head (6)

13. Screw - #8-32x3/4" self-threading (7)

14. Window locking bracket (1)

15. Plastic window panel (1)

16. Side channel (2)

17. Screw - #8x3/8 truss head (6)

18. Panel frame/seal assembly (1)

NOTE: Use scale below to measure length of your

screws. The scale will come in handy when

separating screws for installation.

2. Choose a proper sized window, as shown right.

15-1/2 inches minimum width

16-1/4 inches maximum width (for

casement windows)

21-1/4 inches minimum height (with

window panel retainer)

20-5/16 inches minimum height

(window panel retainer removed)

39-7/16 inches maximum height

NOTE: Height measurement must be of a clear

opening above mounting platform. In some cases,

due to a variety of stop and track arrangements, the

above dimensions may vary slightly. If necessary,

installation can be made by alternating window

jambs. (See Alternate Window JambApplications.)

(continued)

IDENTIFY SCREWS

BY LENGTH

19,10,11

16 / inches

maximum

width

(casement

windows)

15 / inches

minimum

width

20 / inches

minimum

height

39 / inches

maximum

Height

Choose a window that allows the cooled air to flow

freely and directly into room(s) you wish to cool.

Remember, it is difficult to move air around corners.

Also, choose a window that is within 6 feet of an

electrical outlet. (See Meeting Electrical

Requirements/Receptacle wiring needs.) Do not

use an extension cord.

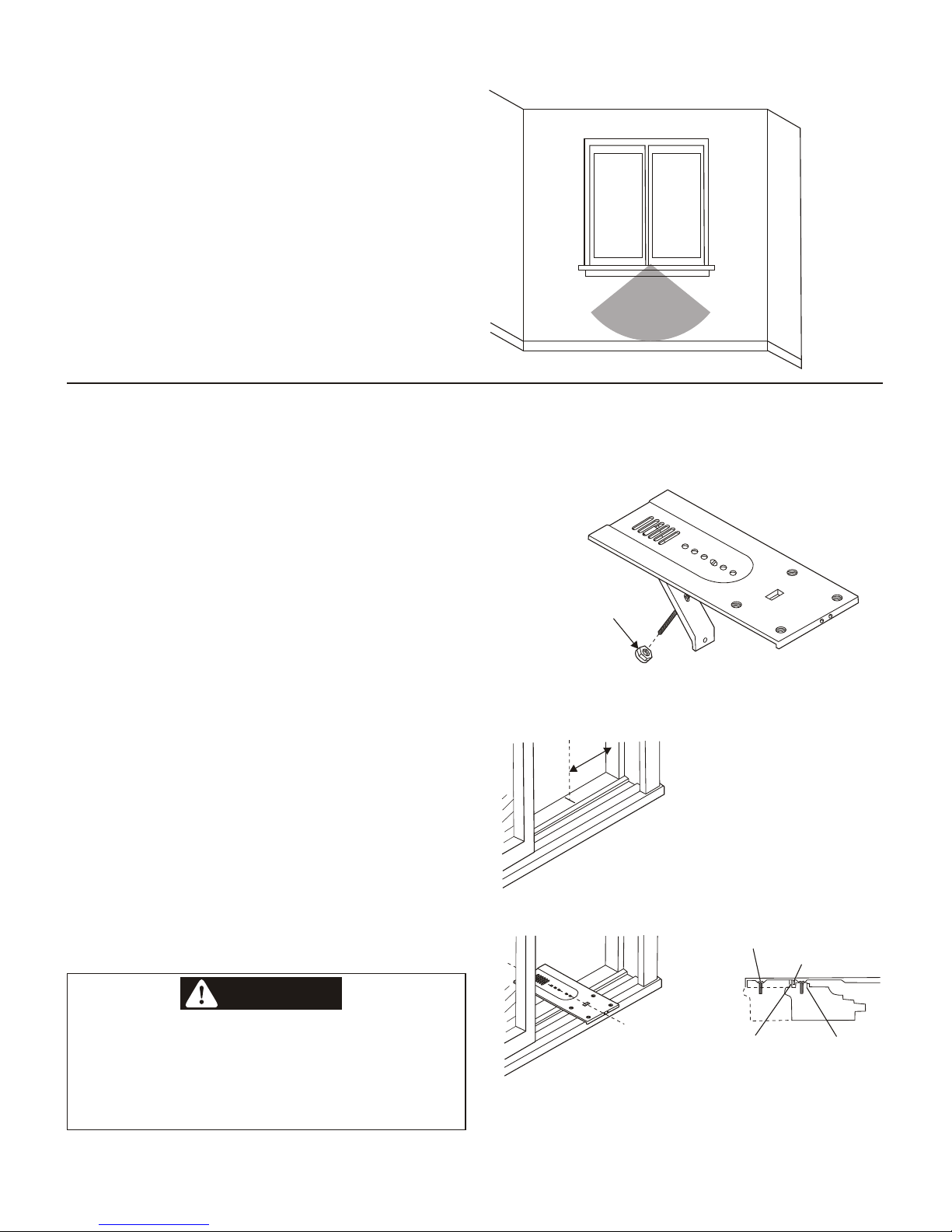

3. Choose the proper window location.

Installing Unit in a Sliding Window

1. Attach support brace to platform as shown.

Use adjustment bolt and hex flange nut to complete

assembly. Choose slot and adjustment bolt hole

locations that will create a 45 degree angle between

platform and support brace. Try assembly in the

window to determine if platform will rest properly, and

allow proper slope (3/16-inch lower on outside).

NOTE: If you are planning to use a siding-

protection board (see Step 5) on the outside of your

house, hold board in place when testing assembly in

window.

2. Measure, and lightly mark a line 8-11/16 inches

from window jamb.

NOTE: If any sash stop protrudes more than 1

inch from the side window jambs, the 8-11/16-inch

measurement must be increased accordingly.

Screen and storm window frames may also require

adjustments to the measurement.

3. Center platform assembly on the line with inside

platform tab pressed against inside edge of window

track. Using the holes in the platform as a guide,

mark and drill two 9/64-inch diameter holes. Drill

holes in either track or stool.

(continued)

Property Damage Hazard-Failure to adhere to

the following precaution could result in

damage to window or air conditioner.

Be sure wood stool or window track is securely

attached to the building construction. Use longer

screws in sub-framing if necessary.

CAUTION

6 foot

power cord

reach

Platform Assembly

1/ " (6mm) HEX FLANGE NUT

8 / inches

Center platform

assembly on the

line with platform

tab pressed against

window track

Alternate screw location

(depending on the stool depth)

Platform tab

Window track Window seal

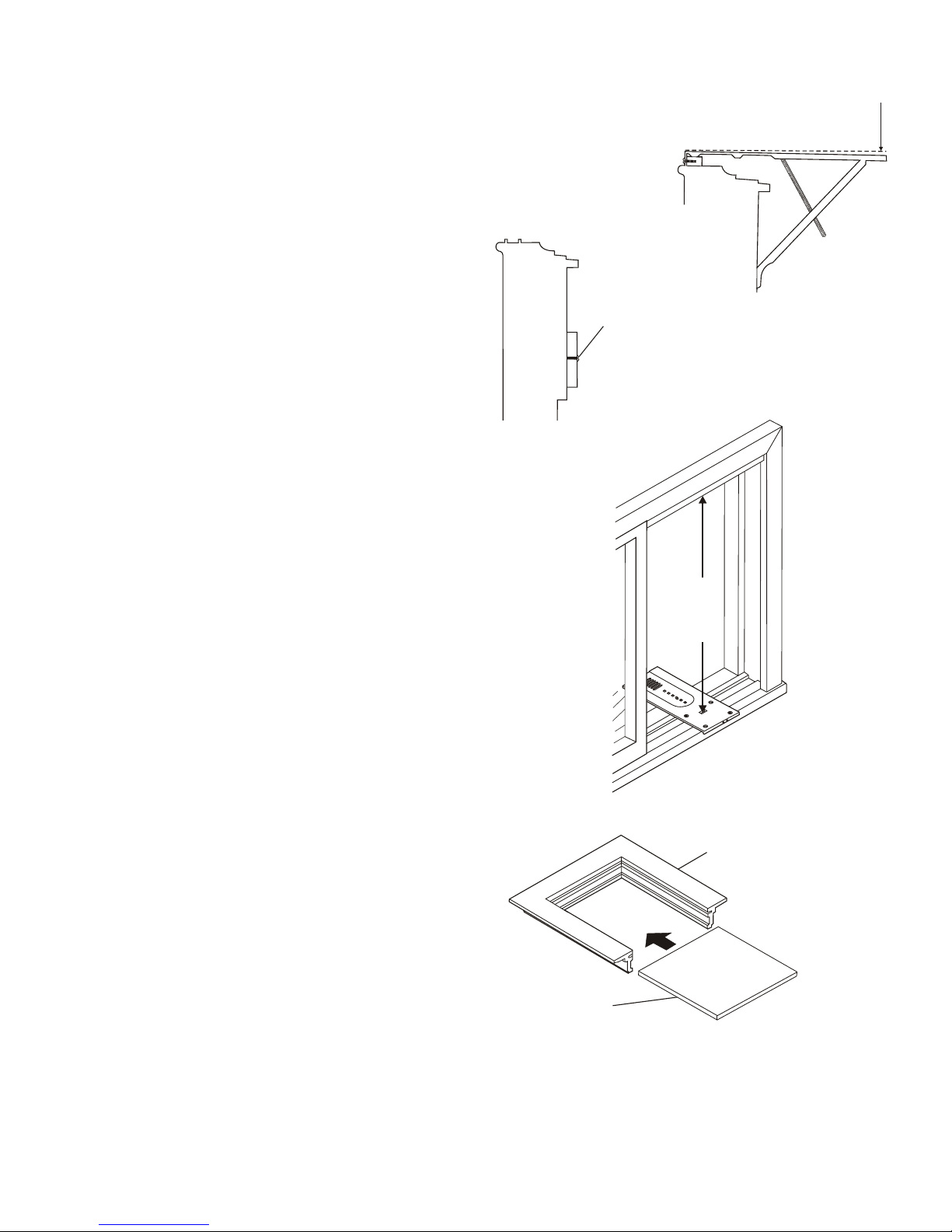

4. Peel off protective backing from track seal. Apply

seal to room side of window track. Center of seal strip

should coincide with the line marked in Step 2. The

two screw holes drilled in Step 3 should be directly

above seal strip in the inner track.

5. Securely attach a siding-protection board to

side of house.

NOTE: Siding-protection board should be long

enough to span 2 wall studs.

6. Place platform assembly, with platform tab

against inside of window track, and attach it to

window jamb. Use appropriate length screws (Items

9-11 in Preparing For Installation).

7. Adjust platform assembly so that outside edge is

3/16-inch lower than inside edge, as shown right.

This ensures proper water drainage from the air

conditioner.

8. Level platform assembly from side-to-side.

Also, make sure window track is level. Use leveling

shims as necessary to ensure unit is level from side-

to-side.

9. Measure height of window opening from top of

platform assembly as shown right. Subtract 20-5/8

inches. Mark this measurement on plastic window

panel, along the longer side. (continued)

Apply track seal

to window side

of track.

Inside

wall of

house Siding-protection

board

Outside edge is 3/16-inch

lower than inside.

Put platform

tab against

inside of

track.

Measure

distance and

subtract

20 / inches.

Slide inner

window sash

firmly against

Cabinet.

10. Clamp plastic window panel between a board

and a work table, and cut along cutting line with a fine

tooth saw. Remove any burrs with a file.

11. Fasten side channels to the sides of the AC

using 3 screws (Item 17) per channel. Start with first

screw at top of channel. Make sure hook ends of

channels face toward back of unit.

12. Slide plastic window panel into panel frame,

with the smooth side to the room. Slide panel frame

assembly into side channels of the AC cabinet. Make

sure plastic window panel is firmly enclosed on all

sides by the retainer grooves.

13. Cut side channel seal into 2 equal lengths.

Remove protective backing and apply it to the rear

side of cabinet side channels, starting just below

panel frame assembly. Pinch off excess length so

seal is even with the bottom of the cabinet side

channel.

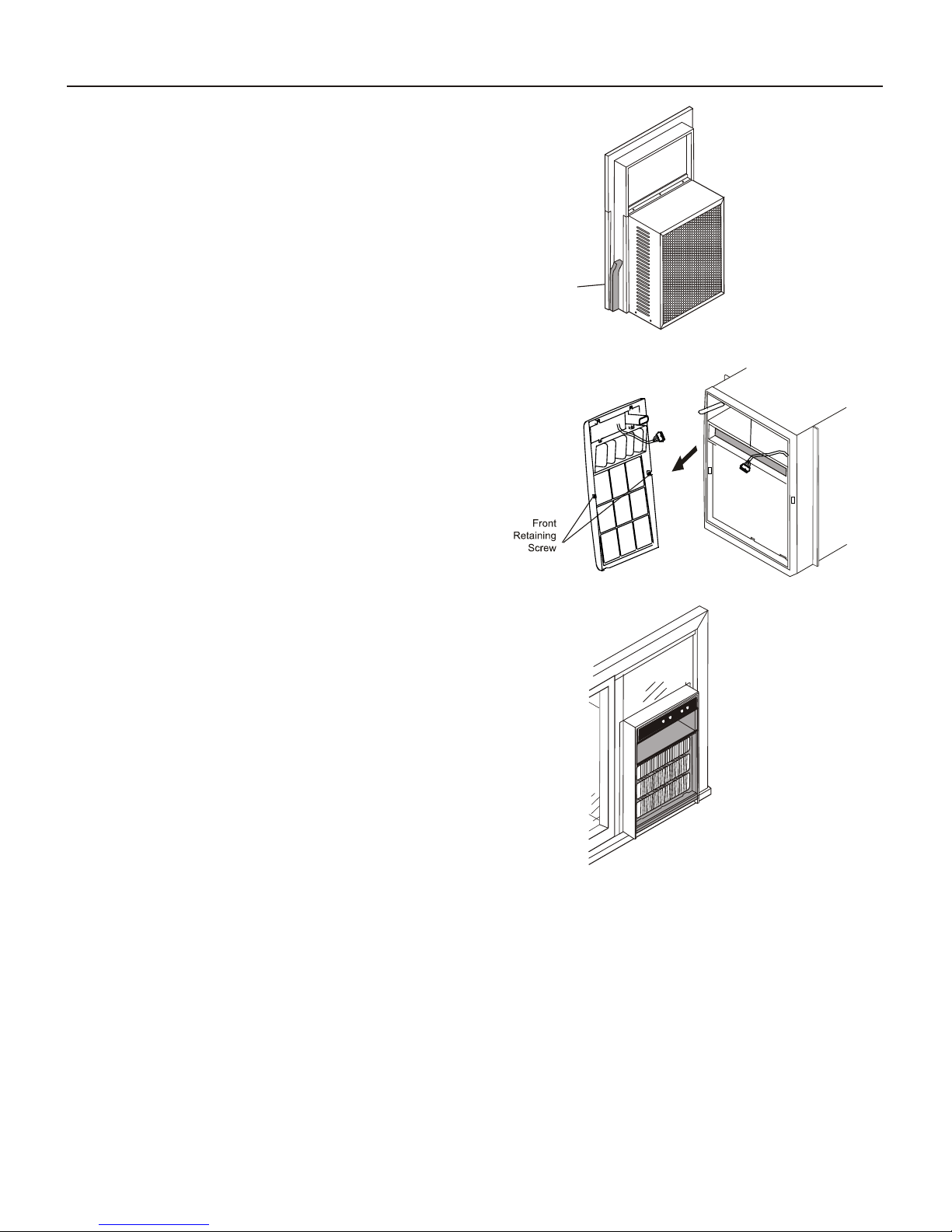

14. To remove front

1. Remove the two front retaining screws from the

front frame.

2. Press firmly on each side of the metal case close

to the front, approximately 2/3 of the way down.

3. While pressing on the sides of the metal case,

gently pull the front out and lift up to release it

from the case.

4. Then release the electrical coupler plug.

NOTE: DO NOT push or pull air direction louvers.

15. Place AC in window opening. As shown right, it

should sit on platform assembly so that window panel

frame, and cabinet side channels are against top and

side window jambs. (continued)

Panel frame

Plastic window panel

Apply weather

seal to side

channels just

below edge of

panel frame.

Fastening Side Channels

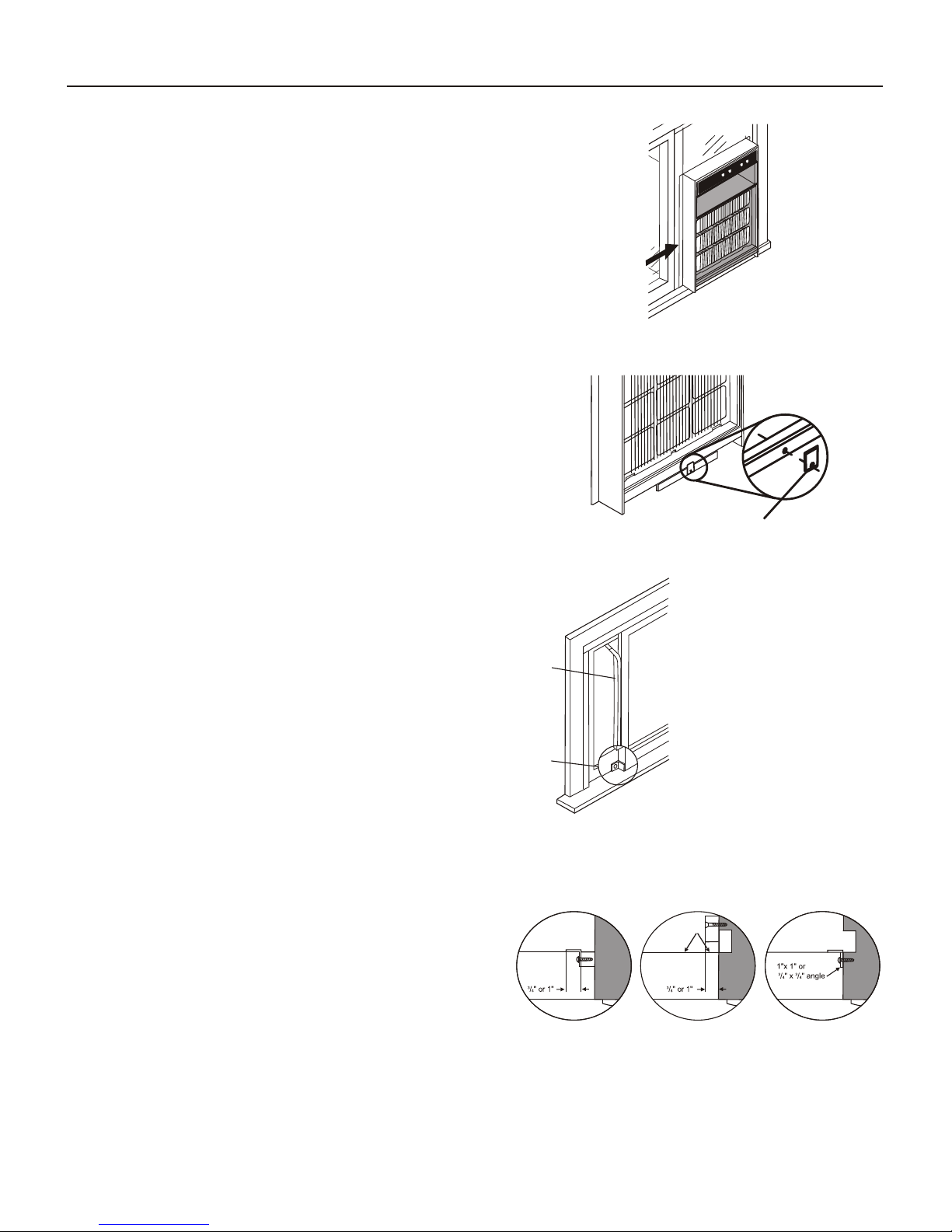

16. Slide inner window sash firmly against side

of the cabinet. Make sure not to peel the seal strips

from the window track and cabinet side channels. If

the panel frame does not fit snugly to the inner

window sash, secure the panel frame to the sash

with #8x3/4-inch screws, or #8-32x3/4-inch self-

threading screws. Use the partially plugged holes in

the panel frame. Drill 1/8-inch pilot holes for the

screws.

17. Hook the safety bracket over the base of the

unit and fasten it to the front of the platform

assembly. Use a #8-32x3/4-inch self-threading

screw.

NOTE: The bracket prevents movement of the

air conditioner (either in or out) after completing the

installation.

18. Stuff the foam seal strip/sash seal between

the vertical sash and the window glass, as shown

right.

19. Use the window locking bracket to lock the

inner window sash to the base of the outer window

sash. Use one #8x3/4-inch screw, or #8-32x3/4-

inch self-threading screw. (Drill 1/8-inch pilot hole).

20. To replace the front

First reconnect the coupler plugs, make the exhaust

control positioned through the front in the proper

location. Gently push the front into position on the

cabinet. It should click into place. Then replace the

retaining screws that holds the panel in place.

Do not push or pull the front panel louvers.

Alternate Window Jamb

Applications

To install in windows having no flanges or wood stops

on the top and side jambs, the channels and panel

frame must fit against a mating flange (or 1/16-inch

max. thick angle) attached to the window jambs.

Figure A shows this angle installed. Figures B & C

show alternate treatments. On the sash side of the

opening, the leading corner of the inner sash

becomes the flange. You can purchase the angle

strip locally.

Safety bracket

Install safety bracket

Sash seal

Window

locking

bracket

Room

Flush

Room

Add 16- or 18-

gauge angle

Add angle to

wood stop

Add wood

as shown

Room

Slide inner

window sash

firmly against

Cabinet.

Installing the Unit in a Casement

Window

NOTE: Open the window the maximum amount to

allow for clearance of the cabinet. The crank handle

should be removed to allow the platform to be

fastened to the jamb. If the window cannot open far

enough (more than 15-1/2 inches) for the cabinet to

clear the window, remove the window entirely by

drilling out the rivets. Bolts can serve as the pivots in

the future.

To avoid crank handle and window clearance

problems, the unit can be installed in a stationary

sash section. However, the horizontal mullion and the

2 glass panels must be removed before installation.

1. Attach support brace to platform as shown. Use

the adjustment bolt and hex flange nut to complete

the assembly. Choose the slot and adjustment bolt

hole locations that will create a 45 degree angle

between the platform and the support brace. Try the

assembly in the window to determine if the platform

will rest properly, and allow the proper slope (3/16-

inch lower on outside).

NOTE: If you are planning to use a siding-

protection board (see Step 6) on the outside of your

house, hold the board in place when testing the

assembly in the window.

2. Drill a 9/64-inch diameter pilot hole in the

window jamb an equal distance from each side of the

jamb, and 3/16-inch up from the window sill. If the

hole coincides with the window lever slot in the jamb

bottom, an additional hole will have to be drilled

through the platform edge and the window jamb to

miss this slot.

3. Peel off the protective backing from the track

seal, and stick the seal to the window sill on the

outside of the bottom jamb.

4. Screw the platform assembly to the window

jamb through the pilot hole you drilled in Step 2. Use

a #8x3/4-inch self-threading screw. (continued)

Platform Assembly

1/ " (6mm) HEX FLANGE NUT

8 / inches

Equal distance from both sides

Apply track seal to the outside

edge of the bottom window jamb.

Screw

Track seal

Window

jamb

5. Adjust the platform assembly so that the rear of

the air conditioner will be 3/16-inch lower than the

front. This ensures proper water drainage from the

air conditioner.

NOTE: Aprojection below the base of the air

conditioner will require the rear of the platform to be

7/16-inch lower than the front to create the 3/16-inch

slant from front to rear.

6. Securely attach a siding-protection board to the

side of the house where the platform assembly hit the

house. The siding-protection board should be long

enough to span 2 wall studs.

7. Measure the height of the window opening

from the top of the platform assembly. Subtract

20-5/8 inches. Mark this measurement on the plastic

window panel, along the longer side.

8. Clamp the plastic window panel between a

board and a work table, and cut along the cutting line

with a fine tooth saw. Remove any burrs with a file.

9. Fasten the side channels to the sides of the

unit using three screws (Item 17) per channel. Make

sure hook ends of channels face toward the back of

unit.

10. Slide the plastic window panel into the panel

frame with the smooth side to the outside. Slide the

panel frame assembly into the side channels of the

air conditioner cabinet. Make sure the plastic window

panel is firmly enclosed on all sides by the retainer

grooves. (continued)

Rear is at least

7/16" lower

than front

Fasten siding-

protection board to

the house siding.

Panel frame

Plastic window panel

Measure

distance and

subtract

20 / inches.

11. Cut side channel seal into 2 equal lengths.

Remove the protective backing and apply it to the

rear side of the cabinet side channels, starting just

below the panel frame assembly. Pinch off excess

length so the seal is even with the bottom of the

cabinet side channel.

12. To remove front

NOTE: DO NOT push or pull air direction louvers.

13. Place the air conditioner in the window

opening as shown to the right. It should sit on the

platform assembly so that the window panel frame,

and the cabinet side channels are against the top and

side window jambs. Side channels should overlap

side window jambs equally.

14. Drill two 9/64-inch diameter pilot holes in the

top window jamb in line with the partially plugged

holes in the panel frame. Secure the panel fame to

the window jamb with two #8-32x3/4-inch self-

threading screws. If additional holding is necessary,

two screws may be used on the sides of the panel

frame as well.

15. Drill two screw-clearance holes in the cabinet

side channels (near bottom) and two 9/64-inch

diameter pilot holes in the side window jambs. Secure

the cabinet side channels to the window jambs with

two #8-32x3/4-inch self-threading screws. When

doing this, be careful not to twist the side channel

seals with the screws.

NOTE: Inserting screws will prevent the air

conditioner from being pushed into the room.

Apply weather

seal to side

channels just

below edge of

panel frame.

1. Remove the two front retaining screws from the

front frame.

2. Press firmly on each side of the metal case close

to the front, approximately 2/3 of the way down.

3. While pressing on the sides of the metal case,

gently pull the front out and lift up to release it

from the case.

4. Then release the electrical coupler plug.

16. To replace the front

First reconnect the coupler plugs, make the

exhaust control positioned through the front

in the proper location. Gently push the front

into position on the cabinet. It should click into

place. Then replace the retaining screws that

holds the panel in place.

Do not push or pull the front panel louvers.

Otros manuales para FAK124Q1

Tabla de contenidos

Otros manuales de Acondicionador de aire de Frigidaire

Frigidaire

Frigidaire CRA106HT1 Manual del propietario

Frigidaire

Frigidaire FRA064ZU1 Instrucciones de instalación

Frigidaire

Frigidaire FAL125M1A1 Manual de usuario

Frigidaire

Frigidaire Home Comfort FRA124HT1 Manual de usuario

Frigidaire

Frigidaire FAC126N1A Manual de usuario

Frigidaire

Frigidaire FFTA1233Q25 Manual del propietario

Frigidaire

Frigidaire FRP12ETT2R Manual de usuario

Frigidaire

Frigidaire FAS155K1A1 Manual de usuario

Frigidaire

Frigidaire FAK123N1V Manual de usuario

Frigidaire

Frigidaire FFRA1011R1 Manual del propietario

Frigidaire

Frigidaire CRA102BT112 Manual del propietario

Frigidaire

Frigidaire GAC122P1A - GIBSON 12000BTU 115V 9.8EER3 SPD 8 WAY AIR... Manual de usuario

Frigidaire

Frigidaire LRA08PZU111 Manual del propietario

Frigidaire

Frigidaire FAC125P1 Manual de usuario

Frigidaire

Frigidaire FRA086HT110 Manual del propietario

Frigidaire

Frigidaire FRA053XT7 Instrucciones de instalación

Frigidaire

Frigidaire L0806995 Manual de usuario

Frigidaire

Frigidaire CRA084KT7 Manual del propietario

Frigidaire

Frigidaire FAS155J1A1 Manual de usuario

Frigidaire

Frigidaire FAC103K1A2 Manual de usuario

Frigidaire

Frigidaire FFRE06W3S14 Manual del propietario

Frigidaire

Frigidaire FAH146R2T1 Manual de usuario

Frigidaire

Frigidaire Designer Series Manual de usuario

Frigidaire

Frigidaire FFRC0833R1 Manual del propietario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Samsung

Samsung AS09HM3N Manual de usuario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manual de usuario
