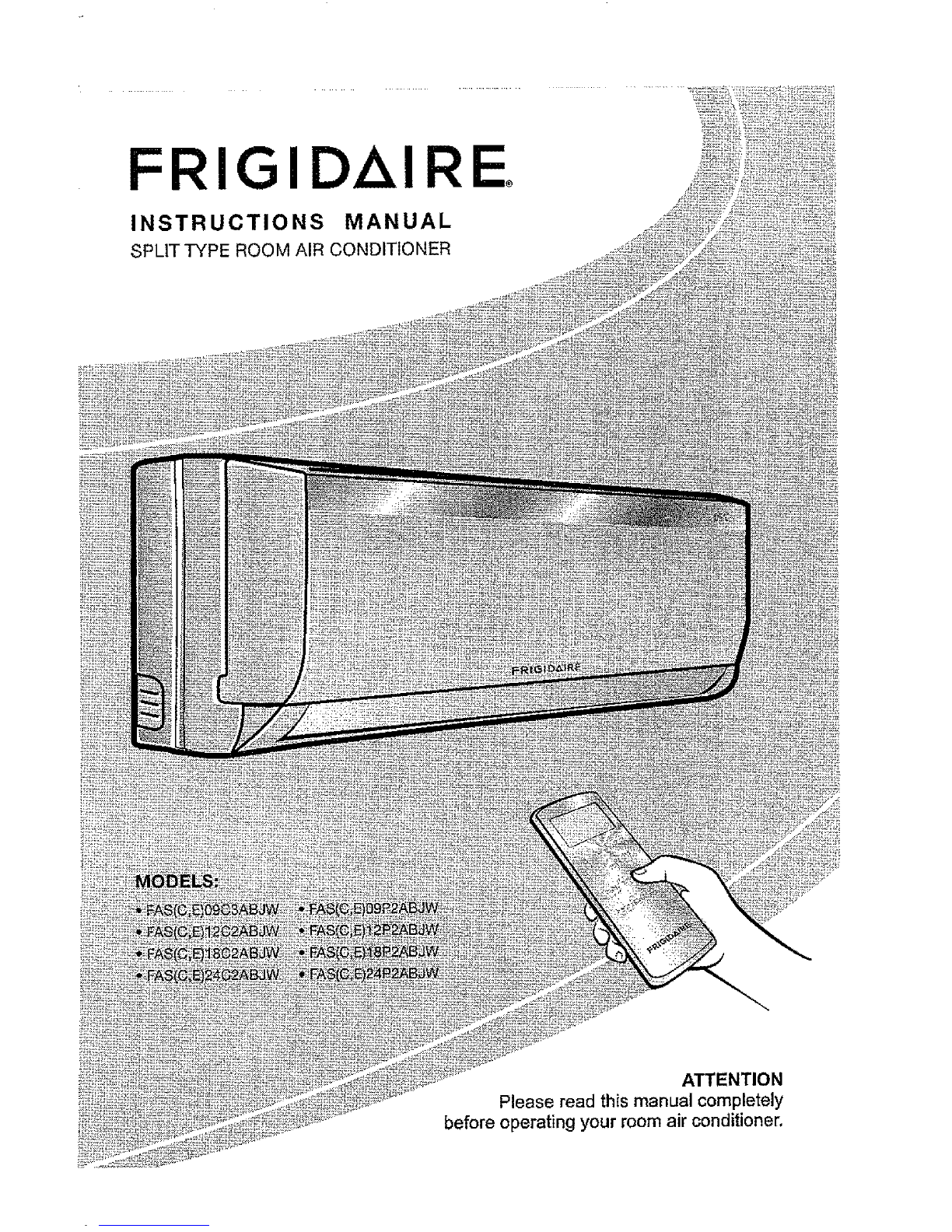

Frigidaire FAC12C2ABJW Manual de usuario

FRIGIDAIR

INSTRUCTIONS MANUAL

SPL|T TYPE ROOM AIR CONDITIONER

ATTENTION

Please read this manual completely

before operating your room air conditioner.

Welcome to the world of

simple handling and no worries.

Thank you for choosing Frigidaire. This manual contains all of the information

required to guarantee your safety and the appropriate use of your air

conditioner.

Please read all of the instructions before using the air conditioner and keep this

manual for future reference.

We know you will enjoy your new air conditioner and thank you for choosing

our product. We hope you will consider us for future purchase.

Environmental advices

The packaging material used is

recyclable; we recommend that you

separate plastic, paper and cardboard

and give them to recyoling companies.

According to WEEE (Waste of Electrical

and Electronic Equipment) guidelines,

waste from electrical and electronic

devices should be collected separately, If

you need to dispose of this appliance in

the future, do NOT throw it away with the

rest of your domestic garbage. Instead,

please take the appliance to the nearest

WEEE collection point, where available.

Contents

01, Welcome ........................................................................................... 01

02. Environmental advices .......................................................................... 01

03. Contents ................................................................................................... 02

04. Safety precautions ..................................................................... 04

05. installation:

5.1 Choosing the installation site....................................................... 08

5.2 Parts list......................................................................................... 10

5.3 Indoor unit installation ................................................... 12

5.4 Outdoor unit installation .............................................................. 17

5,5 Refrigerant piping connection ........................................................ 19

5.6 Electrical work ..................................................................... 21

5,7 Purga de aire............................................................................. 26

5.8 Electrical safety, ................................................................... 29

5.7 Gas leak check ............................................................................... 29

5.8 Test running ............................................................................. 30

06, Operation:

6.1 Preparing the device for operation .............................. 31

6.2 Product description ........................................................... 32

6.3 Remote control ................................................................... 34

- Remote control operation

- Remote control specifications

- Remote control battery

- When should the batteries be replaced

- To replace batteries

- Remote control instructions

6.4 Remote control description .................................................... 36

- On/Off

- Temp. increase

- Temp, decrease

- Swing

Clock

- Turbo

- Mode

- Fan speed

- Sleep

- Timer

- Cancel

- LED (screen)

6.5 LCD display indicators .................................................................. 38

6.6 How the air conditioner works ................................... 39

- Automatic operation

-Cool/heatandfanonlyoperation

- Dryoperation

-Airflowdirectionadjustment

-Sleepmode

-Timeroperation

-Optimal operation

6,7 How to use the indoor unit...................................................... 43

- Adjusting air flow direction

- Adjusting the vertical air flow direction (up/down)

- To set the horizontal air flow direction (left/right)

- To automatically swing the air flow direction (up/down)

6.8 Manual operation ........................................................................ 45

07. Maintenance .................................................................................... 46

08. Operation tips .......................................................................................... 48

09. Solution for problems .............................................................................. 50

I0. Technical specifications ..................................................................... 51

Attention

The air conditioner that you have bought may be slightly different from the

one illustrated in this manual. Please refer to the information related to the

model you have.

This air conditioner is for domestic use only. It is not reccomended for

commercial or industrial use.

The air conditioner you have may carry a different plug than the one

illustrated in this manual, The plug that comes with the product fo]Iows the

electrical specification of the country where it is sold.

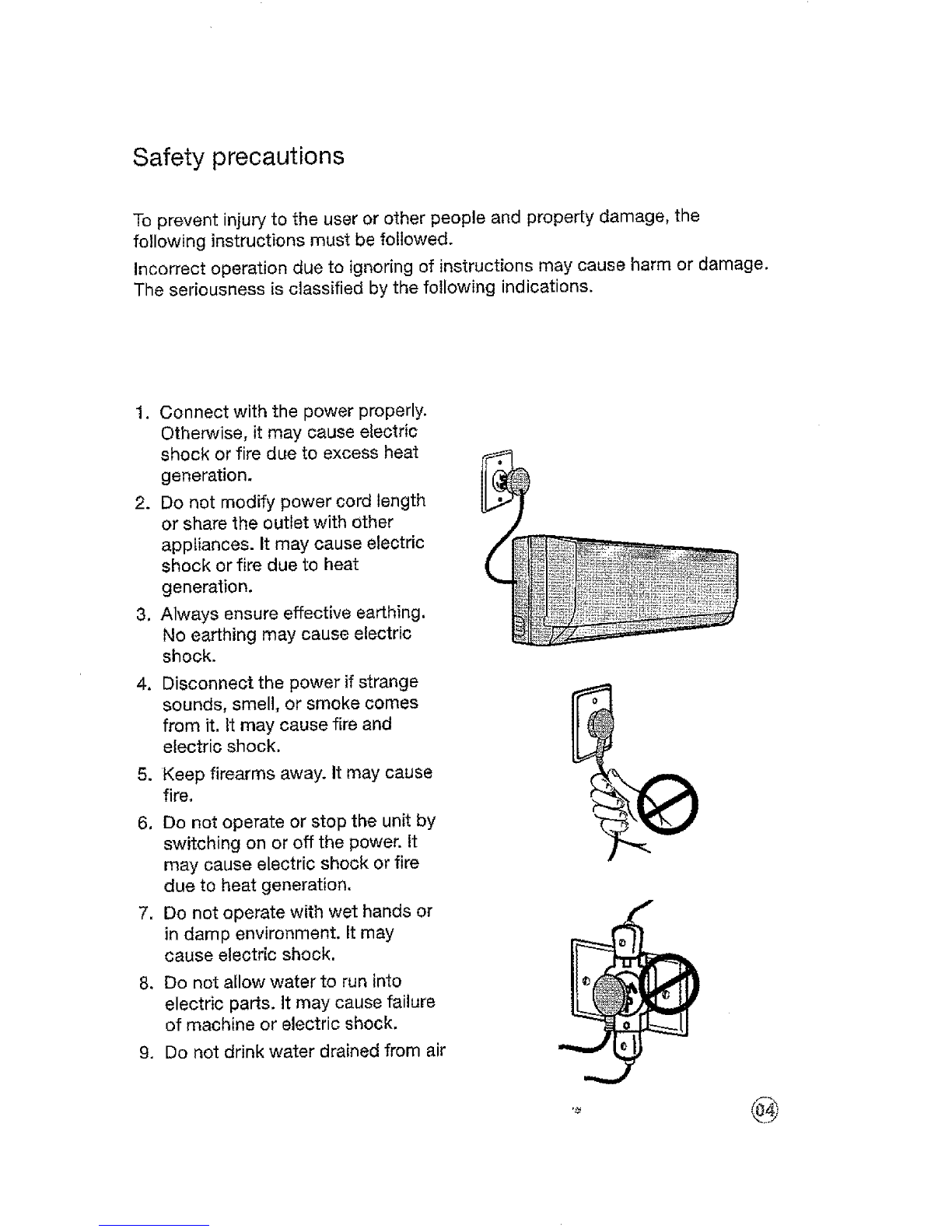

Safety precautions

To prevent iniury to the user or other people and property damage, the

following instructions must be followed.

Incorrect operation due to ignon_ng of instructions may cause harm or damage.

The seriousness is classified by the following indications.

1. Connect with the power properly.

Otherwise, it may cause electric

shock or fire due to excess heat

generation.

2. Do not modify power cord length

or share the outlet with other

appliances. It may cause electric

shock or fire due to heat

generation.

3, Always ensure effective earthing,

No earthing may cause electric

shock.

4. Disconnect the power if strange

sounds, smell, or smoke comes

from it, tt may cause fire and

electric shock,

5. Keep firearms away. It may cause

fire.

6, Do not operate or stop the unit by

switching on or off the power, tt

may cause electric shock or fire

due to heat generation,

7, Do not operate with wet hands or

in damp environment. It may

cause electric shock,

8. Do not allow water to run into

electric parts. It may cause failure

of machine or electric shock.

9. Do not drink water drained from air

conditioner.Itcontains

contaminantsandcouldmakeyou

sick,

10.Donotusethepowercordcloseto

heatingappliances.Itmaycause

fireandelectricshock.

11.Do not damage or use an

unspecified power cord. It may

cause electric shock or fire.

12.Do not direct airflow at room

occupants only. This could damage

your health.

1&Always install circuit breaker and a

dedicated power circuit. No

installation may cause fire and

electric shock,

14.Do not open the unit during

operation. It may cause electric

shock.

15.Do not use the power cord near

flammable gas or combustibles,

such as gasoline, benzene, thinner,

etc. It may cause an explosion or

fire.

I &Ventilate room before operating air

conditioner if there is a gas leakage

from another appliance, It may

cause explosion, fire and, burns.

17.Do not disassemble or modify unit.

It may cause failure and electric

shock.

18.When the air filter is to be removed,

do not touch the metat parts of the

unit, It may cause an injury.

19,Do not clean the air conditioner

with water. Water may enter the

unit and degrade the insulation. It

may cause an electric shock,

\,...J

20.Ventilate the room well when used

together with a stove, etc. An

oxygen shortage may occur.

21.When the unit is to be cleaned,

switch off, and turn off the circuit

breaker. Do not clean unit when

power is on as it may cause fire

and electric shock, it may cause

an iniury.

22.Do not put a children, pet or house

plant where it will be exposed to

direct air flow. This could injure the

pet or plant.

23.Do not use for special purposes.

Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects. It

may cause deterioration of quality,

etc.

24.Stop operation and close the

window in storm or hurricane.

Operation with windows opened

may cause wetting of indoor and

soaking of household furniture.

25.Turn off the main power switch

when not using the unit for a long

time. It may cause failure of

product or fire.

26.Do not use strong detergent such

as wax or thinner. Use a soft cloth

for cleaning. Appearance may be

deteriorated due to change of

product color or scratching of its

surface.

27.Ensure that the installation bracket

of the outdoor appliance is not

damaged due to prolonged

exposure. If bracket is damaged,

there is concern of damage due to

falling of unit.

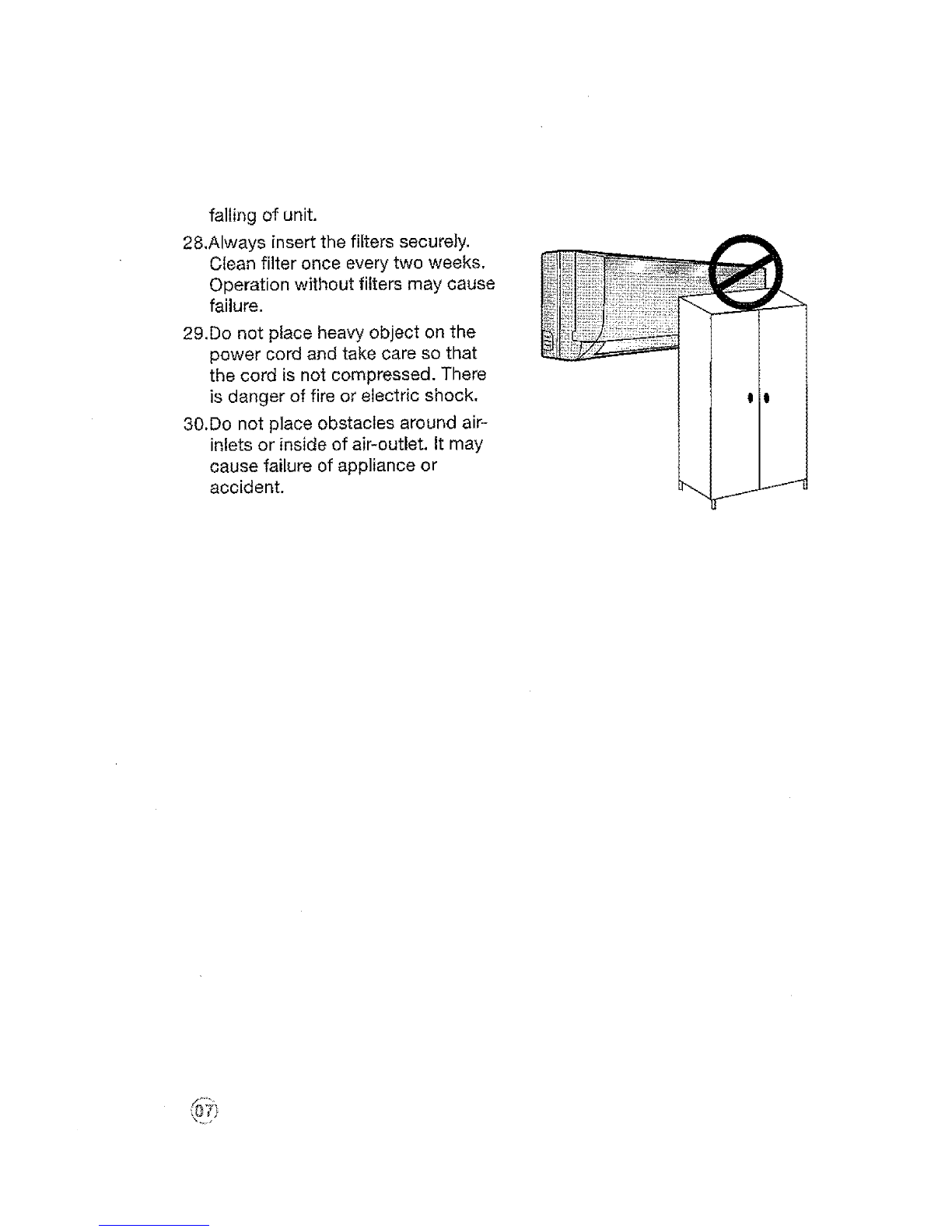

28.Always insert the filters securely.

Clean filter once every two weeks,

Operation without filters may cause

failure.

29.Do not place heavy object on the

power cord and take care so that

the cord is not compressed. There

is danger of fire or electric shock.

30.Do not place obstacles around air-

inlets or inside of air-outlet. It may

cause failure of appliance or

accident.

Choosing the Installation Site

Precautions for Installation

installation at the following sites may cause problems. If you must inevitably

install the unit at one of these sites, please consult your local distributor

beforehand:

1. Site with machine oil.

2. Sites with a high concentration of salinity, such as coastal areas.

3. Sites with sulfuric gas, such as hot water springs.

4. Sites with high frequency equipment, such as wireless equipment, welding

machines and medical installations.

5. Sites with flammable gases or volatile material.

6. Sites with special environmental conditions.

7. Laundry rooms.

Indoor Unit

1. The unit must be installed at a site

that does not obstruct the flow of

air.

2. The site must support the weight

of the indoor unit.

3. The site must be easily accessible

for maintenance and replacement

of the air filter.

4. The site must allow for the

necessary space around the

indoor unit, as shown in the

following figure.

5. There should be at least 1 meter (3

feet) between the unit and radio

and television devices. It is idea[

that the unit be installed at the

center of the environment.

6. It must be far from fire, smoke or

flammable gases.

7. The indoor unit must be at least

2.3 meters (7.5 feet) from the

ground.

8. The site must allow for the easy

removal of the connector pipe and

drain hose.

9. The unit must be installed at a site

protected from direct sunlight.

thantScm

More than

200cm

than 12cm

Outdoor Unit

1, The outdoor unit must be installed

at a convenient site that is not

exposed to strong winds. The site

should be dry and well ventilated.

2. The site must support the weight of

the outdoor unit and allow for

vertical installation.

3. There must not be the possibility of

increased noise and vibration at the

site.

4. The unit must be installed at a site

where the noise produced by its

operation and air discharge does

not disturb the neighbors or

animals.

5. The site cannot have any leakage

of flammable gases.

6. The site must allow for a piping

extension of no less than 5 meters

(16 feet) and for pipes measuring at

least 10 meters (33 feet) in length.

7, The site must provide enough

space around the unit, as shown in

the diagram.

8. Children must not be able to

access the installation site.

than 30cm

Mor_

than 200S

than60cm More

than30cm

t??il !i

then 60cm

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Acondicionador de aire de Frigidaire

Frigidaire

Frigidaire FRA052XT7 Manual de usuario

Frigidaire

Frigidaire FGRQ083WAE Manual del propietario

Frigidaire

Frigidaire LRA050XT75 Manual de usuario

Frigidaire

Frigidaire FAC105L1A1 Manual de usuario

Frigidaire

Frigidaire FAS254M2A1 Manual de usuario

Frigidaire

Frigidaire FAH105P1T Manual de usuario

Frigidaire

Frigidaire FAS25EQ2 Manual de usuario

Frigidaire

Frigidaire FAH14EQ2T3 Manual de usuario

Frigidaire

Frigidaire FFTA10C3Q10 Manual de usuario

Frigidaire

Frigidaire FAK123J1V3 Manual de usuario

Frigidaire

Frigidaire FFPA1222R1 Manual del propietario

Frigidaire

Frigidaire CRA256ST211 Manual del propietario

Frigidaire

Frigidaire GAC122P1A - GIBSON 12000BTU 115V 9.8EER3 SPD 8 WAY AIR... Manual de usuario

Frigidaire

Frigidaire Home Comfort FRA122CT1 W Manual de usuario

Frigidaire

Frigidaire Room Air Conditioner Manual del propietario

Frigidaire

Frigidaire FAH146R2T1 Manual de usuario

Frigidaire

Frigidaire 220219A255 Manual de usuario

Frigidaire

Frigidaire FAA052N7A Manual de usuario

Frigidaire

Frigidaire FAH12EN2T3 Guía de inicio rápido

Frigidaire

Frigidaire FAK083J7V4 Manual de usuario

Frigidaire

Frigidaire CPA12EDU111 Manual de usuario

Frigidaire

Frigidaire LRA050XT711 Manual del propietario

Frigidaire

Frigidaire CRA084KT70 Manual del propietario

Frigidaire

Frigidaire FRA25ESU216 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Samsung

Samsung AS09HM3N Manual de usuario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manual de usuario
