Frigidaire FAC083K7A1 Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET BTU-COOLING

FAC083K7A1 FAC083K7A white USA 8000BTU

Publication No.

5995348322

010111

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAC083K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107201

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC083K7A

5995348322

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC083K7A Publication No.

5995348322

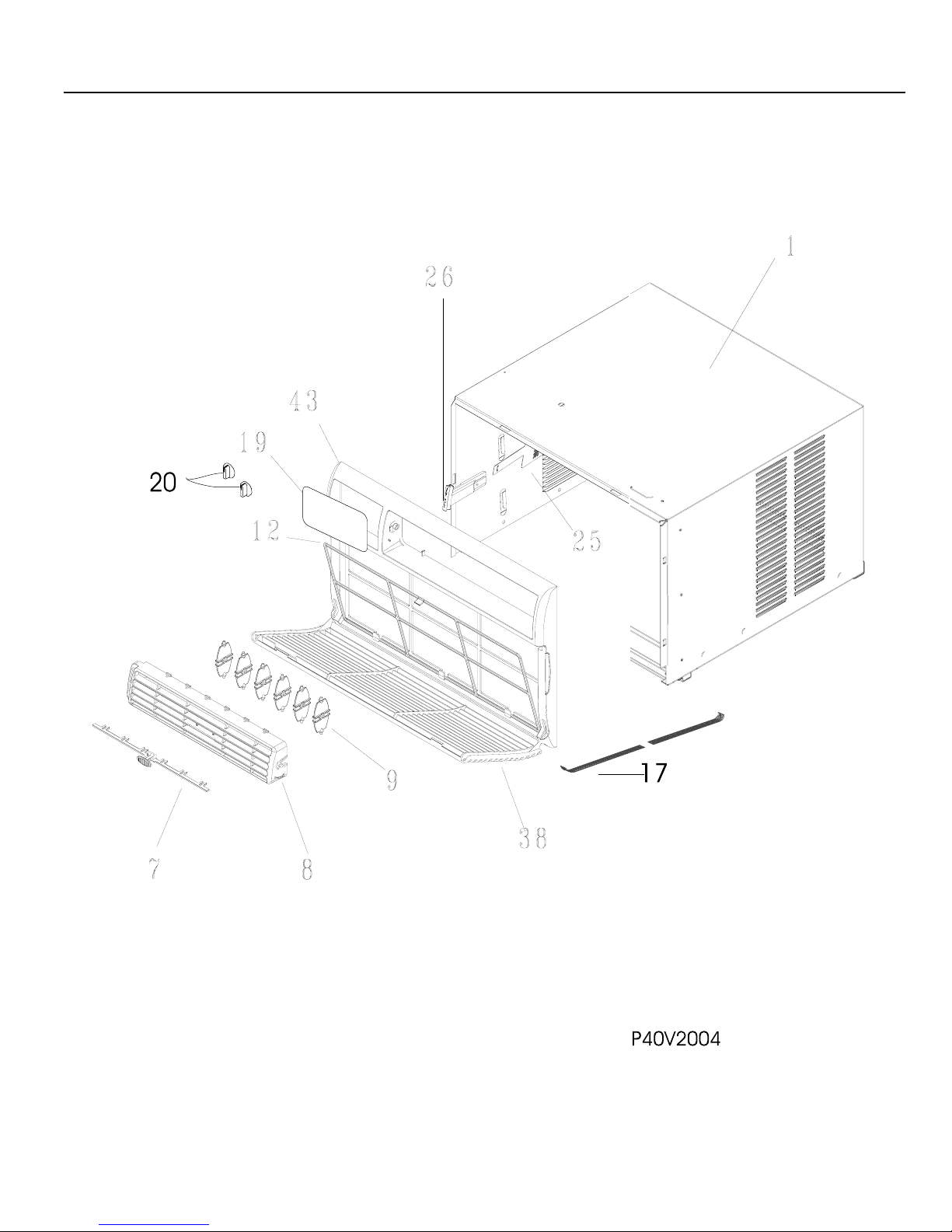

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 5304413783 Cabinet

7 309638001 Link,vertical louver ,with handle

8 309640202 Louver Assy,horizontal ,Incl-7,8,9

8* 309639301 Louver,horizontal

9 309342001 Louver,vertical ,(6)

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640102 Front-cabinet,4 way ,complete assy

19 309342903 Dial Plate

20 309306811 Knob-control,rotary

25 309328601 Door-vent,fresh air

26 309638201 Handle vent door

38 309639201 Panel,cabinet front

43 309639101 Frame,cabinet front

06/01 4

Publication No. FAC083K7A

5995348322

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC083K7A Publication No.

5995348322

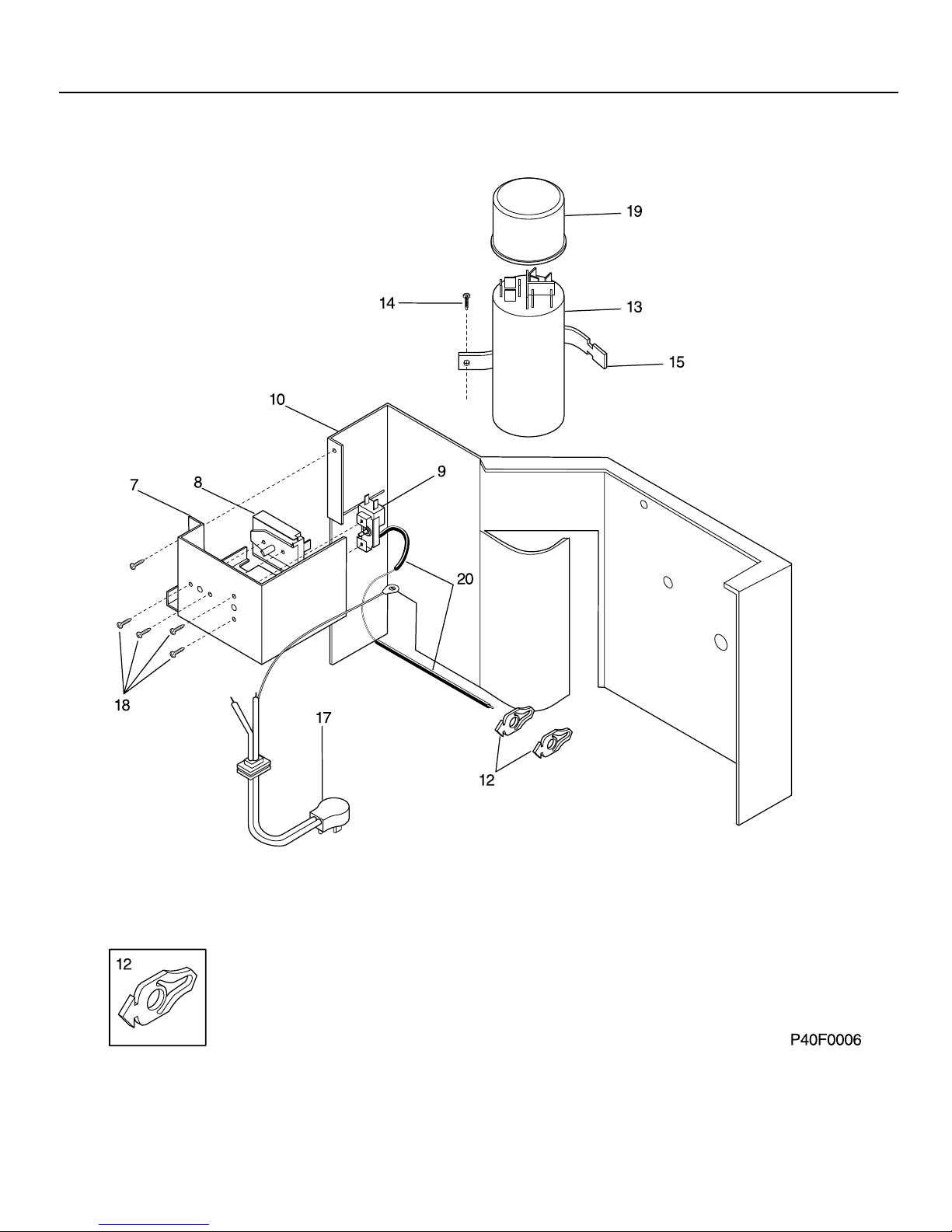

CONTROLS

POS. NO PART NO DESCRIPTION

7 309350302 Control Box

8 # 5303323284 Switch-selector

9 # 5304402838 Control-temperature

10 309602404 Bulkhead

10* 309111201 Grommet,wire protector

12 309101202 Clip-control bulb,(2)

13 # 5303303576 Capacitor,370 V ,10+35 mfd

14 5303303691 Screw,truss head ,8-18AB x 0.375, w/nibs

15 5303303086 Strap-capacitor

17 # 309343101 Cord-electric power,18 AWG ,115 V

18 5303007754 Screw,6-32 x 0.188

19 5303302855 Cover,capacitor

20 5303002600 Sleeve,control

06/01 6

Publication No. FAC083K7A

5995348322

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC083K7A Publication No.

5995348322

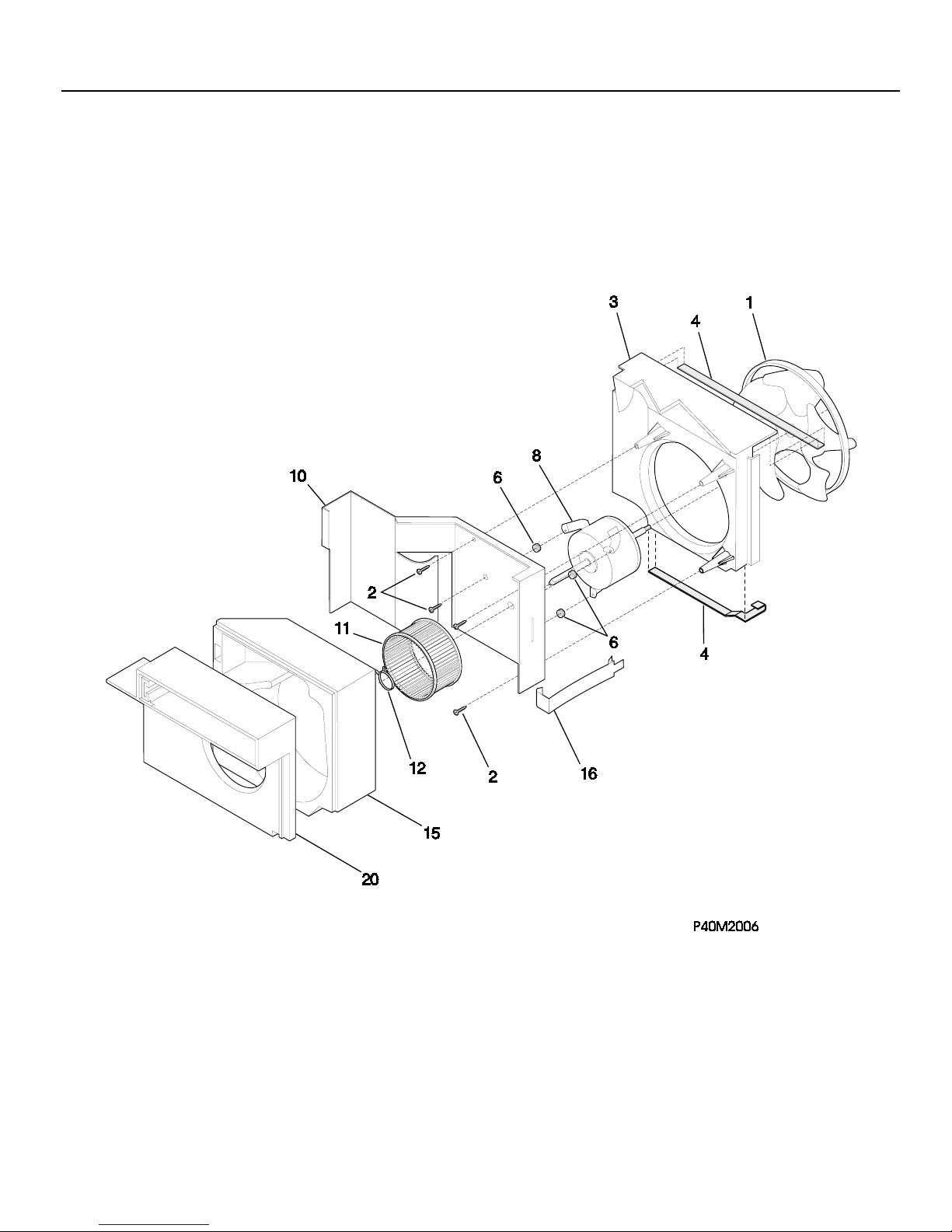

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309624201 Housing-fan

4 5303270043 Seal,condenser

6 5300105402 Grommet,motor ,(3)

8 # 309627301 Motor-fan,3 speed

10 309602404 Bulkhead

11 # 309603301 Blower Wheel

12 309112101 Clamp-blower

12 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

20 5304407654 Plate-blower housing,scroll plate

06/01 8

Publication No. FAC083K7A

5995348322

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC083K7A Publication No.

5995348322

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 5304406829 Compressor,san 806-551-42

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3200282 Gasket-cover

7 3200281 Cover-terminal

8 # 3202920 Overload Protector

9 5303211017 Nut-terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619305 Evaporator

12 # 5303303195 Condenser

13 5303302849 Tray-evaporator

14 5304413932 Base Plate,compressor mtg

16 # 3203179 Capillary Tube,55 inch long ,cut-to-length

17 5304413933 Tube-process,condenser

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

06/01 10

Publication No. FAC083K7A

5995348322

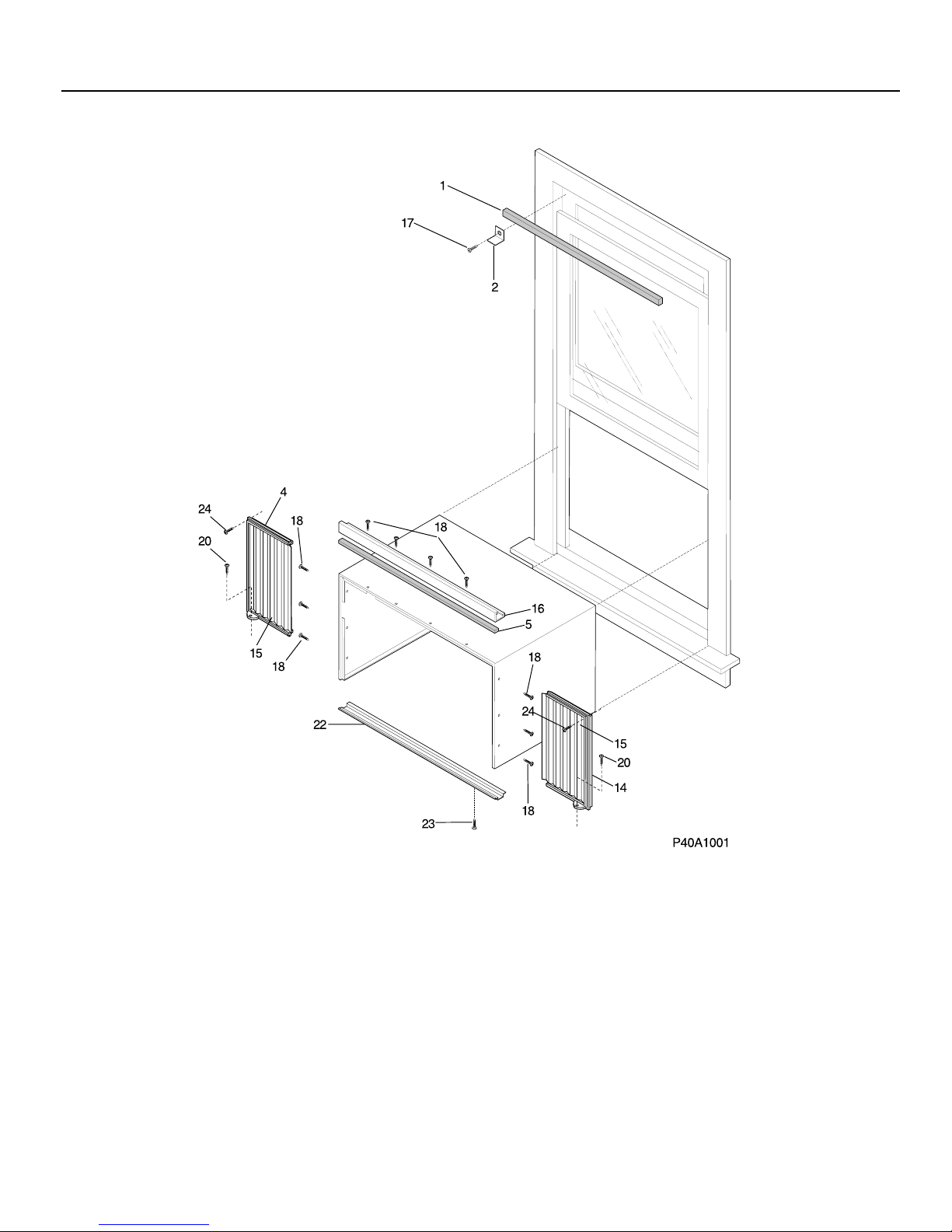

WINDOW MOUNTING PARTS
