Frigidaire FAS255J2A5 Manual de usuario

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAS255J2A5 FAS255J2A 230 25000 BTU

MARKET

USA

Publication No.

5995367108

020227

-EN/SERVICE /BLT

345

ROOM AIR CONDITIONER

Model No.

FAS255J2A5

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309343701

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

02/02 2

Publication No. FAS255J2A5

5995367018

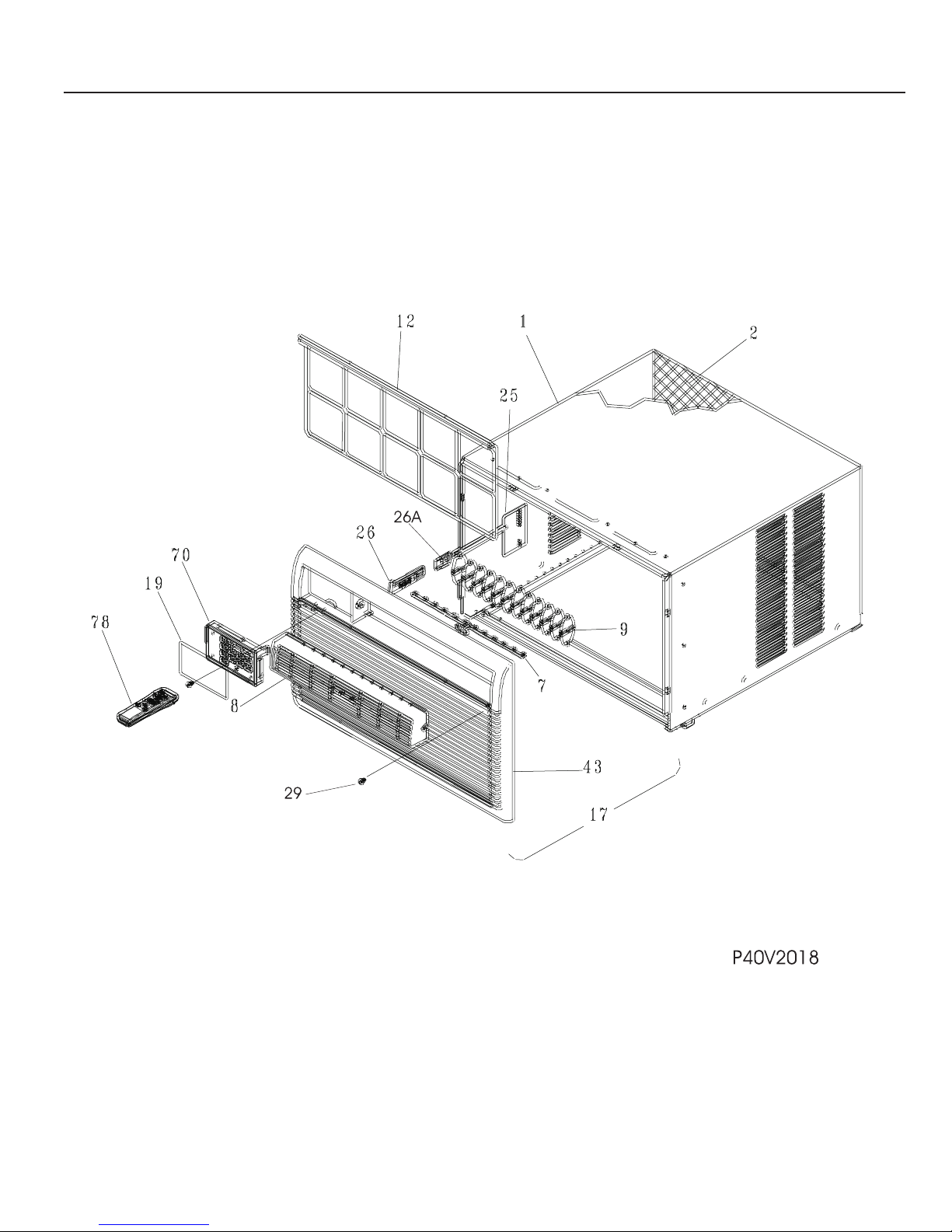

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 02/02

* = Non-Illustrated Parts

FAS255J2A5 Publication No.

5995367018

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

* 5303212504 Seal,sleeve/chassis ,bottom

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver ,with handle

8 309630804 Louver,horizontal

8 309633305 Louver Assy,Incl-7,8,9

9 309631004 Louver,vertical

12 309631404 Filter,air ,molded plastic

17 309633205 Front Assembly,w/7,8,9,12,43

19 309341002 Overlay,Frig Gallery

25 309321401 Door,vent ,with actuator

26 309330404 Handle,vent ,gray

26A 309330202 Detent,vent

29 3015312 Screw,8-18AB x 0.500

43 309630904 Panel,cabinet front

70 309342401 Enclosure,elec control mt

78 309350502 Remote Control,transmitter ,with batteries

02/02 4

Publication No. FAS255J2A5

5995367018

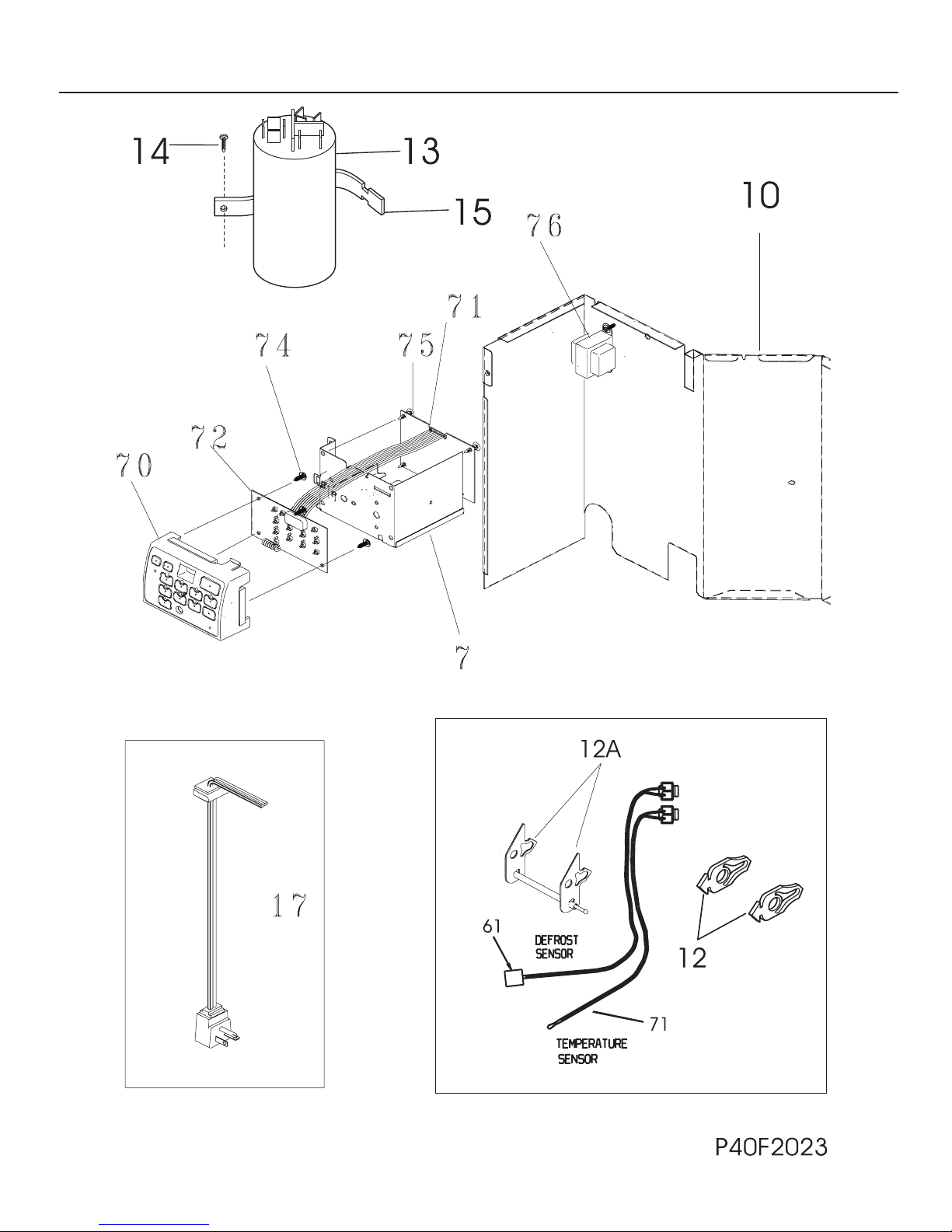

CONTROLS

# = Fast-moving Parts 5 02/02

* = Non-Illustrated Parts

FAS255J2A5 Publication No.

5995367018

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

* 5303015427 Screw,truss head ,8-18AB x 0.47

10 309623602 Bulkhead,control system

10* 309111201 Grommet,wire protector

12 5304413782 Holder,temp sensor ,with seal

12A 309331801 Clip,sensor retainer ,(2)

13 # 5304426869 Capacitor,450 V ,40+7.5 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,ground

15 5303303077 Strap,capacitor mtg.

17# 309343114 Cord-electric power,Type-D ,12 AWG ,230 V

61 # 5304414095 Thermistor,defrost sensor

70 309342401 Enclosure,elec control mt

71 # 309350401 PC Board,power ,w/temp sensor

72 # 309350403 PC Board,input

72*# 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111602 Transformer,240/12 Volt

76* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

02/02 6

Publication No. FAS255J2A5

5995367018

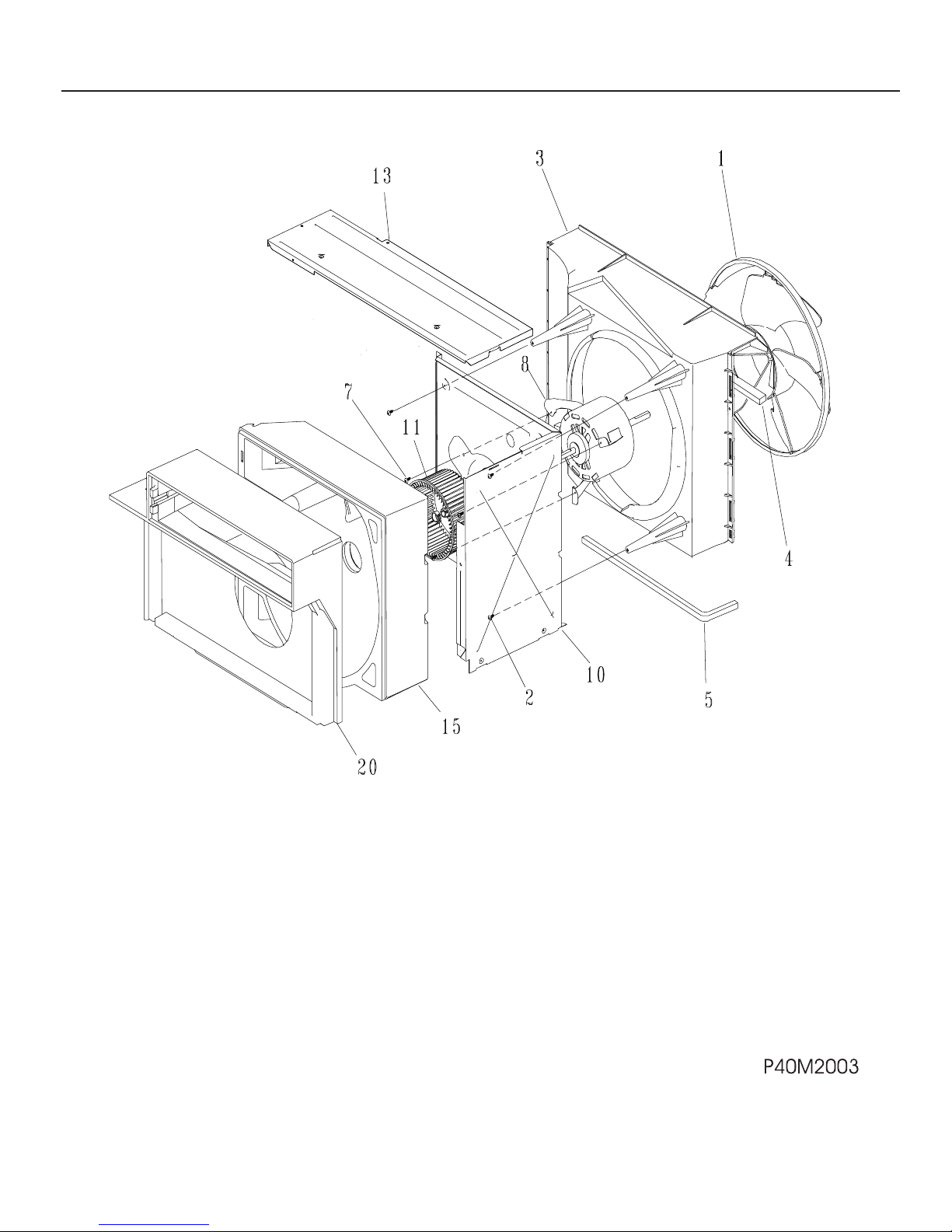

AIR HANDLING PARTS

# = Fast-moving Parts 7 02/02

* = Non-Illustrated Parts

FAS255J2A5 Publication No.

5995367018

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5304422465 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309623201 Shroud,cond fan motor

4 5303212504 Seal,sleeve/chassis ,bottom

5 5303015311 Seal,fan housing ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630608 Motor,fan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover,blower wheel ,top

15 309630101 Housing,blower scroll

20 309630201 Plate,scroll cover

02/02 8

Publication No. FAS255J2A5

5995367018

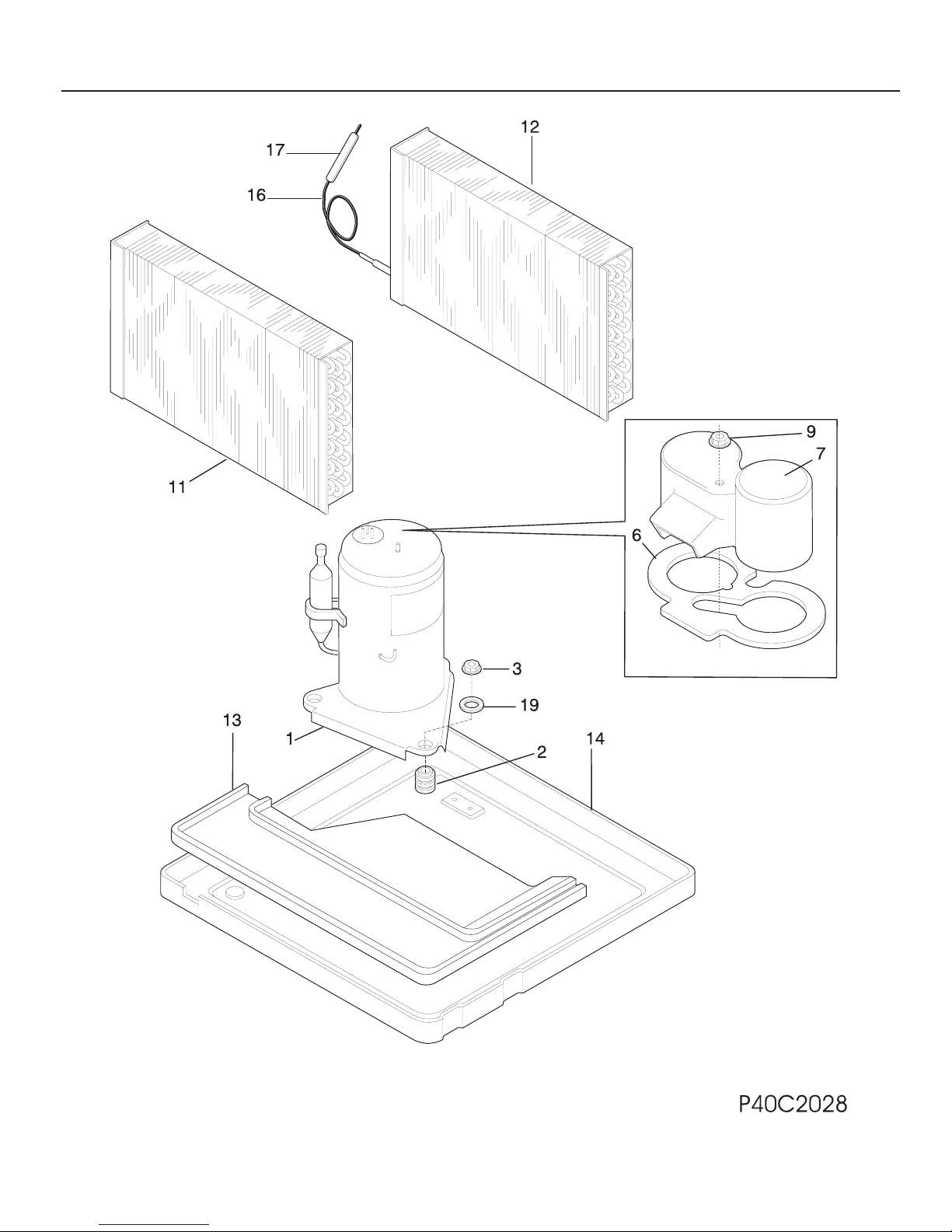

COMPRESSOR PARTS

# = Fast-moving Parts 9 02/02

* = Non-Illustrated Parts

FAS255J2A5 Publication No.

5995367018

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309646901 Compressor,w/internal ovld

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 309364305 Gasket,terminal cover

7 309364301 Cover,compr terminal

9 309364302 Nut,terminal cover

11 # 309634203 Evaporator

* 5304414095 Thermistor,defrost sensor

12 # 5303306719 Condenser

13 309623501 Tray,evap drip

14 309632912 Base,compressor mtg ,with studs

16 # 5304426870 Capillary Tube,37.50 inch long

17 # 5300265301 Drier-filter,service kit

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

02/02 10

Publication No. FAS255J2A5

5995367018

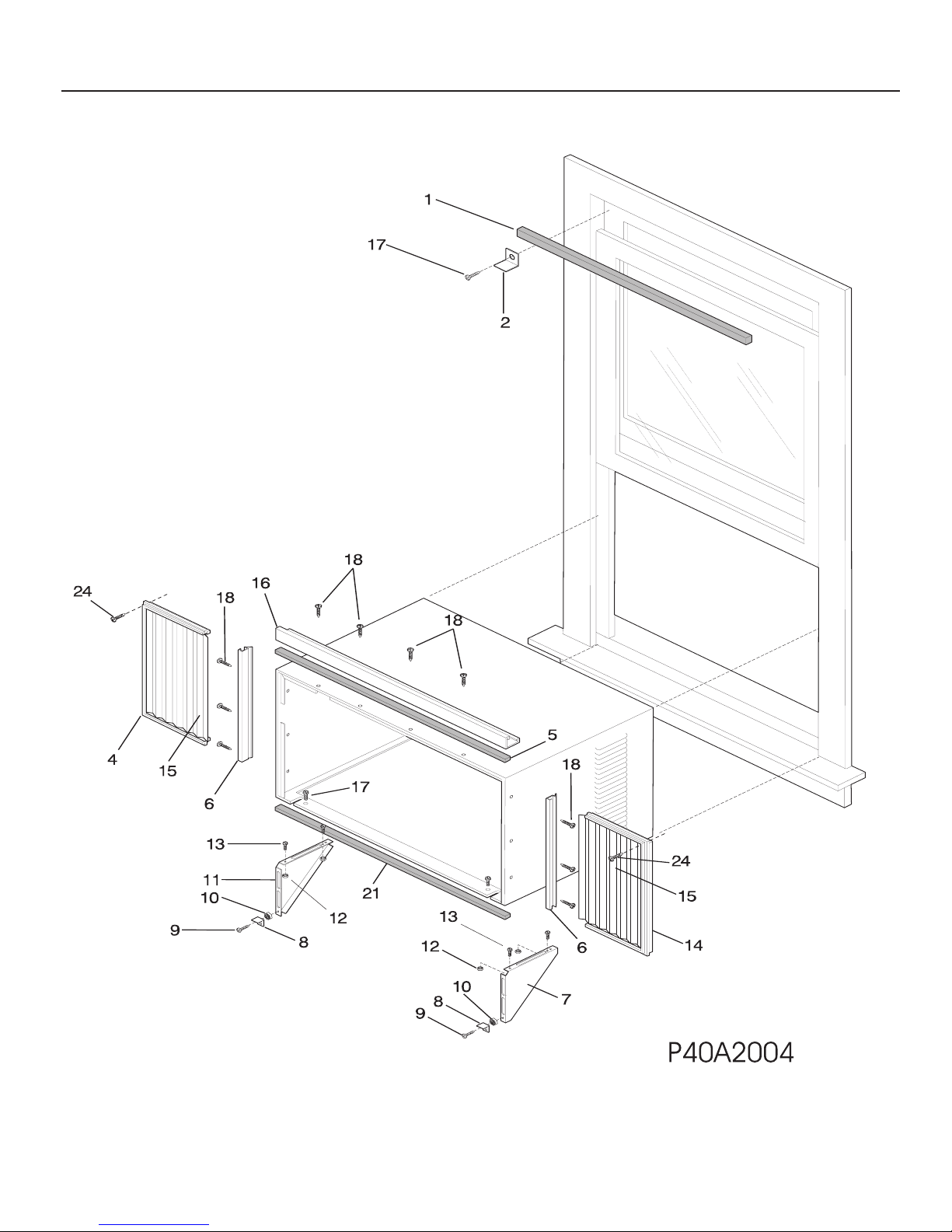

WINDOW MOUNTING PARTS
