Friedrich E07K**B Manual de usuario

PTACPRTS-B (11-02)

MODELS

** Digits vary with model.

Parts Manual

Wall Master®

Packaged Terminal Air Conditioner

B Sufﬁx Models

PE07K**B

PE07R**B

PE09K**B

PE09R**B

PE12K**B

PE12R**B

PE15K**B

PE15R**B

PH07K**B

PH07R**B

PH09K**B

PH09R**B

PH12K**B

PH12R**B

PH15K**B

PH15R**B

PTAC Model Number Identiﬁcation Guide........................................................................................3

PTAC Serial Number Identiﬁcation Guide ........................................................................................3

Unit Assembly Drawing ....................................................................................................................4

Unit Assembly Parts List...................................................................................................................5

Air Handler .......................................................................................................................................6

Air Handler Parts List .......................................................................................................................7

Control Box Assembly ......................................................................................................................8

Control Box Parts List.......................................................................................................................9

Front Cover Assembly Drawing......................................................................................................10

Front Cover Parts List ....................................................................................................................10

Notes..............................................................................................................................................11

Table of Contents

Serial Number L A G P 00000

Production Run Number

Decade Manufactured

L = 0 C = 3 F = 6 J = 9

A = 1 D = 4 G = 7 Product Line

B = 2 E = 5 H = 8

R = RAC

Year Manufactured P = PTAC

A = 1 C = 3 E = 5 G = 7 J = 9 E = EAC

B = 2 D = 4 F = 6 H = 8 K = 0 V = VPAK

H = DSS

Month Manufactured

A = Jan D = Apr G = Jul K = Oct

B = Feb E = May H = Aug L = Nov

C = Mar F = Jun J = Sep M = Dec

PTAC Serial Number Identiﬁcation Guide

UNIT IDENTIFICATION

Model Number Code

P H 07 K 3 S B 1

Engineering Digit

Design Series

Options

S = Standard

R = Remote Thermostat

C = Seacoast Protection

X = Seacoast / Remote

Nominal Heater Size

(@ 230V or 265V)

0 = No Heater

2 = 2.5KW

3 = 3.4KW

5 = 5.0KW

Voltage

K = 208/230V - 1Ph. - 60Hz.

R = 265V - 1Ph. - 60Hz.

Nominal Cooling Capacity

07 = 7000 BTUh

09 = 9000 BTUh

12 = 12000 BTUh

15 = 15000 BTUh

System

X = Accessory

E = Cooling with or

without electric heat

H = Heat Pump with

Auxiliary Heat

Series

P = P Series

UNIT ASSEMBLY

10 11

REF. PART NO. DESCRIPTION 07 09 12 15 NOTES

N/S 25059400 Coil, Indoor 111–

N/S 25065000 Coil, Indoor –––1

10 25014820 Coil, Outdoor 111–

10 25014821 Coil, Outdoor 111– Seacoast

10 25064800 Coil, Outdoor –––1

10 25064801 Coil, Outdoor –––1 Seacoast

11 25024915 Compressor, 230 Volt 1–––

11 25024908 Compressor, 230 Volt –1––

11 25024907 Compressor, 230 Volt ––1–

11 25024910 Compressor, 230 Volt –––1

11 25024914 Compressor, 265 Volt 1–––

11 25024913 Compressor, 265 Volt –1––

11 25024912 Compressor, 265 Volt ––1–

11 25024911 Compressor, 265 Volt –––1

12 03760548 Cap Tube A/C-Electric Only 1–––

12 03760547 Cap Tube A/C-Electric Only –1––

12 03760511 Cap Tube A/C-Electric Only ––1–

12 01389985 Cap Tube A/C-Electric Only –––1

12 03760547 Cap Tube, Cooling, Heat Pump 1–––

12 03760547 Cap Tube, Cooling, Heat Pump –1––

12 01390000 Cap Tube, Cooling, Heat Pump ––1–

12 01389975 Cap Tube, Cooling, Heat Pump –––1

13 03760547 Cap Tube, Heating, Heat Pump 1–––

13 03760452 Cap Tube, Heating, Heat Pump –1––

13 01389975 Cap Tube, Heating, Heat Pump ––1–

13 01389985 Cap Tube, Heating, Heat Pump –––1

14 25057200 Check Valve 1–––

14 25057201 Check Valve –111

15 25022010 Reversing Valve Kit 11––

15 25022020 Reversing Valve Kit ––11

16 25022050 Solenoid Coil Kit 230 Volt 1111

16 25022060 Solenoid Coil Kit 265 Volt 1111

17 60179903 Condensate Valve (bellows type) 1111

N/S 61764537 Overload Compressor 230 Volt 1–––

N/S 61764535 Overload Compressor 230 Volt –1––

N/S 61764521 Overload Compressor 230 Volt ––1–

N/S 61764532 Overload Compressor 230 Volt –––1

N/S 61764543 Overload Compressor 265 Volt 1–––

N/S 61764542 Overload Compressor 265 Volt –1––

N/S 61764541 Overload Compressor 265 Volt ––1–

N/S 61764538 Overload Compressor 265 Volt –––1

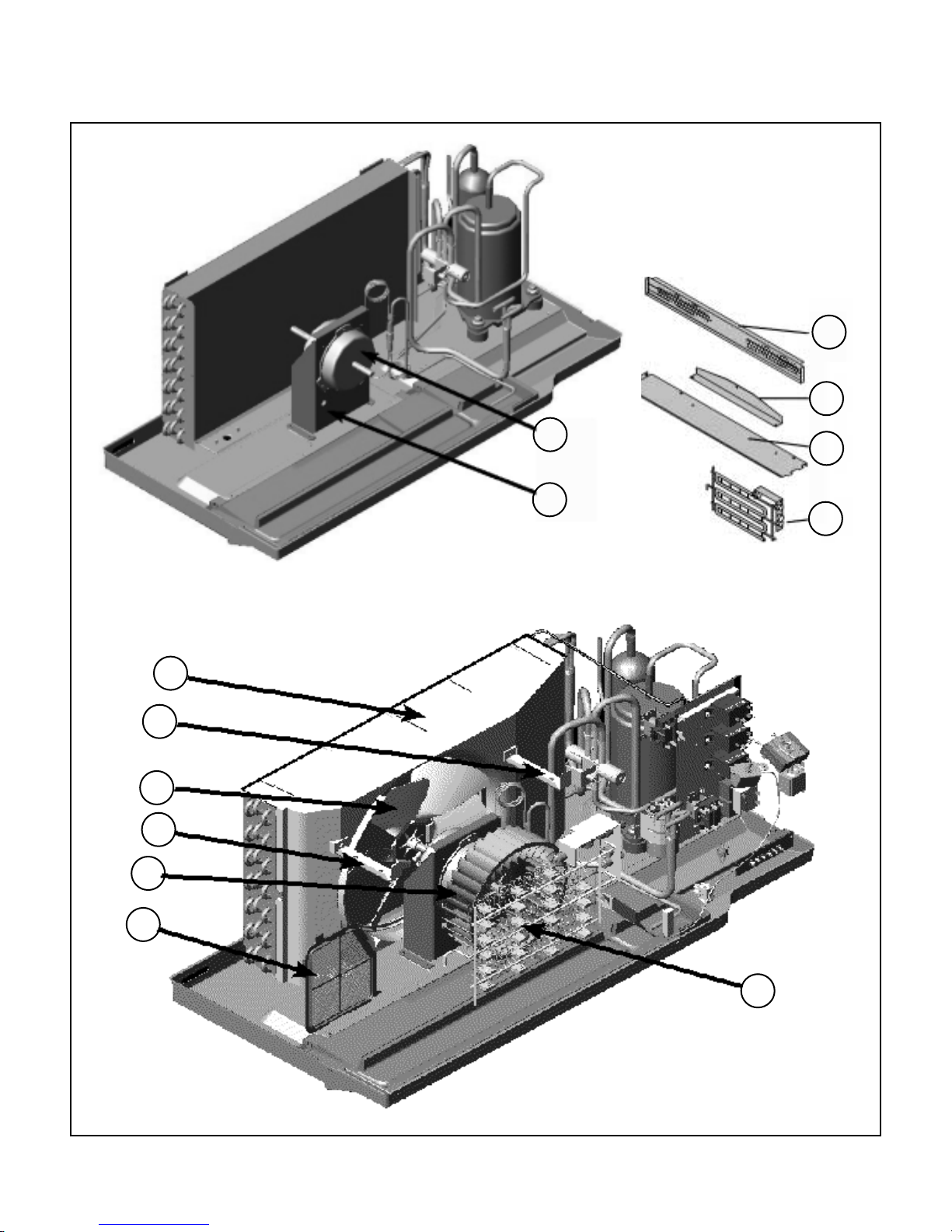

AIR HANDLER

REF. PART NO. DESCRIPTION 07 09 12 15 NOTES

20 25038400 Discharge Screen 1111

21 25048300 Air Deﬂector 1111

22 25016001 Deck 1111

23 25059120 Heater, 2.5 kW @ 230 Volt 1111

23 25059121 Heater, 3.4 kW @ 230 Volt 1111

23 25059124 Heater, 5.0 kW @ 230 Volt 1111

23 25059122 Heater, 2.5 kW @ 265 Volt 1111

23 25059123 Heater, 3.4 kW @ 265 Volt 1111

23 25059125 Heater, 5.0 kW @ 265 Volt 1111

24 25036400 Support Brace (condenser) 1111

25 60542006 Condenser slinger blade 1111

26 25036801 Condenser Shroud 1111

27 25015300 Fresh Air Door Screen 1111

27 25034900 Fresh Air Door Insulation 1111

28 25014400 Motor Mount Bracket 1111

29 25014600 Motor, 230 Volt 1/15 HP 2P 11––

29 25014610 Motor, 230 Volt 1/10 HP 2P ––11

29 25014601 Motor, 265 Volt 1/15 HP 2P 11––

29 25014611 Motor, 265 Volt 1/10 HP 2P ––11

30 25038100 Blower Wheel 1111

N/S 25014300 Scroll 7-9 11––

N/S 25014305 Scroll 12-15 ––11

N/S 60217902 Seal, Motor to Wall 1111

N/S 25015900 Fresh Air Door Latch 1111

N/S 25045100 Fresh Air Door Cable 1111

N/S 25059610 Limit Switch 2.5 kW @ 230 1111

N/S 25059611 Limit Switch 3.4 kW @ 230 1111

N/S 25059612 Limit Switch 5.0 kW @ 230 1111

N/S 25059613 Limit Switch 2.5 kW @ 265 1111

N/S 25059614 Limit Switch 3.4 kW @ 265 1111

N/S 25059615 Limit Switch 5.0 kW @ 265 1111

N/S 25065600 Fuse Link 2.5 kW @ 230 1111

N/S 25065601 Fuse Link 3.4 kW @ 230 1111

N/S 25065602 Fuse Link 5.0 kW @ 230 1111

N/S 61828200 Suction Dryer 1111

N/S 60308101 Liquid line Dryer (not for heat pump) 1111Cooling Only

N/S 25065700 Jumper, Heater 1111

CONTROL BOX ASSEMBLY

REF. PART NO. DESCRIPTION 07 09 12 15 NOTES

40 25038201 Switch, Cooling and Heating 1111

40 25038301 Switch, cooling Only 1111

41 25043300 Thermostat, Indoor 1111

42 61900500 Retainer Clip, for Thermostat Bulb 1111

43 21091127 Hot Start Relay (230 Volt) DPST 1111Heat Pump

43 21091155 Hot Start Relay (265 Volt) DPST 1111Heat Pump

43 21060940 Hot Start Relay (24 Volt) DPST 1111Remote HP

44 25039101 Sensor, Hot Start 1111Heat Pump

45 61080541 Capacitor, 20/5 @ 370 (230 Volt) 1–––

45 61080573 Capacitor, 15/5 @ 440 (265 Volt) 1–––

45 61080539 Capacitor, 25/5 @ 370 (230 Volt) –1––

45 61080571 Capacitor, 20/5 @ 440 (265 Volt) –1––

45 61080565 Capacitor, 30/5 @ 370 (230 Volt) ––1–

45 61080571 Capacitor, 20/5 @ 440 (265 Volt) ––1–

45 61080565 Capacitor, 30/5 @ 370 (230 Volt) –––1

45 61080571 Capacitor, 20/5 @ 440 (265 Volt) –––1

46 25039900 Thermostat, Defrost 1111Heat Pump

49 21058582 Cord, 15 A (2.5kW @ 230 Volt) 1111

49 21058583 Cord, 20 A (3.4kW @ 230 Volt) 1111

49 21058584 Cord, 30 A (5.0kW @ 230 Volt) 1111

50 25001900 Rocker Switch 1111

51 25043400 Knob, Control 1111

53 25043900 Heat Anticipator (230 Volt) 1111

53 25043900 Heat Anticipator (265 Volt) 1111

56 21058448 Fuse, Time Delay 15 AMP (2.5kW) 1111265 Volt

56 21058449 Fuse, Time Delay 20 AMP (3.4kW) 1111265 Volt

56 21058451 Fuse, Time Delay 30 AMP (5.0kW) 1111265 Volt

57 21058444 Fuse Holder 15 AMP (2.5kW) 1111265 Volt

57 21058446 Fuse Holder 20 Amp (3.4kW) 1111265 Volt

57 21058447 Fuse Holder 30 AMP (5.0kW) 1111265 Volt

N/S 25043201 Terminal board, Low Voltage 1111Remote

N/S 25042500 Relay, DPST (NO) 24V Heat Relay 1111Remote HP

N/S 21053004 Relay, SPST 24V Fan/RV/Cooling 1111Remote HP

N/S 25042501 Relay, DPST (NC) 24V Desk Cont. 1111Desk Cont.

N/S 21056899 Transformer, (230 Volt) 1111Remote

N/S 21091226 Transformer, (265 Volt) 1111Remote

N/S 60603900 Suction Line Thermostat 1111Remote

Front Cover Parts

FRONT COVER

Key Part

Number Description 07 09 12 15 Notes

60 25037900 Front Cover Complete (Includes Door and Filters) 1 1 1 1

61 25031900 Control Door 1 1 1 1

62 25025901 Grille, Discharge 1 1 1 1

63 25037800 Filter 2 2 2 2

N/S 25060600 Thumb Screw 2 2 2 2

N/S 25060500 Speed Nut (U-Type) 2 2 2 2
