FREE MOTION E8.5 Manual de usuario

USER’S MANUAL

Serial Number

Decal

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. VMEL81914.0

Serial No.

Write the serial number in the space

above for reference.

www.freemotionfitness.com

QUESTIONS?

If you have questions, or if

parts are damaged or missing,

please see HOW TO CONTACT

CUSTOMER CARE on the back

cover of this manual.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

FREEMOTION is a registered trademark of ICON Health & Fitness, Inc.

POLAR is a registered trademark of Polar Electro Oy.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO UPGRADE THE CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

COMPLIANCE INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

HOW TO CONTACT CUSTOMER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the back cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your elliptical before

using your elliptical. FreeMotion Fitness assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the elliptical only as described in this

manual.

4. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

5. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

6. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

7. Keep children under age 12 and pets away

from the elliptical at all times.

8. The elliptical should not be used by persons

weighing more than 400 lbs. (181 kg).

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

10. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

11. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

12. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

13. Keep your back straight while using the

elliptical; do not arch your back.

14. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

IMPORTANT PRECAUTIONS

Leveling Foot

Handle

Heart Rate Monitor

Console

Upper Body Arm

Handlebar

Wheel

Pedal

Accessory Tray

Length: 7 ft. 3 in. (221 cm)

Width: 2 ft. 10 in. (86 cm)

Thank you for selecting the revolutionary

FREEMOTION®E 8.5 elliptical. The E 8.5 elliptical

provides an impressive selection of features designed

to make your workouts more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

M10 Split

Washer (80)–2 M10 x 20mm x 2mm

Washer (95)–4

M10 x 16mm

Washer (123)–4 M10 Washer

(93)–2

M10 Locknut

(96)–2

M5 x 12mm

Screw (71)–29

M5 x 10mm

Truss Screw

(73)–2

Wave Washer

(36)–2

M10 x 20mm

Screw (111)–4

M10 x 15mm Hex

Screw (94)–2

M10 x 75mm Bolt (108)–2

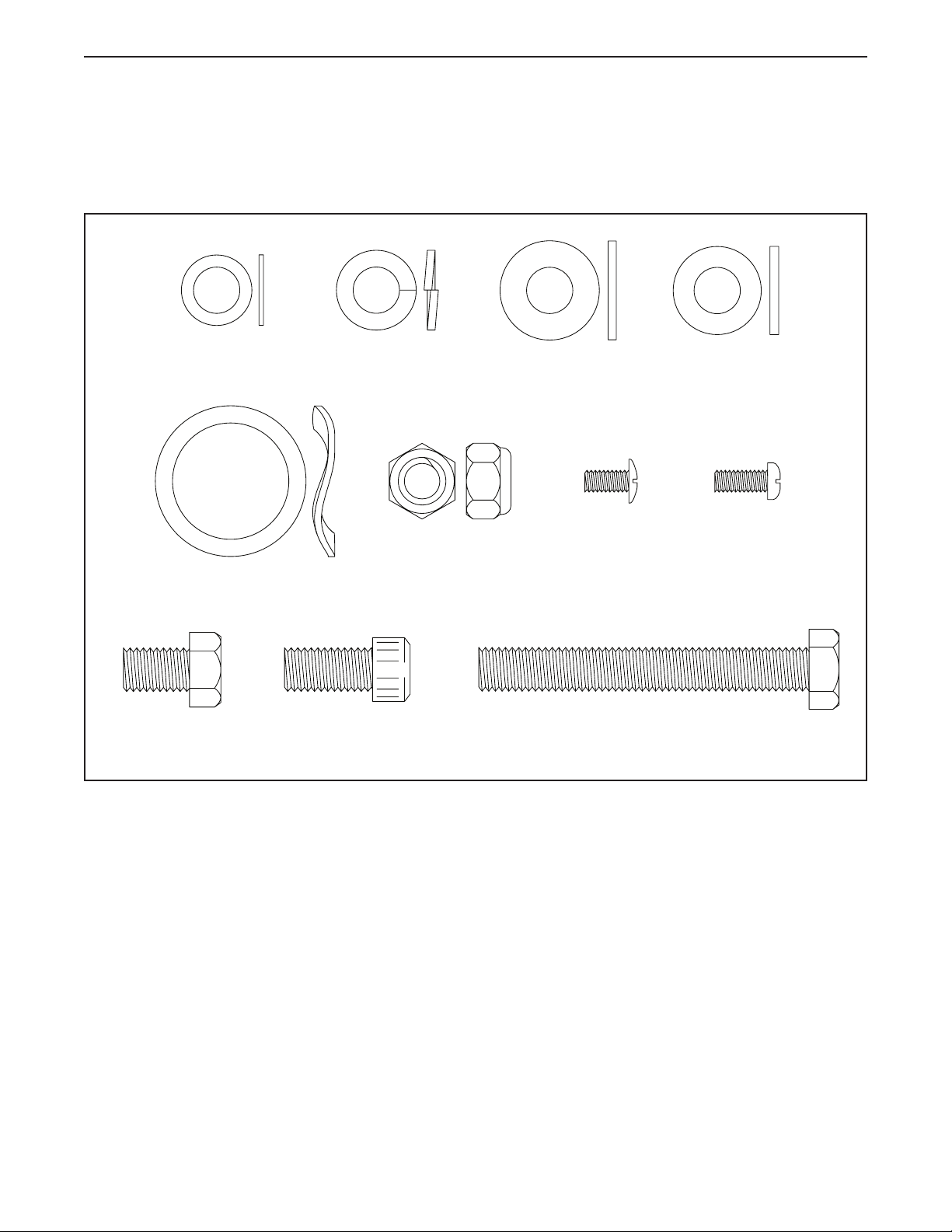

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

1. Tip: Avoid pinching the wires inside the

Upright (2).

RaisetheUpright(2)tothepositionshown.

Secure the Upright to the Frame (1) with

four M10 x 20mm Screws (111) and four

M10 x 16mm Washers (123); start all the

Screws, and then tighten them.

ASSEMBLY

111

123

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you ﬁnish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 5.

• Assembly can be completed using the included

tools.

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

2. Identify the Left and Right Frame Covers

(57, 60), and orient them as shown.

HoldtheLeftandRightFrameCovers(57,

60) together around the Frame (1) and the

Upright (2).

AttachtheLeftandRightFrameCovers(57,

60) with eleven M5 x 12mm Screws (71) and

two M5 x 10mm Truss Screws (73); start all the

Screws, and then tighten them.

271

3. Attach the Top Frame Cover (58) to the Left and

Right Frame Covers (57, 60) with an M5 x 12mm

Screw (71).

Next,presstheCenterFrameCover(59)onto

the Right and Left Frame Covers (57, 60).

RemovetheScrewCap(55)fromtheCenter

Frame Cover (59).

AttachtheCenterFrameCover(59)withthree

M5 x 12mm Screws (71); start all the Screws,

and then tighten them.

Then,presstheScrewCap(55)backintothe

Center Frame Cover (59).

5. Attach an Outer Pivot Cover (51) to the right

Inner Pivot Cover (50) with four M5 x 12mm

Screws (71); start all the Screws, and then

tighten them.

Then, press a Pivot Cover (52) into the Outer

Pivot Cover (51).

Repeat this step on the left side of the

elliptical.

4. Orient the Right Upper Body Leg (26) assembly

as shown.

SlideaWaveWasher(36)ontotherightaxleon

the Upright (2). Then, slide the Right Upper Body

Leg (26) onto the right axle.

AttachtheRightUpperBodyLeg(26)withan

M10 x 15mm Hex Screw (94), an M10 Split

Washer (80), and an M10 Washer (93).

Attach the Left Upper Body Leg (34)

assembly in the same way.

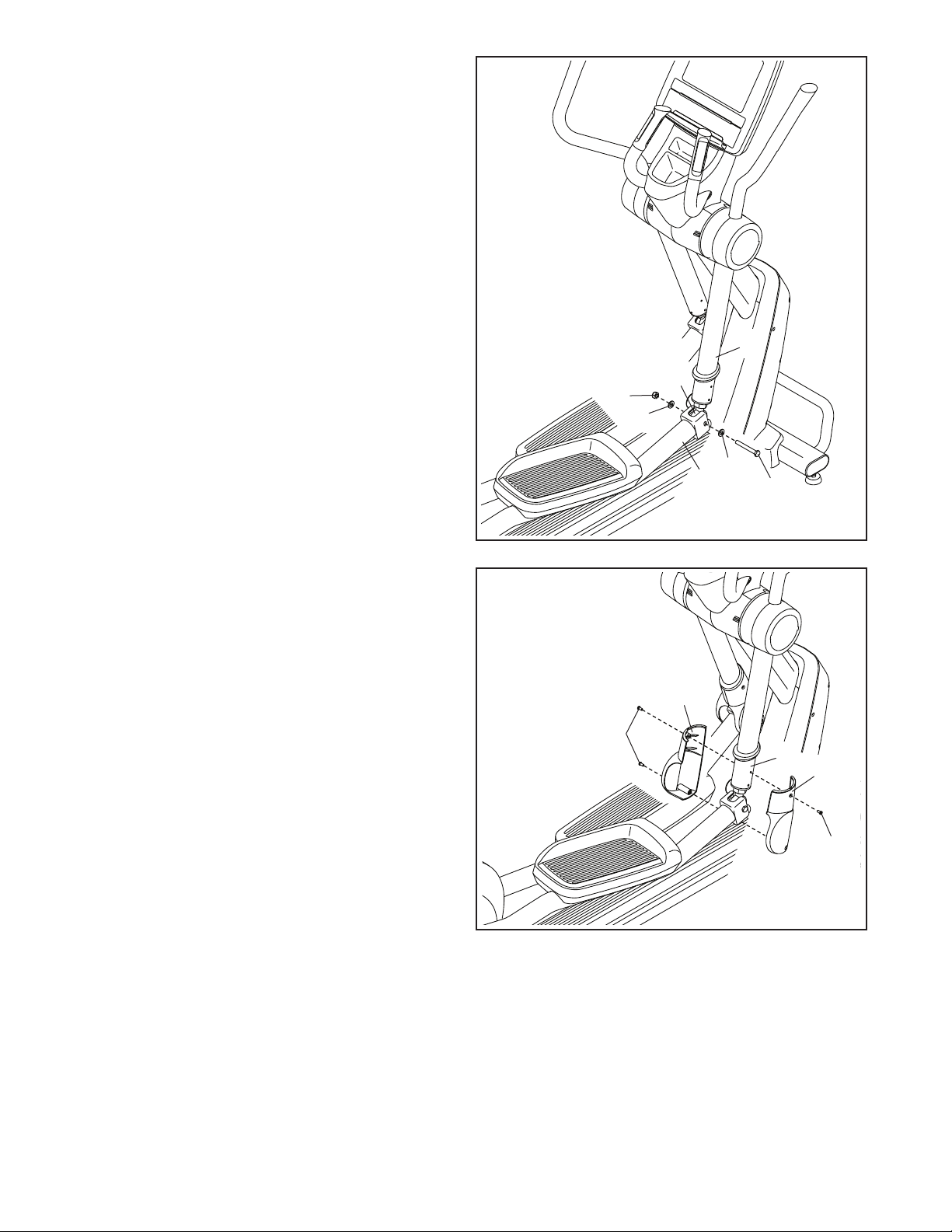

6. Attach the Knuckle Bearing (28) on the lower

end of the Right Upper Body Leg (26) to the

Right Pedal Arm (31) with an M10 x 75mm Bolt

(108), two M10 x 20mm x 2mm Washers (95),

and an M10 Locknut (96).

Repeat this step on the left side of the

elliptical.

8. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be

included. Place a mat beneath the elliptical to protect the floor.

7. Identify a Left Pivot Cover (61) and a Right Pivot

Cover (62), and orient them as shown.

HoldtheLeftandRightPivotCovers(61,62)

around the Right Upper Body Leg (26) as shown.

AttachtheLeftandRightPivotCovers(61,62)

with three M5 x 12mm Screws (71); start all the

Screws, and then tighten them.

Repeat this step on the left side of the

elliptical.

108

HOW TO UPGRADE THE CONSOLE

Your console has been preconfigured to operate with an optional digital TV.

To learn about the features of the basic console, see page 14. To learn about the features of the digital

TV, see the user’s manual included with the digital TV. The basic console has no television capabilities.

To up g rad e y our c o nso l e to in c lud e a d igi t al TV wh e n ev e r y ou c h o os e , p le a s e se e t h e ba c k c ov e r o f th i s m an u a l.
