Foxconn WBUR56 Manual de usuario

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 1

This preliminary specification is subject to change without notice.

WBUR56

IEEE 802.11 a/b/g/n/ac 2x2 + BT5 Combo Module

Product Specification 1.0

Approved:

Prepared by:

________________________

_________________________

Zeke Wu

Ben Ho

Wayne Chang

Manager

Supervisor

Engineer

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 2

This preliminary specification is subject to change without notice.

Revision History

Date

Number

Approver

Comments

2021/Sep/23

1.0

Cathy Kuo

Initial Released

RESTRICTED AND CONFIDENTIAL INFORMATION STATEMENT

All information contained in this document is the exclusive property of Foxconn Technology Inc.

and its development partners. Any reproduction or disclosure of all or part of this document

without the expressed written consent of Foxconn Technology Inc. is strictly prohibited.

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 3

This preliminary specification is subject to change without notice.

CHAPTER 1. MODULE OVERVIEW

The Foxconn WBUR56 is a highly integrated module that support 2-stream 802.11ac

solutions with Multi-user MIMO with WLAN USB2.0 network interface controller. It combines a

WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single module. The WBUR56 provides a

complete solution for a high-performance integrated wireless and Bluetooth device.

For legacy compatibility, Direct Sequence Spread Spectrum (DSSS), Complementary Code

Keying (CCK) and OFDM baseband processing are included to support all IEEE 802.11b, 802.11g

and 802.11a data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK

with data scrambling capability are available, and CCK provides support for legacy data rates, with

long or short preamble. The high speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM,

64QAM and 256QAM modulation of the individual subcarriers, and rate compatible coding rate of

1/2, 2/3, 3/4, and 5/6, provide up to 866.7Mbps for IEEE 802.11ac MIMO OFDM.

1-1 Key Characteristic

IEEE 802.11 a/b/g/n and 802.11ac draft compliant

Support 20MHz, 40MHz, 80MHz in 5GHz band, and 20MHz, 40MHz bandwidth in 2.4GHz band

Dual-band 2T2R mode with data rate up to 867Mbps

Integrated LNA, PA

Security support for WPA/WPA2/WAPI

Complies with USB 2.0 for WLAN and BT controller

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 4

This preliminary specification is subject to change without notice.

1-2 Pin definition

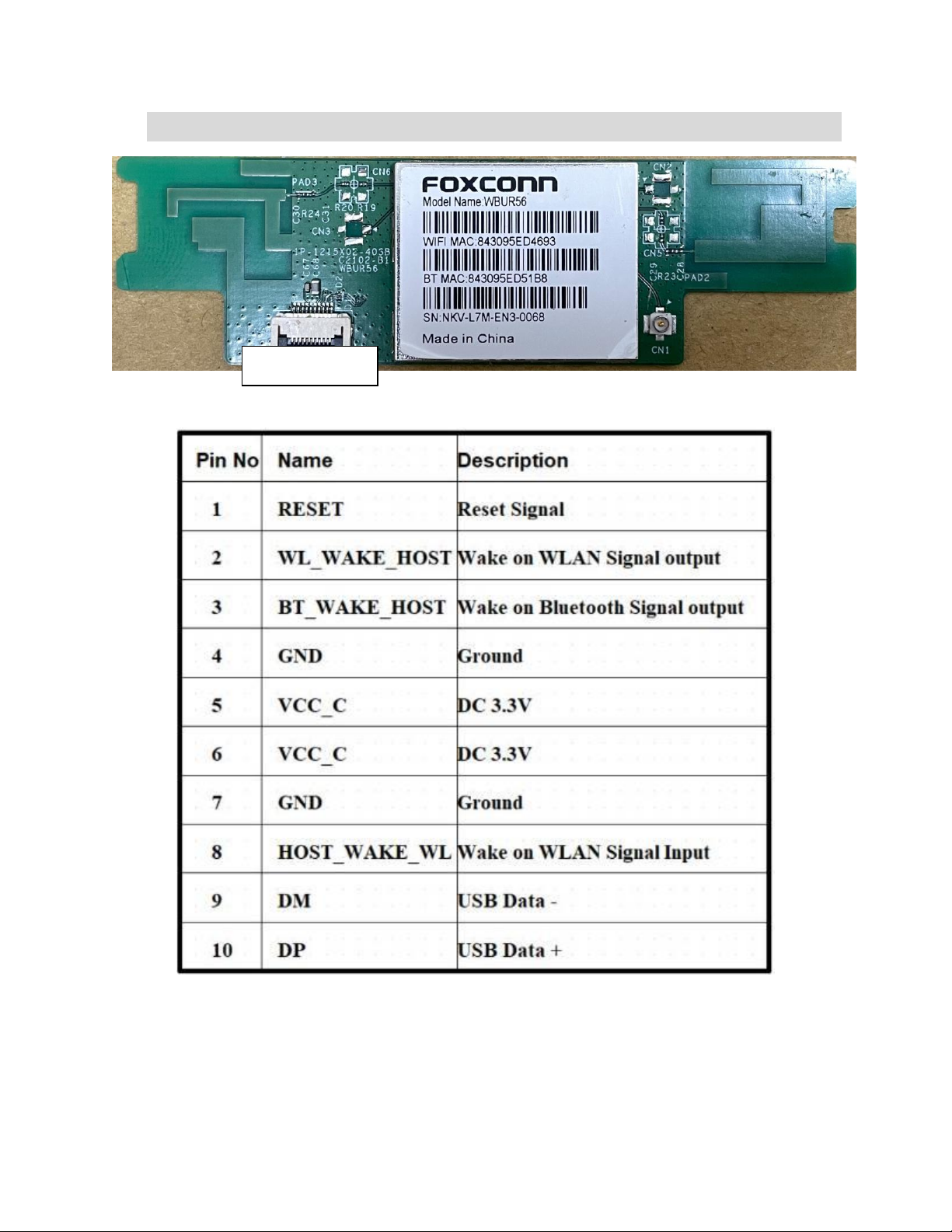

Figure 1 Pin Definitions (Module Top View)

Table 1 Pin Definitions

12……10

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 5

This preliminary specification is subject to change without notice.

CHAPTER 2. ELECTRICAL AND RF SPECIFICAITON

2-1 Recommended Operation Rating

Table 2 Operation Rating

Parameter

Condition

Min

Typ.

Max.

Unit

VDD

3.3V

3.6V

RF Interface

Ohm

2-2 Power Consumption

Power consumption is measured using current probe loop on the Power rails of the USB interface

(Pins).

Table 3 Power Consumption

Description

Typical

Unit

IDLE

2G_TX - N mode HT 40MHz MCS 7

283

2G_TX - N mode HT 20MHz MCS 7

294

2G_TX - G mode OFDM 54M

303

2G_TX - B mode CCK 11M

406

5G_TX - AC mode HT 80MHz MCS 9

289

5G_TX - N mode HT 40MHz MCS 7

293

5G_TX - N mode HT 20MHz MCS 7

316

5G_TX - A mode OFDM 54M

327

2G_RX - N mode HT 40MHz MCS 7

181

2G_RX - N mode HT 20MHz MCS 7

178

2G_RX - G mode OFDM 54M

178

2G_RX - B mode CCK 11M

179

5G_RX - AC mode HT 80MHz MCS 9

191

5G_RX - N mode HT 40MHz MCS 7

184

5G_RX - N mode HT 20MHz MCS 7

180

5G_RX - A mode OFDM 54M

180

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 6

This preliminary specification is subject to change without notice.

2-3 WiFi RF Specification –TX

Table 4 IEEE 802.11 b/g/n TX Average Maximum Output Power

North America(NA), Asia-Pacific(AP)

[email protected]

Data Rate(Mbps)

Modulation

WLAN 0[dBm]

WLAN 1[dBm]

WLAN 0+1[dBm]

802.11b

DBPSK

13.5

16.5

DQPSK

5.5

CCK

802.11g

OFDM

12.5

15.5

OFDM

802.11n-HT20

MCS0

BPSK

11.5

14.5

MCS1

BPSK

MCS2

QPSK

MCS3

QPSK

MCS4

16-QAM

MCS5

16-QAM

MCS6

64-QAM

MCS7

64-QAM

802.11n-HT40

MCS0

BPSK

11.5

14.5

MCS1

QPSK

MCS2

QPSK

MCS3

16-QAM

MCS4

16-QAM

MCS5

64-QAM

MCS6

64-QAM

MCS7

64-QAM

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 7

This preliminary specification is subject to change without notice.

Table 5 IEEE 802.11 a/n/ac TX Average Maximum Output Power

North America(NA), Asia-Pacific(AP)

Band@5GHz

Data Rate(Mbps)

Modulation

WLAN 0[dBm]

WLAN 1[dBm]

WLAN 0+1[dBm]

802.11a

(5150-5725MHz)

(5725-5850MHz)

OFDM

10.5

10(NA), 4(AP)

10.5

10(NA), 4(AP)

13.5

13(NA), 7(AP)

OFDM

802.11n-HT20

802.11ac-VHT20

(5150-5725MHz)

(5725-5850MHz)

MCS0

BPSK

9.5(NA), 4(AP)

12.5(NA), 7(AP)

MCS1

BPSK

MCS2

QPSK

MCS3

QPSK

MCS4

16-QAM

MCS5

16-QAM

MCS6

64-QAM

MCS7

64-QAM

802.11n-HT40

802.11ac-VHT40

(5150-5725MHz)

(5725-5850MHz)

MCS0

BPSK

11.5

11.5(NA),4(AP)

11.5

11.5(NA),4(AP)

14.5

14.5(NA), 7(AP)

MCS1

QPSK

MCS2

QPSK

MCS3

16-QAM

MCS4

16-QAM

MCS5

64-QAM

MCS6

64-QAM

MCS7

64-QAM

MCS8

256-QAM

MCS9

256-QAM

802.11ac-VHT80

(5150-5725MHz)

(5725-5850MHz)

MCS0

BPSK

8.5

12(NA), 4(AP)

8.5

12(NA), 4(AP)

11.5

15(NA), 7(AP)

MCS1

QPSK

MCS2

QPSK

MCS3

16-QAM

MCS4

16-QAM

MCS5

64-QAM

MCS6

64-QAM

MCS7

64-QAM

MCS8

256-QAM

MCS9

256-QAM

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 8

This preliminary specification is subject to change without notice.

2-4 WiFi RF Specification –RX

Table 6 IEEE 802.11 b/g/a/n/ac RX Sensitivity (WLAN0&WLAN1)

Data Rate

(Mbps)

Modulation

Rx Sensitivity

(dBm)

Data Rate

(Mbps)

Modulation

Rx Sensitivity

(dBm)

Max.

Typ.

Max.

Typ.

DBPSK

-88

-91

HT20-7.22

BPSK

-82

-87

DQPSK

-85

-88

HT20-14.44

QPSK

-79

-84

5.5

CCK

-82

-85

HT20-21.67

QPSK

-77

-82

CCK

-79

-82

HT20-28.89

16-QAM

-74

-79

OFDM

-82

-87

HT20-43.33

16-QAM

-70

-75

OFDM

-81

-86

HT20-57.78

64-QAM

-66

-71

OFDM

-79

-84

HT20-65

64-QAM

-65

-70

OFDM

-77

-82

HT20-72.22

64-QAM

-64

-69

OFDM

-74

-79

HT40-15

BPSK

-79

-84

OFDM

-70

-75

HT40-30

QPSK

-76

-81

OFDM

-66

-71

HT40-45

QPSK

-74

-79

OFDM

-65

-70

HT40-60

16-QAM

-71

-76

HT40-90

16-QAM

-67

-72

HT40-120

64-QAM

-63

-68

HT40-135

64-QAM

-62

-67

HT40-150

64-QAM

-61

-66

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 9

This preliminary specification is subject to change without notice.

2-5 Bluetooth RF Specification

Parameter

Condition

Min.

Typ.

Max.

Unit

Basic Data Rate –Transmit Performance

RF Transmit Power (TRM01)

dBm

Power Density (TRM02)

Per 100kHz

≤20

dBm

Power Control (TRM03)

2≤ step size ≤ 8

TX Output Spectrum –

Freq. Range (TRM04)

F(low)- CH0

> 2400

MHz

F(high)-CH78

< 2483.5

TX Output Spectrum –20dB BW (TRM05)

∣fH-fL∣< 1000

MHz

TX Output Spectrum –

Adjacent Channel Power (TRM06)

∣f-f0∣= 2MHz

≤ -20

dBm

∣f-f0∣≥ 3MHz

≤ -40

TX Output Spectrum –

Out of Band Spurious Emission

30MHz –1GHz

≤ -36

dBm

1GHz -12.75GHz

≤ -30

5.15GHz -5.35GHz

≤ -47

5.725GHz-5.825GHz

≤ -47

Modulation Characteristic (TRM07)

Delta f1 avg

140 ≤ ∆f1avg≤ 175

kHz

Delta f2 max

≥ 115 at 99.9%

Delta f2 avg/Delta f1 avg

≥ 0.8

Initial Carrier Frequency Tolerance (TRM08)

≤± 75

kHz

Carrier Frequency Drift (TRM09)

DH1

≤± 25

kHz

DH3

≤± 40

DH5

≤± 40

Maximum Drift Rate (TRM09)

20 kHz/50 us

Enhanced Data Rate –Transmit Performance

RF Transmit Power

π/4 DQPSK

dBm

8DPSK

Relative Transmit Power (TRM10)

All pairs

(PGFSK-4 dB)<PDPSK<(PGFSK+1

dB)

Carrier Frequency Stability (TRM11)

All packets

-75 ≤ wi≤ 75

kHz

All blocks

-75 ≤ (w0+wi) ≤ 75

All blocks

-10 ≤ w0≤ 10

Modulation Accuracy –

RMS DEVM (TRM11)

π/4 DQPSK

≤ 20

8DPSK

≤ 13

Modulation Accuracy –

Peak DEVM (TRM11)

π/4 DQPSK

≤ 35

8DPSK

≤ 25

Modulation Accuracy –

99% DEVM (TRM11)

π/4 DQPSK

≤ 30

8DPSK

≤ 20

EDR Differential Phase Emissions (TRM12)

≥ 99

In-band Spurious Emission (TRM13)

∣f-f0∣= 1MHz

≤ -26

∣f-f0∣= 2MHz

≤ -20

dBm

∣f-f0∣≥ 3MHz

≤ -40

WBUR56 PRODUCT SPECIFICATION September 23, 2021

FOXCONN CONFIDENTIAL 10

This preliminary specification is subject to change without notice.

TX Output Spectrum –

Out of Band Spurious Emission

30MHz –1GHz

≤ -36

dBm

1GHz -12.75GHz

≤ -30

5.15GHz -5.35GHz

≤ -47

5.725GHz-5.825GHz

≤ -47

Enhanced power control (TRM14)

Step Size

2 ≤ Step Size ≤ 8

Difference. Btw. GFSK,

π/4 DQPSK,&8DPSK

≤ 10

Basic Data Rate –Receiver Performance

Sensitivity at 0.1% BER (RCV01-02)

≤ -81

dBm

C/I Co-Channel interference (RCV03)

≤ 11

C/I Adjacent CH interference (RCV03)

∣f-f0∣= 1MHz

≤ 0

∣f-f0∣= 2MHz

≤ -30

∣f-f0∣≥ 3MHz

≤ -40

C/I Image CH interference (RCV03)

C/Iimage

≤ -9

C/Iimage±1MHz

≤ -20

Out of band Blocking (RCV04)

30MHz –2000 MHz

-10

dBm

2003MHz –2399MHz

-27

2484MHz –2997MHz

-27

3000MHz –12750MHz

-10

Intermodulation Performance at ≤ 0.1% BER (RCV05)

-64

dBm

Maximum input power level

≥ -20

dBm

Spurious Emission

30MHz –12.75GHz

≤ -57

dBm

Enhanced Data Rate –Receiver Performance

Sensitivity at 0.1% BER (RCV07)

π/4 DQPSK

≤ -85

dBm

8DPSK

≤ -77

EDR BER Floor Performance at ≤ 0.0007% BER (RCV08)

-60

dBm

C/I Co-Channel interference (RCV09)

π/4 DQPSK

≤ +13

8DPSK

≤ +21

C/I Adjacent Channel C/I ∣f-f0∣= 1MHz

(RCV09)

π/4 DQPSK

≤ 0

8DPSK

≤ +5

C/I Adjacent Channel C/I ∣f-f0∣= 2MHz

(RCV09)

π/4 DQPSK

≤ -30

8DPSK

≤ -25

C/I Adjacent Channel C/I ∣f-f0∣≥3MHz

(RCV09)

π/4 DQPSK

≤ -40

8DPSK

≤ -33

C/I Image Channel C/Iimage (RCV09)

π/4 DQPSK

≤ -7

8DPSK

≤ 0

C/I Image Channel C/Iimage±1MHz

(RCV09)

π/4 DQPSK

≤ -20

8DPSK

≤ -13

Maximum input power level (RCV10)

≥ -20

dBm

Spurious Emission

30MHz –12.75GHz

≤ -57

Pass

Tabla de contenidos

Otros manuales de Módulo inalámbrico de Foxconn

Foxconn

Foxconn WBU063-VZ Manual de usuario

Foxconn

Foxconn 5G + 4G AIO Small Cell Manual de usuario

Foxconn

Foxconn J20H084ac Manual de usuario

Foxconn

Foxconn RPQN O-RU Guía de instalación

Foxconn

Foxconn T99B226 Manual de usuario

Foxconn

Foxconn T99B226 Manual de usuario

Foxconn

Foxconn J20H076 Manual de usuario

Foxconn

Foxconn J20H086 Manual de usuario

Foxconn

Foxconn J20H090 Manual de usuario

Foxconn

Foxconn J20H081 Manual de usuario

Manuales populares de Módulo inalámbrico de otras marcas

Laird

Laird RM024 Manual de usuario

Laird

Laird BT830-SA Guía de configuración rápida

Ebyte

Ebyte E49-400T20S Manual de usuario

Fibocom

Fibocom FM101-NA-20 Instrucciones de instalación

Waldmann

Waldmann EnOcean TALK MODUL G2 Manual de usuario

Smartech

Smartech LBT-1.DO4 Manual de usuario

Cooper Wiring Devices

Cooper Wiring Devices ESPIRE RF RFAPM Manual de usuario

Yuga

Yuga CLM920 Manual de usuario

Waldmann

Waldmann TALK Bluetooth Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions UC864-G Manual de instalación

Ebyte

Ebyte E07-900M10S Manual de usuario

Quectel

Quectel SC690A Series Suplemento

Panasonic

Panasonic INDUSTRY PAN9028 Guía de configuración rápida

Ebyte

Ebyte E70-433NW30S Manual de usuario

LongSung Technology

LongSung Technology U9507E Manual de usuario

Wistron NeWeb

Wistron NeWeb DNUR-S2 Manual de usuario

Ebyte

Ebyte E49-400M20S4 Manual de usuario

RF-Star

RF-Star SimpleLink RF-BM-2652P1 CC2652P Manual de usuario
