Four-Faith F1203 Manual de usuario

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

F1203 CDMA MODEM

USER MANUAL

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

Contents

Chapter 1 Brief Introduction of Product.......................................................................... 4

1.1 General................................................................................................................4

1.2 Features and Benefits......................................................................................... 4

1.3 Working Principle...............................................................................................4

1.4 Specifications..................................................................................................... 5

Chapter 2 Installation Introduction.................................................................................. 6

2.1 General................................................................................................................6

2.2 Encasement List................................................................................................. 6

2.3 Installation and Cable Connection..................................................................... 6

2.4 Power..................................................................................................................8

2.5 Indicator Lights Introduction............................................................................. 8

Chapter 3 Dial-Up Settings.............................................................................................. 8

3.1 MODEM Connection......................................................................................... 8

3.2 Dial-Up Settings................................................................................................. 8

Chapter 4 SMS Test........................................................................................................22

Chapter 5 Appendix........................................................................................................25

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

Chapter 1 Brief Introduction of Product

1.1 General

F1203 CDMA MODEM is a kind of cellular terminal device that provides SMS

and dial-up function by public CDMA network.

It adopts high-powered industrial cellular module and supports RS232 port that

can conveniently connect one device to a cellular network, allowing you to connect to

your existing serial device.

It has been widely used on M2M fields, such as intelligent transportation, smart

grid, industrial automation, telemetry, finance, POS, water supply, environment

protection, post, weather, and so on.

1.2 Features and Benefits

Design for Industrial Application

High-powered industrial cellular module

Housing: iron, providing IP30 protection.

Power range: DC 5~35V

Stability and Reliability

RS232 port: 15KV ESD protection

SIM/UIM port: 15KV ESD protection

Power port: reverse-voltage and overvoltage protection

Antenna port: lightning protection(optional)

Standard and Convenience

Support standard RS232 port that can connect to a serial device directly

Provide dial-up software that can make it always online

Provide SMS tool software

Support standard AT command

High-performance

Support SMS and dial-up function

Support APN/VPDN

1.3 Working Principle

The principle chart of the MODEM is as following:

CDMA Module

User interface

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

1.4 Specifications

Cellular Specification

Item

Content

Cellular Module

Industrial cellular module

Standard and

Band

CDMA2000 1xRTT 800MHz,

800/1900MHz(optional),450MHz(optional)

Bandwidth

153.6Kbps

TX power

<30dBm

RX sensitivity

<-104dBm

Interface Type

Item

Content

Serial

1 RS232 port, 15KV ESD protection

Data bits: 5, 6 ,7, 8

Stop bits: 1, 1.5, 2

Parity: none, even, odd, space, mark

Baud rate: 110~230400 bps

Indicator

"Power", "ACT", "Online"

Antenna

Standard SMA female interface, 50 ohm, lighting

protection(optional)

SIM/UIM

Standard 3V/1.8V user card interface, 15KV ESD protection

Power

Standard 3-PIN power jack, reverse-voltage and overvoltage

protection

Power Input

Item

Content

Standard Power

DC 12V/1.5A

Power Range

DC 5~35V

Consumption

<200mA (12V)

Physical Characteristics

Item

Content

Housing

Iron, providing IP30 protection

Dimensions

91x58.5x22 mm

Weight

195g

Environmental Limits

Item

Content

Operating

Temperature

-25~+65ºC（-13~+149℉）

Extended

Operating

Temperature

-30~+75ºC（-22~+167℉）

Power

RS232 serial

Interface

Indicator lights

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

Storage

Temperature

-40~+85ºC（-40~+185℉）

Operating

Humidity

95% ( Non-condensing)

Chapter 2 Installation Introduction

2.1 General

The MODEM must be installed correctly to make it work properly.

Warning: Forbid to install the MODEM when powered!

2.2 Encasement List

Name

Quantity

Remark

MODEM host

Antenna

Power adapter

RS232 data cable

Manual CD

Certification card

Maintenance card

2.3 Installation and Cable Connection

Dimension: (unit: mm)

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

58.5

22 8

Ф3

Ф5

Installation of SIM/UIM card:

Firstly power off the MODEM, and press the out button of the SIM/UIM card

outlet with a needle object. Then the SIM/UIM card sheath will flick out at once. Put

SIM/UIM card into the card sheath (Pay attention to put the side which has metal point

outside), and insert card sheath back to the SIM/UIM card outlet.

Warning: Forbid to install SIM/UIM card when powered!

Installation of antenna:

Screw the SMA male pin of the antenna to the female SMA outlet of the

MODEM tightly. Warning: The antenna must be screwed tightly, or the signal quality

of antenna will be influenced!

Installation of cable:

Insert DB9F end of the RS232 data cable into the DB9M interface of MODEM,

and connect the other end with user’s device.

The signal connection of the RS232 data cable is as follows:

DB9F

RS232 data cable

RXD 2

TXD 3

GND 5

2 RXD

3 TXD

5GND

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

2.4 Power

The power range of the MODEM is DC 5~35V.

Warning: When we use other power, we should make sure that the power can

supply power above 4W.

We recommend user to use the standard DC 12V/0.5A power adaptor.

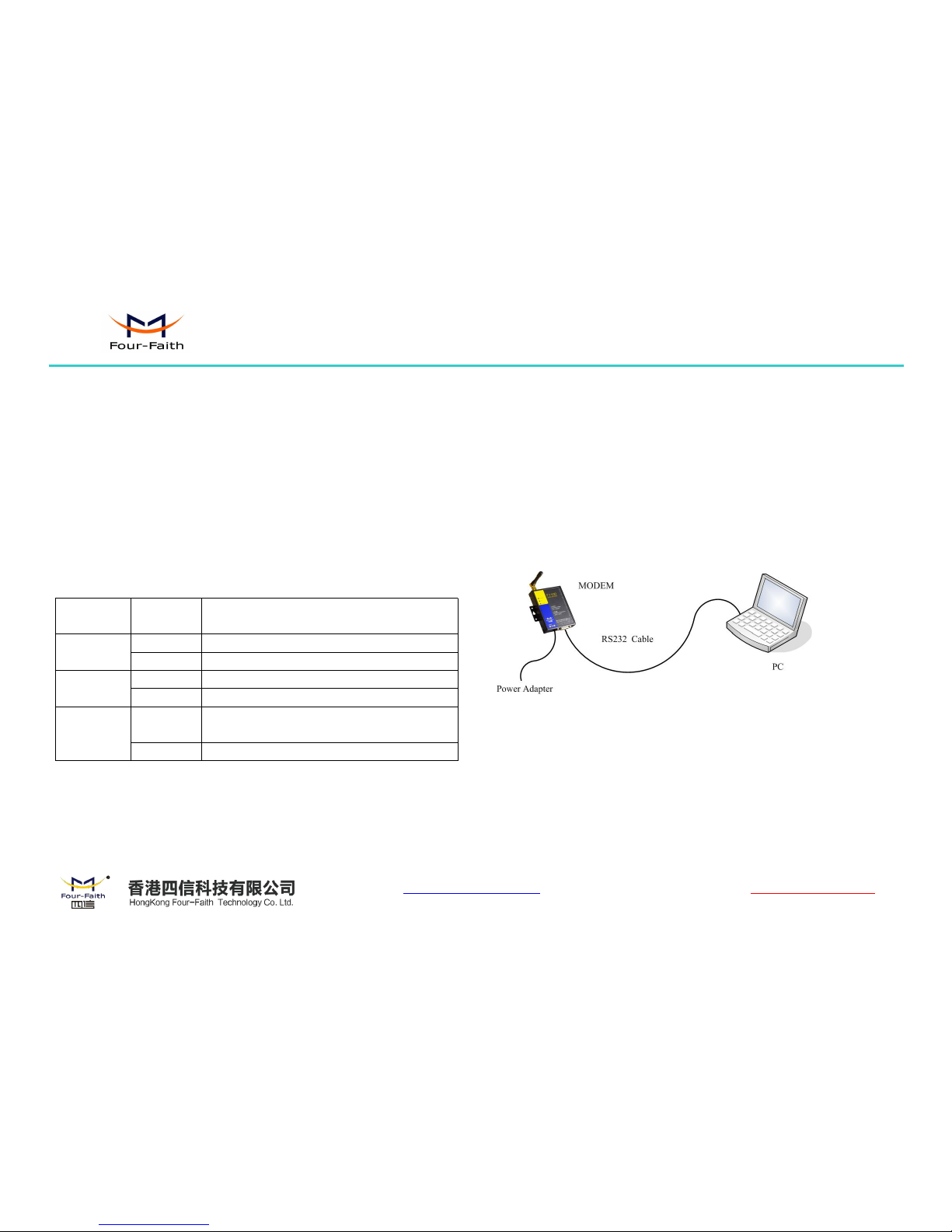

2.5 Indicator Lights Introduction

The MODEM provides three indicator lights: “Power”, “ACT”, “Online”.

Indicator

Light

State

Introduction

Power

MODEM is powered on

OFF

MODEM is powered off

ACT

BLINK

Data is communicating

OFF

No data

Online

ON/

BLINK

MODEM has logged on network

OFF

MODEM hasn’t logged on network

Chapter 3 Dial-Up Settings

3.1 MODEM Connection

Connect Modem and PC with the shipped RS-232 cable as following:

3.2 Dial-Up Settings

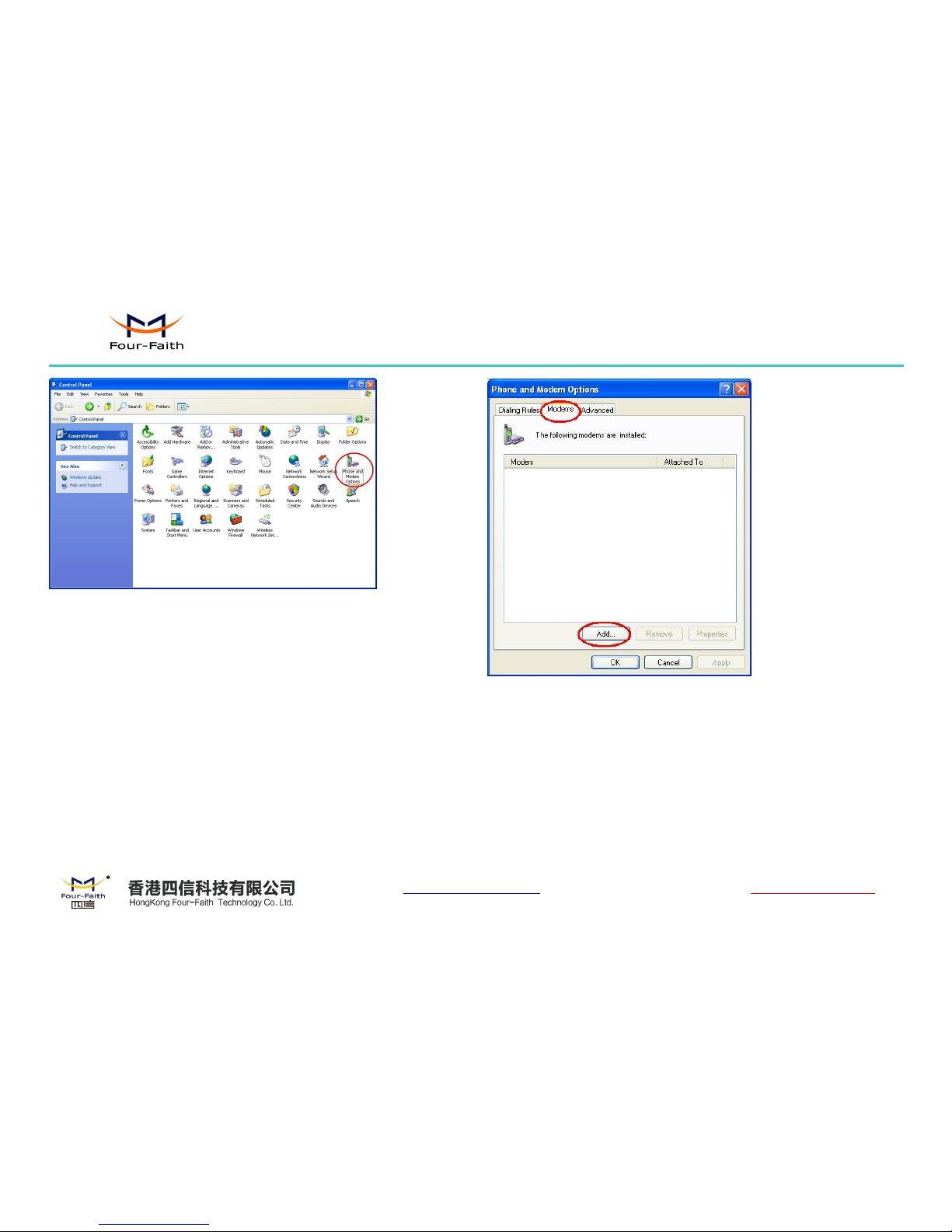

1. Press “start” “Settings” “Control Panel”, Double click “Phone and Modem

Options”

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

2. Choose “Modems”, Press “Add” button

3. Choose “Don’t detect my modem;I will select it from a list”, and click “Next”

Four-Faith Smart Power Technology Co., Ltd.

Email: allen@four-faith.com Tel: +86-17750019379 Web: www.four-faith.hk

Add: Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China

4. Manufacture choose ”Standard Modem Types”, Models choose “Standard 33600

bps Modem”, click “Next” button

5. “Selected ports” choose the actual COM port which connects to Modem, click

“Next” button.
