Fosi Audio DAC-Q6 Manual de usuario

Fosi Audio DAC-Q6 User Manual

Before using this product, please be sure to read carefully this instruction manual

and keep it safe for further reference

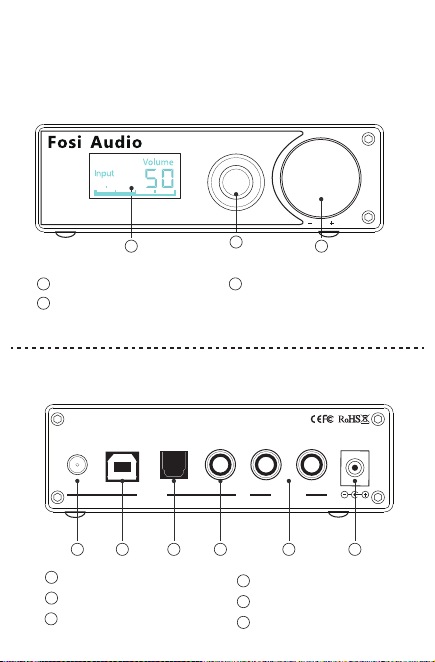

Front-end interface function description

Thank you very much for choosing our products! Please read this

manual carefully before using the product.

back interface function specification

DAC-Q6

HEADPHONE

M0DE



44 1 KHz

Bluetooth antenna interface

PC-USB input jack

Optical input jack

COAXIAL IMPUT

AMALOG RCA output jack

POWER(DC power cann’t beyond 12V)

Display

RF PC-USB OPTICAL

AUDIO IN

COAXIAL R L

MADE IN CHINA

DC 12V

AUDIO OUT

1 2 3 4 5 6

6.35 headphone output jack

ON/OFF/input mode selection key

VOL+/-(short press switch, again

short press select input channel,

long press switch it off,increase clockwise

and decrease counterclockwis)

Operation steps:

1. Make sure the VOL turnto the minimum.

2. Connect the external back-end equipment to the output

interface of sound source.

3. Connect the sound source that needs to be used.

4. To select bluetooth mode, you need to switch the input

channel to bluetooth mode for pairing connection.

5. Connect to power.

6. short press switch, again short press select input channel，

long press switch it off.

7. signal (coaxial/optional/pc-usb/bluetooth).

8. Turn the VOL button clockwise to select the desired volume.

9. The RCA analog output will automatically disconnect when

connected to the headset output, such as the headset.

10. After use, press and hold for 3 seconds to shut down.

PC driver installation method

1.ASIO Driver installation:

Double click on the ASIOProxyInstall-0.6.5, Then follow the

prompts to install.

2.The sycon driver installation:

Double click on the SUCA_UsbAudio_v4.80.0_2019-12-09_setup，

Then follow the prompts to install.

After open the foobar200, click Top left File,choose Prefereces,

Click Components, Click again Install.

3.Foobar The installation:

folder Foobar It is free of installation, Double click open foobar2000

After open the foobar200, click Top left File, choose Prefereces,

Click Components, Click again Install.

After installation, open the driver and the following dialog box

appears.

At the same time selectedfoo_input_sacd.fb2k-component、

foo_out_asio.fb2k-component、WASAPI.fb2k-component Click

open after three files.

Select the following three files, Click again open

Click Apply

Click OK

Open

Click again sure

Cancel

Open foobar2000, Click Library choose Configuer Click again

output.

PC-USB Operation Instructinos:

1. Connect the PC-USB interface of the rear surface of the

machine with factory provided USB cable (USB can support

hot plug).

2. Press the input signal selection switch to select USB input.

3. The following photo shows the icon with horn symbol in the

lower right corner of PC.

4. Right click to pop up the dialog box and click <choose play

device>.

5. Select the playback device recognized by PC in the pop-up

dialog box(XMOS…).

6. Click to confirm the identified digital output.

A………Input channel display area, display separately according

to selection USB/BT/ Coaxial /Optical

B………Input sampling rate display area, no signal displayed

C………Volume display area，Volume 0-99

D………The bottom is the volume progress bar

OLED Show:
