Fortinet FortiSwitch 108F Series Manual de usuario

QuickStart Guide

FortiSwitch 108F Series

FS-108F, FS-108F-POE, FS-108F-FPOE

Product Registration

Thank you for purchasing a FortiSwitch

http://support.fortinet.com

▪ Cloud Management

▪FortiGuard Updates

▪Firmware Upgrades

▪Technical Support

▪Warranty Coverage

Please register your Device:

Vous devez enregistrer le produir:

Debe registrar el producto:

登録のお願い:

请马上注册:

September 25, 2022

of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All

other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal

lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions

may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or

implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that

the identiﬁed product will perform according to certain expressly-identiﬁed performance metrics and, in such event, only the speciﬁc performance metrics

expressly identiﬁed in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance

in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or

development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full any covenants,

representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this

publication without notice, and the most current version of the publication shall be applicable.

For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

4 5

FortiSwitch 108F

Console Cable

(DB9 to RJ45)

4x Rubber Feet

QuickStart Guide

Contents - FS-108F

12V DC / 1A Power Adapter

with US/EU Plugs

FS-108F

4 51 2

Front Panel - FS-108F

POWER

ALARM

Ports 1 to 8 (RJ45) GE network connections

Port 8 PoE (RJ-45) GE with PoE PD support, 802.3af/at compliant

NOTE: The supplied 12VDC power adapter can be used or a PoE

PSE device to power the FS-108F

Ports 9 to 10 (SFP) 1Gbps SFP connections

Act/

Link

Act/

Link

Act/

Link

Green: Power is on

Off: Power is off

Amber: Fault detected

Off: No fault detected

Green: Connected

Flashing Green: Transmitting & receiving data

Off: No link established

Link/Act

RJ45

SFP

5 FortiLink Ports 7 to 10 (RJ45 & SFP) FortiLink interface connections

Green: Connected at 1Gbps

Flashing Green:Transmitting & receiving data at 1Gbps

Off: No Gbps link established

Amber: Connected at 100Mbps

Flashing Amber: Transmitting & receiving data at 100Mbps

Off: No 100Mbps link established

6 7

Rear Panel - FS-108F

21 3

Power Supply 12V DC Adapter, AC input 100-240V AC, 1.0A Max, 50-60Hz

3 Console (RJ-45) CLI management computer interface

Grounding Screw Used for an additional protective earth connection and is

reserved for an application where a permanent local connection of protective earth

is required for a network switch

FS-108F

8 9

Contents - FS-108F-POE

FortiSwitch 108F-POE

Console Cable

(DB9 to RJ45)

4x Rubber Feet

2x Rack-Mount Brackets with

8x Bracket Screws

QuickStart Guide

Power Cable

Front Panel - FS-108F-POE

FS108F-POE

41 2 3

POWER

CONSOLE CLI management computer interface

ALARM

Ports 1 to 8 (RJ45) GE network connections

Ports 9 to 10 (SFP) 1Gbps SFP connections

Act/

Link

Green: Power is on

Off: Power is off

Amber: Fault detected

Off: No fault detected

Green: Connected

Flashing Green: Transmitting & receiving data

Off: No link established

Link/Act

SFP

Amber:PoE output power reached MAX power

Off:PoE power available

PoE MAX (up to 65W)

PoE

Act/

Link

Green: Connected at 1Gbps or 100Mbps

Flashing Green: Transmitting & receiving data

Off: No link established

Amber: Power delivered

Off:No power delivered

Link/ActPoE

RJ45 802.3af/at

5 FortiLink Ports 7 to 10 (RJ45 & SFP) FortiLink interface connections

1110

Rear Panel - FS-108F-POE

1 2

Power Supply 100-240V AC, 0.75A Max, 50-60Hz

2 Grounding Screw Used for an additional protective earth connection and is

reserved for an application where a permanent local connection of protective earth

is required for a network switch

FS108F-POE

12 13

Contents - FS-108F-FPOE

FortiSwitch 108F-FPOE

Console Cable

(DB9 to RJ45)

4x Rubber Feet

2x Rack-Mount Brackets with

8x Bracket Screws

QuickStart Guide

Power Cable

FS-108F-FPOE

Front Panel - FS-108F-FPOE

41 2 3

POWER

ALARM

Green: Power is on

Off: Power is off

Amber: Fault detected

Off: No fault detected

Amber:PoE output power reached MAX power

Off:PoE power available

PoE MAX (up to 130W)

2CONSOLE CLI management computer interface

Ports 1 to 8 (RJ45) GE network connections

Ports 9 to 10 (SFP) 1Gbps SFP connections

Act/

Link

Green: Connected

Flashing Green: Transmitting & receiving data

Off: No link established

Link/Act

SFP

PoE

Act/

Link

Green: Connected at 1Gbps or 100Mbps

Flashing Green: Transmitting & receiving data

Off: No link established

Amber: Power delivered

Off:No power delivered

Link/ActPoE

RJ45 802.3af/at

5 FortiLink Ports 7 to 10 (RJ45 & SFP) FortiLink interface connections

14 15

Rear Panel - FS-108F-FPOE

Power Supply 100-240V AC, 1.4A Max, 50-60Hz

Grounding Screw Used for an additional protective earth connection and is

reserved for an application where a permanent local connection of protective earth

is required for a network switch

FS-108F-FPOE

16 17

For Models FS-108F-POE, FS-108F-POE

For Model FS-108F

Plug in your device to a power outlet using the provided power cables.

Note: We recommend connecting your FortiSwitch to an uninterruptible power

supply (UPS) in case of a power outage

Basic Connections

Power Outlet

or UPS

Power Connection

Supplied Power Cable

Power Outlet

or UPS

Power Connection

Supplied Power Cable and Adapter

Installation

Desktop Option

1. Place the unit on a ﬂat, clean and stable surface

2. Ensure there is at least 1.5in of clearance for adequate airﬂow

3. Plug the provided power cables into the rear of the unit and then into a

grounded electrical outlet or separate power source

1.5in

1.5in1.5in

1.5in

18 19

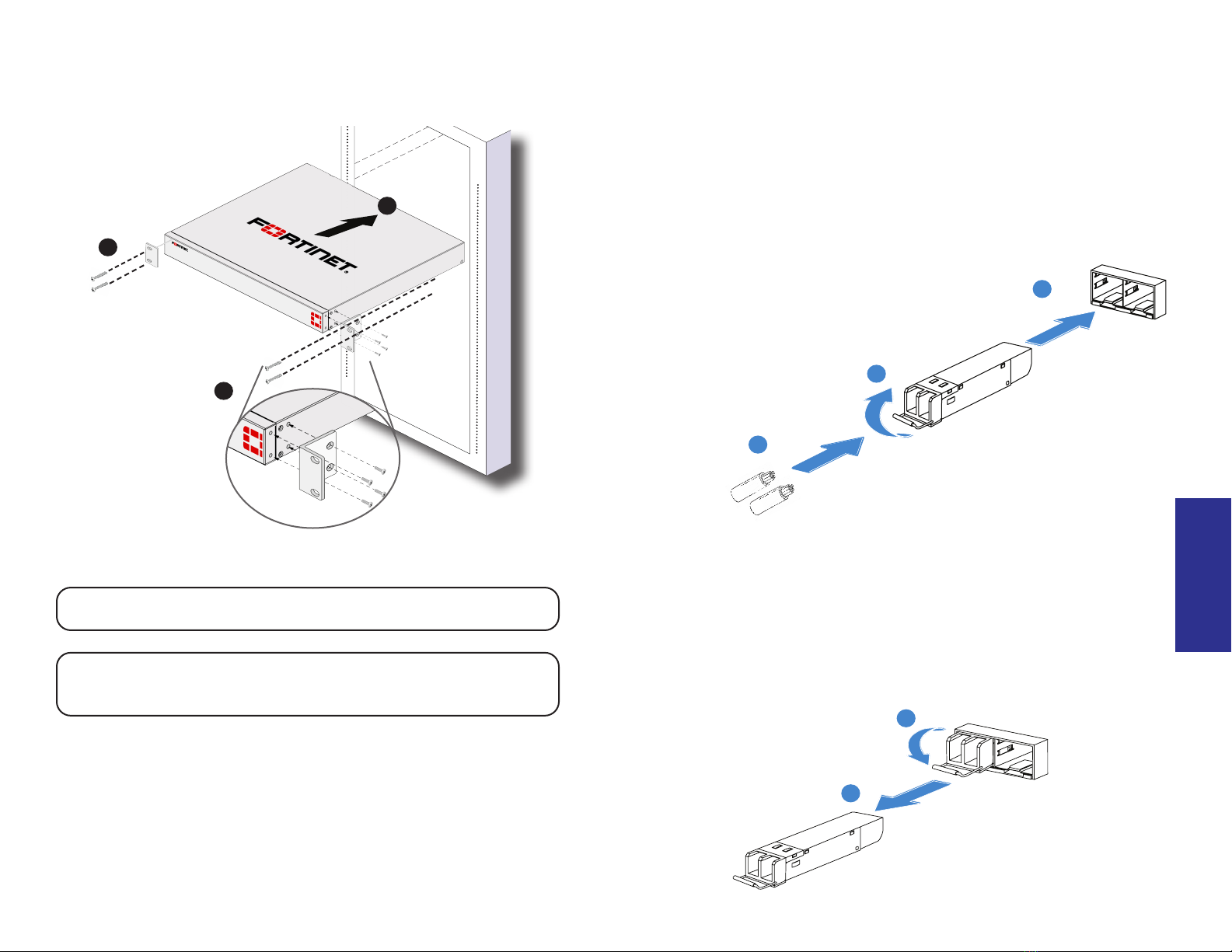

Rack Mount (FS-108F-POE and FS-108F-FPOE only)

Note: The recommended clearance is 1.5 inches above and below the device.

Caution: To avoid personal injury or damage to the device, it is recommended

that two or more people mount the device on a rack.

Rack mount brackets may vary as shown above

1Gbps SFP Transceivers

To install 1G SFP transceivers:

1. Slide the 1G SFP into the cage socket until it clicks into place

2. Lift the latch to lock the 1G SFP

3. Connect the ﬁber optic cabling to the 1G SFP

Cage Socket

Latch

Fiber Optic Cabling

1G SFP

To remove the 1G SFP transceivers:

1. Lower the latch to unlock the 1G SFP

2. Carefully pull the 1G SFP out of the cage socket

Installation
