Follett Maestro Plus P425 Manual de usuario

Order parts online:

www.follettice.com

01033687R04

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

Installation Instructions

Installing Maestro Plus™ P425, EP425A/W or CP425A/W

Ice Machine Module into Symphony™

FB, CT, and CI Dispensers

Technical Support

If you experience any problems during the installation, please call Follett Technical Service toll-free at

(877) 612-5086 for assistance.

Description

Follow these instructions to install the Maestro Plus ice machine module into your Symphony FB, CT, and CI

dispenser.

CAUTION!

Only qualied technicians should attempt to service or maintain this equipment.

Parts

Common

POWER CORD (1) 01075589

BIN SIGNAL RELAY ASSEMBLY

(1) 01069772

(1) 1/4" X 1/4"PUSH IN VALVE 01035526

(1) CLAMP, ICE TRANSPORT TUBE 202011

(2) SANI-SPONGE 00131524

(2.5') 1/4" TUBING 205835

2 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers

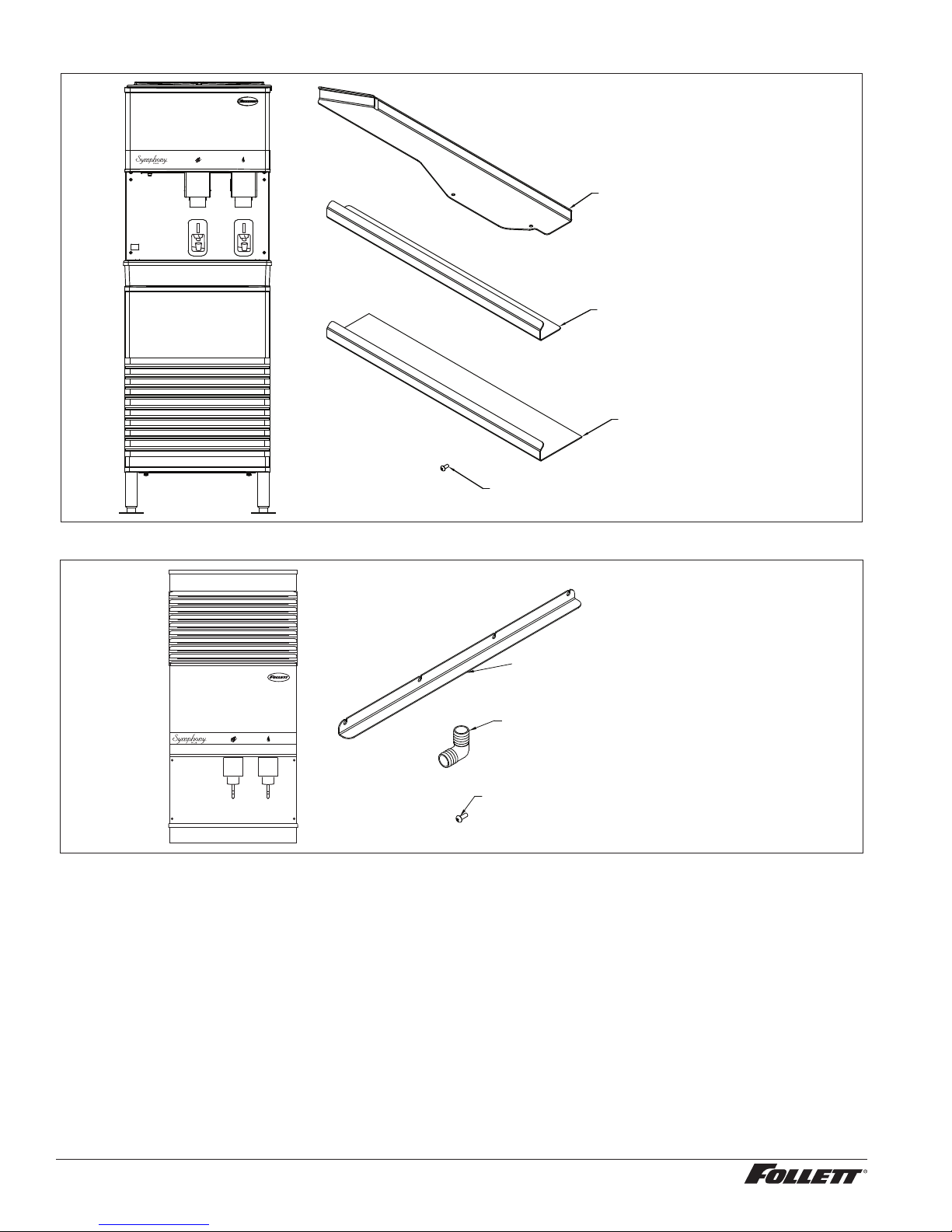

FB Dispensers

(1) GUIDE PLATE RIGHT

01015759

(1) GUIDE PLATE LEFT 25/50

01015767

(1) GUIDE PLATE LEFT 110

01042654

SCREW

204139

CT Dispensers

(1) TOP MOUNT SPACER

01048578

(2) DRAIN ELBOW BARB FITTING

205624

(4) SCREW

208568

Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 3

CI Dispensers

(1) DRAIN TUBE, CI

01062306

(1) FUNNEL, HOPPER DRAIN

00906255

(1) ELECTRICAL BOX BRACKET

01012186

Water-cooled Parts

BRAIDED HOSE

00187211

(2) HOLE BUSHING

00105486

(2) 3/8" FLARE X 3/8" MNPT BRASS FITTING

00129486

(2) 3/8" FNPT X 3/8" COMPRESSION TUBE BRASS FITTING

01064567

(2) 1/4" NPT X 3/8" COMPRESSION TUBE BRASS FITTING

01027291

(2) 3/8" FLARE X 1/4" FNPT BRASS FITTING

00181388

Tubes

25/50 FB/CT Drain tube

01055185

110 FB/CT Drain tube

01055540

25/50/110CT Ice transport tube

01055540

4 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers

FB Units - 25/50/110FB425A

Remove Ice Machine Module

1. Disconnect power from unit and turn off

water supply.

2. Remove existing module.

3. On new ice machine, remove the

top bearing insulation (Fig. 1.1) and

compression nozzle insulation (Fig. 1.2).

Note: Retain ice transport tube and hose

clamp.

Fig. 1

4. On new ice machine, remove the ice

machine electrical box cover and set DIP

switches (Fig. 2).

5. Reinstall ice machine electrical box cover.

Fig. 2

Sleep cycle dispense duration

OFF ON

12345678

4 5 4 5

35 s

15 s

5 s

60 s

OFF POSITION ON POSITION

Sleep cycle

enabled

Not used

Sleep cycle

dispense duration

60 min. time delay

Flush enabled

Maint. timer OFF

OFF ON

Sleep cycle

disabled

Not used

Sleep cycle

dispense duration

20 min. time delay

Flush disabled

Maint. timer ON

12345678

Replacement P425A/W installed in Symphony dispenser

Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 5

6. Remove right and left rear module

positioning bracket (Fig. 3).

Note: Do not discard the 4 screws, they will

be reused.

Fig. 3

7. Using the hardware specic for your

application, install supplied Left (Fig.4.1)

and Right (Fig.4.2) locating brackets

using screws from previous step.

Note: Left side only uses 1 screw.

Fig. 4

110 Units

25/50 Units

01015759

01015767

01015759

01042654

6 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers

8. 25/50 Units Only: Install gray plastic

spacer (Fig.5.1) against rear of cabinet.

Fig. 5

01069764

9. Slide supplied module into position

(Fig.6).

Fig. 6

Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 7

10. Install supplied drain tube onto drain

solenoid (Fig.7.1), evaporator drain pan

(Fig.7.2), and rear drain tting (Fig.7.3).

Tube may need to be cut to t onto

existing rear drain tting.

§25/50 Drain tube: 01055185

§110 Drain tube: 01055540

Fig. 7

11. Cut compression tting from end of

existing water tube. Connect existing

water supply tube to attached solenoid

water tube with supplied ¼” shut off

valve (Fig.8).

Fig. 8

01035526

12. Install supplied internal power cord

adapter (Twist-Lock) (Fig.9).

Fig. 9

01069772

8 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers

13. Plug other end (Mate N Lock) into

electrical box (Fig.10).

Fig. 10

14. Install supplied internal bin signal cord

adapter (Twist-Lock) (Fig.11).

Fig. 11

01069772

15. Plug other end (Mate N Lock) into

electrical box (Fig.12).

Fig. 12

Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers 9

16. Heat end of existing ice transport tube

in cup of 160F (71C) hot water to

soften (Fig.13.1) and spread with pliers

(Fig.13.2).

Fig. 13

1 7. Attach end of ice transport tube to

compression nozzle (Fig.14).

Fig. 14

10 Maestro Plus P425/CP425/EP425 Ice Machine for Symphony FB, CT, and CI Dispensers

18. Secure with clamp (Fig.15.1).

Note: Clamp must be oriented as shown

in order for the insulation to be placed

properly.

19. Install compression nozzle insulation

(Fig.15.2).

20. Install top bearing insulation (Fig.15.3).

Fig. 15
