Flycam Vista-II Manual de usuario
1

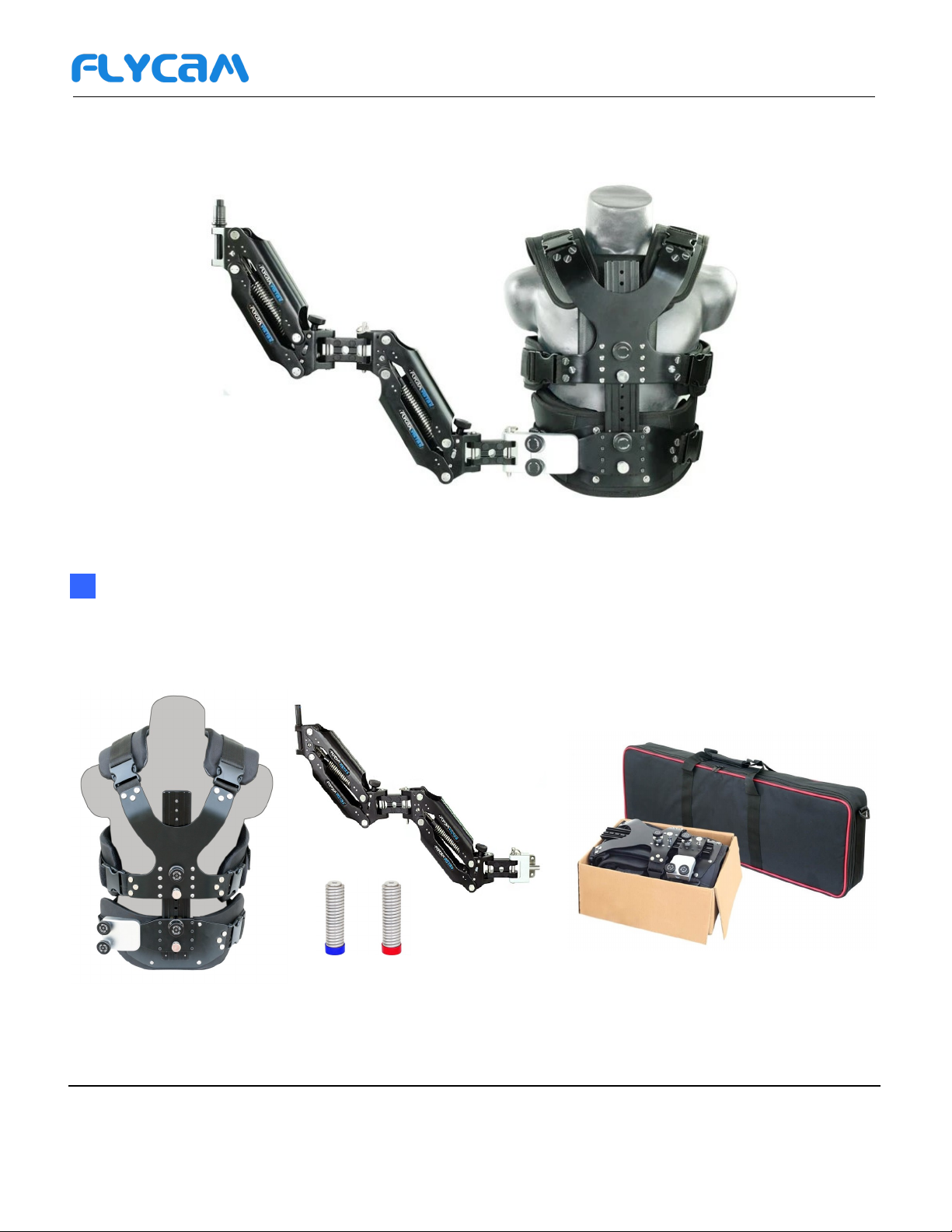

What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Vista-II Stabilizing Arm & Vest (VSTA-II-AV)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Assembly Manua l
Vista-II Vest
Vista-II Arm
Storage Bag
2x Heavy Tension
Springs
2
Adjust the ghtness of Vest around your waist
and hips using Velcro strap, drawing it around
evenly on both sides of Vest pad. Lock them
with buckles.
In the same way, adjust and lock upper straps
with buckles on chest plate.
The length of chest plate can be adjusted
according to your height by using adjustment
Knob. Finally, the Vest should properly t
your body, as shown.
Vista-ll Vest Setup
Put-on the Vest and insert lower strap
through the turnbuckle.
Straps are made of nylon with strong Velcro, & can be easily replaced or adjusted to suit Individual needs.
Our Flycam Galaxy Vest can be used with all professional Arms like Steadicam, Tin, Glide cam & Sachtler.
Vista-ll Arm Setup
NOTE: It can be operated eciently either right or le handed.
Loosen the knobs of Socket Block on Vest.
Then Insert male connecng socket of Arm
into Socket Block of Vest and ghten the
knobs.
Insert pin of Vista-II Arm into handle of your
Stabilizer.
Once vercal and horizontal balance is
achieved, mount Stabilizer (Not Included) on
gimbal connector of Arm.
NOTE: For aaching stabilizer to Arm, keep handle of stabilizer straight in accordance to pin of Arm .
Knobs
3
The arm tension is adjusted for the heaviest camcorder it can hold, so it does not bottom-out when you
put the camcorder and sled on it for the first time.
Now adjust Arm for the weight of your camcorder:
With the Vest On, attach Arm & unlock the rig.
Move Arm to the middle of its booming (up and down) range and let go (If it stays where it is, you are
probably close to the right adjustment).
Keep making small adjustments until the camcorder does not rise or fall when you let go of it in the
middle of its booming range.
Arm Adjustment
Posion arm
Move the camcorder to your left so the arm crosses your body.
Adjust the arc of your arm so the rig feels comfortable to you.
Keep the camcorder close to your body.
Bearing Maintenance
If aer some period of me the bearings stop running smoothly as when new, you can oil it with light
lubricang oil. We recommend using only a few drops, anything more than a lile will end up dripping
from bearing and onto the rest of your Arm. Be sure to keep the oil away from your Camera, and clean up
any over-spill when done.
Cleaning
Do not use solvents or harsh cleaners of any kind on Vista-II Arm & Vest. If the unit becomes dirty, use
only a cloth or sponge with water and a very mild detergent to gently rub the unit clean. Rinse well.
Storage
If you are going to store Flycam Vista-II Arm & Vest for a long period of me, then we recommend storing
it up-right in a dry or low-to-normal humidity area.
If you are unable to nd an environment like this, then we suggest you store the unit in an airght plasc
container or bag. Keeping the unit upright helps to lessen stress on the system.
Maintenance
For Interchanging the spring, Follow this video
hps://bit.ly/2SkeXP9
4

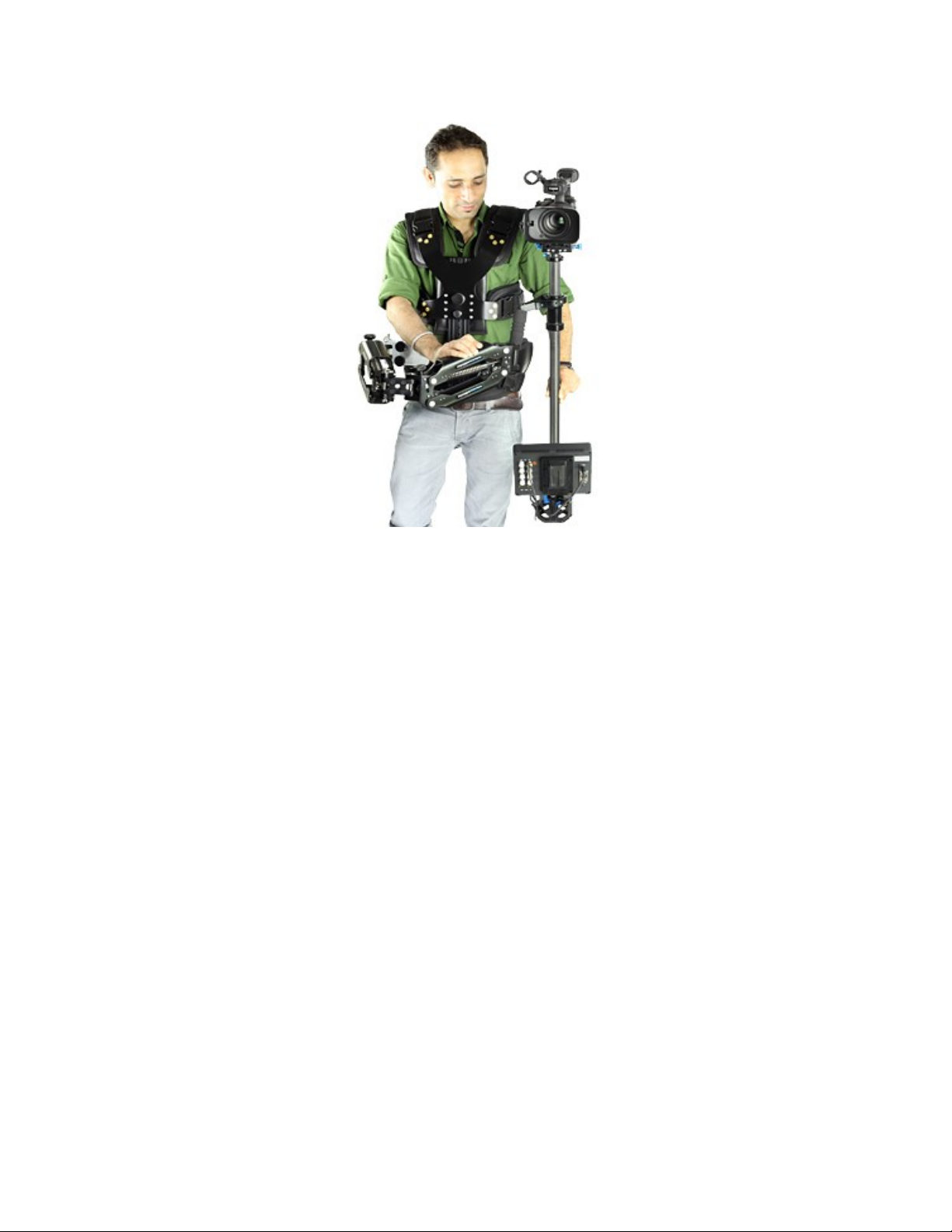

YOUR VISTA-II STABILIZING ARM & VEST
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon
and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.
