Fluke TP1000 Instrucciones originales

TP1000

Test Probe wi t h Re mote Test Button

Safety Information

A Warning identifies hazardous conditions and procedures that

are dangerous to the user. A Caution identifies conditions and

procedures that can cause damage to the Product or the

equipment under test.

XW Warning

To prevent possible electrical shock, fire, or personal

injury:

Read all safety information before you use the

Product.

Use the Product only as specified, or the protection

supplied by the Product can be compromised.

Comply with local and national safety codes. Use

personal protective equipment (approved rubber

gloves, face protection, and flame-resistant clothes)

to prevent shock and arc blast injury where hazardous

live conductors are exposed.

PN 5339312 (English)

8/2022

subject to change without notice. All Product names are trademarks of

their respective companies.

1.888.610.7664sales@GlobalTestSupply.com Fluke-Direct.com

Do not touch voltages >30 V ac rms, 42 V ac peak, or

60 V dc.

Do not use the Product around explosive gas, vapor,

or in damp or wet environments.

Do not exceed the Measurement Category (CAT)

rating of the lowest rated individual component of a

Product, probe, or accessory.

Do not use test leads if they are damaged. Examine the

test leads for damaged insulation, exposed metal, or if

the wear indicator (if present) shows. Check test lead

continuity.

Keep fingers behind the finger guards on the probe.

Do not use in CAT III or CAT IV environments without

the protective cap installed on test probe. The

protective cap decreases the exposed probe metal to

<4 mm. This decreases the possibility of arc flash from

short circuits.

1000 V CAT II without protective cap installed.

1000 V CAT III, 600 V CAT IV with protective cap

installed.

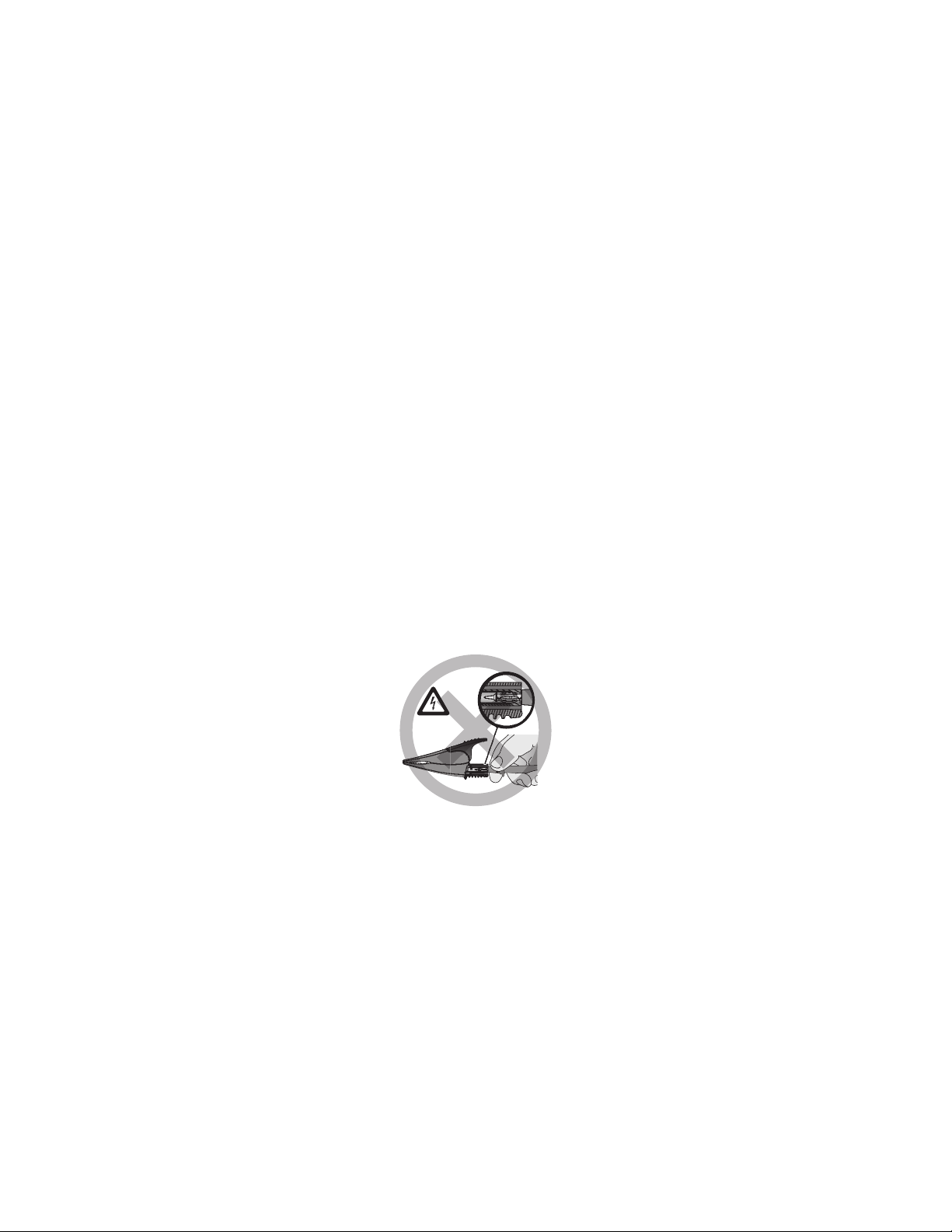

Do not use a shrouded banana jack accessory such as

an alligator clip with an unshrouded 4 mm banana

probe tip terminal in a hazardous electrical

installation. Due to the lack of a shroud, the probe tip

connector does not provide suitable insulation to

accessible parts with this type of assembly.

1.888.610.7664sales@GlobalTestSupply.com Fluke-Direct.com

Symbols

The table below lists the symbols that can be used on the Product

or in this document.

Maintenance

Clean with a soft towel moistened with water and mild detergent.

DO NOT IMMERSE in liquid.

Specifications

Probe with integrated test button allows one-handed

measurements.

Safety............................................IEC 61010-031, CAT II 1000 V,

CAT III 1000 V, CAT IV 600 V, 10 A,

Pollution Degree 2

Temperature................................-20 °C to 55 °C (-4 °F to 131 °F)

Humidity .......................................95 % RH to 30 °C

75 % RH 30 °C to 55 °C

Altitude .........................................2000 m

Symbol Description

»Consult user documentation.

WWARNING. RISK OF DANGER.

XWARNING. HAZARDOUS VOLTAGE. Risk of electric

shock.

TDouble insulated

Measurement Category II is applicable to test and

measuring circuits connected directly to utilization

points (socket outlets and similar points) of the low-

voltage MAINS installation.

Measurement Category III is applicable to test and

measuring circuits connected to the distribution

part of the building’s low-voltage MAINS installation.

Measurement Category IV is applicable to test and

measuring circuits connected at the source of the

building’s low-voltage MAINS installation.

This product complies with the WEEE Directive and

its marking requirements. The affixed label indicates

that you must not discard this electrical/electronic

product in domestic household waste. Do not

dispose ofthis product as unsorted municipal

waste. For information about take-back and

recycling programs available in your country, see

the website.

1.888.610.7664sales@GlobalTestSupply.com Fluke-Direct.com

LIMITED WARRANTY

This Fluke product will be free from defects in material and

workmanship for 1 year from the date of purchase. This warranty

does not cover fuses, disposable batteries, or damage from

accident, neglect, misuse, alteration, contamination, or abnormal

conditions of operation or handling. Resellers are not authorized

to extend any other warranty on Fluke’s behalf. To obtain service

during the warranty period, contact your nearest Fluke authorized

service center to obtain return authorization information, then

send the product to that Service Center with a description of the

problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER

WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY

SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL

DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY.

Since some states or countries do not allow the exclusion or

limitation of an implied warranty or of incidental or consequential

damages, this limitation of liability may not apply to you.

11/99
