CertiFiber® Pro

Optical Loss Test Set

Getting Started Guide

The CertiFiber Pro Optical Loss Test Set (OLTS) modules attach to

Versiv™main and remote units to make rugged, hand-held

testers that let you certify, troubleshoot, and document fiber

optic network cabling.

Accessing the Product Manuals

This guide provides basic information to help you get started

using the tester. For more detailed information, see the latest

versions of the Versiv Users Manual and the Versiv Technical

Reference Handbook provided on the Fluke Networks website.

Symbols

WWarning or Caution: Risk of damage or destruction to

equipment or software. See explanations in the manuals.

XWarning: Risk of fire, electric shock, or personal injury.

*Warning: Class 1 or Class 2 lasers. Risk of eye damage

from hazardous radiation.

Consult the user documentation.

jDo not connect this equipment to public communications

networks, such as telephone systems.

~This product complies with the WEEE Directive marking

requirements. The affixed label indicates that you must

not discard this electrical/electronic product in domestic

household waste. Product Category: With reference to

the equipment types in the WEEE Directive Annex I, this

product is classed as category 9 "Monitoring and Control

Instrumentation" product. Do not dispose of this product

as unsorted municipal waste.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

WSafety Information

WWarningX

To prevent possible fire, electric shock, or personal injury:

•

Read all safety information before you use the

Product.

•

Carefully read all instructions.

•

Do not open the case. You cannot repair or replace

parts in the case.

•

Do not modify the Product.

•

Use only replacement parts that are approved by

Fluke Networks.

•

Do not touch voltages > 30 V AC rms, 42 V AC peak,

or 60 V DC.

•

Do not use the Product around explosive gas, vapor,

or in damp or wet environments.

•

Use this Product indoors only.

•

Use the Product only as specified, or the protection

supplied by the Product can be compromised.

•

Do not use and disable the Product if it is damaged.

•

Do not use the Product if it operates incorrectly.

PConformite Europeene. Conforms to the requirements of

the European Union and the European Free Trade

Association (EFTA).

)Certified by CSA Group to North American safety

standards.

Conforms to relevant Australian standards.

40 year Environment Friendly Use Period (EFUP) under

China Regulation - Administrative Measure on the

Control of Pollution Caused by Electronic Information

Products. This is the period of time before any of the

identified hazardous substances are likely to leak out,

causing possible harm to health and the environment.

«Conforms to relevant Russian standards.

ÃKCC-REM-FKN-012001001: EMC approval for Korea

Class A Equipment (Industrial Broadcasting &

Communication Equipment)

This product meets requirements for industrial (Class A)

electromagnetic wave equipment and the seller or user

should take notice of it. This equipment is intended for

use in business environments and is not to be used in

homes.

This key turns the Product on and off.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

•

Batteries contain hazardous chemicals that can

cause burns or explode. If exposure to chemicals

occurs, clean with water and get medical aid.

•

Remove the batteries if the Product is not used for

an extended period of time, or if stored in

temperatures above 50 °C. If the batteries are not

removed, battery leakage can damage the Product.

•

Replace the rechargeable battery after 5 years of

moderate use or 2 years of heavy use. Moderate use

is defined as recharged twice a week. Heavy use is

defined as discharged to cutoff and recharged daily.

•

Disconnect the battery charger and move the

Product or battery to a cool, non-flammable

location if the rechargeable battery becomes hot

(>50 °C, >122 °F) during the charge period.

•

The battery door must be closed and locked before

you operate the Product.

•

Repair the Product before use if the battery leaks.

•

Recharge the batteries when the low battery

indicator shows to prevent incorrect measurements.

•

Do not disassemble or crush battery cells and

battery packs.

•

Do not put battery cells and battery packs near heat

or fire. Do not put in sunlight.

•

Have an approved technician repair the Product.

•

For Products with rechargeable batteries, use only

AC adapters approved by Fluke Networks for use

with the Product to supply power to the Product

and charge the battery.

WWarning: Class 1 and Class 2

Laser Products*

To prevent eye damage and personal injury:

•

Do not look directly into optical connectors. Some

optical equipment emits invisible radiation that can

cause permanent damage to your eyes.

•

Keep the module’s OUTPUT ports covered with a

dust cap or keep a test reference cord attached. The

OUTPUT ports can emit radiation even when you do

not do a test.

•

Do not look into the laser. Do not point laser

directly at persons or animals or indirectly off

reflective surfaces.

•

When you inspect fiber endfaces, use only

magnification devices that have the correct filters.

•

Use the Product only as specified or hazardous laser

radiation exposure can occur.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

WCaution

To prevent damage to the Product or cables under test and to

prevent data loss, read all safety information given in all

documentation supplied with the Product.

Connectors, Keys, and LEDs

HGP00.EPS

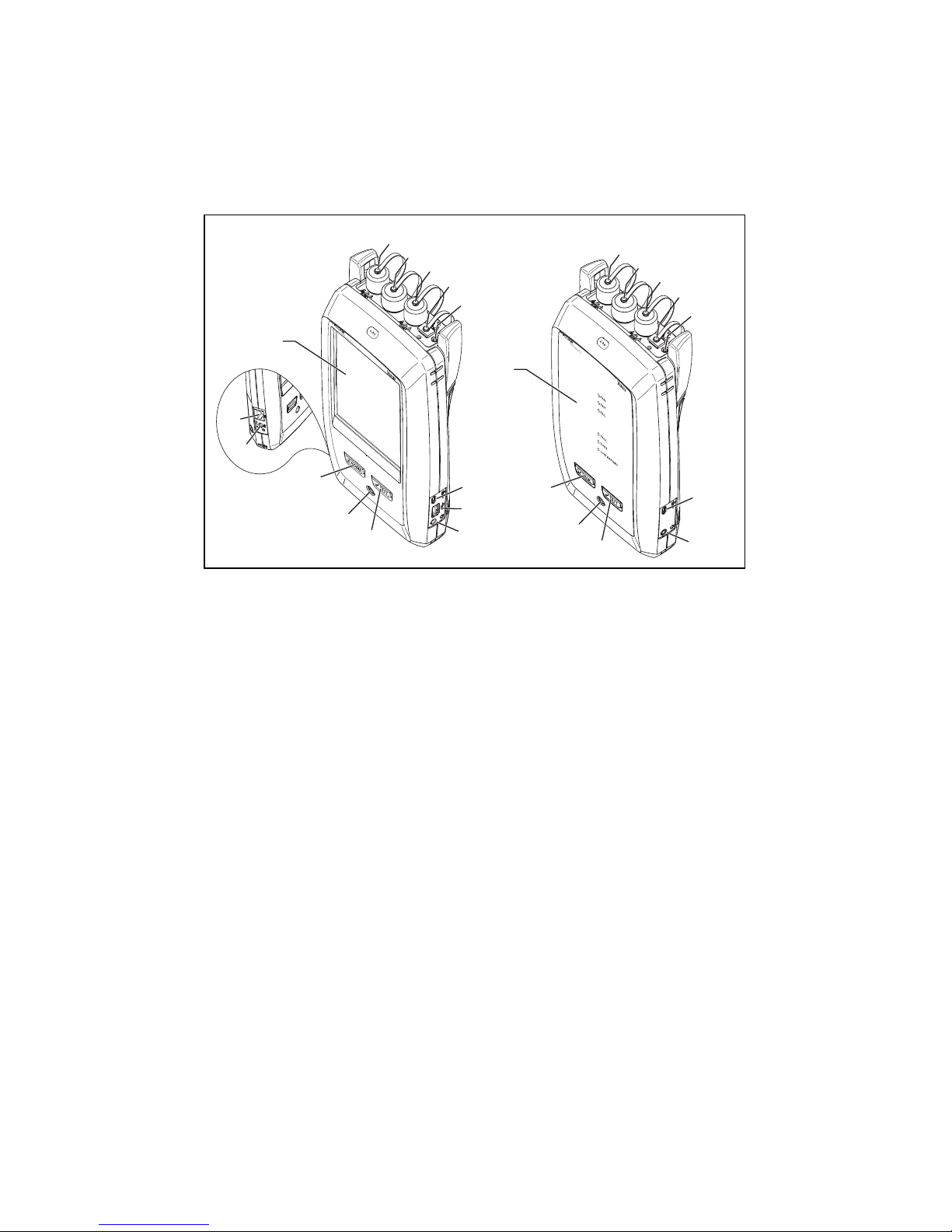

Figure 1. Connectors, Keys, and LEDs



LCD display with touchscreen.



Singlemode output port with removable connector adapter

and dust cap. This port transmits optical signals for loss and

length measurements.

The LED below the output port is red when the port transmits

1310 nm and green for 1550 nm.



Input port with removable connector adapter and dust cap.

This port receives optical signals for loss, length, and power

measurements.



Multimode output port with removable connector adapter and

dust cap. This port transmits optical signals for loss and length

measurements.

The LED below the output port is red when the port transmits

850 nm and green for 1300 nm.



Universal fiber connector (with dust cap) for the visual fault

locator. The connector accepts 2.5 mm ferrules. The LED below

the connector shows the locator’s mode.



Button to manually control the output ports (



and



) and

the visual fault locator (





Micro-AB USB port: This USB port lets you connect the tester to

a PC so you can upload test results to the PC (main tester only)

and install software updates in the tester.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com



Type A USB port: This USB host port lets you save test results on

a USB flash drive, connect the FI-1000 video probe to the tester,

or connect a Wi-Fi adapter for access to Fluke Networks cloud

services.



Headset jack.



: Starts a test. To start a test, you can also tap TEST on the

display.



Power key.



: Press to go to the home screen.



Connector for the AC adapter.



RJ45 connector: Lets you connect to a network for access to

Fluke Networks cloud services.



PASS LED comes on when a test passes.

TEST LED comes on during a test and when you manually turn

on one of the output ports.

FAIL LED comes on when a test fails.

TALK LED comes on when the talk function is on (see



TONE LED flashes if you press  and the main tester is not

connected to the remote or is in Far End Source mode.

LOW BATTERY LED comes on when the battery is low.



: Press to use the headset to speak to the person

at the other end of the link. Press again to adjust the volume.

To turn off the talk function, hold down .

How to Certify Fiber Optic Cabling

Power the Tester

Charge the battery if necessary. Connect the AC adapter to

AC power and to the adapter connector () shown in

Figure 1. You can use the tester while the battery charges.

Select Settings

2-1 On the home screen, tap the test setup panel (Figure 2).

2-2 On the CHANGE TEST screen, tap a fiber test, then tap

EDIT.

2-3 On the TEST SETUP screen, tap the panels to change

settings:

•

Test Type: Select Smart Remote.

•

Bi-Directional: Select On. The tester will do fiber tests in

both directions.

•

Fiber Type: Select a fiber type that is correct for the type

you will test.

-continued-

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

•

Test Limit: Select General Fiber Optic.

•

Reference Method: Select 1 Jumper Reference.

•

No. of Connectors/Splices: These settings are only for test

limits that use a calculated limit for loss. They are not

applicable to the General Fiber Optic limit.

2-4 To save the settings, tap SAVE on the TEST SETUP screen.

HGP01.EPS

Figure 2. Panels on the Home Screen



To set up a project, tap the PROJECT panel.



To change settings for the test or select a different test, tap

the test setup panel.



To set up cable IDs and turn on Auto Save, tap the Next ID

panel.



To set the reference and verify your test reference cords for

loss/length tests, tap SET REF.



To upload test results to LinkWare Live, tap SYNC.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

Clean and Inspect All Connectors

WCaution

Use proper cleaning procedures to clean all fiber

connectors before every use. Neglecting this step or using

improper procedures can cause unreliable test results and

may permanently damage the connectors. See the Users

Manual for instructions.

Set the Reference and Verify Your Test Reference

Cords

The reference procedure for fiber cable sets a baseline power

level for loss measurements. It is important to set the reference

frequently. You must also make sure your test reference cords

are in good condition. See the Users Manual.

4-1 Turn on the tester and remote and let them sit for a

minimum of 5 minutes. Let them sit longer if they are

above or below ambient temperature.

4-2 Make sure that the home screen shows the correct settings

4-3 Clean and inspect the connectors on the tester, remote,

and test reference cords.

4-4 On the home screen tap SET REF.

4-5 On the SET REFERENCE screen, tap RUN WIZARD.

4-6 Make the connections shown on the screen, then tap

NEXT to see the completed connections (Reference in

Figure 3).

Note

When you set the reference, align the testers as

shown in Figure 3 to keep the fibers as straight

as possible.

4-7 To enter the length of the test reference cords you will

add to connect to the link, tap TRC LENGTH on the SET

REFERENCE screen. The length you enter does not change

the test results. The tester saves the length with the results

to meet TIA reporting requirements.

4-8 Tap SET REFERENCE, tap NEXT, then make the

connections shown on the screen (TRC Verification in

Figure 3)

4-9 Tap TRC VERIFICATION. The tester measures and saves the

loss of the test reference cords you added.

Make Connections and Do a Test

5-1 Tap NEXT. Connect the testers to the link as shown on

the screen (Fiber Link Test in Figure 3).

5-2 Press on the main or remote tester.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

GPU122.EPS

Figure 3. Connections for Smart Remote Mode

(1 Jumper Reference, Multimode Fiber)

WCaution

Do not disconnect the

outputs ( and ) after

you set the reference.

When you use the EF-TRCs,

DO NOT use other mandrels.

Test

reference

cord

Fiber

link

Test

reference

cord

Reference

TRC Verification Fiber Link Test

* Use the EF-TRCs only with multimode modules.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

Examine the Results

The tester shows a summary of the test results for the fibers

(Figure 4, left). To see more information (Figure 4, right), tap

the window for a fiber.

Save the Results

•

If Auto Save is on, the tester uses the next two IDs to save

the results for the two fibers.

•

If Auto Save is off, tap SAVE if the test passed or FIX LATER

if the test failed. The SAVE RESULT screen shows the next

two IDs available. You can change the IDs if necessary.

The tester saves the results in the DEFAULT project, unless you

selected a different project.

HGP02.EPS

Figure 4. Examples of Fiber Test Results Screens

About Projects

You can set up a project to specify the settings and tests

necessary for a job, monitor the status of a job, and organize the

test results.

To start a new project, tap PROJECT on the home screen, tap

CHANGE PROJECT, then tap NEW PROJECT. See the Users Manual

or Technical Reference Handbook for more information.

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

About Fluke Networks Cloud Services

With a Fluke Networks web account and a wired or wireless

network connection, you can use the LinkWare™Live web

application to store and manage projects in the cloud.

Registration

Registering your product with Fluke Networks gives you access to

valuable information on product updates, troubleshooting tips,

and other support services. To register, use LinkWare PC software.

Download LinkWare PC from the Fluke Networks website

Fluke Networks operates in more than 50 countries worldwide.

For more contact information, go to our website.

General Specifications

Warranty

Limited 1-year warranty. See the product manual for details.

Battery Type Lithium-ion

Power Adapter Input: 100 to 240 VAC ±10%, 50/60Hz

Output: 15 VDC, 2 A maximum

Class II

Temperature Operating: -18 °C to +45 °C

Storage: -30 °C to +60 °C

Altitude Operating: 4,000 m (3,200 m with AC adapter)

Storage: 12,000 m

Shop for Fluke Networks products at: 1.888.610.7664

ShopFlukeNetworks.com

Otros manuales para CertiFiber Pro

Tabla de contenidos

Otros manuales de Equipo de prueba de Fluke

Fluke

Fluke 5520A Service Manual de usuario

Fluke

Fluke 1507 Manual de usuario

Fluke

Fluke 5522A Operators Manual de usuario

Fluke

Fluke 7103 Manual de usuario

Fluke

Fluke PRV240FS Manual de usuario

Fluke

Fluke MP1 Manual de usuario

Fluke

Fluke 726 Manual de instrucciones

Fluke

Fluke LinkIQ Manual de usuario

Fluke

Fluke RUSKA 7252 Manual de usuario

Fluke

Fluke TS54-A-09-TDR Manual de usuario

Fluke

Fluke 5520A Service Manual

Fluke

Fluke FTK200 Manual de usuario

Fluke

Fluke ScopeMeter 190-104 Manual de instrucciones

Fluke

Fluke BT5300 Series Manual de usuario

Fluke

Fluke 975 AirMeter Instrucciones de instalación y funcionamiento

Fluke

Fluke CertiFiber Pro Manual de usuario

Fluke

Fluke 714 Manual de usuario

Fluke

Fluke 4180 Manual de usuario

Fluke

Fluke 753 Manual de uso y cuidado

Fluke

Fluke 71 Series Manual de uso y cuidado

Fluke

Fluke 7380 Manual de usuario

Fluke

Fluke 190-102/AM/S Manual de usuario

Fluke

Fluke 154 Manual de usuario

Fluke

Fluke 820-2 Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario

Rohde & Schwarz

Rohde & Schwarz RTA4000 Manual de usuario
