Fluke 43B

Power Quality Analyzer

Getting Started

June 2005

All product names are trademarks of their respective companies.

Fluke 43B

Getting Started

PLACING ORDERS AND GETTING ASSISTANCE

To locate an authorized service center,

visit us on the World Wide Web:

http://www.fluke.com

or call Fluke using any of the phone numbers listed below:

+1-888-993-5853 in U.S.A. and Canada

+31-40-2675200 in Europe

+1-425-446-5500 from other countries

Unpacking

The following items are included in your Fluke 43B kit:..

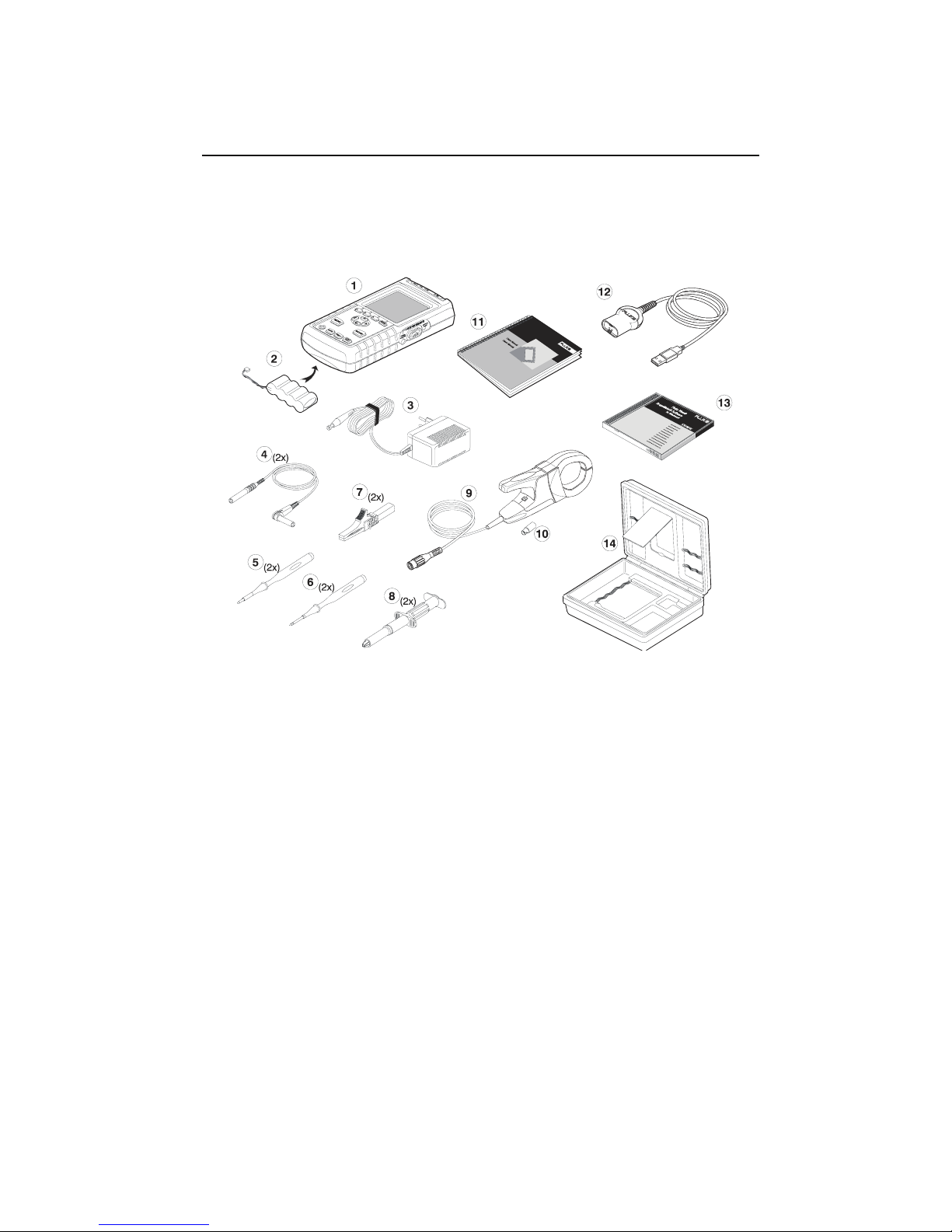

Figure 1. Carrying Case Contents

1 Fluke 43B Power Quality Analyzer

2 BP120MH Ni-MH Battery Pack (installed)

3 PM8907/8xx Power Adapter/Battery Charger

4 TL24 Test Leads, red and black

5 TP1 Flat blade Test Pins, red and black

6 TP4 4mm Test Pins, red and black

7 AC85A Large Jaw Alligator Clips for Banana Plugs, red and black

8 AC20 Industrial Alligator Clips for Banana Plugs, red and black

9 i400s Clamp-on AC Current Probe

10 BB120 Shielded Banana-to-BNC Adapter Plugs (1x black)

11 Getting Started Manual incl. User / Application Manual CD

12 OC4USB Optically Isolated USB Adapter/Cable

13 SW43W FlukeView®Power Quality Analyzer software

14 C120 Hard Carrying Case

Getting Started

Unpacking

Fluke 43B

Getting Started

Safety Information: Read First

Read the safety information before using the Fluke 43B.

Specific warning and caution statements, where they apply, will be found

throughout the manual.

A “Warning” identifies conditions and actions that pose hazard(s)

to the user.

A “Caution” identifies conditions and actions that may damage

the Fluke 43B.

The following international symbols are used on the Fluke 43B and in this

manual:

Read the safety information in

the manual

Double Insulation

(Protection Class)

Earth Equipotential inputs,

connected internally

UL 3111 listed

UL1244

UL 1244 listed

Conformité Européenne CSA listed for USA and

Canada

Recycling information Disposal information

Warning

To avoid electrical shock, use only a Fluke power supply, Model

PM8907 (Power Adapter/Battery Charger).

Warning

Do the following to avoid electrical shock or fire if a Fluke 43B

common input is connected to more than 42 V peak (30 V rms):

xUse only test leads and test lead adapters supplied with the

Fluke 43B (or safety-designed equivalents as specified in the

accessory list, see Users Manual.)

xDo not use conventional exposed metal banana plug

connectors.

xUse only one common connection to the Fluke 43B.

xRemove all test leads that are not in use.

xThe maximum allowable input voltage is 600V. Use test lead

adapters that have a rating of 600V or more.

xWhen powering the Fluke 43B, first connect the power

adapter to the outlet before connecting it to the Fluke 43B.

xDo not insert metal objects into the power adapter connector

of the Fluke 43B.

Warning

In the scope function it is possible to select AC coupling and to

operate time base ranges and amplitude manually. In this case,

the measuring results displayed on the screen may not be

representative of the total signal. This can result in the presence

of dangerous voltages of more than 42 V peak (30 V rms) not

being detected. To guarantee user safety, all signals should first

be measured with DC coupling. This ensures that the full signal

is measured.

Getting Started

Safety Information: Read First

Fluke 43B

Getting Started

The terms ‘Isolated’ or ‘Electrically floating’ are used in this manual to indicate a

measurement in which the Fluke 43B COM (common, also called ground) is

connected to a voltage different from earth ground.

The term “Grounded” is used in this manual to indicate a measurement in which

the Fluke 43B COM (common) is connected to an earth ground potential.

The Fluke 43B common inputs (red INPUT 1 shield, gray INPUT 2 shield, and

black 4-mm banana COM input) are connected internally via self-recovering

fault protection. This is denoted by the symbol.

The input connectors have no exposed metal and are fully insulated to protect

against electrical shock. The black 4 mm banana jack COM (common) can be

connected to a voltage above earth ground for isolated (electrically floating)

measurements and is rated up to 600V rms above earth ground.

If Safety-Precautions are Impaired

Using the Fluke 43B in a manner not specified may impair the protection

provided by the equipment. Before using, inspect the test leads for

mechanical damage and replace damaged test leads!

If it is likely that safety has been impaired, turn the Fluke 43B off and disconnect

it from the line power. The matter should then be referred to qualified personnel.

Safety is likely to be impaired if, for example, the Fluke 43B fails to perform the

intended measurements or shows visible damage.

Current Probe

Warning

xUse extreme caution when clamping the current probe around

uninsulated conductors or bus bars.

xNever use the current probe on circuits rated higher than 600V

in measurement category III (CAT III) of EN/IEC61010-1

xKeep your fingers behind the finger guard.

Do not use a probe that is cracked, damaged, or has a defective cable. Such

probes should be made inoperative by taping the clamp shut to prevent

operation.

Introducing the Fluke 43B

Powering the Fluke 43B

To power the Fluke 43B from a standard AC outlet, perform steps 1-3.

For battery power, see Chapter 2.

1Plug the power adapter into the AC outlet.

2Connect the power adapter cable to the Fluke 43B (see Figure 2).

Figure 2. Powering the Fluke 43B

3Turn the Fluke 43B on.

The opening screen will appear on the display (see Figure 3).

Note

If the Fluke 43B does not turn on, the batteries may be dead. Leave

the Fluke 43B connected to the outlet for 15 minutes and try again.

Fluke 43B

Getting Started

Figure 3. Opening Screen

The screen shows which test leads or probes you should use on the inputs.

Note that in the screen shown in Figure 3, for example, you should use TEST

LEADS for voltage measurements and a 1 mV/A current probe for current

measurements.

4Continue.

Inputs

Figure 4. Measurement Connections

INPUT 1: Use the red test lead on input 1 ( ).

COM : Use the black test lead on the COM input ( COM).

Use these inputs for all voltage measurements, and for Ohm, continuity, diode

capacitance and temperature measurements.

The Fluke 43B common inputs (red INPUT 1 shield, gray INPUT 2 shield,

and black COM input) are connected internally via self-recovering fault

protection.

INPUT 2: Use the i400s AC current probe on input 2 ( ).

This input is mainly used for current measurements. Use the BB120 banana-

to-BNC adapter to connect the current probe.

Note

If you use other test leads or probes, change the probe settings in the

instrument setup menu (see “Selecting Probes”).

Getting Started

Inputs

Fluke 43B

Getting Started

Main Menu

All functions can be easily selected from the

main menu.

1Open the main menu.

(for example)

INRUSH CURRENT

Measures inrush current and

inrush time (motor start-ups).

OHMS

CONTINUITY

CAPACITANCE

Measures resistance, diodes,

continuity and capacitance (DMM).

TEMPERATURE

Measures temperature with optional

temperature probe.

SCOPE

Dual channel oscilloscope: Volts on

input 1 and Amps on input 2.





VOLTS

AMPS

HERTZ
