Fluke 1735 Guía de configuración

Manual Supplement

Manual Title: 1735 Users Supplement Issue: 4

Part Number: 2560330 Issue Date: 3/08

Print Date: March 2006 Page Count: 5

Revision/Date: 1, 4/06

This supplement contains information

necessary to ensure the accuracy of

the above manual.

1735 Users Manual Supplement

6/07 1

Change #1

On page 10, prior to Basic Operation, add the following:

Charging the Internal Battery

Before you use the 1735 Logger, charge the internal battery as

follows:

1. Switch the 1735 Battery Charger to either 115V or 230V as

appropriate.

2. With the Logger power off, attach the BC1735 battery

charger to a power outlet and then to the 1735.

3. Charge the 1735 for 5 hours before using it for the first time.

4. On subesquent use, turn the Logger power on before you

connect the BC1735 Battery Charger.

This helps insure that the fast charge mode is activated. If the

Logger does not turn on due to a discharged battery, recharge the

battery for 5 hours with the Logger power off as described in

steps 2 and 3 above.

Change #2

On page 52, under EMC replace the Emission, with the

following:

Emission: IEC/EN 61326-1:1997+A1:1998+A2:2000 class B

Change #3

On page 2, add the following symbol to Table 1:

-Do not apply around or remove from the Hazardous

Live conductors

Manual Supplement 1735 Users

2 6/07

On page 4, replace Table 3 with the following:

Table 3. Optional Accessories

Description Accessory

I1A/10A CLAMP PQ3, 3-PHASE

1A/10A MINI CURRENT CLAMP

SET FOR PQ

I1A/10A CLAMP PQ3

I1A/10A CLAMP PQ4, 4-PHASE

1A/10A MINI CURRENT CLAMP

SET FOR PQ

I1A/10A CLAMP PQ4

I5A/50A CLAMP PQ3, 3-PHASE

5A/50A MINI CURRENT CLAMP

SET FOR PQ

I5A/50A CLAMP PQ3

I5A/50A CLAMP PQ4, 4-PHASE

5A/50A MINI CURRENT CLAMP

SET FOR PQ

I5A/50A CLAMP PQ4

I20/200A CLAMP PQ3, 3-PHASE

20A/200A MINI CURRENT

CLAMP SET FOR PQ

I20/200A CLAMP PQ3

I20/200A CLAMP PQ4, 4-PHASE

20A/200A MINI CURRENT

CLAMP SET FOR PQ

I20/200A CLAMP PQ4

3000/6000A FLEX

4,3000A/6000A 36-INCH FLEXI

PROBE 4 PHASE

3000/6000A FLEX 4

C435 HARDCASE TRANSIT CASE

On page 21, add the following Note under the Warning:

Note

When using either flexi-probes or current clamp

sets, make sure the arrow on the current probe

points towards the load.

1735 Users Manual Supplement

8/07 3

Change #4

On page 21, under Connecting the Power Logger to the

network add the following text and Figure:

•To avoid shock or personal injury, keep fingers

behind the tactile barrier, see the figure.

cab01f.eps

Using the Optional Microclamps

Manual Supplement 1735 Users

4 3/08

Change #5

On page 22, replace the table with the following:

Network Test Leads

L1 A (L1)

Not connected B (L2)

Not connected C (L3)

N N

On page 26, change the figure title to:

Figure 8. Three-Phase Delta ΔConnections-Blondel

(Aron, Two-Element Delta)

And add the following figure and title:

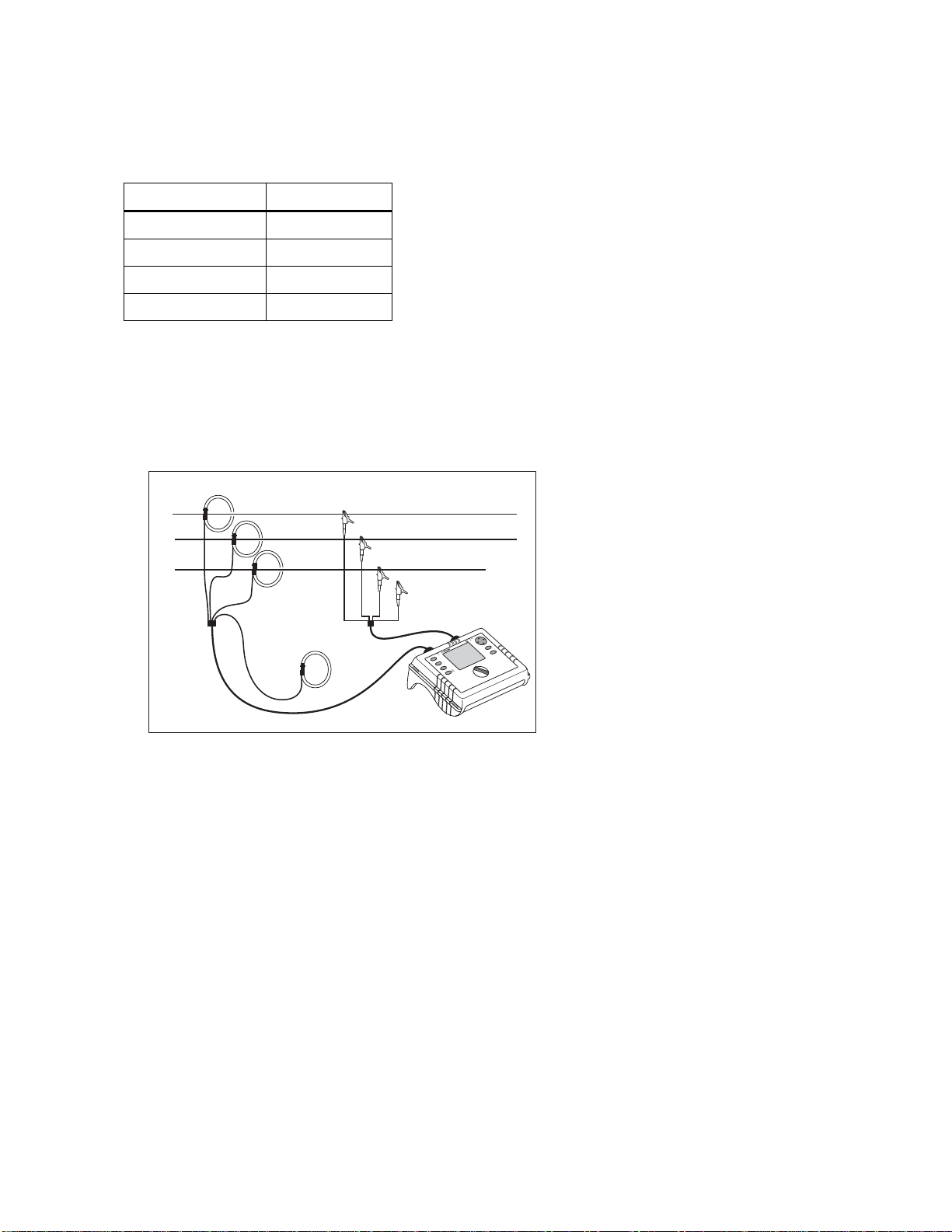

CURRENTINPUT

CURSOR

SCOPE

OFF

HARMONICS

POWER EVENTS

METER

V A Hz

ENTER

MAX30V

POWERLOGGER

1735

SAVE

SCREEN

ESC

VOLTAGEINPUT

HOLD

RUN

RECORD

MEASURE

600VCA

L2 L3 N

edx045.eps

Figure 9. Three-Phase Delta ΔConnections-Blondel

(Aron, Three-Element Delta)

1735 Users Manual Supplement

3/08 5

On page 49, under Power Measurements, delete the total

active power Blondel (Aron) formula and add:

31 PPPtot

Total Active Power-Blondel (Aron)

22 tottottot PSQ −= Total Reactive Power-Blondel (Aron)

12 IIIVVV

Stot

++⋅++

=Total Apparent Power

)( 312 III

−

Blondel (Aron) circuit

On page 50, underTotal Harmonic Distortion,delete the

Total Harmonic Distortion formula and add:

%100

)(

×=

∑

THD hh

Total Harmonic Distortion

V1 to RMS of the fundamental

Vh to RMS of the h-th harmonic

∑

⋅

⎟

⎠

⎞

⎜

⎝

⎛

=− 50

hRMS

factork k-factor

h… h-th harmonic (amps)

RMS … RMS amps

h … harmonic order
