FLOS IC C/W1 Manual de usuario

REV. 1

DATE 22/02/2022

IC C/W1

FU317857

Flos reserves the right to introduce any changes to its own models, without prior notice.

01. F3136057 – Glass diffuser 1 assembly for chrome version

02. RF3160100 – Kit with screws and Allen key

REV. 1

DATE 22/02/2022

IC C/CW1

FU317857

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

F3136057

GLASS DIFFUSER 1 ASSEMBLY FOR CHROME VERSION

IC C/W1 FU317857

REV. 1

DATE 22/02/2022

Ic-CW1

double

p.03

Ic-F1

p.03 Ic-S1

p.03

Ic T1

High

p.03

Ic-CW1

p.03

Ic T1

Low

p.03

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

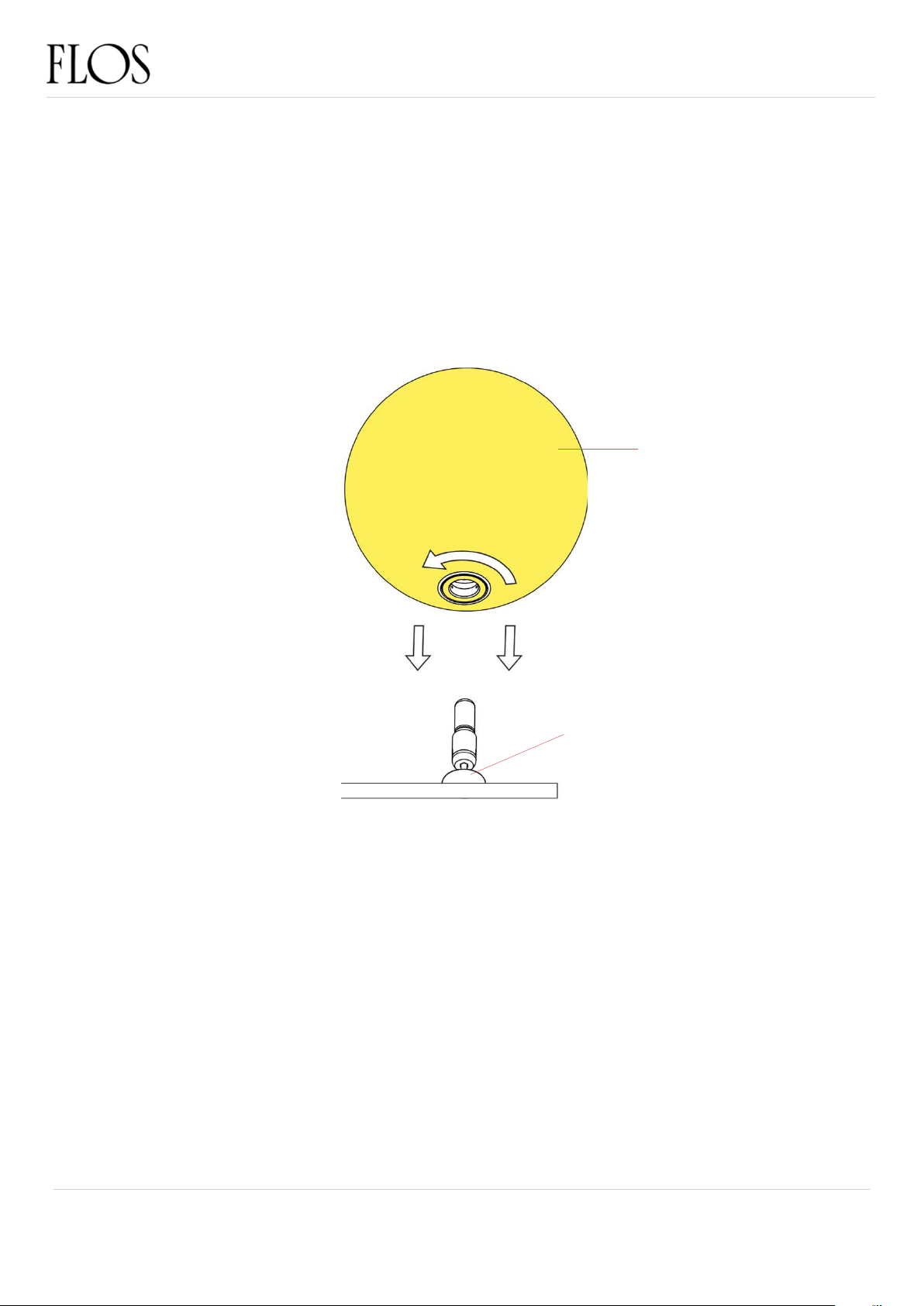

Assemble the glass diffuser (E) by fastening it delicately to the lamp body’s

ferrule (F).

Fig.1

REV. 1

DATE 22/02/2022

F3136057

GLASS DIFFUSER 1 ASSEMBLY FOR CHROME VERSION

IC C/W1 FU317857

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF3160100

KIT WITH SCREWS AND ALLEN KEY

REV. 1

DATE 22/02/2022

IC C/W1 FU317857

Ic-CW1

double

p.05

Ic-CW2

p.05 Ic-S1

p.08

Overlap

p.06

Ic-CW1

p.05 Ic-CW2

double

p.05

Ic-S2

p.08

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Before proceeding in installing the screws, please verify that the glass diffuser

(M) has been removed. If not, please remove to the glass diffuser (M) to avoid

possible damages.

Fig.1

REV. 1

DATE 22/02/2022

RF3160100

KIT WITH SCREWS AND ALLEN KEY

IC C/W1 FU317857

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Position the lamp body (C) on the wall attachment and assemble the lamp

body by fastening the 2 screws (A) with the Allen key.

HINTS!!! To carry-out this operation position the lamp body close to the wall

attachment, tilt the body and slightly and tip it slightly to the left, to then fasten

it with a slight clockwise rotation.

Fig.2

REV. 1

DATE 22/02/2022

RF3160100

KIT WITH SCREWS AND ALLEN KEY

IC C/W1 FU317857

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Assemble back the glass diffuser (H) by fastening it delicately to the lamp

body’s ferrule (I).

Fig.3

REV. 1

DATE 22/02/2022

RF3160100

KIT WITH SCREWS AND ALLEN KEY

IC C/W1 FU317857
