FLOS ROMEO MOON T1 Manual de usuario
REV. 2
DATE 18/10/2021
1

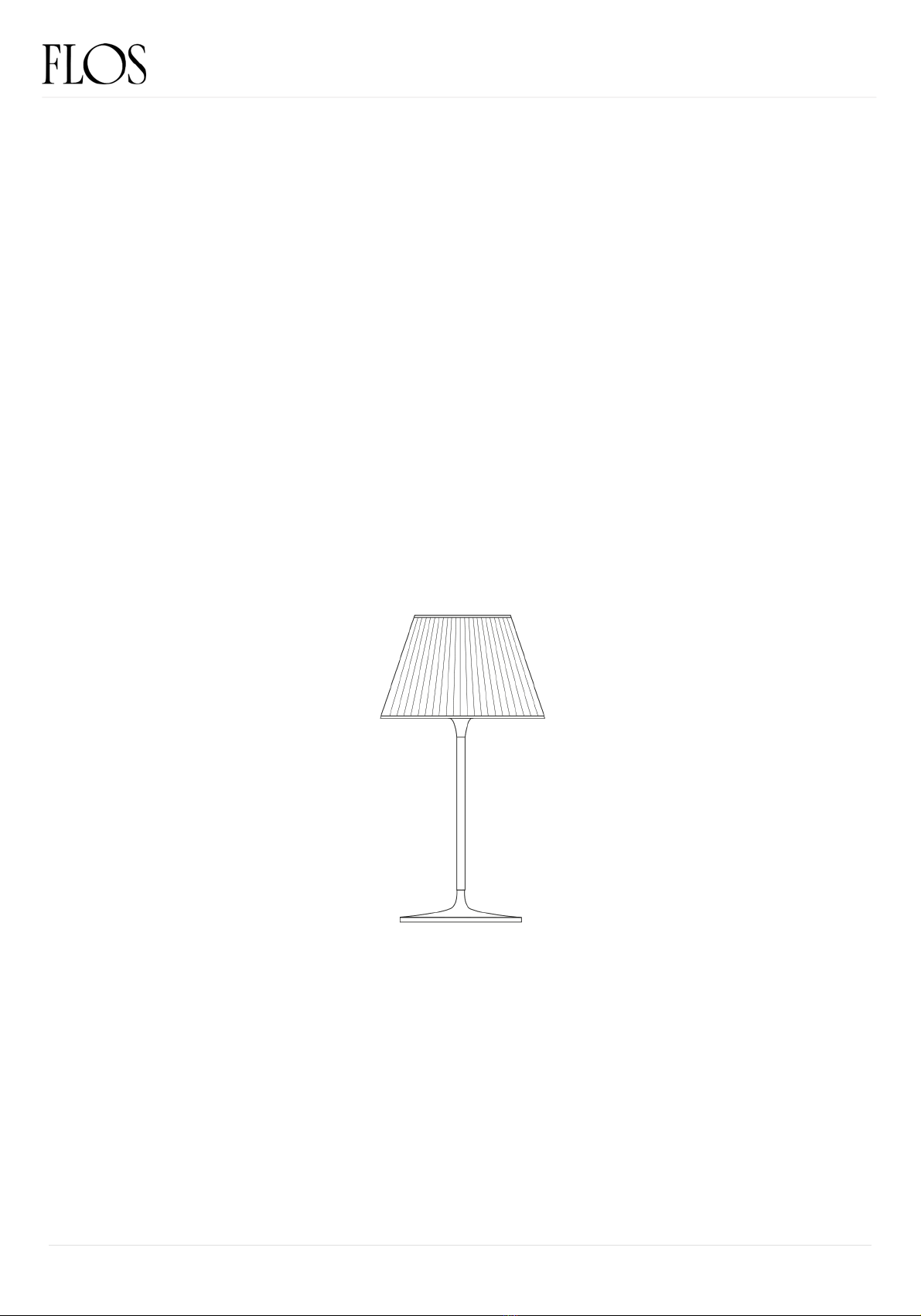

ROMEO MOON T1
Designed by Philippe Starck, 1998
F6107000
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
2
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

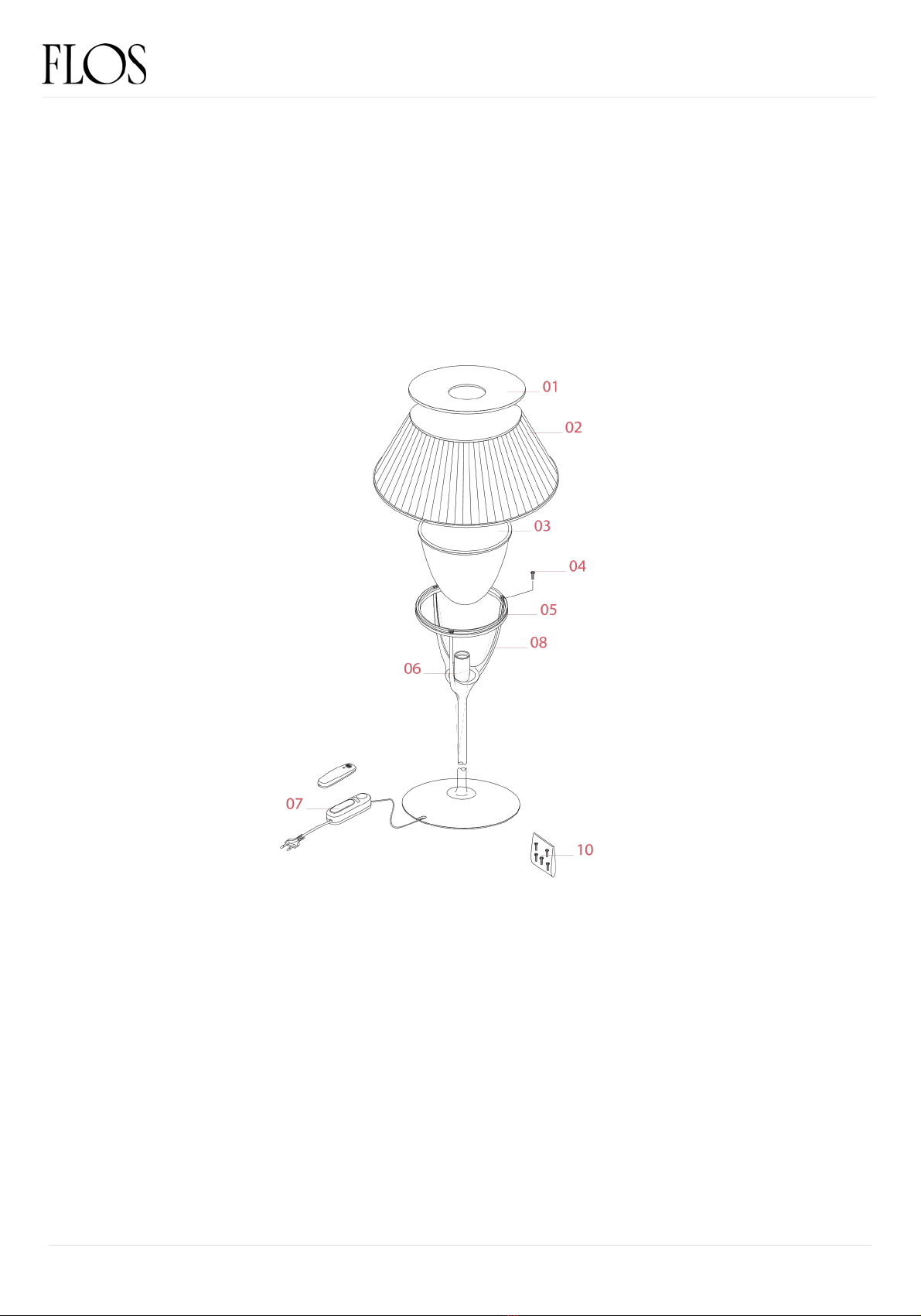

01. RF03206
–T1 cover ring
02. RF6110400
–Romeo moon S1/T1 crown
03. RF03201
–Acid-etched diffuser
04. RF6100200
–Kit of screws & bolts for Romeo
05. RF05369
–S1/T1 bracket ring
06. RF04169
– E27 Lamp holder
07. RF32262
– Led dimmer 1004P LFP100-240V 4-150WHL 4-25W
08. RF02813
–T1 grey support bracket
10. RF6138100
–Kit of transparent pads for base
ROMEO MOON T1
F6107000
REV. 2
DATE 18/10/2021
EN
3
RF03206
T1 COVER RING
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
ROMEO MOON T1 F6107000
REV. 1
DATE 18/10/2021
4
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

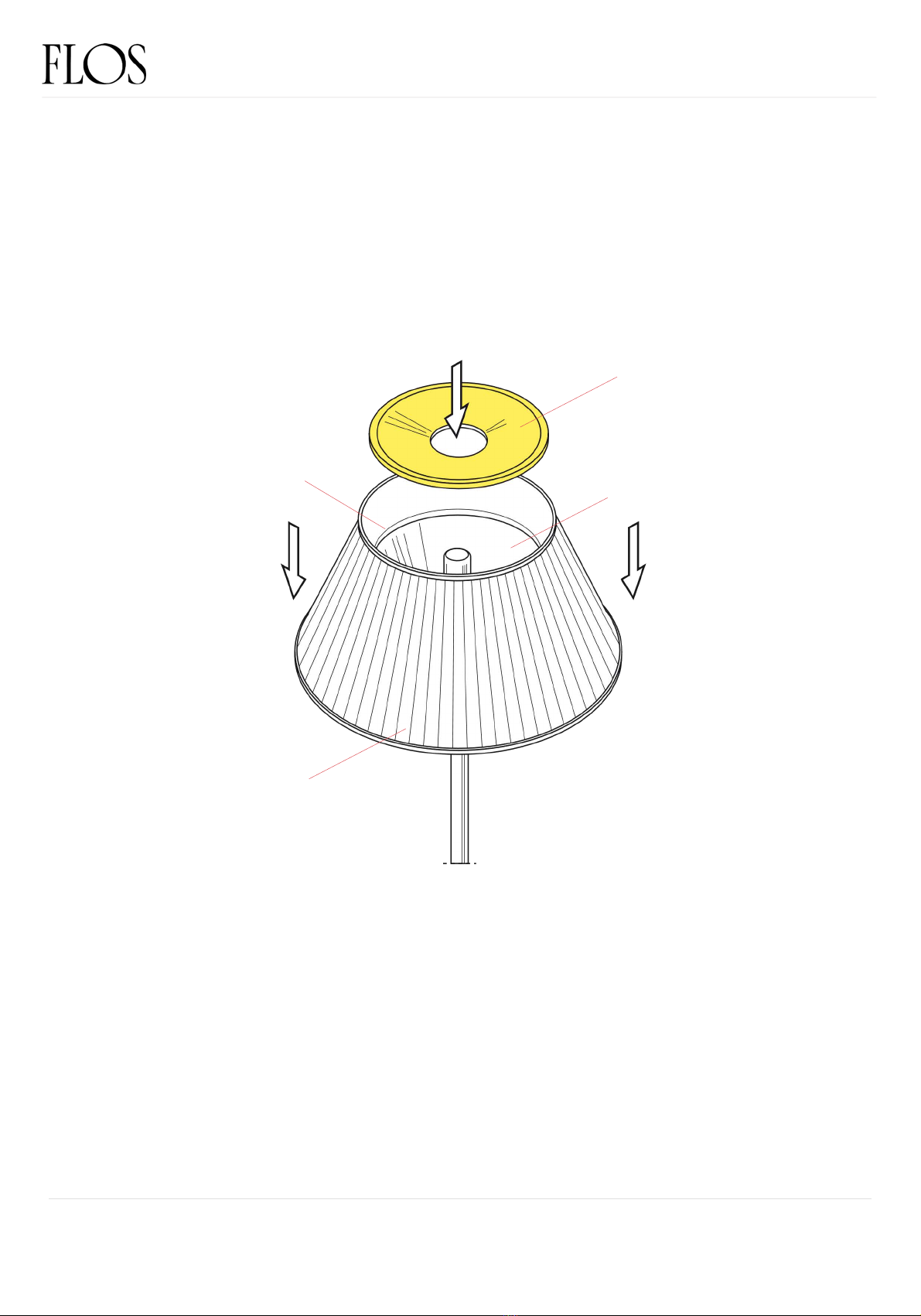

Place the glass shade (P) on the support ring (D).
Rest the covering ring (M) on the internal glass diffuser (L).
EN
Fig.1
D
P
REV. 1
DATE 18/10/2021
M
L
RF03206
T1 COVER RING
ROMEO MOON T1 F6107000
EN
5
RF6110400
ROMEO MOON S1/T1 CROWN
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 18/10/2021
ROMEO MOON T1 F6107000
Romeo
Moon S1
p.31
Romeo
Moon T1
p.05
6
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

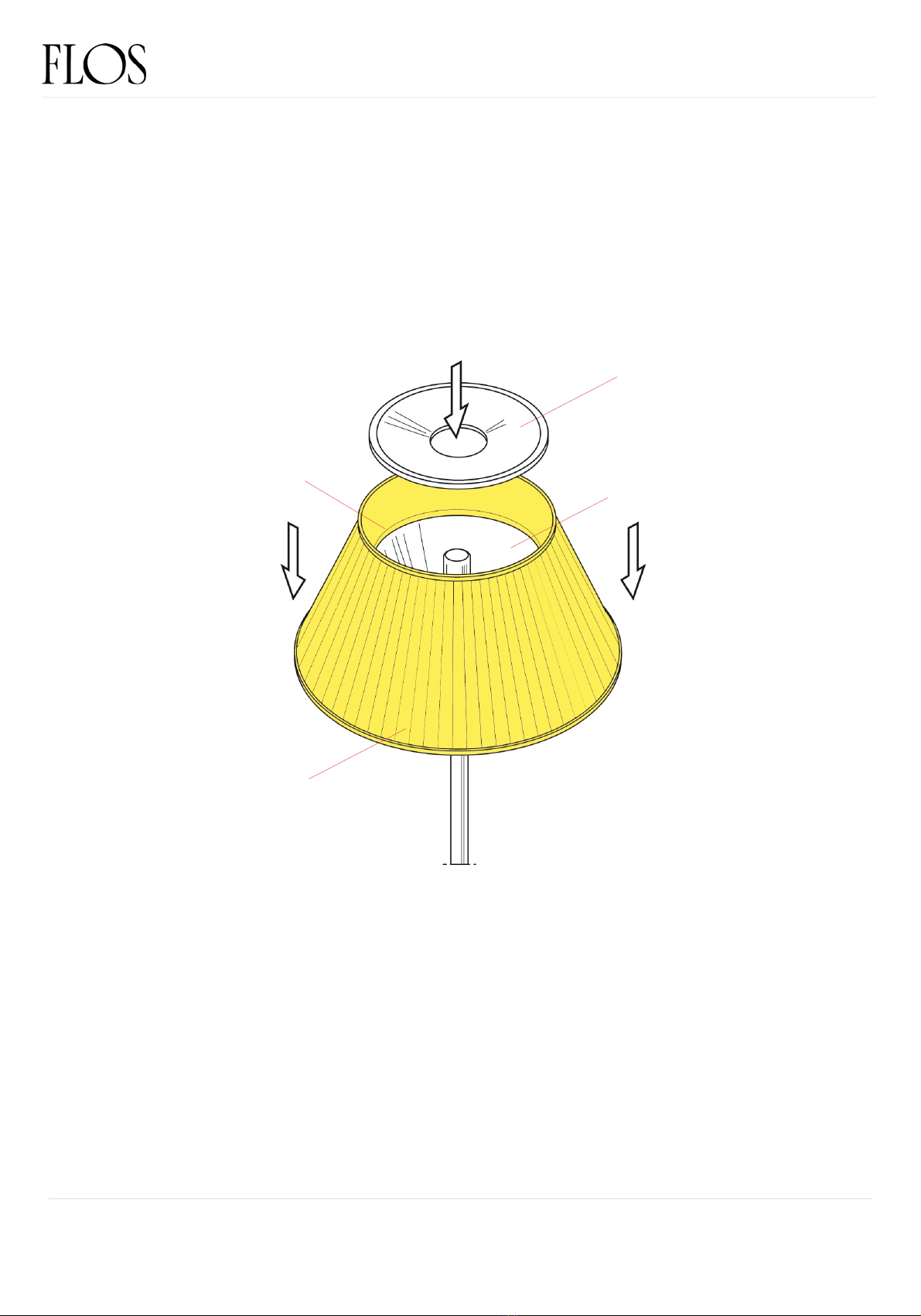

Place the glass shade (P) on the support ring (D).
Rest the covering ring (M) on the internal glass diffuser (L).
EN
Fig.1
D
P
M
L
REV. 1
DATE 18/10/2021
ROMEO MOON T1 F6107000
RF6110400
ROMEO MOON S1/T1 CROWN
EN
7
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
RF03201
ACID-ETCHED DIFFUSER
REV. 1
DATE 18/10/2021
ROMEO MOON T1 F6107000
Romeo
Soft T1
p.09
Romeo
Moon T1
p.07
8
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Remove the lamp bulb (I) if still present on the lamp device.
EN
Fig.1
I
REV. 1
DATE 18/10/2021
RF03201
ACID-ETCHED DIFFUSER
ROMEO MOON T1 F6107000
9
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Insert the diffuser (H).
EN
Fig.2
H
REV. 1
DATE 18/10/2021
RF03201
ACID-ETCHED DIFFUSER
ROMEO MOON T1 F6107000
10
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Insert the lamp-bulb (I).
EN
Fig.3
I
REV. 1
DATE 18/10/2021
RF03201
ACID-ETCHED DIFFUSER
ROMEO MOON T1 F6107000
